Ekscentrične stiskalnice, enostebrične, 25–54 t nakup rabljenega (75)

Leto izdelave: 1977, stanje: rabljeno, Pressure: 40 t Outreach: - mm Stroke: 8 - 90 mm Table dimensions: 630 x 430 mm Ram adjustment: 60 mm Maximum stroke rate: 65 strokes/min Total power requirement: kW Machine weight approx.: 2,480 kg Space requirement approx.: m - Gear drive Dcsdpeb U Hxfofx Abgei - Tiltable - Table clamping plate - Mechanical overload protection in the ram (shear plate) - Pneumatic clutch

Stanje: novo, Pressure: 40 t Throat depth: 225 mm Stroke: 8–84 mm Table size: 580 x 450 mm Ram adjustment: 55 mm Strokes per minute: 130 spm Ram surface: 185 x 180 mm Ram bore: 40 H7 mm Passage opening in table: 210 x 170 mm T-slots: 22 mm Clamping plate: 570 x 450 x 65 mm Dcodpfx Abjb U Hwmogoi Total power requirement: 3.5 kW Machine weight approx.: 2.7 t Space requirement approx.: 1.4 x 1.1 x 2.1 m - Pneumatic clutch-brake combination Ortlinghaus - Central lubrication system Vogel - Cam controller Balluff - Height-adjustable table - Control cabinet with touchscreen - Foot switch

Stanje: novo, Pressure: 25 t Throat depth: 200 mm Stroke: 4 - 80 mm Table surface: 520 x 400 mm Stroke rate: 160 strokes/min Ram surface: 160 x 160 mm Ram adjustment: 40 mm Dcjdsb U Hwpopfx Abgoi Ram bore: 32 H7 mm Throughhole in table: 200 x 150 mm Clamping plate: 500 x 380 x 60 mm Total power requirement: 2.7 kW Machine weight approx.: 1.9 t Space requirement approx.: 1.3 x 1.0 x 1.85 m - Ortlinghaus pneumatic clutch/brake combination - Vogel central lubrication - Balluff cam controller - Height-adjustable table - Control cabinet with touchscreen - Foot switch

Stanje: novo, Pressure: 25 t Throat depth: 200 mm Stroke: 4 - 80 mm Table size: 520 x 400 mm Strokes per minute: 160 spm Continuous operating capacity: 1370 Nm Single stroke capacity: 2740 Nm Stroke adjustment: 4 - 80 mm Ram adjustment: 40 mm Ram surface: 160 x 160 mm Table through-hole: 200 x 150 mm Clamping plate: 500 x 380 x 60 mm Table through-hole: 80 mm Machine weight approx. 1.9 t - Ortlinghaus hydraulic clutch-brake combination - Vogel central lubrication system Dodsb U Hwnepfx Abgeci - Balluff cam controller - Height-adjustable table - Control cabinet with touchscreen - Foot switch

Stanje: rabljeno, Leto izdelave: 1986, Pressure: 40 t Throat depth: 265 mm Stroke: 8 - 95 mm Table dimensions: 660 x 520 mm Ram dimensions: 400 x 250 mm Ram adjustment: 80 mm Strokes per minute: 70 - 142 spm Total power requirement: kW (not specified) Machine weight approx.: 4,500 kg Dcedpfsumm Sqjx Abgei Space requirement approx.: 1.245 x 1.585 x 2.37 m - Table clamping plate

Stanje: novo, Pressure: 40 t Throat depth: 225 mm Stroke: 8–84 mm Table size: 580 x 450 mm Ram adjustment: 55 mm Strokes per minute: 130 spm Ram surface: 185 x 180 mm Ram bore: 40 H7 mm Through-hole in table: 210 x 170 mm T-slots: 22 Clamping plate: 570 x 450 x 65 mm Total connected load: 3.5 kW Machine weight approx.: 2.7 t Space requirement approx.: 1.4 x 1.1 x 2.1 m - Hydraulic clutch-brake combination - Central lubrication (Vogel) - Cam control (Balluff) - Control cabinet with touchscreen - Height-adjustable table Dcedpfx Ajb U Hwtjbgji - Foot switch

Stanje: rabljeno, Leto izdelave: 1983, Press force 25 t Throat depth 225 mm Stroke 8 - 85 mm Table dimensions 560 x 450 mm Ram dimensions 360 x 220 mm Ram adjustment 55 mm Strokes per minute 80 - 160 spm Total power requirement kW Dcodpfsumm Swex Abgoi Machine weight approx. 2,500 kg Space requirement approx. 1,135 x 1,365 x 2,145 m - Clamping plate for the table

Stanje: rabljeno, Leto izdelave: 1990, Pressure: 125 t Throat depth: 360 mm Stroke: 8 - 140 mm Installation height (with max. upper stroke and upper ram adjustment): 500 mm Ram adjustment: 100 mm Ram surface: 800 x 400 mm Table surface: 1000 x 720 mm Clamping plate: 990 x 670 mm Clamping plate thickness: 80 mm Strokes per minute: 60 spm Pin hole (depth x diameter): 90 x 50 mm Total power requirement: 23 A Machine weight approx.: 11 t Space required (W x D x H): approx. 2770 x 2520 x 2950 mm - Hydraulically operated Ortlinghaus clutch-brake combination - Belt drive - Hydraulic overload protection - Hydraulic connecting rod clamping - Motorized ram height adjustment - Semi-automatic stroke adjustment - Manual TDC correction - Fixed table - Reversing circuit (return stroke) - Electric stroke counter - Electronic preselection counter - Cam controller The machine is partially overhauled in our workshops as follows: - Disassembled, cleaned, and fully inspected technically Dsdpsyatx Eefx Abgeci - Newly painted (custom colors available on request) - New seals - New control cabinet with touchscreen, incl. machine wiring - Current press inspection

Stanje: rabljeno, Presse excentrique à col de cygne HELMERDING type EH 25 B No de machine : 5917 Année de fabrication : 1993 Force de pressage : 25 tonnes Profondeur de col de cygne : 180 mm Table : 560 x 360 mm Surface du coulisseau : 315 x 150 mm Ouverture de passage dans la table : 150 x 100 mm Dsdpfxeyath Te Abgoci Réglage de la course : 8 - 82 mm Course réglable du coulisseau : 60 mm Hauteur d'installation max. : 330 mm Alésage pour tenon de fixation : Ø 40 mm Fréquence des coups : 145 coups/min Réglage en hauteur de la table : 150 mm Hauteur de table au-dessus du sol : 630 - 780 mm Puissance moteur : 1,5 kW Raccordement électrique : 400 V, 50 Hz - Embrayage-frein hydraulique, marque : ORTLINGHAUS - Pédale électrique et commande bimanuelle - Graissage centralisé automatique, BEKA Schmiertechnik - Armoire électrique avec commande à contacteurs bi-canal - Table de presse réglable en hauteur par 2 vis de réglage - Sécurité UVV selon VBG 7n 5.1 pour travail manuel - Schéma électrique Encombrement (L x l x h) : 1600 x 1100 x 1900 mm Poids : 2 tonnes Bon état

Stanje: novo, Stiskalni varnostni ventil IMI HERION / NORGREN PSV ventil, dvojni ventil, usmerjevalni ventil Tip: XSz 10 V Id. št.: 2492982 Serijska št.: 2608 Enak kot naročniška št.: 2492951 Tlak: 3 do 10 bar Navoj za priklop stisnjenega zraka (A)+(B)+(P)+(S): 1/2" Izhod stisnjenega zraka (R): prirobnični priklop Dedpfx Aow T U A Ssbgeci Napajalna napetost: 2x 24 V (DC) - Osnovna plošča, razmak med luknjami 115 x 63 mm, 4x montažna luknja Ø 6,5 mm - Opremljen s dušilcem na izhodu stisnjenega zraka (R) Dimenzije ohišja ventila D x Š x V: 105 x 90 x 220 mm Dimenzije z dušilcem D x Š x V: 180 x 165 x 220 mm Teža: 3,0 kg Novo, neuporabljeno, iz zaloge

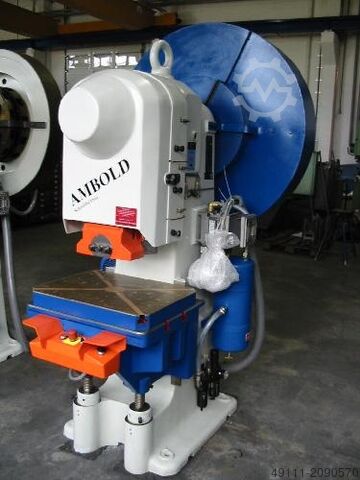

Stanje: rabljeno, Presse excentrique à montant unique AMBOLD type PEEV 25.2 N° de machine 11734 / Année de fabrication 20 Force de pression : 25 t Profondeur du col de cygne : 200 mm Table : 520 x 400 mm Surface du coulisseau : 155 x 155 mm Trou traversant dans la table : 185 x 155 mm Réglage de la course : 4–80 mm Course réglable du coulisseau : 40 mm Hauteur d'installation max. : 270 mm (plus grande course au PMB, table en bas) Alésage de goupille de serrage : Ø 32 mm Dcodotx E N Tjpfx Abgoi Réglage en hauteur de la table : env. 150 mm Nombre de courses du coulisseau : 160 courses/min Puissance moteur : 2,2 kW Raccordement électrique : 400 Volts, 50 Hz - Embrayage-frein pneumatique ORTLINGHAUS - Soupape de sécurité pour presses HERION - Commande de presse PILZ - Pédale électrique et commande bimanuelle - Table de presse réglable en hauteur par 2 broches filetées - Graissage centralisé automatique VOGEL - Sécurité UVV selon VBG 7n 5.1 pour pose manuelle - Armoire électrique séparée L x l x H = 600 x 310 x 1500 mm Encombrement L x l x H : 1450 x 1000 x 1850 mm Poids : 1,9 t Très bon état

Stanje: novo, Leto izdelave: 2024, Pressure: 50 t Throat depth: 230 mm Stroke: 12–110 mm Stroke rate: 40–100 strokes/min Ram adjustment: 70 mm Table surface: 740 x 440 mm Table height: 840 mm Dcjdpfx Abjvfhqpsgoi Pass-through opening in table: Ø 140 mm Ram surface: 460 x 300 mm Ram bore: Ø 45 mm Total power requirement: 4 kW Machine weight: approx. 3.4 t Space requirement (WxDxH): approx. 1,500 x 2,500 x 2,510 mm Machine number: 16150 LED machine lamp Frequency-controlled stroke rate Counterbalance cylinder Gear wheels Sick light curtain for safety and cycle mode Motorized ram adjustment Machine feet Two-hand operation Foot control Central lubrication Hydraulic overload protection in ram Pneumatic clutch-brake combination Approved for manual loading operations

Leto izdelave: 1972, stanje: rabljeno, Press force 16 t Outreach 185 mm Stroke 8–60 mm Strokes per minute 140 Ram adjustment 50 mm Dcsdpfx Abep Sycdjgei Table surface 500x340 mm Ram surface 230x155 mm Pass-through opening in table Ø160 mm Table height 800 mm Pass-through opening in ram Ø35 mm Machine weight approx. 1.5 t Space requirement approx. 1200x1200x2000 mm Rotary wedge clutch Machine no.: 3857 Height-adjustable table

Stanje: rabljeno, Leto izdelave: 1987, Pressure 35 t Dcjdpew E Nuuofx Abgji Outreach 220 mm Stroke 8-96 mm Stroke rate 120 strokes/min Ram adjustment 50 mm Table surface 580x440 mm Ram surface 305x170 mm Drop-through opening in table 215x175 mm Table height 870 mm Pin bore in ram Ø 40 mm Hydraulic clutch-brake combination Central grease lubrication Mechanical overload protection in ram Manual stroke adjustment Manual ram adjustment Two-hand operation Foot operation Height-adjustable table

Stanje: rabljeno, Leto izdelave: 1987, Presskraft 45 t Ausladung 230 mm Hub 4–80 mm Hübe pro Minute 120 Stößelverstellung 55 mm Tischfläche 695×455 mm Stößelfläche 365×180 mm Durchgangsöffnung im Tisch 220×180 mm Tischhöhe 890 mm Dsdpfx Aew E Nuzsbgoci Zapfenloch im Stößel Ø 40 mm Hydraulische Kupplungs-Bremskombination Zentrale Fettschmierung Mechanische Überlastsicherung im Stößel Manuelle Hubverstellung Manuelle Stößelverstellung Zweihandbedienung Fußbedienung Höhenverstellbarer Tisch

Leto izdelave: 2023, stanje: novo, Pressure: 30 t Throat Depth: 180 mm Stroke: 8–76 mm Stroke Rate: 80–200 strokes/min Slide Adjustment: 60 mm Dcedpfsp Uduhox Abgei Table Area: 360 x 580 mm Table Height: 840 mm Passage Opening in Table: Ø 110 mm Ram Area: 250 x 350 mm Pin Hole in Ram: Ø 40 mm Total Power Requirement: 3 kW Machine Weight: approx. 1.8 t Space Requirement approx. LxWxH: 1350 x 1200 x 2100 mm Machine Number: 16051 LED Machine Lamp Frequency-controlled Stroke Rate Sick Light Curtain for Safety and Cycle Operation 4x Electronically Programmable Cams 4x Programmable Tool Safeguards Machine Feet Two-hand Operation Foot Pedal Operation Centralized Lubrication Mechanical Shear Plate in Ram Pneumatic Clutch-Brake Combination Approved for Manual Loading/Unloading Operations

Leto izdelave: 2023, stanje: novo, Pressure: 40 t Outreach: 195 mm Stroke: 8–78 mm Strokes per minute: 76–190 Ram adjustment: 60 mm Table size: 650x380 mm Table height: 840 mm Passage opening in table: Ø 110 mm Ram area: 250x350 mm Pin hole in ram: Ø 40 mm Total power requirement: 3 kW Machine weight approx.: 2.2 t Space requirements (WxDxH): approx. 1450x1220x2110 mm Machine number: 16053 LED machine lamp Stroke rate frequency-controlled Sick light curtain for protection and automatic operation 4x electronic cams, freely programmable 4x tool safety circuits, freely programmable Machine feet Two-hand operation Foot operation Centralised lubrication Mechanical rupture plate in ram Dcedpfxsp Udupo Abgji Pneumatic clutch-brake combination Approved for manual loading/unloading operations Tiltable by 25°

Stanje: rabljeno, Leto izdelave: 1986, Pritisk 35 t Izteg 240 mm Hod 12-84 mm Število hodov 135 hod/min Nastavitev batnice 70 mm Površina mize 600x450 mm Površina batnice 360x180 mm Prehodna odprtina v mizi 220x130 mm Višina mize 630 mm Luknja v batnici Ø35 mm Teža stroja cca. 2,5 t Prostorske mere (ŠxGxV) cca 1500x2000x2600 mm Hidravlična spojčno-zavorna kombinacija Mehanska varovalna plošča v batnici Ročna nastavitev hoda Dcjdsxh Sx Espfx Abgsi Ročna nastavitev batnice Ročno centralno mazanje Višinsko nastavljiva miza Dvoroka upravljalna naprava

Stanje: novo, Leto izdelave: 2024, Pressure: 30 t Throat depth: 180 mm Stroke: 8-76 mm Strokes per minute: 80-200 spm Ram adjustment: 60 mm Table area: 360x580 mm Table height: 840 mm Passage hole in table: Ø 110 mm Ram area: 250x350 mm Bore in ram: Ø 40 mm Total power requirement: 3 kW Machine weight approx.: 1.8 t Space requirement approx. (WxDxH): 1350x1200x2100 mm Machine number: 16147 LED machine lamp Stroke rate frequency controlled Sick safety light curtain for protection and cycle operation 4x electronically programmable cams 4x freely programmable tool safety devices Machine feet Two-hand operation Foot operation Central lubrication Mechanical break plate in ram Dodpfx Aevfhpxobgsci Pneumatic clutch-brake combination Approved for hand-feeding operations

Stanje: dober (rabljeno), Leto izdelave: 1987, Funkcionalnost: popolnoma funkcionalen, stiskalna sila: 25 t, širina mize: 360 mm, dolžina mize: 560 mm, globina grla: 180 mm, skupna dolžina: 1.680 mm, skupna širina: 950 mm, skupna višina: 2.000 mm, skupna masa: 1.750 kg, nastavitev hidravličnega cilindra: 60 mm, Throat depth 180 mm Minimum distance between press table and ram at maximum stroke down, Ram adjustment down 50 mm Maximum distance between press table and ram at maximum stroke up, Ram adjustment up 340 mm Pass-through hole in the table 150 x 100 mm Table adjustment 150 mm Ram stroke 12–80 mm Dcedst Sgruepfx Abgji

Stanje: dober (rabljeno), Leto izdelave: 1952, Eccentric press, single-column press, automatic punching machine, single-column eccentric press, eccentric press, single-column press Dcedpfob A Hwhsx Abgsi - Fully enclosed safety cage - Pneumatic inspection window with finger guard - Press force: 35 t - Throat depth: 190 mm - Stroke rate: 105 strokes/min - Adjustable ram: 50 mm - Ram surface: 250 x 200 mm - Adjustable stroke: 15-70 mm - Table size: 540 x 310 mm - Throat depth: 180 mm

Stanje: dober (rabljeno), – Kapaciteta 25 ton Dcodpfxsxk Tm No Abgei – Miza 525 x 405 mm – Hod 75 mm – 120 hodov/min. – Nadzor z nožnim pedalom ali z dvema rokama – Centralni mazalni sistem – 380V

Stanje: generalkompletno obnovljen (rabljeno), Leto izdelave: 2000, Funkcionalnost: popolnoma funkcionalen, TECHNICAL SPECIFICATIONS: ROSS Press Model: T50 Nominal force: 500 kN Dcsdpju Rdw Hsfx Abgji Ram stroke min./max.: 8–100 mm Ram adjustment, max. closed height: 70/275 mm Speed: 90 strokes/min Clutch pressure: 5.5 Bar Motor frequency (Hz) / speed (rpm): 50/1410 Table size: L=650 x W=520 mm Shank hole: Ø50 mm Overhang to ram center: 260 mm Front opening: 290 mm Machine stop: TDC (top dead center) Supplied with user manual and CE conformity Six (6) month warranty excluding electronic parts. NEW COMPONENTS INSTALLED: • Safety guards with interlock switches; • Motor bearings; • Electrical panel; • Brake/clutch unit; • Two-hand control; • Foot pedal; • Air regulator; • Refurbished table on CNC machine

Leto izdelave: 2006, stanje: delavnici obnovljeno (rabljeno), TECHNICAL SPECIFICATIONS: Press Model: T35 TL/V-SM Serial Number: 11970306 Year of Manufacture: 2006 Nominal Force: 350 kN Testing Date: 23/05/06 Adjustable Stroke: 11–78 mm Strokes per Minute: 122 Slide Adjustment: 50 mm Shut Height (at BDC): 275 mm Maximum Engagements per Minute: 35 Maximum Flywheel RPM: 122 Weight: 2,700 kg Minimum Air Pressure: 6.5 Bar Clutch Pressure: 5.5/6.0 Bar Braking Angle: 55° Stopping Time: 247 ms Max. Die Dimensions: W=280 x L=240 x H=180 mm Max. Movable Mass: 40 kg Nominal Pressure: 350 kN at 2 mm, 120 strokes/min Machine Stop Position: TDC (Top Dead Centre) Dcodpsmhhdbofx Abgsi Supplied with user manual and CE compliance Six (6) months warranty, excluding electronic parts. INSTALLED NEW COMPONENTS: • Front safety guard with safety interlock keys.

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2017, Funkcionalnost: popolnoma funkcionalen, Prikazna enota šole za usposabljanje ZELO, ZELO redko uporabljena Samo za demonstracije, kot nova Djdpfxoyunphs Abgeci 1) Amada TP45FX 2) PATEC stiskalnica 110 ton z razvijalcem
