Morbidelli Author 504 nakup rabljenega (60)

Stanje: rabljeno, Leto izdelave: 2020, CNC-CONTROLLED MACHINING CENTER WITH MULTIFUNCTION TABLE – WORK CELL VERSION X400 CELL Drilling and milling, made for you! This numerically controlled machining center comes equipped with a comprehensive range of milling/drilling tools to meet any requirements for processing wood and similar materials. - Highly efficient, equipped with drilling spindles at 8,000 rpm and the most robust spindle technology available on the market, offering more than 1,000 maintenance-free operating hours. - Superior and more comprehensively equipped: various configuration options via the multifunction table, allowing the machine to be optimally equipped according to specific requirements. - Easier and more intuitive programming, thanks to the integrated Maestro CNC CAD/CAM module. - User-friendly: The work table is always accessible, the control cabinet and vacuum pump are integrated, and in the PRO SPACE configuration, there are no safety barriers. Load-Bearing Structure The load-bearing structure consists of a particularly robust monolithic steel base, heavily ribbed and very rigid. The especially wide support surface was specially designed to provide the machine with maximum stability, ensuring lasting precision regardless of operating conditions, and does not require anchoring to the floor. The base forms a large and solid support for the moving gantry: the work unit is thus equipped with a balanced, stable, and highly resilient support, capable of withstanding even the most demanding stress loads, leading to improved performance quality and greater accuracy. The moving gantry is a solid single component anchored to both sides of the base and slides along prismatic guides with recirculating ball shoes of the highest quality. Dual motorization along the X-axis ensures top performance even under heavy-duty operating conditions. Movement of the lower mobile unit (X-axis) and the working unit along the beam of the mobile unit (Y-axis) is achieved via a helical rack and pinion drive. This provides greater tooth-on-tooth engagement, achieving higher acceleration as well as increased speed along the X and Y axes. The specially designed helical gearing ensures reduced wear of mechanical components and quieter operation. The vertical Z-axis is driven by a recirculating ball screw, ensuring perfect balance under dynamic loads and allowing for strong acceleration and deceleration. The main milling unit is directly coupled to the Z-axis slide, ensuring the finest machining quality by eliminating vibrations. Movement along X-Y-Z axes is provided by brushless motors, powered by static inverters, delivering: - Reduced processing times thanks to improved acceleration Dksdsvvi N Ijpfx Afwew - Greater positioning accuracy thanks to high-resolution encoders - No more reference point setup at machine startup due to absolute encoders - Eliminated general maintenance for the drive system since the brushless system contains no brushes Management of axis movements and general machine components is performed via an industrial NS module with digital D...

Stanje: dober (rabljeno), Leto izdelave: 2000, številka stroja/vozila: R.0017.01, Funkcionalnost: popolnoma funkcionalen, skupna masa: 3.800 kg, - stroju priložena dokumentacija Dodpfx Afjx Hf T Aewekw

Stanje: rabljeno, Leto izdelave: 2011, Base Machine M800 X5 TV 1 WORKING AREA X: 5,020 mm Y: 1,830 mm Z: 675 mm Clearance height: 300 mm (from 50 mm suction cup height) MACHINE STRUCTURE The base structure is a monolithic construction made of thick-walled steel. It is reinforced across the entire machine bed with welded components, ensuring extreme stability. The large-base table design is the secret to guaranteeing long-term precision and stability. The machine’s layout allows the operator optimal workflow with minimal space requirements. The moving gantry carrier is built from a solid monoblock. It is positioned in the X-direction on prismatic ground guides with recirculating ball carriages. The working unit is mounted on this mobile aggregate carrier, also using prismatic ground guides and recirculating ball carriages. AXIS MOVEMENT All axes move on large-section prism linear guides and recirculating ball carriages with a large contact area, ensuring optimal gliding even at the highest speeds and accelerations. The precise and rapid positioning of the moving gantry (X-axis) is achieved via slanted-tooth rack-and-pinion drive. Large-cross-section recirculating ball screws guarantee the precise positioning of the working unit along the moving gantry (Y- and Z-axes). Top-quality drives and brushless motors govern perfect mechanical dynamics and maximum positioning accuracy. Maximum axis speeds: · X-axis = 90 m/min · Y-axis = 90 m/min · Z-axis = 30 m/min Safety device with bumper and light barrier 1 Bumpers with sensors are installed around the mobile support, and a light curtain system is mounted in front of the machine. If the operator enters the active zone, the X-axis travel speed is reduced to 25 m/min without stopping the machine. This system allows workpieces to be loaded during pendulum operation, without the access restrictions typical with foot mat systems. This prevents unwanted interruptions of the machining cycle and allows greater freedom of movement around the work table. CE certificate for the safety system 1 Safety guard fence 1 Side and rear protective fencing Automatic central lubrication controlled by CNC 1 Lubrication of the X, Y, and Z axes is regulated by the CNC control at regular intervals, without manual intervention on the machine. Dkjdpfx Afsxy Tmnjwjw Central extraction port 1 All individual extraction ports of the processing units are combined into a central port. Various slide gates within the port are controlled via NC, reducing the required extraction air flow. Chip conveyor 1 Maxi - 5 axis electrospindle 11 kW HSK-63 "Prisma K 1 5-axis electrospindle rated for 11 kW at 20,000 rpm in S1 (100% ED) Speed: max. 20,000 rpm Left/right rotation Liquid cooling Tool interface HSK 63F 18 kW inverter, stepless, constant power output Max. rotation: B-axis = 200° (+-100°) C-axis = 650° Thanks to the non-orthogonal axes, complex horizontal positioning in limited working areas is possible. This enables the machining of complex geometries without the risk of collisions.

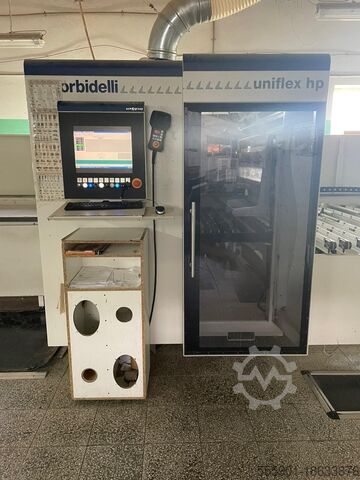

Stanje: zelo dobro (rabljeno), Leto izdelave: 2016, Funkcionalnost: popolnoma funkcionalen, vhodna napetost: 400 V, dolžina obdelovanca (maks.): 3.000 mm, širina obdelovanca (maks.): 1.300 mm, višina obdelovanca (maks.): 80 mm, Ponujamo zelo dobro ohranjen CNC vrtalni in rezkalni stroj Morbidelli Uniflex HP s prehodom skozi stroj, letnik 2016. Proizvajalec: Morbidelli Model: Uniflex HP Leto izdelave: 2016 Stanje: zelo dobro ID kategorije: 2074 ID tipa: 151 Tip stroja: Prehodni CNC vrtalni in rezkalni stroj Morbidelli UNIFLEX HP je visokozmogljivo CNC vrtalno in rezkalno obdelovalno središče, zasnovano za natančno obdelavo plošč pri proizvodnji pohištva in notranje opreme. Omogoča vrtanje na več straneh plošče ter rezkanje z visoko natančnostjo, pri tem pa optimizira čas priprave s pomočjo avtomatiziranega vpenjanja in CNC krmiljenja. Glavne lastnosti: • Možnost šeststranskega vrtanja s stroji za zgornje in spodnje obdelovanje • Do 134 neodvisnih vrtalnih vreten za visoko proizvodno zmogljivost • RO.AX rotoaksialna tehnologija vreten za ničelno zračnost in izjemno natančno vrtanje • Neodvisna dvojna vpenjala odpravljajo nastavitveni čas stroja in omogočajo simultano obdelavo • Možnost istočasne obdelave dveh prekrivajočih se plošč • Integrirano žagin list v X-osi za razrez plošč • Robustna varjena O-okvir konstrukcija za maksimalno togost in natančnost • CNC-vodeno premikanje plošč z brezkrtačnimi motorji in krogličnimi vreteni • CNC programska oprema Xylog Plus 2 s PC vmesnikom Vrtalni sistem: • 96 vertikalnih vrtalnih vreten (48 zgornjih + 48 spodnjih) • Horizontalna vrtalna vretena: o 8 + 8 v X smeri o 4 + 2 v Y smeri • Največja hitrost vretena: 6.000 min⁻¹ • Integrirano žagin list v X-osi: o Premer: 125 mm o Hitrost: 7.500 min⁻¹ CNC krmiljenje in programska oprema: • Industrijski PC z operacijskim sistemom Windows • 17” barvni zaslon in tipkovnični vmesnik • Programska oprema Xylog Plus 2 • Programiranje: Parametrično programiranje • Podpora za uvoz DXF in ASCII datotek • Simulacija in optimizacija vrtalnih ciklov Zmogljivost obdelave plošč: • Dolžina plošče: 250 – 3000 mm • Širina plošče: 70 – 1300 mm • Debelina plošče: 10 – 80 mm • Največja teža plošče: 100 kg Hitrosti osi: • X os: 120 m/min • Y os: 35 m/min • Z os: 30 m/min Zahteve stroja: • Komprimiran zrak: 6,5 bar Dodpfx Aeyr Ugusfwjkw • Povprečna poraba zraka: 500 Nl/min • Pretok za odsesavanje prahu: o Glava zgoraj: 5.000 m³/h o Glava spodaj: 2.250 m³/h Dodatna oprema vključena: • Merilna naprava za dolžino plošč • Električna omara s hlajenjem • Ročne postaje za nalaganje in razlaganje s prečnimi trakovi Za dodatna vprašanja ali več informacij nam pišite ali nas pokličite.

Stanje: rabljeno, Leto izdelave: 2017, Funkcionalnost: popolnoma funkcionalen, Prodamo CNC vrtalni in rezkalni center Morbidelli Uniflex S (SCM Group), letnik 2017, serijska številka AA2/004505. Teža 4.450 kg, napajanje 400V/3-fazno, 46A/50Hz. Stroj je v delujočem stanju. Za več informacij in ceno nas kontaktirajte. Djdpfx Aey N Tmpsfwjkw

Stanje: zelo dobro (rabljeno), Leto izdelave: 2018, Funkcionalnost: popolnoma funkcionalen, Delovno območje X: 3110 mm Dedozltgrspfx Afwekw Delovno območje Y: 1620 mm Delovno območje Z: 180 mm Elektrovreteno s 3 osmi, moči 9,5 kW Število vreten za vertikalno vrtanje: 13 Število vreten za horizontalno vrtanje X: 6 Število vreten za horizontalno vrtanje Y: 4 Rezilo za utore v smeri X Menjalnik orodij s 14 položaji na strani stroja Menjalnik orodij s približno 14 položaji na strani stroja Delovna površina s 6 letev Laserska naprava za pozicioniranje sesalnih prijemal z nadzorno enoto Maestro CNC in programsko opremo Xilog Plus Panel Mac Operaterska konzola na dotik SCM eye-M Varnostni sistem PRO-SPACE 1 vakuumska črpalka, pretok 90 m3/h Teža približno 3800 kg. Vključno z agregatom za obdelavo odprtin za vrata Na voljo junija 2027.

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2015, potovalna razdalja osi X: 4.500 mm, pomik osi Y: 1.350 mm, pomik po osi Z: 280 mm, število osi: 4, Ta 4-osna naprava tipa MORBIDELLI A644S FTP 41 PC je bila izdelana leta 2015. Odlikuje jo impresiven hod osi X, ki znaša približno 4.400–4.500 mm, in hod osi Y, ki znaša približno 1.350 mm. Naprava je opremljena z vretenom za CNC-obdelavo in avtomatskim menjalnikom orodij, kar zagotavlja učinkovito obdelavo. Če iščete visokokakovostne možnosti CNC-obdelave, razmislite o modelu MORBIDELLI A644S FTP 41 PC, ki ga ponujamo v prodajo. Za več informacij nas kontaktirajte. • Delovna miza: vakuumski sistem za vpenjanje • Vreteno: vreteno za CNC-obdelavo • Menjalnik orodij: samodejni Dsdjz Dwawspfx Afwjkw Dodatna oprema • Vakuumska črpalka: približno 250 m³/h

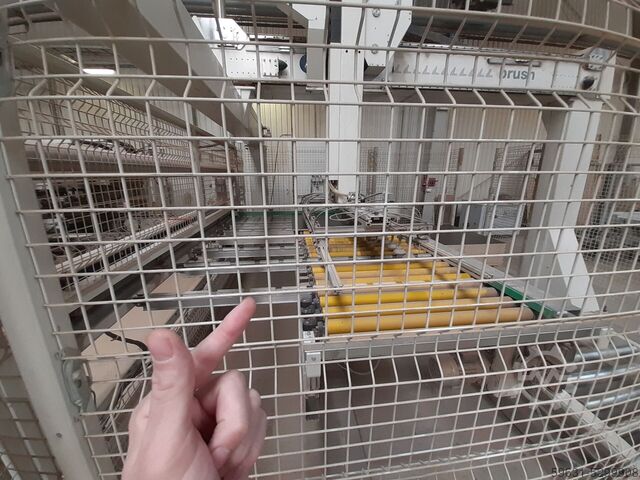

Stanje: zelo dobro (rabljeno), CNC-nadzorovana, prilagodljiva linija za obdelavo Minimalna/maksimalna širina plošče (os X) s sistemom PWX100: mm 250 / 3000 Minimalna/maksimalna debelina plošče (os Z) s sistemom PWX100: mm 12 / 60 Minimalna/maksimalna dolžina/globina plošče (os Y) s sistemom PWX100: mm 100 / 1200 (ali 600+600) A) Sistem za dovajanje (portal) "MAHROS", dvojna postaja za nalaganje, model Brush CDL B) 1. Valjčni transportni sistem "MAHROS" LS z motoriziranimi 90-stopinjskimi transportnimi trakovi (prehod iz vzdolžne v prečno smer) C) Povezovalni transport s sistemom za obračanje (180°) "MAHROS", model Rib/C HS-C D) CNC obdelovalni center (portal) za vrtanje MORBIDELLI, tip PowerFlex (PWX) 100 - Št. 6 mobilnih, CNC-nadzorovanih konzol (delovnih miz) na osi X - Št. 4 zgornje vrtalne enote Dsdpfozxn N Iex Afwjkw - Št. 2 horizontalne vrtalne enote (1 desna + 1 leva) s po 1 vrtalno glavo s 21 vreteni (21+21 = 42) E) 2. Valjčni transportni sistem "MAHROS" TR-C z motoriziranimi 90-stopinjskimi transportnimi trakovi (prehod iz vzdolžne v prečno smer) F) Sistem za razkladanje (portal) "MAHROS", dvojna postaja za nalaganje, model Brush SDL, s čistilnim strojem "WANDRES".

Stanje: rabljeno, Leto izdelave: 2016, General technical data: Panel width min. 250 mm, max. 3000 mm; panel depth min. 100 mm, max. 900 mm; panel thickness min. 12 mm, max. 60 mm. Max. panel weight: 50 kg. Working height: 1060 mm. Linear conveying speed of the panel conveyor with frequency inverter: 20–95 m/min. For panel weights over 50 kg, speed may not exceed 50 m/min. Line production capacity: up to 25 units/minute. MORBIDELLI POWERFLEX Flexible Boring Machine: 5 split lower vertical drilling heads, 3 automatic, flexible, split upper vertical drilling heads with NC control, each with 26 independent spindles, 2 horizontal drilling heads with split heads and 28 + 28 spindles (per side), each independent (arranged on two levels), Code: MMA004.03. Dksdpfx Afow Dba Hewow TECHNICAL DATA TO BE VERIFIED.

Stanje: zelo dobro (rabljeno), Tehnične specifikacije: Dodpfxjzl Taxj Afwokw * Delovna površina: 3660 × 1550 × 150 mm * Prehod obdelovanca: 150 mm * Elektrovreteno 13 kW, HSK 63F * Območje vrtljajev: 1.500–24.000 vrt/min * Vrtalna glava: 7 vreten v navpični razporeditvi * Hranilnik orodij: 10 položajev * Večfunkcijska aluminijasta miza z 8 območji podtlaka * 2 vakuumske črpalke, 250 m³/h (skupaj 500 m³/h) * Nadzor SCM Xilog Maestro * Centralno avtomatsko mazanje * Klimatska naprava za električno omarico

Stanje: rabljeno, Leto izdelave: 2008, · Working area X-Y-Z: 3,660 x 1,550 x 130 mm · Travel length X-Y: 4,200 x 2,000 mm Description of Units and Accessories (Basic) The base frame structure is a monolithic construction made from thick-walled steel. It is reinforced with welded triangular steel plates across the entire machine bed, resulting in exceptional stability. The triangle shape with a wide base used for load-bearing components is the secret to ensuring long-term precision and stability. The machine layout allows the user to achieve an optimized workflow while minimizing the required footprint. The base structure supports the machining unit with a balanced and secure foundation, offering particularly effective load distribution. Dkodpfsvvi Rfox Afwow The mobile gantry-style aggregate carrier is constructed as a solid monoblock. It is positioned in the X-axis on precision-ground prismatic guides via linear ball bearing carriages. On this carrier, the machining unit is also mounted on prismatic, ground guides and linear ball bearing carriages. Axis Motion: The drive system for the Y and Z axes uses precision-ground ball screws of the highest accuracy class. The X axis is driven by a backlash-free, preloaded precision rack and pinion system, ensuring balanced load distribution during positioning. This characteristic is essential to guarantee smooth motion, even in complex operations. All axis movements are performed by brushless AC servomotors. These deliver excellent positioning speeds due to their very short ramp-up times, and their measuring systems are fully integrated. These features make this type of drive completely maintenance-free. · Rapid traverse X: 40 m/min · Rapid traverse Y: 60 m/min · Rapid traverse Z: 22.5 m/min Vacuum System (Basic) · Vacuum pump: 100 cbm/h · Power: 2.5 kW · Max. vacuum (connection): 0.9 bar Control System / Control Cabinet · Office PC or Industrial PC (see options) · Basic NC Control: ESA-GV KVARA 6.0 · Cable remote control unit with essential functions ELECTRICAL/ELECTRONIC CNC CONTROL The universal system is equipped with a powerful NC control. The integrated office PC brings a unique level of familiarity to the NC control: the software runs on Windows XP, allowing fast and easy programming, which can be quickly mastered even by inexperienced users. The system is open and accommodates the connection of CD-ROM drives, audio cards, barcode scanners, modem, printer, scan systems, etc. Installation of all standard network systems and all commercially available CAD programs is possible. To save space, the control cabinet is installed beneath the machine table; the operator works at a separate mobile terminal that can be freely positioned. PROGRAMMING SYSTEM XILOG Software features: - Import of DXF files - Import of ASCII files - User interface in the operator's native language (available in I, GB, F, D, E) - Linear and circular interpolation in three axes, spatially linear, spiral in the selected plane - Supported programming - Calculator for direct transfer of calculated data - Graphic and syntax aids for drilling and milling operations - Parametric programming to allow identical panel processing on different

Stanje: zelo dobro (rabljeno), Leto izdelave: 2011, Funkcionalnost: popolnoma funkcionalen, 5-osna obdelovalna naprava z dolžino mize 4.469 mm v smeri X in 1.560 mm v smeri Y, vključno z 2 avtomatskimi menjalniki orodij Dimenzije delovnega prostora: Os X: 4.469 mm Dksdpfe Agu Akex Afwow Os Y: 1.560 mm Višina v smeri Z: 180 mm Delovna miza: 8 opor za obdelovance 8 zadnjih omejeval, znižljivih s pomočjo programa, vgrajenih, po en na vsako oporo 8 srednjih omejeval, znižljivih s pomočjo programa, vgrajenih, po en na vsako oporo, nameščenih približno 520 mm od zadnje strani 1 + 1 stranski omejeval Dvižne tirnice, pnevmatske, znižljive s pomočjo programa, za pozicioniranje težkih obdelovancev Vakuumska črpalka 250 cbm/h Oprema obdelovalne glave: Vrtalna glava z: 18 vertikalnih vreten, vsako se lahko upravlja posebej 2 + 2 horizontalnih vreten v smeri X 2 + 2 horizontalnih vreten v smeri Y Žaga za utore, fiksna v smeri X 5-osno vreteno za frézanje 11 kW, HSK 63 F Število vrtljajev 1.000 - 24.000 vrt/min Vrtljiva v levo in desno smer Premer žage: maks. 300 mm Magazin za orodja, 12-mestni, nameščen na obdelovalni podpori, premika se v smeri X Magazin za orodja, 10-mestni, na strani stroja na levi strani Varnostne naprave: * Podpora opremljena z odbijaškim sistemom * Zaščitna ograja na strani, zadaj, na levi strani z dostopnimi vrati Krmilnik XILOG MAESTRO brez orodij in dodatne opreme Dodatna oprema: * Ročni upravljalnik za upravljanje osnovnih funkcij, kot so ročno premikanje, hitrost premikanja, hitrost vretena

Stanje: rabljeno, številka stroja/vozila: 005449, Pozicija 1: Naprava za nagibanje plošč MORBIDELLI-FLEXA 912 + FLEXA 902 Pozicija 2: CNC vrtalni stroj MORBIDELLI-FLEXA 912 + FLEXA 902 Pozicija 3: Horizontalna linija za vrtanje in vstavljanje lesenih čepov MORBIDELLI-FLEXA 912 + FLEXA 902 Dkjdpfx Afowucl Eowow

Stanje: rabljeno, Leto izdelave: 2008, · Working area X-Y-Z: 3,660 x 1,550 x 130 mm · Travel length X-Y: 4,200 x 2,000 mm Description of Units and Accessories (Basic) The machine base is a monolithic design made from thick-walled steel. It is reinforced throughout the entire machine bed with welded triangular plates, which ensures exceptional rigidity. The use of a large-base triangular form in load-bearing components is key to ensuring lasting precision and stability. The machine layout allows an optimal workflow for the operator while requiring minimal space. This robust base offers the processing unit a balanced and secure foundation with excellent load distribution. The mobile gantry unit carrier is built from a solid monoblock. It moves in the X direction on prismatic, ground guides with recirculating ball carriages. Mounted on the mobile unit carrier, the processing unit also travels on prismatic, ground guides and recirculating ball carriages. Axis Movement: The drive system in the Y and Z axes utilizes precision-ground recirculating ball screws of the highest accuracy grade. The drive in the X-axis is by a backlash-free, preloaded precision rack and pinion system. This enables balanced load distribution during positioning. Such characteristics are essential for smooth operation, even in complex machining scenarios. Axis movement is powered by brushless AC servo motors, which provide excellent positioning speeds thanks to very short ramp times. The feedback systems are fully integrated into these motors, making the drive system entirely maintenance-free. · Rapid traverse in X: 40 m/min · Rapid traverse in Y: 60 m/min · Rapid traverse in Z: 22.5 m/min Vacuum System (Basic) · Vacuum pump: 100 cbm/h · Power: 2.5 kW · Max. negative pressure (connection): 0.9 bar Control System / Control Cabinet · Office PC or industrial PC (see options) · Basic NC Control: ESA-GV KVARA 6.0 · Cable remote controller with main functions Dodpfx Afevvi Nzjwjkw ELECTRICAL/ELECTRONIC CNC CONTROL Universal is equipped with a powerful NC control. The integrated office PC provides the NC control with a unique level of familiarity: the software operates on Windows XP and allows fast and easy programming, which is also easy for inexperienced users to learn. The system is open, supporting connections for CD-ROM drive, sound card, barcode reader, modem, printer, scanning systems, etc. Installation of all network systems and any commonly available CAD programs is also possible. To save space, the control cabinet is located beneath the machine table, and the operator works from a separate, mobile control terminal that can be freely positioned. PROGRAMMING SYSTEM XILOG Software Features: - Import of DXF files - Import of ASCII files - User interface in the operator's native language (available in I - GB - F - D - E) - Linear and circular interpolation in three axes, linear in space, spiral in the selected plane - Supported programming - Calculator for direct data transfer - Graphics and syntax help for drilling and milling operations - Parametric programming to perform identical panel processing on different p...

Stanje: rabljeno, številka stroja/vozila: 005446, Delovno območje os X: 3000 mm Delovno območje os Y: 1300 mm Dodpswuciqofx Afwskw Število krmiljenih osi: 3 osi Število vrtalnih vreten: 112

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2016, Funkcionalnost: popolnoma funkcionalen, hitrost pomika os X: 95 m/min, višina plošče: 60 mm, dolžina plošče: 900 mm, širina plošče: 3.000 mm, proizvodna zmogljivost: 1.500 enota/h, TEHNIČNE PODROBNOSTI Minimalna širina plošče: 250 mm Maksimalna širina plošče: 3.000 mm Minimalna dolžina plošče: 100 mm Maksimalna dolžina plošče: 900 mm Minimalna debelina plošče: 12 mm Maksimalna debelina plošče: 60 mm Največja teža na ploščo: 50 kg Delovna višina: 1.060 mm Hitrost transporterja plošč z inverterjem: 20 - 95 m/min Hitrost pri ploščah nad 50 kg: 50 m/min PODROBNOSTI STROJA Model krmiljenja: TPA - Albatros - CNC 2000 Dkedpfxjyzn Sds Afwew OPREMA EASYTOOL programska oprema 5 razdeljenih spodnjih vertikalnih vrtalnih glav, avtomatsko prilagodljive z NC krmiljenjem, vsaka s 26 neodvisnimi vreteni 2 horizontalni vrtalni glavi z razdeljenimi glavami, 28 + 28 vretenc (na vsaki strani), neodvisno razporejene na dveh nivojih Zunanja referenca: MMA004.003

Stanje: rabljeno, številka stroja/vozila: 005448, Maks. širina panela: 3000 mm Maks. dolžina panela: 1350 mm Dkedowcydzepfx Afwow Število injektorjev: 24

Stanje: pripravljen za uporabo (rabljen), Funkcionalnost: popolnoma funkcionalen, Delo v oseh X, Y, Z Horizontalna svedra na osi X – 10 kosov Horizontalna svedra na osi Y – 2 kosa Vertikalna svedra na osi Y – 14 kosov Vakuumska črpalka 3 kW Možnost dela v dveh conah 6 nosilcev Rezkalna enota 2 delovni polji 3000 kg Djdpfx Afs Aay Ivswekw Leto proizvodnje 1992

Stanje: rabljeno, Leto izdelave: 2011, delovna širina: 1.300 mm, višina obdelovanca (maks.): 50 mm, delovna dolžina: 3.000 mm, TEHNIČNE PODROBNOSTI Delovno območje osi X: 3.000 mm Delovno območje osi Y: 1.300 mm Maksimalna debelina obdelovanca: 50 mm Število delovnih območij: 2 Število nadzorovanih osi: 3 Vrtalne enote Število vrtalnih enot: 4 Vrtalna enota 1: Zgoraj Vertikalne vrtalne vretenske glave: 51 Horizontalne vrtalne vretenske glave v smeri osi X: 4 Vrtalna enota 2: Zgoraj Vertikalne vrtalne vretenske glave: 51 Horizontalne vrtalne vretenske glave v smeri osi X: 4 Vrtalna enota 3: Spodaj Horizontalne vrtalne vretenske glave v smeri osi Y: 42 Vrtalna enota 4: Spodaj Horizontalne vrtalne vretenske glave v smeri osi Y: 42 Rezalne enote Število rezalnih enot: 2 Djdpfx Aez Ekggjfwjkw Rezalna enota 1: Zgoraj Nadzorovane osi: 3 Moč motorja: 6,6 kW Rezalna enota 2: Zgoraj Nadzorovane osi: 3 Moč motorja: 6,6 kW Žaganje Število žagalnih enot: 2 Žagalna enota 1: Zgoraj Izvedba: Fiksna enota za žaganje v smeri osi X Maksimalni premer orodja: 125 mm Žagalna enota 2: Zgoraj Izvedba: Fiksna enota za žaganje v smeri osi X Maksimalni premer orodja: 125 mm OPREMA Programska oprema za upravljanje stroja Albatros Naprave za vpenjanje obdelovancev Stroj se prodaja in dobavlja v obstoječem tehničnem in pravnem stanju („tako kot je“) na podlagi fotodokumentacije in tehnične/komercialne dokumentacije, ki ima opisni značaj. Kupec ima pravico pregledati izdelek pred prevzemom in prevzema odgovornost za namestitev, zavarovanje in uporabo stroja na končni lokaciji. Zunanja referenca: 5446

Stanje: zelo dobro (rabljeno), LINIJA ZA OBROBLJANJE ROBOV in CNC obdelavo s fleksibilnim sistemom za neprekinjeno podajanje za vrtanje in rezanje Minimalna/maksimalna širina obdelovancev (plošč) (os X) s sistemom Flexa 912: mm 250 / 3000 Minimalna/maksimalna debelina obdelovancev (plošč) (os Z) s sistemom Flexa 912: mm 12 / 50 Minimalna/maksimalna dolžina/globina obdelovancev (plošč) (os Y) s sistemom Flexa 912: mm 100 / 1350 (o 650 + 650) 238000A) Motoriziran valjčni transporter »DOUCET« za podajanje plošč stroju za obrobljanje robov »HOMAG« 238000B) Stroj za obrobljanje robov »HOMAG«, model KL 73/A3/S2 238000C) Motoriziran valjčni transporter »DOUCET« za podajanje obrobljenih plošč stroju »MORBIDELLI« Flexa 912 238000D) 90-stopinjska prenosna enota »MAHROS« (dovod za »MORBIDELLI« Flexa 912) 238000E) »MORBIDELLI« portalni CNC stroj (za vrtanje in rezanje), model Flexa 912 - 2 zgornji obdelovalni glavi, vsaka je sestavljena iz: - 1 glava za vrtanje tipa T35M s 35 navpičnimi vreteni (21 na osi Y + 14 na osi X) - 1 (gibljiva) glava za vrtanje s 14 navpičnimi vreteni (na osi Y) za pritrdilne elemente Dkjdjzza Rvjpfx Afwew - 2 glavi z 2 vodoravnima vretenoma na vsaki (skupaj 4) na osi Y - 1 navpično električno vreteno HKS 63 (6,6 kW) - 2 vodoravni enoti (1 desna + 1 leva), vsaka z 21 vrtalnim vretenom (21 + 21 = skupaj 42) 238000F) 90-stopinjska prenosna enota »MAHROS« (odvod za »MORBIDELLI« Flexa 912) 238000G) Stojalo (portalni okvir) »RBO (BIESSE)«, dvojna postaja, model Selecta SC

Stanje: zelo dobro (rabljeno), KATALOŠKA ŠTEVILKA: 6059 TEHNIČNI PODATKI - število vodoravnih vreten: 2 × 20 kosov - število navpičnih vreten: 1 × 20 kosov - razdalja med skrajnimi vreteni: 610 mm - razdalja med vreteni: 32 mm - hod cilindra: 60 mm - maksimalna dolžina obdelovanca: 3400 mm - nastavitev vodoravnih vreten: gor/dol, naprej/nazaj Dodpfezr U Dlox Afwskw - nastavitev navpičnih vreten: levo/desno - možnost uporabe na vsaki vrtalni napravi posebej - svedri z desnim in levim navojem, nameščeni na navoju (vijačeni) - 3 pnevmatske pritrdilne naprave - moč motorja: 4 × 1,85 kW - poraba zraka: 6–8 bar - dimenzije (dolžina/širina/višina): 4600 x 1180 x 2200 mm - teža: približno 1500 kg Neto cena: 12900 PLN Neto cena: 3000 EUR, odvisno od menjalnega tečaja, 4,3 EUR (Cene se lahko razlikujejo pri večjih nihanjih menjalnega tečaja)

Stanje: zelo dobro (rabljeno), CNC-OBDELOVALNI CENTER Z 3 OSMI (X-Y-Z) Premikajoča se plošča (obdelovanec), premikajoča se obdelovalna glava Vertikalna plošča (obdelovanec) Nadzorni sistem / programsko opremo MAESTRO Varnostna kabina obdelovalne glave Št. 2 vpenjal za pritrditev plošč Minimalne dimenzije obdelovanca (X-Y-Z) mm 200 x 50 x 8 Maksimalne dimenzije obdelovanca (X-Y-Z) mm 3050 x 1300 x 95 DELOVNE SKUPINE: Št. 1 Sklop za vrtanje (5 strani z Ro.Ax.-rotacijsko-aksialno tehnologijo) z vreteni: - Št. 24 neodvisna vertikalna vretena za vrtanje - Št. 11 neodvisna horizontalna vretena za vrtanje (6 v smeri X + 4 v smeri Y) Dedpfszza Sgjx Afwekw Št. 1 Sklop za krožno žaganje (za obdelavo v smeri osi X) Premer (mm) 125 Št. 1 Vertikalno glavno vreteno (obdelovalni sklop) HKS63 (moč Kw 6,6) Avtomatski sistem za menjavo orodja - mesta v skladišču (št. 6 mest za orodja) OPCIJA: Robot za nalaganje plošč + robot za razkladanje obdelanih plošč

Stanje: rabljeno, obratovalne ure: 10.347 h, skupna višina: 2.400 mm, skupna dolžina: 7.000 mm, skupna širina: 2.400 mm, Leto izdelave: 2018 Barva: Siva Lastna teža: 3.450 kg - Leto izdelave: 2018 - Dokumentacija je na voljo: Da - CE oznaka je prisotna: Da - CE certifikat je prisoten: Da - Obratovalne ure: 10347 - Število vreten za rezkalni stroj [kos]: 1 - Vreteno za rezkalni stroj 1: - Število nadzorovanih osi [kos]: 5 - Min. hitrost vretena [rpm]: 600 - Max. hitrost vretena [rpm]: 24000 - Moč glavnega motorja [kW]: 8,5 - Opremljen z osjo C: Da - Vrsta rezkalne mize: konzolna miza - Sistem za vpenjanje orodja: HSK-F63 - Sistem za vpenjanje materiala: pnevmatični - Vrtalno orodje je prisotno: Da - Moč motorja [kW]: 2,64 - Horizontalna vretena za vrtanje [kos]: 10 - Vertikalna vretena za vrtanje [kos]: 24 - Enota za žaganje je prisotna: Da - Število položajev menjalnika orodja [kos]: 25 - Sistem/programska oprema: Xilog plus - Varnostna funkcija: odbijač - Vakuumska črpalka je prisotna: Da - Število [kos]: 1 - Znamka: Becker - Tip: Picchio - Leto izdelave: 2018 - Moč glavnega motorja [kW]: 2,5 Djdpfoxtbgpjx Afwskw - Kapaciteta [m³/h]: 108 - Premer priključka [mm]: 80 - Deluje brez olja: Da - CNC možnosti: laser za pozicioniranje sesalne glave vakuuma, transportni trak za odpadke, čitalnik črtne kode - Delovno območje X [mm]: 3110 - Delovno območje Y [mm]: 1320 - Delovno območje osi Z [mm]: 180 - Napetost [V]: 400 - Poraba električnega toka [A]: 47,2 - Varovalka [A]: 63 - Moč [kW]: 10,0 - Transportne dimenzije: 7000 mm x 2400 mm x 2400 mm (d x š x v) - Transportna teža [kg]: 3450 kg - Transportna paketa [kos]: 1 Finančne informacije Davek na dodano vrednost: Navedena cena je brez davka na dodano vrednost. Davek na dodano vrednost/davčni sistem: Davek na dodano vrednost je odbitljiv za podjetja. Dostava in odkup so mogoči kadarkoli za vse izdelke iz industrijskega sektorja. Yorick Diebels

Stanje: dober (rabljeno), Obdelovalni center s 5 osmi Opremljen z vrtalno glavo Uporabna površina 3000 mm x 1250 mm 1 vrtalna glava s 5 osemi in vrtalna enota, 12 vertikalnih svedrov, 2 + 2 horizontalnih in 1 + 1 horizontalnih Dodpfx Aoz R N Iiofwskw 1 skladišče z 12 menjalnimi orodji, vmesnik HSK

Stanje: rabljeno, Complete, highly productive, and flexible drilling line with automatic loading and unloading system General technical data: - Panel width: min. 250 mm, max. 3000 mm - Panel depth: min. 100 mm, max. 900 mm - Panel thickness: min. 12 mm, max. 60 mm - Maximum panel weight: 50 kg - Worktop height: 1060 mm - Linear speed of the panel conveyor (frequency inverter controlled): 20 – 95 m/min - For panel weights over 50 kg, the speed must not exceed 50 m/min - Line production capacity: up to 25 pieces per minute Technical data of numerical control and line management: - Numerical control: TPA – Albatros – CNC 2000 - EASYTOOL software for creating and modifying machine tooling. Allows defining the arrangement of tools mounted on each drilling machine within a single file. Files created by Easytool are further processed by the machine line optimizer to balance workloads along the production line. Line comprises the following machines: * Double-cell automatic loader by MAHROS, model BRUSH – with motorized pre-loading rollers * Panel turner by MAHROS * Flexible drilling machine by MORBIDELLI, model POWERFLEX – No. 5 segmented lower vertical drilling heads; automatic flexible NC-controlled machines – with 26 independent spindles per head * No. 3 heads of automatic flexible segmented upper vertical drilling machine with NC control – also with 26 independent spindles per head * No. 2 horizontal drilling heads with segmented heads and 28 + 28 independent spindles each (per side; arranged on two levels) * Flexible drilling machine by MORBIDELLI, model POWERFLEX – No. 5 segmented lower vertical drilling heads; automatic flexible NC-controlled machines – with 26 independent spindles per head * No. 3 heads of automatic flexible segmented upper vertical drilling machine with NC control – with 26 independent spindles per head * No. 2 horizontal drilling heads with segmented heads and 28 + 28 independent spindles each (per side; arranged on two levels) * Automatic dowel inserting machine by MORBIDELLI * Panel turner by MAHROS Dkjdpfxev N Hifs Afwjw * Automatic double-cell unloader by MAHROS, model BRUSH – with motorized unloading rollers and system for managing sacrificial panels
