Skobeljni stroj - debelinka

CORMAK PT410

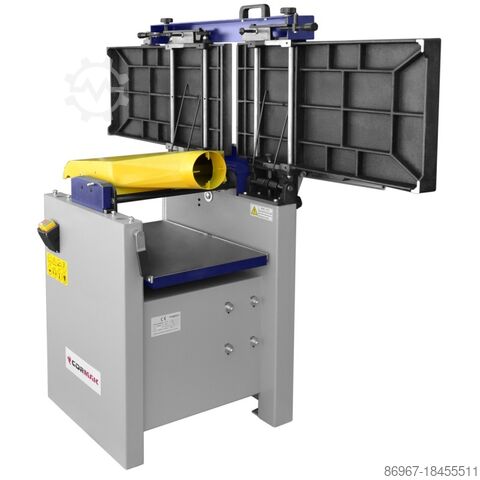

The 410 mm wide tables and robust construction allow processing large components from both soft and hard wood. The polished worktable and the stable planer design ensure quiet, vibration-free operation.

Knodpfx Ajvxh T Djh Djc
Switching from jointer to thicknesser mode is very quick and simple. It involves unlocking the eccentrics, lifting the tables, and repositioning the chip extraction hood.
The thickness adjustment handwheel is located on the right side of the machine.
The aluminum tilting fence, equipped with a scale, allows for precise angle adjustment within the 90°–45° range.

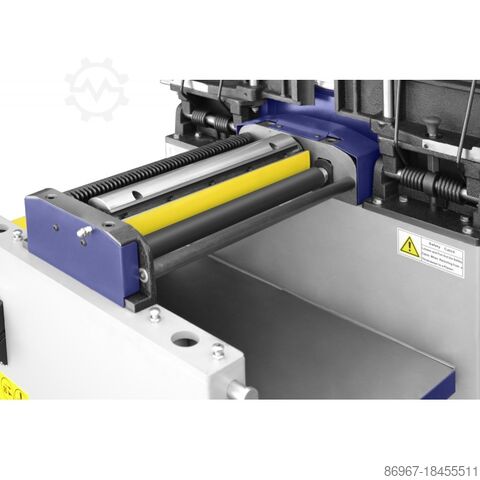

The thicknesser table, centrally mounted on a column, features a handwheel for height adjustment up and down.
The planing height is measured using a graduated scale.

Technical Specifications:
Cutter block diameter [mm]: 70
Cutter block speed [rpm]: 5500
Dust extraction port diameter [mm]: 120
Tilting fence angle [°]: 0 - 45
Number/dimensions of knives: 3 / 410x25x3 mm
Shaft diameter [mm]: 70
Max. jointer width [mm]: 410
Max. thicknesser width [mm]: 408
Max. planing height [mm]: 5–225
Max. depth of cut (thicknesser) [mm]: 3.5
Max. depth of cut (jointer) [mm]: 4
Thicknesser feed speed [m/min]: 7
Jointer table dimensions (L x W) [mm]: 1660 x 410
Gross weight [kg]: 330
Motor speed [rpm]: 2800
Motor power [kW]: 5.2 kW
Power Supply: 3 phase, 400V
