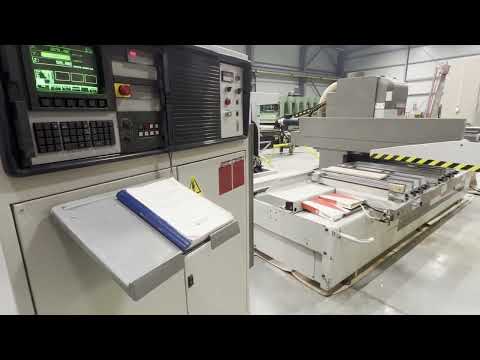

Obdelovalni center

MORBIDELLI U46

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 1997, Max. workpiece length: 3600 mm, max. workpiece width: 1400 mm, overall length: 8750 mm, overall width: 5250 mm. Nwedpfxjqvnl Te Altsi

Stanje: zelo dobro (rabljeno), Leto izdelave: 2008, used CNC machining center Manufacturer: IMA Model: BIMA 300 125/430 Year of manufacture: 2008 4-axis CNC machining center with console table 8 manually adjustable supports along X-axis, each console equipped with 3 vacuum suction cups, vacuum pump 90 m³/h vacuum connection for templates LED display for suction cup position indication Working area X: 200 – 4300 mm Working area Y: 0 – 1400 mm for milling/drilling Working area Z: 12 – 125 mm (clearance 150 mm) additional central row of stops 14 vertical drilling spindles + 6 horizontal Nwjdpfxjy Nzw Nj Altji horizontal drilling and grooving saw unit, 90° swiveling Milling spindle 7.5 kW up to 18,000 rpm with C-axis, 360° interpolation, liquid circulation cooling – 18-position tool changer mounted on Y-support Edgebanding unit VT 100, 4-sided/around the perimeter – rotation range 740 degrees with 2-position roller magazine, automatic granulate feed Adapter units: – Fixed 90° saw – 4-spindle cross head Control: ICOS open 231 with 17″ TFT UPS ImaWop 10.0 incl. MDC and production list software Safety fencing on the right side and tread mats at the front; rear: requires wall mounting or separate safety measures

Stanje: rabljeno, Leto izdelave: 1994, Lokacija skladišča: Nattheim Nsdpfxswmm Nrs Altewi

Stanje: rabljeno, Leto izdelave: 1999, dolžina mize: 7.900 mm, vrtljajska hitrost (min.): 18.000 obr/min, Dimensions: 9400 x 3300 x 2300 mm Nwodpfoua Ap Rox Altji Weight: approx. 12,000 kg Taper: HSK63

Stanje: rabljeno, Leto izdelave: 1999, Višina roba: 10 - 60 mm Debelina roba: 0,4 - 3 mm Minimalni radij krivulje: 20 mm Hitrost podajanja: 2 - 18 / 4 - 14 m/min. Motor: 5,2 kW Zračni tlak: 6 bar Dimenzije: 900 x 1300 x 1200 mm Teža: pribl. 350 kg Lokacija skladišča: Nattheim Nsdpfx Ajymcrbjltewi

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2003, število osi: 4, največja hitrost vretena: 18.000 obr/min, This 4-axis HOMAG PROFI BAZ20/30/16/V/D was manufactured in 2003. It is equipped with Homatic CNC control, WOODWOP CNC programming system, an 18-position disc tool changer, and a main spindle with a 12 kW three-phase motor. The machine can process workpieces up to 3,000 mm in length and 1,400 mm in width and is fitted with a full-length table with adjustable vacuum clamps. Ask about the availability of this HOMAG PROFI BAZ20/30/16/V/D CNC woodworking center. Contact us for further details. • Control/Software: Homatic CNC controller; WOODWOP CNC programming system; Postprocessor • Workpiece capacity: • Length: 800–3,000 mm; Width: 350–1,400 mm; Max. thickness: 70 mm with edge / 80 mm milling • Minimum rail width: 120 mm; Max. weight: 150 kg • Table/clamping: • Full-length table (D-table) • Longitudinal console 1 fixed; Longitudinal console 2 adjustable manually in Y-direction • 8 vacuum clamps, 125 x 50 x 100 mm Nodpfxsx D Ribe Altowi • Working height, bottom edge of workpiece: 950 mm • Unit for shifting vacuum clamps on carrier rail with pneumatic extension console (max. 4 clamps per longitudinal console) • Width adjustment (longitudinal console/D-table): Servo drive, per longitudinal console • Stop pins for laminate overhang: lifting/rotating device, max. 20 mm overlay, stroke length 110 mm, individually selectable, end-position monitored (for manual door loading) • Main spindle: • Speed range: 1,500–18,000 rpm (VFD 15 kW), full rated power from 12,000 rpm • Max. tool diameter: 180 mm (milling) / 200 mm (sanding); dust extraction for all tools/units • Unit interface/C-axis: • Pneumatic and tiltable drive interface • C-axis with torque drive and 3-point support • Tool changer: • 18-position disc tool changer for HSK F63; tool weight 6 kg; max. tool length 200 mm • Configurations: 18 x max. Ø 130 mm; or 9 x max. Ø 180 mm + 9 x max. Ø 70 mm; sanding tools max. Ø 200 mm • Toolchanger raised for traveling pickup (left side) • Units (for tool changer unless stated otherwise): • Drilling/milling unit, 4 spindles: ER25 up to shaft Ø16 mm, max. projection 50 mm, max. speed 13,500 rpm, continuously tiltable via C-axis • Lock case milling unit, 2 spindles D=16/20: counter-rotating, 12,000 rpm, integrated air blast, unlimited tilt over C-axis • Tilting saw/drilling unit: manually 0–90°, flange Ø30 mm, cutting body Ø52 mm, prepared for crosscut saw max. Ø 180 mm, drill chuck with Weldon D=10 mm, max. speed 9,000 rpm, C-axis tiltable • Cutter holder D=30 with chip guide: arbor length 45/80 mm, chip deflector plate controlled via C-axis, changer space Ø 140 mm • Edge trimming unit: simultaneous top/bottom, edge radius max. R12 mm, min. external radius ~R5 mm / internal radius ~R30 mm at 90°, scanning top/bottom/side, unlimited C-axis tilt, max. speed 12,000 rpm, workpiece thickness max. 50 mm, min. overhang ~35 mm, with narrow sensing shoes • WPL cutterhead: exit angle 5°, Ø 70 mm • Edgebanding/gluing equipment: • Drive spindle/V for gluing units: mounted on the right side of the gantry; cross-slide with Y return lock and Z-axis lift; return lock with C-axis and electric/electronic interface; own Z-axis • Gluing unit for 4 sides, 90 mm (for main spindle): straight edges with direct glue application; 1 pre-press roller + 1 pneumatic post-press roller (programmable); minimum internal radius R40 at 90°; max. edge height

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 1999, številka stroja/vozila: 0-201-25-5219, Funkcionalnost: popolnoma funkcionalen, vhodna frekvenca: 50 Hz, potovalna razdalja osi X: 4.800 mm, pomik osi Y: 1.400 mm, Oprema: vrtilna hitrost brezstopenjsko nastavljiva, Brez izklicne cene - zagotovljena prodaja najvišji ponudbi! Oddaja ponudbe zavezuje k pravočasnemu prevzemu do konca avgusta! TEHNIČNI PODATKI Pomiki osi Pomik X-os: 4.800 mm Pomik Y-os: 1.400 mm PODATKI O STROJU Električni podatki Napajalna napetost: 400 V Frekvenca: 50 Hz Nsdpfx Aow Ekkksltewi Število faz: 3 Nazivni tok: 53 A Varnostni odklopnik: 63 A Krmilna napetost: 24 V Vrsta vhodnega toka: trifazni izmenični tok OPREMA Brezstopenjsko nastavljivo število vrtljajev Robni agregat
