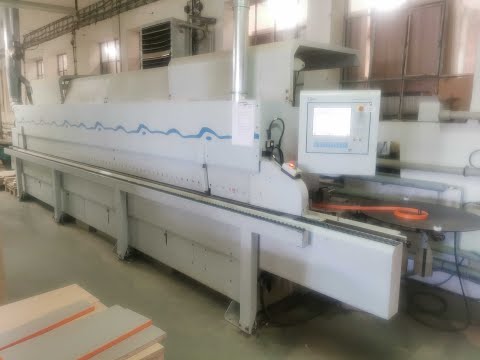

Stroj za lepljenje robov 20 m/min z rezkarjem za utore

Brandt Profi Line KDF 790

Stanje: rabljeno, Leto izdelave: 2003, Used machine Year of manufacture: 2003 Equipment and Technical Data: - Control unit with LCD display - Swiveling control panel - Program memory - Manual pressure beam adjustment - Feed via transport chain - Extendable workpiece support Jointing unit 1961: - 2 x 2.0 kW - Diamond joint cutters, both climb and counter-rotation Edge magazine 1903: - Support disc 820 mm, max. loading capacity 40 mm - Automatic feeding of roll and strip material Glue application system 1906: - Cartridge system with sensing nozzle - Automatic reloading - PUR adhesives can be used Pressure unit 1816: - With driven roller - Pneumatic control of pressing system End trimming unit 1918: - 2 x 0.22 kW - Swivels from 0 to 10°, pneumatically adjustable Milling unit 1942 MOT 2: Djdpfx Afswka Nyeljkg - For flush, radius, and chamfer milling - Motorized adjustment - Air nozzle at milling unit Corner copying unit 1832: - Corner copying up to r = 3 mm, postforming up to r = 6 mm Radius scraper unit 1929 MOT 2: - Plastic edges up to 3 mm - Chip collection box for radius scraper Surface scraper 1964: - Application-controlled surface scraper - Air nozzle at surface scraper Buffing unit 1940 Edge thickness roll material: 3 mm Edge thickness strip material: 5 mm Max. edge thickness for corner copying: 3 mm Workpiece thickness: 6-45 mm Workpiece thickness for corner copying: 45 mm Min. workpiece length: 180 mm Feed speed: 8 m/min Distance to workpiece support: 470 mm Support disc Ø for edge material: 800 mm End trimming knives for rolls up to: 3 mm Heating time: 3.5 min Joint cutter power: 2 x 2 kW End trim saw power: 2 x 0.22 kW Milling station power: 2 x 0.6 kW Corner copying power: 0.22 kW Extraction connection jointing unit: 120 mm Extraction connection milling unit: 70 mm Extraction connection scraper unit: 70 mm Dimensions: 5,350 x 1,669 x 1,940 mm Weight: 1,200 kg Location: Röllbach Availability: short notice

Stanje: novo, Leto izdelave: 2025, Concept Easy je idealen pripomoček za montažo mozniških spojev pri stiskanju korpusa, kot tudi pri izdelavi predalov. Kratka predstavitev: • Majhna potrebna površina, manj kot 1,8 m2 • Potenciometer za brezstopenjsko nastavitev pritisne sile • Tlačna sila min. 300 daN (kg) • Tlačna sila max. 2200 daN (kg) • 3 pritisne in nastavitvene hitrosti Dsdpsdx Daaofx Afljkg 5 / 10 / 25 mm/s (z natančnim pozicioniranjem / počasnim načinom) • Prosto nastavljiv prednastavljeni čas pritiska z avtomatskim odpiranjem

Stanje: dober (rabljeno), Leto izdelave: 2013, Formatna krožna žaga Felder K 975 Dolžina reza: 3200 mm Širina reza: 1350 mm Maksimalna višina reza: 130 mm (premer žaginega lista 400 mm) Digitalen naklon žaginega lista in predrezovalca: 0–45° Digitalna nastavitev višine žaginega lista in predrezovalca Vzporedni prislon, ročno nastavljiv Vklop glavnega žaginega lista in predrezovalca s krmilne plošče in/ali iz strojne mize Glavni motor formatne krožne žage: 5,5 kW (7,5 KM) (nastavljive vrtljaje 3500/4500/5500 obr/min) Dodpfx Afsxl Dw Ujlekg Motor predrezovalca formatne krožne žage

Stanje: rabljeno, Leto izdelave: 2016, TECHNICAL DATA AXES Max. Workpiece Dimensions X-Y-Z mm: 3050 x 800 x 50 Min. Workpiece Dimensions X-Y-Z mm: 300 x 90 x 10 Working Area Drilling/Grooving mm: 0 x 800 / 0 x 800 X-Axis Stroke mm: 750 Max. Traverse Speed X-Y Axes m/min: 25 DRILLING UNIT Vertical Spindles: - Number: 7 (4X-4Y, one shared) Horizontal Spindles (along Y-axis): - Number: 2 (1+1) Horizontal Spindle (along X-axis): - Number: 1 Fixed Grooving Saw (Direction): X Saw Blade Diameter mm: 100 Max. Saw Blade Thickness mm: 5 Motor Power kW (HP): 1.5 (2) Spindle Speed rpm: 3350 Saw Blade Speed rpm: 4300 INSTALLATION Power Supply V (Hz): 380 / 400 (50/60) Installed Power kVA: 4.5 Compressed Air Requirement bar: 6 Compressed Air Consumption Nl/cycle: 90 Extraction Requirement m³/h: 1200 Extraction Air Speed m/sec: 20 Extraction Port Diameter mm: 80+80 F10L Drilling Unit Includes: - 7 independent vertical spindles - Drill holder D10 mm - Distance between spindles: 32 mm - 2 horizontal drilling heads: 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill holder D10 mm) - Speed: 3350 rpm - 1 integrated saw unit in X (max. diameter 100 mm) - Saw blade speed: 4300 rpm - Motor power: 1.5 kW - Vertical pneumatic stroke per spindle: 70 mm - Horizontal pneumatic stroke of drilling unit Workpiece Positioning and Drive of the Working Unit A CNC-controlled vacuum suction cup clamps and positions the workpiece sequentially under the working unit during machining. Movement along the X and Y axes is via THK rails with transmission on reinforced toothed belts. Movement in the Z axis is pneumatic on ball bushing guides, with stops adjustable via the end position. Positioning of the working units is via DC motor technology and drives. CNC CONTROL The control system is specifically designed for use in drilling and milling machines. - CN - 7" color display with touchscreen - Alphanumeric keypad - Self-diagnosis and any faults or errors displayed in the operator's language Programming - Programmed via CN - Automatic optimization of drilling operations - Option for plate zero-point shift - Option to save and import drilling programs via USB dongle - Option to import drilling programs from external CAD-CAM software Configuration - User interface in the same language as the operating manual - Graphic display of aggregate configuration Vacuum Suction Cup "B-Power" vacuum suction cup with dual vacuum connection, recommended for highly porous panels (e.g., MDF light). Machine Operating Interface Software: Xilog Maestro Dedpfx Aovvi I Roflekg USB Hardware and Software Requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min.; multicore processor recommended - Memory: 1GB min., 2GB recommended - Free disk space: 5GB - Graphics card: OpenGL compatible (The package includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphical programming - Supported programming with graphical and syntax aids for drilling operations - Ability to create and save machining macros Integrated Additional Functions - Self-diagnosis and error reporting in the operator's language - User interface in

Stanje: dober (rabljeno), Leto izdelave: 2004, Clamping knife head type (max.) 460 mm Knife head weight (max.) 150 kg Mounting plate diameter for knife heads (Ø) 360 mm Mounting taper for knife heads nominal diameter Ø 58.227 mm Travel path - z axis 200 mm Chart recording magnification ±10 - ±500 µm Machine weight approx. 2.3 t Space requirement approx. 2 x 1.5 x 2.03 m In the manufacturing process for spiral bevel gears, the quality of the gear manufacturing tools used plays a decisive role. Especially in dry milling, high gear quality and long tool life can only be achieved through precisely adjusted knife heads. The Oerlikon Knife Head Setting and Testing Device CS 200 enables quick and easy adjustment of individual blades, checks their position, and documents the measurement results. The measurement process on the CNC-controlled testing device is semi-automated: all actions required to perform the process are shown on the display for operator guidance. The positioning of the individual knives in the knife head, as well as setting the height of the knife tips, is largely automatic thanks to a special procedure, and is simultaneously documented via a run-out diagram. A subsequent measuring process checks the radial position of both the internal and external cutting edges of all knives in the knife head. If individual inspection parameters on the knives do not meet the tolerance requirements, these can be adjusted individually. Thanks to the combination of a semi-automated adjustment process, operator-guided setup actions, and automatic measuring processes, knife heads can be set quickly, conveniently, and with high precision. Operator-guided adjustment and inspection process: - Graphical display of the knife head design as well as measurement results with tolerance verification - Instructions for the operator in plain text (no coded information) - Simple allocation of measurement results to individual knives Dkjdpoul Efmofx Afleg - Documentation of setup and measurement results via printer - Adjustment and inspection process suitable for stick blade heads of types ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® - Interface for neutral data

Stanje: rabljeno, številka stroja/vozila: 008131, Maks. širina panela: 4400 mm Maks. dolžina panela: 4400 mm Dkodpew Idh Hjfx Afljg Maks. izhod glavnega žaginega lista: 75 mm Število vpenjalnih čeljusti: 7

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2005, obratovalne ure: 52.455 h, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 2501-0154, stružna dolžina: 600 mm, premer struženja nad prečnim suportom: 140 mm, premer struženja: 300 mm, moč vretenovega motorja: 25.000 W, hitrost vretena (min.): 5.000 obr/min, največja hitrost vretena: 5.000 obr/min, pomik po osi Z: 900 mm, hitro pomikanje X-os: 3 m/min, hitri pomik os Y: 3 m/min, hitri pomik na osi Z: 3 m/min, največja hitrost vrtenja: 4.000 obr/min, vrtljajska hitrost (min.): 4.000 obr/min, vrtilni moment: 239 Nm, prehod palice: 80 mm, hitrost pomika os X: 165 m/min, hitrost podajanja osi Y: 165 m/min, hitrost podajanja os Z: 220 m/min, skupna masa: 10.500 kg, Oprema: dokumentacija / priročnik, The machine is still in operation and can be inspected under working conditions at VOVU Machining in Uden. In total, there are 6 identical machines available here. Equipped with a Fanuc 310is control unit. Dedjur Hfzspfx Aflokg

Stanje: rabljeno, številka stroja/vozila: 006211, Max. panel width: 4300 mm Max. panel length: 2200 mm Max. projection of main saw blade: 135 mm Number of clamps: 10 Second flexible pressure beam: yes Rotating station: yes Dkjdpfxoiwbfuo Aflsg

Stanje: zelo dobro (rabljeno), Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 2021, obratovalne ure: 22.351 h, vrsta upravljanja: CNC krmiljenje, stopnja avtomatizacije: polavtomatski, proizvajalec laserskih virov: Trumpf, laserske ure: 17.317 h, laserska moč: 4.000 W, najv. debelina pločevine: 20 mm, najv. debelina jeklene pločevine: 20 mm, maks. debelina pločevine iz nerjavečega jekla: 15 mm, maks. debelina aluminijaste pločevine: 10 mm, delovna dolžina: 3.000 mm, delovna širina: 1.500 mm, pomik po osi Z: 115 mm, natančnost ponavljanja: 0,03 mm, vrsta hlajenja: voda, skupna masa: 12.000 kg, Oprema: CE označba, dokumentacija / priročnik, hladilna enota, nujno zaustavitev, odsesavanje prahu, varnostna svetlobna zapora, Na prodaj: TRUMPF TruLaser 3030 z avtomatizacijo LoadMaster Stroj je bil nameščen junija 2021. Vzdrževanje je izvajalo izključno podjetje TRUMPF Slovakia, strokovno vzdrževanje opravljeno redno vsakih šest mesecev. Stroj je v odličnem stanju, opremljen z avtomatizacijo LoadMaster. Rezanje pločevine do debeline 25 mm. Tip in moč rezonatorja: CO₂, 4 kW. Maksimalna delovna površina: 3000 × 1500 mm. Dkjdewya Twjpfx Aflsg Stroj bo obratoval do konca decembra 2025, možnost ogleda kadar koli v polnem obratovanju. Na voljo celotna servisna dokumentacija.

Stanje: rabljeno, BRANDT highflex 1440 edge bander Well equipped, Pre-milling units Glue application Pneumatic pre-cut guillotine Pressure rollers Finishing saws Top and bottom milling unit 2 x corner rounding units Profile scraper Flat scraper Polishing unit The machine features NC-controlled milling units and a pneumatic package Maximum workpiece height: 60 mm Maximum edge thickness (in rolls): 3 mm Djdpov H D S Ssfx Aflekg Feed speed max: 14 m/min The machine is fully operational and can be inspected prior to purchase.
