Portalske rezkalne stroje nakup rabljenega (117)

Stanje: rabljeno, Leto izdelave: 1965, Dimensions (length/width/height): 10,460 × 5,715 × 5,537 mm Horizontal spindle head adjustment: 3,160 mm Ksdpfx Aeuh E Tboh Djnc Vertical spindle head adjustment: 1,000 mm Milling length: 2,250 mm Machine weight approx.: 76,660 kg

Stanje: novo, Leto izdelave: 2025, potovalna razdalja osi X: 2.000 mm, pomik osi Y: 1.500 mm, pomik po osi Z: 800 mm, 🚀 EMO Trade Fair Highlight: VM2000 Gantry Milling Machine 🚀 – Precision. Performance. Immediately available. Our CNC gantry milling machine VM2000 will be demonstrated live at the upcoming EMO trade fair – and you have the unique opportunity to secure this model straight from the show floor at a special price! 🔧 Technical Highlights: ✅ Travel distances: X 2000 mm / Y 1300 mm / Z 800 mm ✅ Spindle: HSK A63, 15,000 rpm, 38 kW peak power ✅ Table size: 1650 × 1300 mm, load capacity up to 4,000 kg ✅ Precision: positioning accuracy P0.012 mm ✅ 24-position tool changer for maximum flexibility 💡 Perfect for tool and mold making, automotive, and aerospace industries. Further technical data can be found in the attachment and here: Category Value Control FANUC 0i MF Plus X-axis travel 2000 mm Y-axis travel 1300 mm Z-axis travel 800 mm Spindle nose to table 235–1035 mm Column distance / max. workpiece height 1820 / 1000 mm Table size (LxW) 1650 × 1300 mm Max. table load 4000 kg T-slots (width × spacing × number) 22 × 180 × 7 mm Spindle taper HSK A63 Max. spindle speed 15000 rpm Spindle power (cont./max.) 15 / 38 kW Max. spindle torque (cont./max.) 70 / 149 Nm Rapid traverse X/Y/Z 20000 / 20000 / 12000 mm/min Feed rate X/Y/Z 1–10000 mm/min Motor output X/Y/Z 4 / 9 / 9 kW Tool changer type Arm Tool stations 24 Max. tool diameter φ75 / φ130 mm Max. tool length 300 mm Max. tool weight 8 kg Positioning accuracy P0.012 mm Repeatability Ps0.010 mm Air pressure 0.6–0.8 MPa Coolant flow 99 L/min Power supply 3/PE, AC380V, 50Hz Power consumption 60 kVA Machine dimensions (LxWxH) 5000 × 4910 × 4600 mm Machine weight 21000 kg Main configuration 1 FANUC 0i-MF plus absolute, type 0 system, 15 inch color LCD 2 iHMI+Handbook I 3 Max.1500, min.400 block lookahead 4 Data server (2GB) 5 Fast Ethernet card 6 Interpolation type straightness compensation 7 Custom operator panel 8 Rigid tapping 9 Transformer 10 Work area lighting 11 3-color signal light 12 Portable MPG 13 Automatic shutdown 14 Safety door interlock 15 Foot switch and tool release button 16 Coolant tank level detection 17 Direct-drive spindle HSK A63, 15,000 rpm 18 Oil cooler for spindle 19 Machining air blower 20 Coolant system 21 Spindle air seal 22 Airgun/water gun 23 Grease lubrication system 24 Pneumatic system 25 Full protective enclosure 26 Electrical cabinet air conditioner 27 Swiveling control cabinet 28 Isolated control cabinet for high and low voltage 29 Chain-type chip conveyor 30 Adjustable leveling bolts and foundation blocks 31 Tool kit 32 Operating manuals 33 Spiral chip conveyor 34 Operation manual 35 Spiral chip conveyor 36 CTS, 20-70 bar, including through-spindle air 37 Oil separator (Chinese brand) 38 Arm-type ATC, 24 tools 39 FAGOR absolute scales for X, Y, and Z axes 40 Sealed iron package Kjdpfsw N I A Dsx Ah Dsnc 👉 Request more information and secure your special price: New Skymaster VM2000 CNC Gantry Milling Machine – Kraft Werkzeugmaschinen

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2007, Nachgerüstet: 2024 Numerische Steuerung: HEIDENHAIN TNC-i530 Technische Merkmale Abmessungen Tischabmessungen: 4500 x 2000 mm Anzahl der T-Nuten: 11 T-Nuten-Breite: 22 mm Achshübe X-Achse Verfahrweg: 4000 mm Y-Achse Verfahrweg: 3000 mm Z-Achse Verfahrweg: 1000 mm Kjdpfx Aougbn Ejh Djnc Vertikalkapazität (VC): -10 / 990 mm Abstand zwischen den Ständern: 2435 mm Fräskopf Automatischer Universal-Differentialkopf (UAD - 0,1º) Werkzeugspanneinrichtung: hydraulisch Aufnahmekegel: ISO50 Drehzahlbereich: 6000 U/min Spindelleistung: 30 kW Vorschübe Vorschubgeschwindigkeit: 5000 mm/min Eilgang (X / Y, Z): 15000 / 12000 mm/min Gewicht und Abmessungen Maximale Tischbelastung: 10.000 kg Maschinengewicht ca.: 45.300 kg Maschinenabmessungen ca.: 10.975 x 4.768 x 5.095 mm Zubehör Umhausung Automatischer Werkzeugwechsler: ATC30 Kühlmittelanlage: extern und intern, Hochdruck durch die Spindel Elektronisches Handrad: HR-410 Verkaufsbedingungen Gewährleistung: 6 Monate auf mechanische Ersatzteile Verkaufspreis (ab Werk): auf Anfrage Alle technischen Merkmale anzeigen

Stanje: zelo dobro (rabljeno), Leto izdelave: 2014, Initial commissioning: 2014 Control system: Heidenhain iTNC 530 HSCI incl. HR 520 handwheel Machine hours Machine power-on hours: approx. 90,000 h Spindle hours: approx. 38,000 h Current milling spindle hours: approx. 900 h Travel distances X-axis: approx. 2,500 mm Y-axis: approx. 3,000 mm Z-axis: approx. 1,250 mm A-axis: ± 110° C-axis: ± 300° Clamping table Clamping surface: approx. 2,500 x 3,250 x 600 mm 2-axis milling head VH30 Spindle power: 60 kW Spindle speed: max. 22,000 rpm Torque: 95 Nm Tool holder: HSK 63A Kjdpfx Ahjwywcio Denc Tool clamping: hydraulic Coolant supply: external and internal Drives linear axes Feed rate X/Y/Z-axis: up to 60 m/min Axis acceleration X/Y/Z-axis: up to 5 m/s² Connection data Connected load: 190 kVA Main fuse: approx. 315 A Dimensions, weights Space requirement machine with peripherals: approx. 10,000 x 8,000 x 5,650 mm Total weight: approx. 63,000 kg Colour Enclosure, gantry, control cabinet: RAL 7035 light grey Milling head and applications: RAL 6038 luminous green Description: Additional equipment - Coolant supply with belt filtration system - 50-position chain tool changer - Workspace enclosure - Chip conveyor - LTA emulsion mist extraction system Optional at extra charge: - Renishaw RMP60 wireless measuring probe - BLUM Control NT Condition of the machine Fully functional, in excellent condition, and still under power for inspection! The photos are for illustration purposes and show a new machine of this type. Original photos will follow shortly!

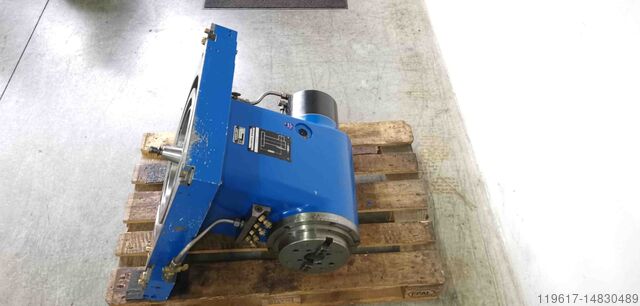

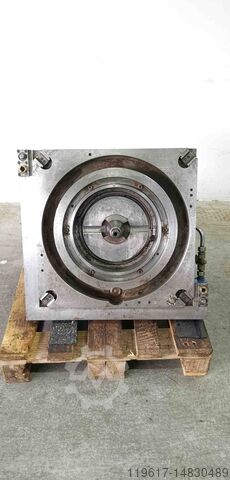

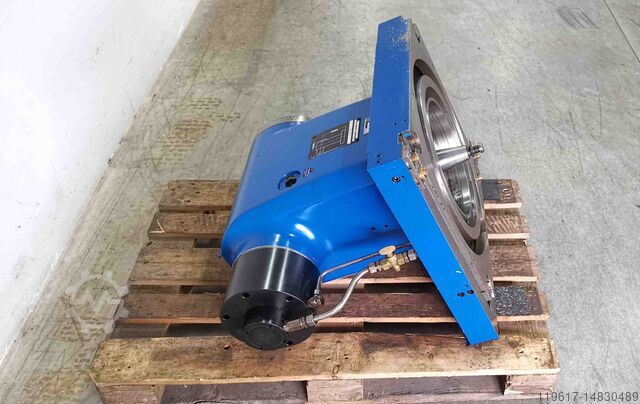

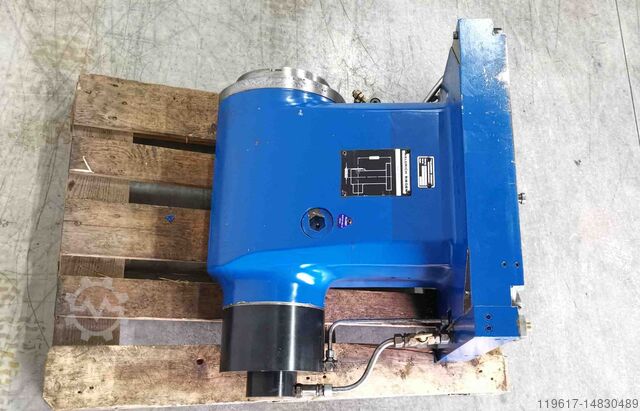

Stanje: rabljeno, Leto izdelave: 1987, Funkcionalnost: popolnoma funkcionalen, Angular milling head Knjdorfw R Hspfx Ah Djc - Manufacturer: Waldrich Siegen - Model: ET500 - Reference No.: 11290/731

Stanje: rabljeno, Leto izdelave: 2014, X-axis travel: 1250 mm, Y-axis travel: 1280 mm, Z-axis travel: 150 mm, Max. feed rate: 15 m/min, Repeatability: 0.01 mm, Spindle speed: 0–24,000 rpm, Software: VCarve Pro, Data formats: HPGL-3D / G-Code, Spindle power: 6.5 kW, Control system: Siemens Sinumerik 808D Milling, Weight: 1.2 t, with collet spindle, phenolic vacuum high-pressure table, 850 W Yaskawa servo motors, steel base frame, precision ball screw drives on all axes, X-axis with dual drive, linear guides, protective cover for all drive axes, extraction foot for chip extraction, automatic spray cooling, and material sensor. Knsdewqd Rhjpfx Ah Doc

Stanje: dober (rabljeno), Leto izdelave: 2004, Funkcionalnost: popolnoma funkcionalen, potovalna razdalja osi X: 4.000 mm, pomik osi Y: 2.500 mm, pomik po osi Z: 1.000 mm, obremenitev mize: 25.000 kg, razdalja od mize do središča vretena: 3.000 mm, Nova rezkalna glava vreteno HSK-100 Siemens-840-D Stroj je v dobrem stanju. Knedpfx Ahewq Thio Dec

Stanje: zelo dobro (rabljeno), Leto izdelave: 1995, x-travel 14,000 mm Kedpovwgm Hsfx Ah Donc y-travel 5,000 mm z-travel 1,500 mm w-axis 3,000 mm Column clearance 4,000 mm Gantry column: Distance table – spindle nose 4,500 mm Workpiece weight 100 t Table dimensions – longitudinal 9,000 mm Table dimensions – cross 3,000 mm Spindle taper ISO SK 50 Spindle speed 2–2,500 rpm Spindle drive 113 kW Spindle diameter 200 mm Spindle torque 9,500 Nm Feed range x-axis 1–10,000 mm/min Feed range y-axis 1–10,000 mm/min Feed range z-axis 1–10,000 mm/min Rapid traverse 20,000 mm/min Height above floor 8,600 mm Control SIEMENS 840C Machine weight approx. 360 t >>> retrofit 2011

Stanje: rabljeno, Leto izdelave: 2018, Are you looking for a gantry milling machine? With X-travel from 2 to 15 meters, Y-travel up to 4 meters, and Z-travel up to 2 meters, we offer you a versatile selection of machines for various machining requirements. Whether you need CNC universal heads, W-axis, rotary tables, tool changers, or controls from renowned manufacturers such as Siemens, Fanuc, and Heidenhain—our comprehensive range of accessories ensures maximum flexibility and efficiency. Take a look at the PDF catalog below! Discover the ultimate precision and robustness of our refurbished CORREA gantry milling machines, which have been expertly overhauled by our specialists in Spain. These machines have been tested to the highest standards, guaranteeing you top-tier machining quality. One outstanding example is our in-stock, pre-owned CNC gantry milling machine VM 2018, equipped with the proven Heidenhain control system. With impressive performance data and detailed technical features, this machine offers everything you need for precise and efficient machining. x-travel: 2300 mm y-travel: 2000 mm z-travel: 1000 mm Knodpfxohx R Dke Ah Dec Table size: 2300 x 1600 mm T-slots (width x pitch x number): 8 x 22 x 180 mm Max. table load: 8 t Distance between columns: 1840 mm Distance spindle nose to table: 180~1180 mm Spindle motor: 22/46 kW Spindle torque: 140.1/286.5 Nm (S6-25%) Spindle taper: ISO 50 Spindle speed: 10000 (direct) rpm Rapid traverse X, Y: 20000 mm/min Rapid traverse Z-axis: 15000 mm/min Milling feed range: 1~10000 mm/min Machine size (LxWxH): 7027 x 5217 x 4339 mm Total power requirement: 60 kVA Machine weight (approx.): 25 t CNC control: Heidenhain TNC 620 Chip conveyor with chip bin: 2 spiral conveyors, 1 hinged belt conveyor ICS (internal coolant supply): 20 bar CE-conformity: TUEV certified Used CNC gantry milling machine with HEIDENHAIN 620 TNC control, extensive accessories, and the following features: - Monoblock cast-iron machine bed and monoblock crossbeam ensure maximum rigidity for precise machining results. - The entire structure has been analyzed with FEM to optimize rigidity and precision. - Feed roller linear guides of P-class allow maximum load with low friction coefficient (0.003–0.006). Ensures smooth operation through optimized roller circulation and guidance, reducing energy use. - Double-nut C3 ball screws provide precise milling even for heavy loads. - Direct-drive spindle with 10,000 rpm, tool holder SK50. - Spindle motor power: 22/46 kW (S6-25%. 22 kW continuous, 46 kW up to 30 minutes overload) - Spindle torque: 140.1/286.5 Nm (S6-25%) - Two spiral conveyors and one chain chip conveyor for effective chip removal. All essential components from well-known European manufacturers. This guarantees reliable, fast, and long-term spare parts supply. Don’t miss the opportunity to optimize your production processes and invest in high-quality milling technology. Experience the difference our gantry milling machines provide—reliable, durable, and ready to handle your most demanding tasks. Contact us today for expert advice. Further in-stock machines available on request.

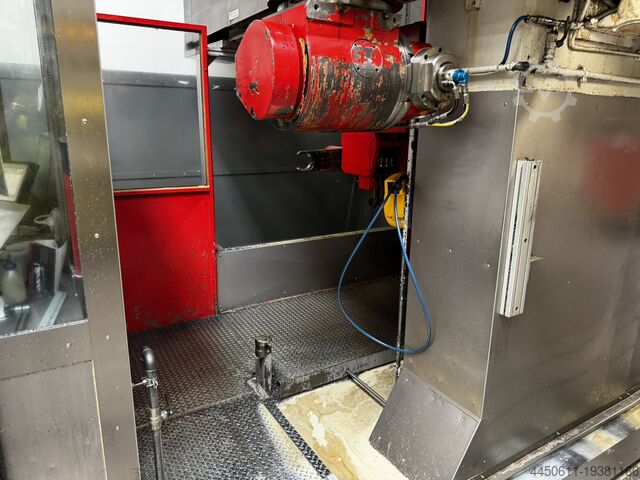

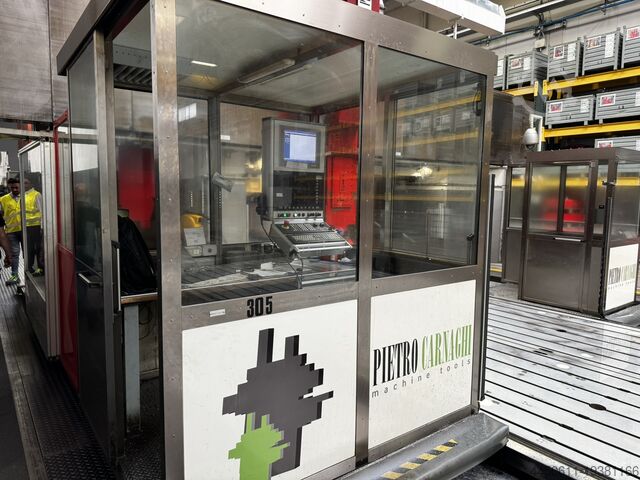

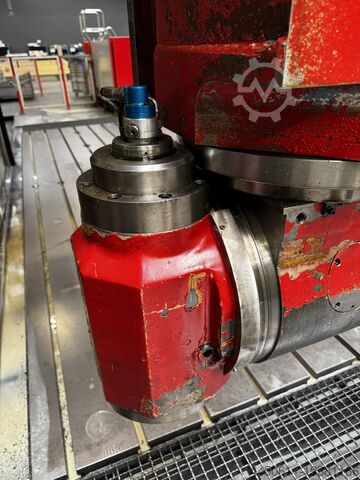

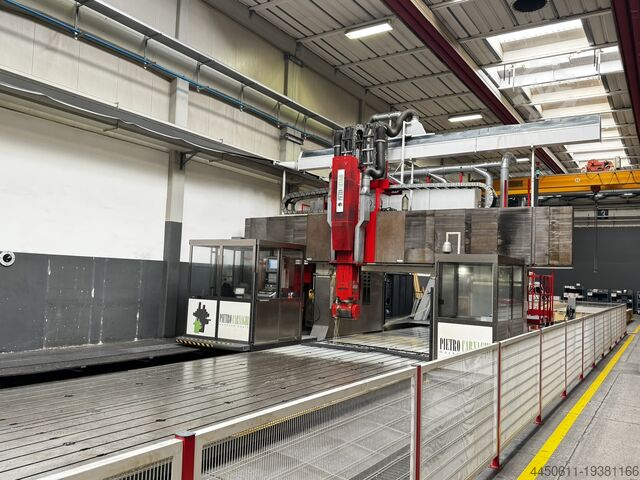

Stanje: novo, Leto izdelave: 2024, obratovalne ure: 50 h, številka stroja/vozila: 305, Available: February 2023 Control system: Osai X-axis: approx. 3,100 mm Y-axis: approx. 2,100 mm Z-axis: approx. 1,000 mm A-axis: ± 115° C-axis: ± 360° Clamping Table Clamping surface: approx. 3,100 x 2,100 x 213 mm Aluminium with T-slots, crosswise every 250 mm Max. load: 1,000 kg evenly distributed over the entire surface Kedpjwwq Hcofx Ah Denc 2-axis milling head ST7 Spindle power: 10 kW Spindle speed: max. 24,000 rpm Torque: 15.3 Nm Tool holder: HSK 63F Tool clamping: pneumatic Blow air / MQL: external Linear axis drives Feed rate X and Y axes: up to 50 m/min Feed rate Z axis: up to 30 m/min Colour Enclosure, gantry, control cabinet: light grey Z-slide and milling head: orange Additional equipment - 15-position tool changer - Control unit in separate, mobile console

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2019, obratovalne ure: 3.944 h, Funkcionalnost: popolnoma funkcionalen, NCT304 control (touchscreen, USB, 19-inch display) Table dimensions: 2000 x 1400 mm Number of T-slots x dimensions x spacing: 9 x 22 x 160 mm Max table load: 6000 kg Distance spindle nose to table surface: 200 – 1000 mm Column gap: 1650 mm Positioning accuracy: < 0.02 mm Repeatability: < 0.008 mm Guideways X / Y: cylindrical roller guides, 2 / 2 Z-axis guide: boxway X travel: 2100 mm Y travel: 1500 mm Z travel: 1000 mm Rapid traverse X / Y / Z: 20 / 20 / 15 m/min Feed speed: 15 m/min Spindle speed: 10,000 rpm Taper: SK50 Direct drive system Number of speed ranges: 2 Ksdpfxetr E A Uo Ah Denc Drive power: 22 kW Magazine: 30 stations (arm-type tool changer) Max. tool length: 400 mm Max. tool diameter: 125 (215) mm Max. tool weight: 20 kg Space requirements LxWxH: 6000 x 4600 x 4200 mm Weight: 23,500 kg Accessories, equipment - ICS (internal coolant supply) - Coolant system - Chip conveyor - Angle head (manually adjustable) - Arm-type tool changer - Work lighting - Rinse gun - Manuals The machine is in very good, almost as-new condition. Immediately available, still under power.

Stanje: novo, FEATURES: • Robust and stable machine structure made from precision-ground granite components • Small footprint due to compact design • High-frequency spindle with up to 2 kW power and 50,000 rpm • HSK-E 25 quick-change system Knjdpfxolnk E Se Ah Doc • HSC control technology with real-time block processing time < 1 ms • High path accuracy thanks to digital length measuring system • Heavy-duty linear guides • Low-maintenance linear motors in X, Y, Z axes • Heidenhain® TNC 640 control unit • Zero-point clamping system in the granite table for rapid changeover from 3- to 5-axis operations OPTIONS: • 3D touch probe for detecting workpiece zero points or re-measuring components • Laser for non-contact tool monitoring • High-frequency spindles up to 100,000 rpm • 4th/5th axis as rotary/swivel unit • Minimum quantity lubrication system • Various Heidenhain® control systems • Handheld control unit • Professional CAD/CAM solutions GRANITE, STEEL, AND LINEAR MOTORS FOR UNMATCHED MACHINING QUALITY! The PREMIUM 5030 is a 3-axis high-speed cutting (HSC) milling system specifically designed for the highly precise machining of fine mechanical small parts, micro-machining, and the milling of graphite/copper electrodes. To meet these stringent accuracy requirements, all essential elements for process-reliable production have been integrated into the machine design. The rigid machine base, consisting of a natural hard-rock granite gantry with a decoupled Y-axis, guarantees high stiffness and long-term stability. The individual granite elements are manufactured to DIN 876 / grade 00 accuracy. State-of-the-art linear motor technology and the incremental measuring system ensure maximum positioning accuracy with high-dynamic feed rates. Ultra-fast control technologies (high-speed cutting) guarantee smooth path movements with maximum precision and intuitive operation; here, the Heidenhain® TNC 640 is used as the control unit.

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2017, potovalna razdalja osi X: 3.000 mm, pomik osi Y: 1.600 mm, pomik po osi Z: 1.200 mm, dolžina mize: 3.500 mm, širina mize: 1.750 mm, hitrost vretena (min.): 24.000 obr/min, Krmiljenje Heidenhain iTNC 530 Glavno vreteno HSK-A 63 Hitrosti: 1–24.000 obr/min Izmenjevalec orodij za 50 orodij Hlajenje skozi vreteno 5-osni rezkalni stroj s simultano rezkalno glavo (Gabelkopf) Knsdpfx Ahjw S T Iqe Dec

Stanje: zelo dobro (rabljeno), Leto izdelave: 2014, x-axis travel: 8,000 mm y-axis travel: 3,500 mm z-axis travel: 2,500 mm Control: HEIDENHAIN iTNC 530 Spindle speeds: 24,000 rpm Spindle motor: 45 kW Kodswli Tqopfx Ah Denc Tool holder: HSK A-63 Tool changer capacity: 50 positions Table dimensions (longitudinal): 9,500 mm Table dimensions (cross): 3,000 mm Coolant system: Through-spindle coolant (IKZ), 40 bar c-axis: 360° Swiveling spindle head: +/- 110° Machine weight: approx. 84 t This ZIMMERMANN FZ 37-5 is in very good condition and available immediately. Description: Portal milling machine ZIMMERMANN FZ 37-5 Year of manufacture: 2014 Control: Heidenhain iTNC 530 X/Y/Z traverse travels: 8,000/3,500/2,500 mm Spindle speed: 25,000 rpm Tool holder: HSK 63 Spindle: Technology: Motor spindle Speed: 25,000 rpm Power: 45 kW Tool holder: HSK 63 NC Swivel Head: Technology: Fork head, VH 20 A-axis: +/- 110°, 0.001° C-axis: 360°, 0.001° Clamping: Hydraulic Worktable: Clamping surface: 9,500 x 3,000 mm Max. table load: 5,000 kg/m² T-slots: 18 H12 Pitch: 250 mm Tool Magazine: Technology: Chain magazine Tool changer: Double gripper Number of tool stations: 50 Max. tool diameter: 125 mm Max. tool length: 300 mm Equipment / Accessories: Measuring systems: Direct in all axes Chip removal: Chip conveyor Coolant supply: Through-spindle coolant (IKZ) system, 40 bar Workpiece measurement: Renishaw RMP 60 Tool measurement: BLUM laser Setup operation: Electronic handwheel

Stanje: zelo dobro (rabljeno), Leto izdelave: 2013, Funkcionalnost: popolnoma funkcionalen, potovalna razdalja osi X: 24.000 mm, pomik osi Y: 4.720 mm, pomik po osi Z: 1.500 mm, dolžina mize: 24.000 mm, širina mize: 3.700 mm, največja hitrost vrtenja: 3.000 obr/min,

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2004, Funkcionalnost: popolnoma funkcionalen, PORTAL MILLING MACHINE WITH ROTARY-TILTING TABLE EQUIPPED WITH SELCA 4060 PD CNC CONTROL Ksdpot I Tuzsfx Ah Dsnc X-AXIS TRAVEL: 1,600 mm Y-AXIS TRAVEL: 2,000 + 500 mm for tool change Z-AXIS TRAVEL: 900 mm ROTARY-TILTING TABLE SIZE (C-AXIS): 1,200 x 1,200 mm MAXIMUM LOAD CAPACITY: 2,000 kg T-SLOTS: No. 9 slots, 18 mm width Distance between columns: 1,550 mm Electrospindle power S1: 28 kW at 3,000 rpm 24-position automatic tool changer Numerical control: SELCA type 4060 PD Electrical cabinet cooling unit (AIRC) Tool cooling system: “spray mist” type (SPR) Laser system for tool integrity and measurement control

Stanje: rabljeno, X-axis travel: 11,000 mm Y-axis travel: 3,000 mm Z-axis travel: 1,300 mm Quill diameter: 300 mm Clearance width: 3,270 mm Clearance height: 1,500 mm Clamping area: 11,000 x 3,000 mm Spindle speed: 600 rpm Ksdpow Ahxtofx Ah Djnc Tool holder: SK ISO 60 Spindle diameter: 200 mm Power consumption: 125 kW Feed rate X-axis: 0 – 20 m/min Feed rate Y-axis: 0 – 2 m/min Rapid traverse – portal X: 0 – 20 m/min Rapid traverse – portal Y: 0 – 2 m/min Converted planing machine Control: automatic line milling cycle Standard angle head

Stanje: novo, Portal machine – the space-saving miracle! CNC gantry milling machine for large travel distances with minimal space requirements! ADVANTAGES: • Optimal use of space, completely unobstructed table clamping area • Maximum chip protection thanks to overhead axes • Especially suitable for tall and bulky components FEATURES: - Gantry function in the Y-axis (synchronized via ProNC software) - CAN bus system with EC servo motors on all axes - Backlash-free steel ball screw drives with steel linear guides - T-slot table for easy clamping of workpieces and accessories - Clamping surfaces ranging from 1100x1000 up to 1750x2000 mm - Variable clearance from 340 mm to 590 mm - Spindle motors: iSA 500 / 750 / 1500 / 1500L as well as iSA 900 / 1500W / 1500WL / 2200 - Speeds up to 250 mm/sec possible - PILZ safety technology - Effortless operation with height-adjustable CNC panel - Network-enabled control PC with Windows - Parallel sliding door - Workpiece clamping via T-slot plate - Variable portal clearances to suit customer applications STRUCTURE: Gantry: movable, Table: stationary Knodpfxohqhlvo Ah Dec APPLICATIONS: • Machining • Measuring and inspection • Dispensing applications SUITABLE FOR MACHINING: • Aluminium / light metals • Machining plastics • Ceramics • Non-ferrous metals (brass, bronze, etc.) • Plastics • Wood Optimal space utilization with the smallest footprint possible. Do you have limited space but still require maximum travel? We have the solution for you. Our OverHead machine series offer maximum travel paths with compact footprints. All drives are located in the upper section of the machine, leaving the entire machine table free for your individual applications. Thanks to a wide range of variable features and additional options, the CNC machine can be optimally configured for many industries and work areas. The OverHead Gantry M is ideal not only for machining, but also for measuring, inspection, and dispensing applications. Thanks to a spindle motor power of up to 2.2 kW and 20,000 rpm, as well as a travel speed of up to 250 mm/sec, it is suitable for processing wood and plastics as well as light and non-ferrous metals. The unobstructed working area and excellent price/performance ratio provide decisive advantages over comparable products. The OverHead Gantry M is available in five different sizes for various travel ranges from M20 to M50. Do you need the control cabinet on the right, or would you prefer the operator panel on the left? No problem – we are happy to accommodate your requirements and naturally take care of maintenance and support for your OverHead Gantry M. Our service technicians are available by phone and, if necessary, can be on-site quickly. Additionally, we offer our in-house software isy-CAM 2.8 and will provide advice on your specific application. Many options available on request!

Stanje: zelo dobro (rabljeno), Leto izdelave: 2013, Commissioning: 2013 Control system: Heidenhain iTNC 530 incl. HR 520 handwheel Machine hours Machine powered on: approx. 40,700 h Spindle hours: approx. 17,100 h Spindle hours current milling spindle: approx. 150 h Travel distances X axis: approx. 2,500 mm Y axis: approx. 3,000 mm Z axis: approx. 1,250 mm A axis: ± 110° C axis: ± 300° Clamping table Clamping surface: approx. 2,500 x 3,250 x 400 mm 2-axis milling head VH30 Spindle power: 60 kW Spindle speed: max. 22,000 rpm Torque: 95 Nm Tool holder: HSK 63A Tool clamping: hydraulic Coolant supply: external and internal Drives linear axes Feed rate X/Y/Z axis: up to 60 m/min Axis acceleration X/Y/Z: up to 5 m/s² The machine is currently set to the following basic values due to insufficient available power on site! Feed rate X/Y axis: up to 40 m/min Feed rate Z axis: up to 30 m/min Axis acceleration X/Y/Z: up to 2.5 m/s² Electrical data Connected load: 190 kVa Main fuse: approx. 315 A The machine can be reset to its original values at any time, provided sufficient power supply is available. Current reduced connection values: Connected load: 130 kVa Main fuse: approx. 250 A Dimensions, weight Required space for machine with peripherals: approx. 10,000 x 8,000 x 5,650 mm Total weight: approx. 63,000 kg Colour Knsdpfxewa T Hks Ah Dec Enclosure, gantry, control cabinet: RAL 7035 light grey Milling head and applications: RAL 6038 luminous green Description: Additional equipment: - Coolant supply with belt filter system - 50-position chain tool changer - Work area enclosure - Chip conveyor - LTA emulsion mist extraction system Options available at extra cost: - Renishaw RMP60 radio probing system - BLUM Control NT Condition of the machine Fully functional, in very good condition. Already dismantled and stored.

Stanje: dober (rabljeno), Leto izdelave: 2005, x-travel: 6000 mm y-travel: 3500 mm z-travel: 1500 mm Control: SIEMENS 840D Table load capacity: 12 t Knedpfx Ahsvwglve Dsc Height above floor level: 6300 mm Table size (longitudinal): 5000 mm Table size (cross): 2500 mm Number of tables: 2 Tool changer: 200 positions Maximum tool weight: 30 kg Tool holder: HSK A 100 Maximum tool diameter: 250 mm Maximum tool length: 500 mm Spindle speeds: 5–6000 rpm c-axis: -10 to 370° b-axis: 5 to -95° Column passage: 3000 mm Distance spindle nose to table: 1500 mm Machine weight: approx. 161 t Space requirement: approx. 20.5 x 11 x 6.3 m This WALDRICH-COBURG Valutec gantry milling machine is in very, very good condition and can be inspected at the seller’s facility by appointment.

Stanje: novo, Leto izdelave: 2025, številka stroja/vozila: 306, Initial commissioning: 2024 Control: Heidenhain TNC 640 incl. HR 520 handwheel Knjdpjvy Dugsfx Ah Doc X-axis: approx. 4,000 mm Y-axis: approx. 2,700 mm Z-axis: approx. 1,300 mm A-axis: ± 120° C-axis: ± 360° Clamping table Clamping area: approx. 4,000 x 2,500 x 213 mm Aluminum with T-slots crosswise every 250 mm Max. load: 1000 kg evenly distributed over the entire surface 2-axis milling head HS673 Spindle power: 22 kW Spindle speed: max. 24,000 rpm Torque: 18 Nm Tool holder: HSK 63A Tool clamping: pneumatic Blow air / MQL: external Linear axes drives Feed rate X and Y axes: up to 60 m/min Feed rate Z axis: up to 40 m/min Color Enclosure, gantry, control cabinet: light grey Z-slide and milling head: orange Additional equipment - Work area cover - 16-position tool changer - Control on separate, mobile console Optional at extra charge: - Blum laser tool measurement - Renishaw RMP60 radio probe - Heidenhain remote diagnostics Pictures show an identical machine with slightly different equipment!

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2022, x-travel: 2500 mm y-travel: 3500 mm z-travel: 1500 mm Control system: HEIDENHAIN TNC 640 c-axis: ±360° Milling head - tiltable: ° Knsdpfx Ahjvwgtyo Djc Milling head - rotatable by ±360° Table dimensions - longitudinal: 2500 mm Table dimensions - cross: 3500 mm Table load capacity: 6 t/m² Coolant system IKZ: 70 bar Feed rate: 60 m/min Spindle speed: 24,000 rpm Tool holder: HSK-A63 Milling spindle motor S6 (40% / 2 min): 41 kW Spindle torque S6 (40% / 2 min): 49 Nm Milling spindle motor S1 (100% / 2 min): 34 kW Spindle torque S1 (100% / 2 min): 39 Nm Tool changer: 60 positions Machine weight: approx. 74 t Installation space: approx. 4 x 7.5 x 5.4 m This thermosymmetrical, ergonomic, universal ZIMMERMANN FZU32 portal milling machine is in mint condition and can still be inspected under power by prior arrangement with the seller. DESCRIPTION: The FZU32 is a remarkably compact 5-axis portal milling machine for processing aluminium, composite materials, plastics, Ureol, and steel. The newly developed particularly rigid, centre-guided portal enables us to meet the increasing demands of model, tool, and mould making. This thermosymmetrical design makes the FZU32 less susceptible to adverse environmental conditions.

Stanje: dober (rabljeno), Leto izdelave: 1991, x-axis travel 4000 mm y-axis travel 2500 mm z-axis travel 1200 mm Control system: FIDIA M30 Spindle power: 37 kW Spindle speed: 4500 rpm Ksdpfevwgmgox Ah Djnc Column clearance: 2300 mm Distance spindle to clamping surface: 1250 mm Tool holder: ISO SK-50 Table dimensions (longitudinal): 3000 mm Table dimensions (cross): 1500 mm The 5-axis portal milling machine Ingersoll-Bohle is in good condition and can be inspected by appointment with the seller. Accessories: - High-frequency spindle 3.8 kW with 25,000 rpm Description: - Infinitely adjustable angled milling head (spindle speed 4500 rpm)

Stanje: zelo dobro (rabljeno), Leto izdelave: 2002, x-axis 4000 mm y-axis 3500 mm z-axis 1500 mm Control system: SIEMENS 840 D w-axis 1500 mm Column clearance: 2500 mm Clamping surface: 3000 x 2000 mm Workpiece weight: 10,000 kg Spindle speeds: 5-6000 rpm Gear stages: 2 Drive power – milling spindle: 45 kW Distance: milling spindle – clamping spindle: 3500 mm Spindle torque: 1250 Nm Tool changer capacity: 200 positions Knedsvwgmmopfx Ah Dec Tool diameter: 135 / 250 mm Maximum tool weight: 50 kg Maximum tool length: 400 mm Tool holder: ISO SK-50 The portal milling machine is in very good condition. ADDITIONAL EQUIPMENT FOR DRILLING/MILLING Angular milling head: yes Automatic tool clamping: yes Ball screw drives: yes Guideway coverings: yes Coolant system: yes High-pressure cooling system (internal cooling): yes Fully enclosed work area: yes Portal machining center with tool changing system and second table plate.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2016, x-travel 2500 mm y-travel 3000 mm z-travel 1250 mm CNC control HEIDENHAIN iTNC 530 Spindle speed 22000 rpm Tool holder HSK A-63 Spindle motor 60 kW Swivelling spindle head +/- 110° c-axis 360° Tool changer with 50 positions Table size - longitudinal 2500 mm Table size - transverse 3250 mm Coolant system 40 bar Machine weight approx. 60 t Space requirements approx. 7.6 x 7.3 x 5.7 m This ZIMMERMANN FZ33c is in very good condition. The machine is immediately available. Description: Technical Data of the System and Working Areas X-axis 2500 mm Y-axis 3000 mm Z-axis 1250 mm A-axis ±110° C-axis ±300° Including vibration sensor Including bearing temperature sensor Including rotary union for internal coolant supply (IKZ) 5-axis trajectory control: Heidenhain iTNC 530 / Handwheel HR520, 15" TFT color display Extraction system Keller Vario P1 Machine enclosure with roof 50-position tool changer, chain magazine, rear-mounted Chip conveyor, discharge 60° left, at front end Probe Renishaw RMP60 Blum laser tool measurement "Control NT-Micro" Clamping table Length x width x height 2500 x 3250 x 400 mm Table load capacity 8000 kg/m² (max. 16000 kg) T-slots, longitudinal 18H12 Distance between T-slots 250 mm Ksdpfxewlvrmo Ah Djnc Dimensions, Weights Footprint (without peripheral devices) approx. 7600 x 7300 x 5650 mm Total weight approx. 53500 kg Electrical connection values Voltage (three-phase) 400 V Frequency 50 Hz Fusing see installation plan Power requirement see installation plan Compressed air connection (on site) Required air pressure 6 bar Average air consumption approx. 15 m³/h (depending on machine equipment) Drives linear axes Feed rate X-, Y-, Z-axis 60 m/min Acceleration X-, Y-, Z-axis up to 5 m/s² Drives rotary axes – VH30 Feed rate A-, C-axis 360 °/s Acceleration A-, C-axis 700 °/s² Resolution A-, C-axis 0.0001° Accuracy linear axes – according to VDI/DGQ 3441 Positioning accuracy X-axis P= 0.026 mm Y-axis P= 0.028 mm Z-axis P= 0.020 mm Repeatability X-axis Ps= 0.015 mm Y-axis Ps= 0.016 mm Z-axis Ps= 0.010 mm Measuring system resolution (interpolated) A-, C-axis 0.0001° Rotary axes accuracy – VH30 Positioning accuracy A-, C-axis P= 12" = 0.0033° Repeatability A-, C-axis Ps= 8" = 0.0022° Milling head VH30 2-axis milling head: VH30, Milling spindle Siemens Weiss Spindle power S1 (100% duty cycle) 60 kW, Spindle speed 22,000 rpm, 95 Nm, HSK-A63 Fork head external dimensions L x W approx. 500 x 600 mm Nominal torque rotary axes closed loop A: min. 1200 Nm, C: min. 1047 Nm Clamped A- and C-axis: 3000 Nm (Permanent grease lubrication with automatic re-lubrication) Swivel axis - spindle nose 326 mm Tool holder HSK 63 A Tool clamping spring tension Tool unclamping hydraulic Permissible tool weight 4.5 kg (manufacturer specification) Coolant supply external and internal Coolant-lubricant supply (emulsion) at the front of the milling spindle with band filter system Volume 1500 l Pump 1: 40 l/min at 20 bar Pump 2: 20 l/min at 40 bar Blow air at the front of the milling spindle
