Portalske rezkalne stroje nakup rabljenega (117)

Stanje: dober (rabljeno), SPECIFICATIONS Table size: 4000 x 1250 mm Travel X-axis: 3500 mm Travel Y-axis: 2500 mm Travel Z-axis: 800 mm Distance between columns: 2300 mm Spindle speed: 5,000 rpm CNC control: FIDIA Electronic handwheel Universal head Tool holder: BT 50 Motor power: 30 kW Ksdpfx Ajr I Ax Roh Donc Working feed rate: 5,000 mm/min Rapid traverse: 15,000 / 12,000 mm/min Maximum table load: 10,000 kg Machine dimensions (W x L x H): 4262 x 10,748 x 4400 mm Weight: 25,500 kg

Stanje: dober (rabljeno), - Hersteller: Waldrich-Siegen - Typ: PF-F-150(1)-530/400 - Maschinennummer: 11.093/0 - Überholt: 2004 (überholte Investition ca. 2,2 Mio. EUR) - Verfahrwege: * X-Achse: 12.000 mm * Y-Achse: 7.300 mm * Z-Achse: 3.000 mm * W-Achse: 4.000 mm - Abstützweite zwischen Ständern: 5.000 mm - Tischbreite: 4.730 mm - Tischnlänge: 12.000 mm - Tischbelastung: 19 t/m (insgesamt ca. 250 t) - Vorschub Tisch: 10.000 mm/min - Vorschub W-Achse: 3.000 mm/min - Vorschub T-Achse: 6.000 mm/min - Verstellweg Fräskopf quer: - Vertikaler Verstellweg Querträger: - Horizontal hydrostatisch gelagerter Frässchieber - Frässpindel Durchmesser: 560 mm - Werkzeugaufnahme Frässpindel: ISO 60 - Vorschub C-Achse: 5.000 mm/min - Fräsmotorleistung: 90 kW - Spindeldrehzahl: 2.500 1/min - Hub Z-Achse: 3.000 mm - Vorschub Z-Achse: 2.000 mm/min - Fräskopf: * Küma Winkelkopf WF2: 90 kW, 450 1/min * Küma Universal UB1D: 60 kW, 2.400 1/min * Küma Festkopf GB1D: 90 kW, 2.400 1/min * Küma Winkelkopf WF1: ? - Elektrischer Anschluss: 3 x 400 V / 50 Hz - Anschlusswert: 600 kVA / 630 A - Kühlmittelkapazität: 4.000 l, Kühlung durch Spindel 20/40 bar Maschine wurde 2004 durch Schiess generalüberholt. Bett-/Tisch-Baugruppe: * Erneuerung der Gleitbeläge * Führungsbahn-Schleifen * Erneuerung Tischantrieb * Direktes Längenmesssystem * Hydrostatisch gelagert Portal und Querträger: * Überarbeitung der Verstellspindel – Trapezgewindespindel ersetzt durch Kugelgewindespindel * Direktes Längenmesssystem * Neue Antriebsmotoren für höhere Vorschubgeschwindigkeiten am Fräsständer * Neuer Fräsständer mit hydrostatischen Führungsbahnen Elektrik: * Neuer Schaltschrank * Komplette Neubelegung aller Leitungen * Siemens Sinumerik 840 D in 6 Achsen! Kedpfx Ahekwcpbj Djnc Ausstattung / Zubehör: * Neue Raumag Janich-Abdeckungen (komplett) * Neue Doppelspäneförderer (komplett) * Umfangreiches Werkzeugpaket * Umfangreiches Spannmittelpaket - Unter Strom vorführbereit in Europa - Sofort verfügbar - Gesteuerte Achsen: X / Y / Z / W / C / B - Gesamthöhe: 10.475 mm - Gesamtbreite: 11.934 mm - Gesamtlänge: 30.000 mm - Gesamtgewicht: ca. 350.000 kg Bitte beachten: Die oben stehenden Angaben wurden nach bestem Wissen und Gewissen, soweit möglich vom Hersteller, zusammengetragen. Eine Garantie für die Richtigkeit der Angaben kann nicht übernommen werden und sie stellen keine zugesicherte Eigenschaft oder vertragliche Zusicherung dar. Bitte prüfen Sie alle für Sie wichtigen Details!

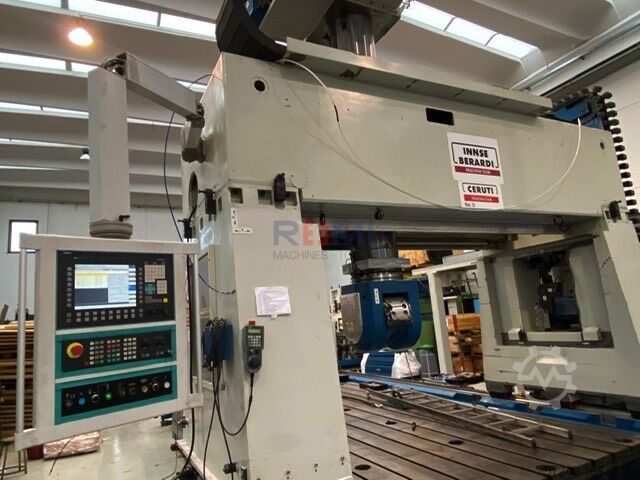

Stanje: generalkompletno obnovljen (rabljeno), Leto izdelave: 2002, Technical specifications are subject to change without prior notice. Axis travel paths of the CERUTI 25 model: X-axis: Working travel 10,000 mm, electrical emergency overtravel 2 mm (max), mechanical emergency overtravel 50 mm. Y-axis: Working travel 2,500 mm, electrical emergency overtravel 2 mm (max), mechanical emergency overtravel 50 mm. Z-axis: Working travel 1,000 mm, electrical emergency overtravel 2 mm (max), mechanical emergency overtravel 50 mm. A-axis: Working travel +/- 95°. C-axis: Working travel +/- 200°. T-axis: Continuous movement. Operating speeds of the linear axes: X, Y, Z axes: 20,000 mm/min. Axis accelerations: X-axis: 1,000 mm/sec². Y, Z axes: 1,000 mm/sec². Note: Accelerations may vary depending on the installed CNC control system. Spindle: Type: ISO 40, ISO 50, electrospindle HSK A63. Power: 30 kW. Torque: 280 Nm. Maximum speed: 12,000 rpm. Knodpfx Ahsv D U Ife Doc Installed tool holder type: HSK A63. Tool changer type S.G.M.: Number of positions: 20, 30, 74. Maximum diameter for adjacent positions: 100 mm. Maximum diameter for non-adjacent positions: 200 mm. Maximum length: 300 mm. Maximum tool weight: 12 kg. Tool change time: 20 sec.

Stanje: generalkompletno obnovljen (rabljeno), Leto izdelave: 1999, potovalna razdalja osi X: 11.450 mm, pomik osi Y: 3.500 mm, pomik po osi Z: 1.250 mm, Technical Description Value Unit Travel Range X-axis: 11,450 mm Y-axis: 3,500 mm Z-axis: 1,250 mm Cross-section of Z-axis slide: 360 x 360 mm Gantry clearance: 3,000 mm Ksdstix S Nspfx Ah Donc Height under vertical spindle: 1,400 mm Working clamping width: 2,500 mm Milling Unit: Type FA 305 C Power: 30 kW Maximum torque: 1,070 Nm Maximum speed: 4,000 rpm Slide cross-section: 360 x 360 mm Vertical Head with Spindle Power: 30 kW Maximum speed: 4,000 rpm Maximum torque: 1,070 Nm Rapid traverse in X, Z: 25,000 mm/min Rapid traverse in Y: 20,000 mm/min Infinitely variable feed rate, X, Y, Z: 10,000 mm/min Thrust force per axis: 25,000 N Tool holder: SK 50 Right-angle Head, Horizontal, with indexing 144 x 2.5°, with SK50 spindle Available power: 30 kW Maximum speed: 4,000 rpm Maximum torque: 1,070 Nm Positioning increment: 2.5 degrees Longitudinal Pallet System 1 pallet shuttle with 2 storage stations 1 manual pallet transfer system between machine and shuttle 2 workpiece holding pallets: 5,000 x 2,500 mm Tool Changer Chain magazine: 80 stations Pitch between positions on chain: 130 mm Diameter of consecutive tools: 125 mm Maximum tool diameter: 200 mm Maximum tool length: 400 mm Maximum tool weight: 25 kg Tool change time, tool-to-tool: 8 sec Tool change time, chip-to-chip: 38 sec Equipment: Cooling devices: - Cooling via adjustable nozzles - ICS / through-spindle cooling, 3,000 l tank, Capacity: 30 l/min, Pressure: 7 bar at the tool 2 pcs. chip conveyors: 1 Gantry enclosure Measuring probe, make: RENISHAW, Type: MP14 Electronic handwheel Remote diagnostics Tool and wear management Documentation in duplicate: German / French CE marking Very well maintained, continuously serviced condition!

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2008, obratovalne ure: 200 h, Funkcionalnost: popolnoma funkcionalen, potovalna razdalja osi X: 1.015 mm, pomik osi Y: 1.015 mm, pomik po osi Z: 200 mm, CNC milling machines are computer-controlled with the help of specialized software (CAD/CAM), enabling precise machining of a wide range of materials such as metal, plastic, foam, stone, or wood in a short amount of time. The drawing or model created with the software forms the basis for the manufacturing process. For instance, a prototype can be milled or the production of a series of standard parts can be started. Once the design is complete, the CNC controller takes over and moves the horizontal and vertical axes throughout the machining operation. The milling machine’s motor can be switched on directly when starting the computer program, under the supervision of the operator. This allows for efficient execution of a wide variety of cutting, engraving, face milling, or drilling operations by removing material either on the surface or in depth, enabling the production of complex parts with high precision. Kedpfx Ajvaxunsh Djnc Digital milling technology allows for operations with high-quality surface finishes, reduced wear risk of machined components, and increased reliability, as the brittleness of the manufactured products is minimized even for small-format or small-diameter parts. Thanks to improved configuration of machining steps, it also offers the advantage of increased production speed while maintaining optimal manufacturing quality.

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2000, Funkcionalnost: popolnoma funkcionalen, potovalna razdalja osi X: 3.000 mm, pomik osi Y: 1.500 mm, pomik po osi Z: 400 mm, največja hitrost vretena: 8.000 obr/min, skupna masa: 12.000 kg, AXA KBM 1500/3000 4-axes Knedpsv Nppbsfx Ah Doc X 1500 Y 3000 Z 400 A-axis 360º rotary table, 600 mm tool changer for 20 tools Machine is in good condition and currently still in use.

Stanje: dober (rabljeno), Leto izdelave: 2010, obratovalne ure: 720 h, Funkcionalnost: popolnoma funkcionalen, potovalna razdalja osi X: 2.000 mm, pomik osi Y: 3.000 mm, Reserve price removed – guaranteed sale to the highest bidder. TECHNICAL DETAILS Travel range X: 2,000 mm Travel range Y: 3,000 mm EQUIPMENT Knodpfxjvuzxls Ah Dsc - High-frequency spindle - 2 x Kuka KR 210 R2700-2 / Reach: 2,700 mm / Rated load capacity: 210 kg / Year of manufacture: 2001 & 2002 - Enclosure

Stanje: pripravljen za uporabo (rabljen), Ravnalka Butler s priključkom brusilke Flott Kedpfxjwwk Rbo Ah Djnc Obsežen komplet orodij za obdelavo Miza: 6000 mm x 2440 mm Razdalja med stebri: 3000 mm Višina pod mostom: 2440 mm Nova električna napeljava in motor

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 1998, Predelano: 2024 Numerično krmiljenje: SIEMENS 840D Tehnične značilnosti Dimenzije Dimenzije mize: 5000 x 2000 mm Število T utorov: 13 Dimenzije T utorov: 22 mm Pomiki osi Pomik osi X: 5000 mm Pomik osi Y: 3250 mm Pomik osi Z: 1000 mm Razdalja med stebri: 2500 mm Glava za rezkanje Tip glave: C5E – 2-osna kontinuirana glava Sistem vpenjanja orodij: Hidravlični Orodni stožec: BT 50 Kjdpfjugbq Hex Ah Donc Območje vrtljajev: 40 – 4000 min⁻¹ Moč vretena: 37 kW / 372 Nm Podajalne hitrosti Priključna podajalna hitrost: 2 – 5000 mm/min Hitri pomik X-Y, Z: 7200 / 12000 mm/min Teža in dimenzije Največja teža na mizi: 25000 kg Teža stroja: 40500 kg Dimenzije stroja: 12700 x 5070 x 4900 mm Dodatna oprema Zaščitni pokrovi Avtomatski menjalec orodij: ATC-60 Elektronski ročni upravljalnik: nov SIEMENS 6FX2007-1AC04 Prodajni pogoji Garancija: 6 mesecev na mehanske dele Prodajna cena (EXW): po dogovoru Prikaži vse tehnične značilnosti

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2020, obratovalne ure: 12.000 h, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 5645, potovalna razdalja osi X: 6.000 mm, pomik osi Y: 4.000 mm, pomik po osi Z: 1.600 mm, hitrost pomika os X: 25.000 m/min, hitrost podajanja osi Y: 25.000 m/min, hitrost podajanja os Z: 25.000 m/min, skupna dolžina: 6.550 mm, dolžina mize: 2.500 mm, širina mize: 2.500 mm, skupna širina: 15.900 mm, največja hitrost vretena: 4.000 obr/min, skupna višina: 11.500 mm, skupna masa: 57.000 kg, delovno območje: 2.500 mm, moč motorja brusilnega vretena: 46.000 W, Dear Sir or Madam, We hereby offer our gantry bed milling machine for sale. The machine was installed in winter 2019/2020 and has 12,000 operating hours. Price available on request. The machine is currently still in operation. The indicated price refers to the machine only. Dismantling, transport, and installation are the responsibility of the buyer. We look forward to receiving serious inquiries. Thank you in advance. Kedpfxottri Tj Ah Dsnc

Stanje: rabljeno, Leto izdelave: 1999, Technical Details: X-axis travel: 3,500 mm Y-axis travel: 2,200 mm Z-axis travel: 1,200 mm C-axis: +/- 200° Control: Heidenhain TNC 426 Spindle speed (left rotation): max. 10,000 rpm Spindle speed (right rotation): max. 10,000 rpm Distance between columns: 2,500 mm Distance spindle / table (vertical): 1,230 mm Clamping area (table): 3,000 x 2,000 mm Table load capacity: 10 t Tool holder: HSK A 63 Feed rate (X/Y/Z): max. 20 m/min Compressed air: 8 bar Kodju Nc Emopfx Ah Donc Total power requirement: approx. 100 kW Machine weight approx.: 40,000 kg Machine dimensions: 18.0 x 6.0 x 5.8 m 5-Axis Gantry Milling Machine Milling spindle: Manufacturer Hauser, type HS 256A-01 Uni, max. speed 10,000 rpm, direct drive Milling head: Manufacturer Hamül, fork-type design, A-axis integrated, rotation angle +/- 110° Tool changer: Manufacturer Hamül, rotary indexing table with turntable design, for 32 tool positions Chip conveyors: 2 piece(s) hinge-belt conveyor, manufacturer DGS with water tank, insert length 8,500 mm Combined oil-water chiller unit by BKW, type DL 55V-2KK, output 2.41 l/min, for hydraulic oil and spindle cooling Coolant system: Belt filter, manufacturer DGS, type SBF 150 Operation: via operator console type Heidenhain LE 426 X-, Y-, and Z-axis with Heidenhain linear encoders Handheld operating device HR 410 Hydraulic weight compensation (Z-axis) Equipment: Enclosure (protective walls with windows and safety doors) Hydraulic system Work area lighting

Stanje: rabljeno, Leto izdelave: 2003, Tehnične podrobnosti: x-os: 4000 mm y-os: 3000 mm z-os: 1500 mm Skupna potrebna moč: 30 kW Okvirne mere: 9,5 x 6,7 x 6,2 m Kedjxc Idaopfx Ah Donc Višina prehoda: 1550 mm Širina prehoda: 2500 mm Širina mize: 2000 mm Dolžina mize: 3000 mm Največja nosilnost mize: 12.000 kg Nosilec orodja: HSK-A100 Največja teža orodja: 30 kg Največji premer orodja: 250 mm Največja dolžina orodja: 500 mm Območje vrtalne hitrosti vretena: 5-6.000 vrt/min Največji dovoljeni navor na rezkalnem vretenu: 800 Nm Menjalec palet Demmeler

Stanje: zelo dobro (rabljeno), Leto izdelave: 2017, obratovalne ure: 9.380 h, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 4455, potovalna razdalja osi X: 3.740 mm, pomik osi Y: 2.800 mm, pomik po osi Z: 480 mm, največja hitrost vretena: 60.000 obr/min, Reserve price removed – sale guaranteed to the highest bidder. TECHNICAL DETAILS X-axis travel: 3740 mm Y-axis travel: 2800 mm Z-axis travel: 480 mm Control: Siemens Sinumerik ONE – operator interface HMI Operate, WIN 10 Spindle speed: 60,000 rpm Spindle axis manufacturer: GMN Extraction system: Ruwac Zone 22 Extraction hood: fixed or height-adjustable EQUIPMENT - 1 Kuka KR 420 R3300 robot / reach 3326 mm, rated payload 420 kg - 1 Kuka KR 200 L140-2comp robot / reach 2800 mm, rated payload 140 kg - 1 Kuka KR 140-3comp robot / reach 2400 mm, rated payload 140 kg Knjdpfx Asvuztish Djc - Conveyor belt for removal of scrap metal - Chip conveyor

Stanje: rabljeno, Technical Details: X travel: 6,500 / 13,150 mm y travel: 4,000 mm Knjdpfjwc A Shjx Ah Doc z travel: 1,250 mm w axis: 2,250 mm Table size: 5,500 / 12,150 x 3,000 mm Max. workpiece weight: 70,000 / 105,000 kg Ram dimensions: 480 x 510 mm Milling spindle motor: 63 kW Spindle torque: 3,300 Nm Tool holder: DIN 39871 AD ISO 50 Milling spindle speed range: 6.3 - 4,000 rpm Feed rate: 1 - 24,000 mm/min w axis: 1 - 6,000 mm/min Clearance between columns: 3,500 mm Clear height: 3,000 mm Total connected load: 120 kW Approx. machine weight: 245 t Space requirement approx.: 29.0 x 7.7 x 8.1 m The machine is in almost as-new condition and was completely modernised in 2020! Equipped with CNC SIEMENS 840 D automatic tool magazine for 153 tool positions automatic milling head magazine for 6 milling heads Machining module – straight – extended straight – Machining module – standard angle – 4,000 rpm, 144 x 2.5°, ISO 50 Machining module – narrow extended angle – 40 kW, 4,000 rpm, 1,800 Nm, 144 x 2.5°, ISO 50 Machining module – universal indexing – 40 kW, 4,000 rpm, 2,100 Nm, C axis 144 x 2.5°, B axis +/- 44 x 2.5°, ISO 50 Coolant system, chip conveyor

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 1996, Dopremljeno: 2023 Numeričko upravljanje: HEIDENHAIN TNC-426 Tehničke karakteristike Dimenzije Dimenzije stola: 3000 x 1250 mm Broj T-utorâ: 8 Dimenzije T-utorâ: 22 mm Hodi osi Hod X osi: 2500 mm Hod Y osi: 1800 mm Razmak između stupova: 1680 mm Hod Z osi: 800 mm Glava za glodanje Knsdpfsugbrkex Ah Doc Tip glave: Standardno, vertikalno vreteno Sustav stezanja alata: Hidraulički Konus vretena: ISO 50 Raspon broja okretaja: 20 - 2000 o/min Snaga vretena: 22 kW Brzine pomaka Radni posmak: 2 - 5000 mm/min Brzi pomak (X / Y, Z): 15000 / 12000 mm/min Težina i dimenzije Maksimalna težina na stolu: 10000 kg Težina stroja: 21500 kg Dimenzije stroja: 7300 x 2690 x 3400 mm Pribor Zaštitna oplata: Da Rashladni sustav: Vanjski Elektronički ručni kotačić: HR-330 Uvjeti prodaje Jamstvo: 6 mjeseci na mehaničke dijelove Prodajna cijena (EXW): Na upit Pogledajte sve tehničke karakteristike

Stanje: rabljeno, Leto izdelave: 2017, X-axis travel: 6,000 mm y-axis travel: 3,500 mm z-axis travel: 1,500 mm Controller: iTNC 530 HSCI Heidenhain Max. spindle speed: 15,000 rpm Main spindle drive power: 63 kW Max. torque: 300 Nm Swiveling A-axis: 220° (+/- 110°) Rotating C-axis: 550° (+/- 275°) Tool holder: HSK 100A DIN 69893 1+2 Clamping table surface: 6,000 x 3,500 mm Max. workpiece length: 4,940 mm Max. workpiece width: 2,440 mm Max. workpiece height: 970 mm Number of tool pockets: 26 positions Tool holder: HSK 100A Max. tool length: 400 mm Max. tool diameter: 130 mm Max. tool weight: 15.0 kg Rapid traverse (X / Y / Z): 65 m/min Feed rate: 65,000 mm/min Knodpfev N N R Esx Ah Dsc Total power requirement: 150 kW Machine weight approx. ~ 130,000 kg Space requirement approx. 11.0 x 10.0 x 7.0 m CNC Gantry Milling Machine FOOKE - Endura 908 linear - Fork-type rotary/swivel milling head type 8 (A+C axis) - 5-axis and 5-side HSC machining (simultaneous) - High dynamic design - Commissioning by FOOKE available as an option

Stanje: rabljeno, Leto izdelave: 2010, Technical details: X-axis travel: 6,500 / 13,500 mm y-axis travel: 4,000 mm z-axis travel: 1,500 mm w-axis (vertical ram): 2,250 mm Table surface: 5,500 / 12,500 x 3,000 mm Max. workpiece weight: 50,000 / 75,000 kg Ram dimensions: 520 x 625 mm Milling spindle motor: 67.4 kW (S1/100%) Spindle torque: 2,900 Nm Tool holder: DIN 69893 HSK-A 100 Milling spindle speed range: 1 – 1,000 / 5 – 5,000 rpm Feed speed: 1 – 24,000 mm/min W-axis feed: 1 – 6,000 mm/min Clearance between columns: 3,500 mm Knedpfoway I Usx Ah Dec Clearance height: 3,000 mm Total power requirement: 120 kW Machine weight approx.: 250 t Required space approx.: 29.5 x 9.5 x 8.2 m Equipped with: - CNC Siemens 840 D - Automatic tool magazine for 212 tool positions - Automatic milling head magazine for 6 milling heads Machining modules: 1. Machining module – straight – 67 kW, 2,900 Nm, 5,000 rpm, HSK-A 100 2. Machining module – straight, extended – 40 kW, 1,700 Nm, 5,000 rpm, HSK-A 100 3. Machining module – angular BM, extended – 40 kW, 4,000 rpm, 1,800 Nm, HSK-A 100 4. Machining module – angular BM – 67 kW, 4,000 rpm, 2,900 Nm, 360 x 1°, HSK-A 100 5. Machining module – angular BM – 67 kW, 4,000 rpm, 2,900 Nm, 360 x 1°, HSK-A 100 6. Machining module – universal index BM – 40 kW, 4,000 rpm, 2,100 Nm, C-axis 360 x 1°, B-axis +/- 110 x 1°, HSK-A 100 Coolant system, chip conveyor
