Sredinski stružnica in stružnica za vreteno

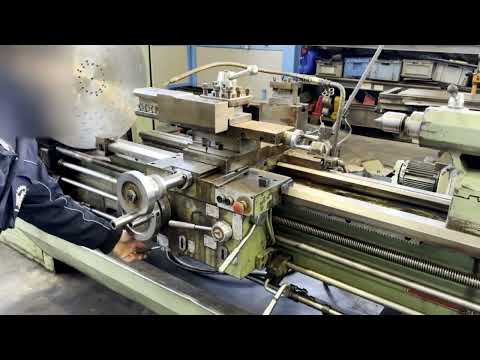

STRUNGURI ARAD SN501x1500

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 1995, x-hod 300 mm y-hod 200 mm z-hod 350 mm Površina stola za stezanje 700 x 270 mm Konus prihvata glavnog vretena ISO 40 Broj obrtaja 8: 150 - 1660 o/min Raspon obrtaja - horizontalno 8: 110 - 1230 o/min Posmici 8: 25 - 285 mm/min Težina 900 kg Hod pinole 60 mm Ukupna potrebna snaga 3,7 kW Dimenzije D-Š-V 1,3 x 1,38 x 1,65 m Univerzalna alatna glodalica sa 2-osnom digitalnom indikacijom i zakretnom vertikalnom glavom sa pinolom, fiksnim i zakretnim stolom, udarnim uređajem sa brojem hodova 43, 59, 84 u minuti, automatskim posmicima i brzim hodovima u sva tri pravca. Mašina je vrlo malo korišćena, iz servisne radionice, tačnost je odlična! Nova cena cca € 24.000. Naša cena je specijalan fiksni iznos! Radi se o polovnom predmetu, prodaja isključuje bilo kakvu garanciju. Kwedsvxllkjpfx Aaceu SKLADIŠNI DILER SA IZLOŽBENOM HALOM OD 1600 m².

Stanje: rabljeno, Leto izdelave: 2003, Travel X: 930 mm Travel Y: 400 mm Travel Z: 406 mm Spindle speed: 9–6,750 rpm Table size: 1,370 x 254 mm Quill stroke: 127 mm Quill feed: (3) 0.04; 0.08; 0.15 mm/rev Drilling capacity in steel: 32 mm Feed range: 19–890 (X) mm/min Spindle taper: SK 40 Column overhang: 200–680 mm Total power requirement: 4 kVA Machine weight approx.: 1.15 t Space requirement approx.: 1.5 x 1.45 x 2.2 m Product Information: “Multifunction Milling Machine Optimill MF 4 Vario—Tool Milling Machine with Variable Speed” Optimill MF 4 Vario—multifunctional drilling-milling machines designed for professional applications. Electronically stepless drive control with frequency inverter “made in Germany” and digital 3-axis position display DPA 21. Heavy, robust design made of high-quality Meehanite cast iron. High concentricity accuracy with tapered roller bearings, measured at less than 0.01 mm in the quill. Automatic quill feed. Forward/reverse rotation for thread cutting. X- and Y-axes feature adjustable dovetail guideways. Coolant system. Y-axis with flat guideway. Large Y-axis travel of 400 mm. Motorized table height adjustment with rapid traverse on Z-axis. Kwedpjt U Rm Iofx Aacju Equipment details: - Frequency inverter quality made in the EU - Drilling-milling head, tiltable ±45°, overhang 200–680 mm, spindle speeds - Stepless speed control with extra-wide speed range - Adjustable drilling depth stop with millimeter scale, easily readable on front - Safety screen, height-adjustable and generously dimensioned - Cross table: massive, large, precisely surface-machined - Motorized table height adjustment on Z-axis - Adjustable limit stops - OPTI control panel: integrated control console - Integrated digital position display DPA 21 with speed display - X-axis : motorized table feed, stepless speed control, rapid feed, forward/reverse Technical Data: Product length: 1,500 mm Product width/depth: 1,450 mm Product height: 2,200 mm Net weight: 1,150 kg Total power connection: 4 kW Electrical voltage: 400 V Phases: 3~ Network frequency: 50 Hz Max. face mill diameter: 100 mm Max. shank cutter diameter: 20 mm Vertical spindle reach: 200–680 mm Vertical spindle taper: ISO 40 DIN 2080 Vertical spindle speed range: 8 steps Vertical spindle speed control: electronically adjustable Horizontal table length: 1,370 mm Horizontal table width: 254 mm Vertical spindle to table min.: 40 mm Vertical spindle to table max.: 446 mm Horizontal table T-slot size: 16 mm Number of T-slots: 3 T-slot spacing: 63 mm Horizontal table max. load: 275 kg Vertical spindle motor power (normal mode): 3 kW Coolant pump motor power: 100 W Manual X-axis travel: 930 mm Manual Y-axis travel: 400 mm Manual Z-axis travel: 406 mm Automatic X-axis travel: 850 mm Automatic Z-axis travel: 350 mm Drilling capacity steel (S235JR): 32 mm Continuous drilling capacity steel (S235JR): 28 mm Vertical spindle drilling head swivel range Z-X plane: ±45° Vertical spindle quill stroke: 127 mm Vertical spindle quill feed: 0.04/0.08/0.15 mm/rev

Stanje: novo, The Mark Super SV is a high-performance drilling and milling machine from the category of conventional milling machines, setting a new productivity benchmark. This machine not only provides powerful drive and a wide speed range, but also stands out for its versatility. With a motor-driven milling head and the option for precise positioning via handwheel, the Mark Super SV is perfectly suited for machining steel and non-ferrous metals in workshops and training facilities. Its robust construction ensures durability and high precision. The user-friendly control panel with digital depth display and infinitely variable feed on the X-axis increases efficiency and reduces error rates. Clear display and coordinated functions enable optimal operation. Discover the capabilities of the Mark Super SV and increase your machining productivity. Request a quote for this conventional milling machine today! Kwjdpfeqcuc Esx Aacsu

Stanje: novo, Leto izdelave: 2025, Laserski vir: Raycus ali Max: 4/6/8/12 kW Laserska glava: 3D BOCI Krmilni sistem: FSCUT 5000 A Vpenjalna glava: 20–450 mm Nakladanje/razkladanje: 12000 mm X-/Y-os Natančnost pozicioniranja: ±0,05/1000 mm Ponovljivost: ±0,03/1000 mm Kedpfxei Apfzj Aacowu Pospešek: 0,8g (m/s²) Rotacijska hitrost: 60 obr/min Maks. pozicionirna hitrost: 60 m/min Maks. teža cevi: 1500 kg 1. Raycus 6000W laserski vir 2. Ozobljena (bevel) laserska glava 3. Varjen okvir DPL 4. Schneider električni elementi 5. Poševno zobati letev KH 6. Reducir Techmech 7. Yaskawa servomotor 8. Vodila SHAC 9. Integrirano krmiljenje napajanja 10. Programska oprema FScut 5000 11. Integrirana električna omara 12. HANLI hladilnik vode 13. Konzolna MOSTNA os-X FHBS 14. Avtomatsko zbiranje odpadkov 15. Gosenični avtomatski zbiralnik obdelovancev 16. Avtomatski podpornik 17. Okvir za nalaganje 12000 mm 18. Okvir za razlaganje 12000 mm

Stanje: rabljeno, Leto izdelave: 2014, Technical Details: Kedpfxsw D Dcqe Aacowu Swing diameter over bed: 356 mm Swing diameter over cross slide: 220 mm Turning length: 1000 mm Centre height: 180 mm Distance between centres: 1000 mm Spindle bore: 38 mm Speed range: 45 - 1800 rpm Longitudinal feeds: 0.043 - 0.653 mm/rev, 42 steps Tailstock quill taper: MT3 Tailstock quill travel: 95 mm Total power requirement: 4 kW Machine weight approx.: 0.85 t Machine dimensions approx. (LxWxH): 1.92 x 0.8 x 1.49 m (including display unit) Various accessories

Stanje: rabljeno, Leto izdelave: 1981, Razdalja med konicama: 1300 mm Dolžina kopiranja: 1250 mm Višina stroja do konice: 250 mm Višina konice nad suportom: 160 mm Podajalna hitrost sani: 3 m/min Teža: 630 kg Hitrosti vrtenja: 500-1000-1500-3000-2100-4200 min⁻¹ Hidravličen Lokacija skladišča: Nattheim Kwodpfevvkt Iox Aacsu

Stanje: dober (rabljeno), Leto izdelave: 1972, LZ-strojni stružnica Izdelovalec: HEIDENREICH & HERBECK Tip: 21RO l. 1972 s hitromenjalnim držalom Parat (10 kosov), dokumentacija za stroj, natančni kazalnik navojev, koničast hrot, 250 mm Forkardt vpenjalno glavo. Premer struženja nad posteljo: 430 mm Premer struženja na suportu: 255 mm Dolžina med konicama: 1000 mm Dolžina struženja: 750 mm Hitrosti vretena: 19–2000 min⁻¹, motor 5,5 kW Premer luknje vretena: 56 mm Ostali podatki v tehničnem listu Potrebni prostor: dolžina 2900 mm, širina 1100 mm, višina 1300 mm, teža cca 1750 kg. Strojna dokumentacija priložena. Vgrajena hladilna naprava, zadnja stena za odvajanje odrezkov. Kwjdpfjt Ipi Iex Aacju Stroj je v dobrem stanju, možen preizkus pod tokom.

Stanje: novo, At variable speed, ISO 40. Powered cross table on all axes. 3-axis digital readout included. Base with chip tray. Coolant system. LED lamp. Mechanical speed indicator. Motorized axes with variable speed and rapid traverse. Manual pump guideway lubrication system. Milling capacity with insert cutter: 100 mm. Milling capacity: 35 mm. Drilling capacity in cast iron with pilot hole: 60 mm. Max drilling capacity in steel with pilot hole (S235JR): 24 mm. Spindle taper: ISO 40 DIN 2080. Quill: 86 mm. Spindle travel: 120 mm. Head tilt: +/- 45°. Kwodpfx Aash Im H Sjceu Vertical head rotation: +/- 90°. Head body rotation: +/- 180°. Vertical spindle speed: (2) 60 ÷ 500 | 500 ÷ 3600 rpm. Motor: 400 V 50 Hz 2.25 kW. Distance between spindle nose and table: 45 – 395 mm. Distance spindle axis – column: 215–450 mm. Table size: 1246 x 230 mm. Longitudinal table travel: 850 mm. Cross table travel: 310 mm. Max load capacity: 400 kg. Dimensions: 1680 x 1500 x 2100 h mm. Net weight: 1000 kg.

Stanje: dober (rabljeno), Leto izdelave: 1979, Model building milling machine, universal model milling machine, milling machine, universal milling machine, tool milling machine, drilling and milling machine, model making mill -Manufacturer: Zimmermann, Universal Milling Machine Type FZ 1 with extensive accessories -Rotatable cross table: 490 x 400 mm -Traverse paths: X/Y/Z 320/385/430 mm -Spindle taper: SK30 -Drive power: 1.1 kW -Speeds: 560 to 14,000 rpm, 8 steps -Accessories: included, see photos -Dimensions: 1000/680/H1970 mm Kwjdpfenzpx Rox Aacsu -Weight: 477 kg

Stanje: zelo dobro (rabljeno), Knuth UFM 2 univerzalna rezkalna naprava Tehnične specifikacije Potovalna razdalja X-os (ročno) 800 mm Potovalna razdalja X-os 750 mm Kwodsnfu Rispfx Aacou Potovalna razdalja Y-os 300 mm Potovalna razdalja Z-os 400 mm Velikost mize 1320x320 mm T-utori 5x14x63 mm Podajalne hitrosti Podajalna razdalja Y-os (8) 20 - 360 mm/min Podajalna razdalja Z-os 600 mm/min Hitrost vretena (12) 58 - 1800 min-1 Stožec navpičnega vretena SK 40 Razdalja med konico vretena in mizo 0 - 400 mm Zasuk glave 45° Stožec vodoravnega vretena SK 50 Pogon Glavna moč motorja 4 kW Moč motorja na osi Z 0,75 kW Moč napajalnega motorja 0,55 kW Moč motorja hladilne črpalke 0,09 kW Zmogljivost hladilne črpalke 25 l/min Dimenzije in teža Dimenzije 1900x1720x1750 mm Teža 2100 kg Financiranje preko naše banke je prav tako mogoče. komplett-konzept.leasingo.de Druge nove in rabljene artikle najdete v naši spletni trgovini! Mednarodni stroški poštnine na zahtevo!
