Stiskanje okvirja

Schafberger & Sprödhuber RP 1200 KG

Stanje: zelo dobro (rabljeno), Leto izdelave: 2003, Perforated Plate Press Schafberger + Sprödhuber (S+S Maschinenbau) Type LPP – SPECIAL FORMAT Cgjdpfx Afjtgq Ibonep Universal Gluing Stand / Frame Press Pressing area approx. L x W 3800 x 3000 mm Set-up depth approx. 1300 mm 6 pieces of hand hydraulic cylinders with integrated pressure relief valve, 60 mm stroke, max. pressing force 2,000 kg, pressing force can be precisely adjusted via hand lever, cylinders can be swiveled 360° as needed Including step ladder – on castors, can be rolled over NEW MAGNETIC POSITIONERS Ideal press for joineries producing frames, solid wood panels, or windows in special formats Equipped with various pressing elements – see photos. Note on used machines: • Subject to technical changes and prior sale. • Listed prices are ex location – free loading! • The machines have been cleaned and function-tested. • All machines are sold as seen, without any warranty claims. The buyer is free to inspect the machines at location. • Special agreements are only valid in written form. (Inquiries will only be answered when providing your address and phone number!)

Stanje: rabljeno, Leto izdelave: 1999, Carriage Length: 3800 mm Cutting Width at Rip Fence: 1500 mm Cutting Width at Crosscut Fence: 3200 mm Cutting Depth: 140 mm Scoring Unit: No Saw Blade Height Adjustment: Electric Saw Blade Tilt Adjustment: Electric Rip Fence Adjustment: Electric / Position Control Csdevxi Ddopfx Afnjgp Saw Blade Angle Display: Digital Cutting Height Display: - Rip Fence Display: Digital Crosscut Fence Display: Scale Saw Blade Diameter: 400 mm Speeds: 3 Motor Power: 7.5 kW Motor Brake: Yes, automatic Extraction Connection: 80 mm and 120 mm Machine Length: 3900 mm Machine Width: 2200 mm Weight: 1000 kg

Stanje: novo, Leto izdelave: 2026, Working width 4500 mm Working height 3000 mm Number of pressing cylinders 6 pcs. Dimensions (L/W/H) 5500x1400x3550 mm Weight 3000 kg S&S Frame Press Bavaria 2000 L, Year 2026 ----- AVAILABLE AT SHORT NOTICE from stock Engelfried, 73447 Oberkochen! INNOVATION for Holz-Handwerk 2026 in Nuremberg: Now also with semi-automatic positioning of the vertical pressing cylinders 1, 2 and 3 via enabling button, incl. selector switch ON/OFF for beam 2 With automatic pressing cycle + manual control for corner joints (tenon & mortise and dowel joint/mortised tenon), switchable via selector switch on the control cabinet. Comes standard ready for optional use of counter profiles if sashes are folded on the loose part. CE version Base machine in heavy-duty welded frame construction with thick-walled special hollow profiles. Guide rails for pressing beams at the press corners in wear-resistant, machined design. Fast, smooth, manual width adjustment via ball-bearing mounted carriage; fixable in 50 mm grid, optionally motorized width adjustment with hydraulic clamping (at extra charge). Height adjustment and pressing by long-stroke cylinders in one operating cycle. Right press corners with integrated horizontal cylinders, thus no vertical positioning of horizontal pressing cylinders necessary, preventing cylinder collisions. Lower abutment adjustable to optimal insertion height in several positions. 3 kW compact hydraulic unit with integrated control block, variable pressure regulation 20-120 bar, pressure gauge. Control via pushbutton with separate circuits for vertical and horizontal pressing cylinders, mounted on mobile operating desk. 2 vertical double-acting pressing cylinders, stroke adjusted to working height, piston diameter 60 mm, max. pressure per cylinder 2100 kg 2 horizontal double-acting pressing cylinders, 80 mm stroke, piston diameter 40 mm, max. pressure per cylinder 1250 kg Abutment and pressure plate depth 100 mm Cjdpfswg Hr Tsx Afnsgp Control cabinet at the left foot of the machine, 400 V, 50 Hz Machine supplied with ready-to-connect 16 A plug Paintwork: RAL 7035 light grey with RAL 7016 anthracite grey Working size: length x height = 4,500 mm x 2,750 mm Note: actual working size 4,500 x 3,000 mm (L x H) Required space: 5,600 mm x 1,400 mm x 3,550 mm (L x W x H) Article: Medium pressure beam complete with pressing cylinder, pressure hose and shut-off valve up to 2,750 mm height Note: actual working height: 3,000 mm Article: Single-pressure regulation for medium pressure beam, adjustable up to max. 100 bar (for pressing cross-bar windows) Article: Continuously height-adjustable cross-pressure device, complete with pressing cylinder and abutment, throttle and shut-off valve Article: Single-pressure regulation for cross-pressure device, adjustable up to max. 100 bar (for pressing cross-bar windows) Article: Shut-off valve at the 3rd vertical cylinder Article: Shut-off valve at the upper horizontal cylinder Article: Shut-off valve at the lower horizontal cylinder

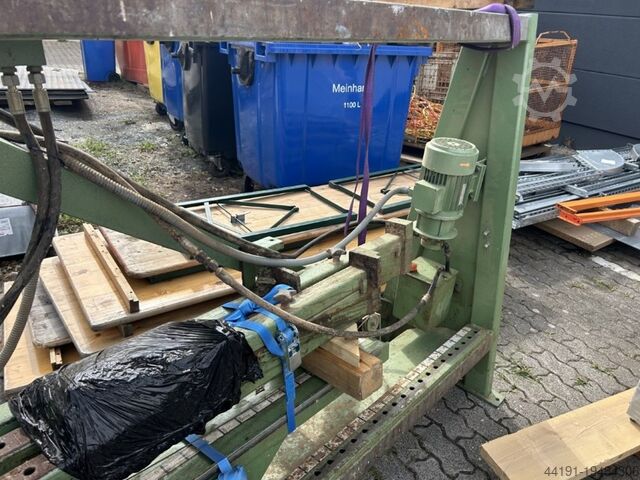

Stanje: rabljeno, Leto izdelave: 2003, Delovna višina 2300 mm, delovna širina 3500 mm, motor 1,5 kW. 3 tlačni cilindri od zgoraj, 2 s strani. Tlačna moč na valj: 3000 kg. Hod tlačnega valja do 200 mm. Hidravlika: 10–150 bar. Potrebni prostor: 3950 x 900 x 2550 mm. Teža: 670 kg. Skladišče: Nattheim. Cgsdpfxsvvkmbe Afnjp

Stanje: rabljeno, incl. various slot and tenon discs used, good condition Manufacturer: Festo Type: ZA 101 Machine No.: 2668/S Number of spindles: 3 + cross-cut saw Clamping height: 1 x 140 mm + 2 x 30 mm Cgjdpovwffzofx Afnop Cross-cut saw: 2.5 HP Stop ruler LAS 1750 mm + 1000 mm with turret stop Workpiece clamping: pneumatic Space requirements: approx. 1700 mm x 700 mm x 1400 mm Location: 97447 Gerolzhofen, loaded free on truck, unpacked Transfer in as-is condition, as inspected without warranty or guarantee

Stanje: delavnici obnovljeno (rabljeno), Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 2788, Cross-cut saw diameter: 300 mm Codpfx Afjiau I Ssnogp Milling spindle diameter: 40 mm Sliding table with FESTO length stop Extraction nozzle saw: 120 mm ditto milling: 140 mm Cable and plug: 16 amp, without operating tools We regret that we cannot respond to enquiries without complete contact details.

Stanje: dober (rabljeno), Technical data for pallet rack uprights: Racking system: Mecalux Included in delivery: 01x Pallet rack upright, used Material color: blue Frame type: M-81 Frame profile: 80 x 70 x 2.00 mm Including horizontal and diagonal braces, Base plates The uprights are pre-assembled (bolted truss construction) 8,000 mm high 1,100 mm deep Cgjdpfx Aommcd Nefnep Your contacts in our company: Mr. Andre Evering Mr. Mario Klöver Mr. Falk Deutsch General information about the item: This item is offered for collection only. If transport or shipping of this item is required, additional costs will apply, which can be requested from us separately depending on place of delivery and scope of delivery.

Stanje: rabljeno, Slot spindle 1 pc. Number of milling units: 1 pc. Cedpfx Afexa Hi Nsnsgp Spindle diameter: 40 mm Small window production consisting of: ----- 1) Haberkorn FZS1 slot mortising machine 2) Okoma SF3F table spindle moulder with glazing bead saw 3) Oertli tooling for Haberkorn and Okoma machines Wooden window: 1 set IV 68/78/88 and 1 set wood-aluminium window IV 68/78, year 2011 4) Götzinger OBM Plus corner hinge and olive drilling machine, Maco MultiMatic hardware (Hardware can be changed for an extra charge upon request!) ----- Technical manufacturer description: - Haberkorn FZS1 slot mortising machine with automatic feed - Infinitely variable height adjustment, D 40 mm Cross-cut saw: - Spindle arrangement: top - Three-phase motor: 3 kW - Spindle diameter: 30 mm - Speed: 2800 rpm - Saw blade diameter: 400 mm - Automatic brake with speed monitoring - Pneumatic horizontal positioning, manually adjustable - Safety and extraction hood with extraction nozzle diameter: 100 mm Slot spindle D 40 mm: - Power: 7.5 kW - Speed: 4200 rpm - Usable length: 252 mm - Maximum tool diameter: 340 mm - 220 mm stroke, stepless height adjustment via precision ball screw spindles - Safety and extraction hood with extraction nozzle diameter: 180 mm - Automatic brake with speed monitoring Pivot table: - Swivel range: +/- 65 degrees - Automatic counter wood change (programmable) - Pneumatic clamp - Highly accurate electronic angle display - Automatic length compensation - Counter wood in the cutting plane at every angle setting Special equipment: - Laser for workpiece positioning - Pneumatic saw positioning - Length stop LA 2500 mm + 1850 mm extension ----- 2) Okoma SF3F table spindle moulder with lift spindle, 3 tools - Extraction connection nozzles 2 x 120 mm - Spindle length: 270 mm - Fence with fine adjustment and turret head - Triple lift, max. lifting height: 90 mm - Glazing bead separating saw with safety and extraction hood, 80 mm diameter - 8-roller power feeder with stand and hold-down arm, required for setup for glazing bead separating saw - End tenoning device, pneumatically switchable for edge gear, speed 6000 rpm - 2 x 3 kW motor - Mounting diameter: 30 mm ----- 3) Oertli tooling for Haberkorn and Okoma machines - 1 set wooden window IV 68/78/88 - 1 set wood-aluminium window IV 68/78 Sale of tooling as-is, as available in our warehouse, including accessories as present. Note on window cuts, tooling drawings, tooling system lists: Engelfried GmbH does not guarantee that the actual available tools correspond with the named and drawn systems. ----- 4) Götzinger OBM Plus corner hinge and olive drilling machine - Corner and scissor hinge + handle olive drilling - Vertical drilling unit with: - Quick-change drill head - Pneumatic feed via foot pedal - 1x olive drill head 24 mm - 1x corner hinge double head - Maco MultiMatic hardware - 1x adjustable folding stop left with 6 stops - 1x adjustable folding stop right with 6 stops - 1x machine stand complete with shelf - 220/400 V, 60 Hz, 1.3 kW - 1x roller conveyor approx. 1 m long with 2 rollers - 1x roller conveyor approx. 1.5 m long with 3 rollers ----- Price for the above-mentioned machines on request! Plus packaging and shipping

Stanje: novo, Leto izdelave: 2017, Exhibition machine Year of manufacture: 2017 (has not yet been used in production) The Compact Star is a pneumatic gluing star with 5 gluing levels. The rotation is driven pneumatically and features a safety indexing mechanism. Each level is equipped with 4 adjustable vertical clamps with movable counter bearings. Each vertical clamp is fitted with a hold-down rail. Additionally, each level has 2 adjustable horizontal pressure beams with counter bearings. Maximum clamping dimensions: Cjdekwg Szepfx Afnegp Vertical: 960 mm Horizontal: 1335 mm Material thickness: 50 mm Dimensions: Length: 2700 mm Width: 3117 mm Height: 3096 mm Availability: Short notice Location: Röllbach

Stanje: rabljeno, Working width: 3600 mm Working height: 2600 mm Number of pressing cylinders: 5 pcs. Loading dimensions (L x W x H): 4400 x 1150 x 2970 mm Weight: 3000 kg Schafberger + Sprödhuber Bavaria Frame Press ----- The machine will be overhauled by us prior to delivery With automatic pressing cycle + manual control For corner joints with tenon and mortise connections CE-compliant version Base machine features a reinforced frame-welded construction with thick-walled special hollow profiles. Guide rails of the pressure beams for the press corners are manufactured for low wear. Quick and easy manual width adjustment via ball-bearing mounted carriage, fixation in perforated grid. Height adjustment and pressing with long-stroke cylinders in a single operation cycle. Right-side press corners feature integrated horizontal cylinders, so no vertical positioning of the horizontal pressing cylinders is necessary, thus preventing cylinder collisions. The bottom abutments can be set to multiple positions for optimal workpiece insertion height. 3 vertical double-acting pressing cylinders, stroke adapted to working height, 2 horizontal double-acting pressing cylinders Abutment and pressure plate depth: 80 mm Working dimensions: Length x Height = approx. 3,600 mm x 2,600 mm Space requirement/loading dimensions: approx. 4,400 mm x 1,150 mm x 2,970 mm (LxWxH) Option: ALWA pressing aids for angled windows Cgsdpfxow T Un Us Afnjp (Technical specifications according to manufacturer – no guarantee! Illustrations may differ from the original, prices net, plus VAT (domestic).)
