Center stružnica

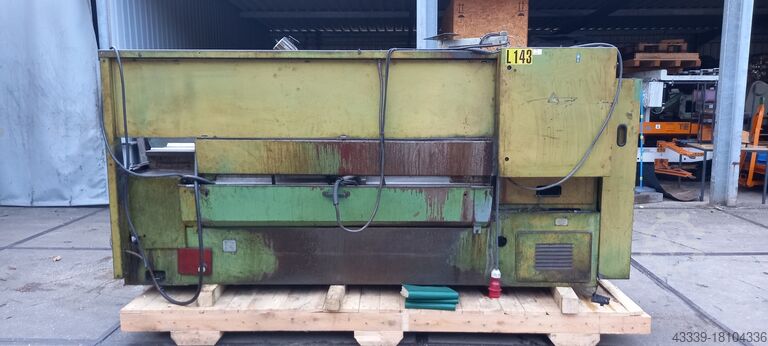

SASTA STANKO SA562 M

Stanje: zelo dobro (rabljeno), Leto izdelave: 2005, Pipe Ø: 25 – 60 mm Wall thickness: 1 - 4 mm Coil Ø: max. 3,000 mm Coil weight: max. 10 t Dwsdpsuc Shuefx Aa Hof Finished pipe length: 3,600 - 8,500 mm Round pipe Ø: 26/28/30/32/36/38/40/44/46/48/52/54/56/60 mm Speed: max. 100 m/min Working direction: left → right Line Composition: Uncoiler End shear Welding table Edge trimming shear with scrap chopper Scrap conveyor Strip edge preparation Entry table Forming unit Inner/outer scraper Cooling section Sizing section Testing unit and length measurement Cutting to length Ejecting station for defective pipes Blow-out station Oiling station Bundling station Strapping station Bundle removal Electrics

Stanje: rabljeno, Leto izdelave: 1953, Turning length / mm Swing diameter over the table // mm Faceplate diameter / mm Faceplate diameter: approx. 3600 mm Centre height over the table: approx. 1500 mm Swing diameter over table: 2600 mm Swing diameter in pit: 3600 mm Swing diameter over bed: 1300 mm Turning length: approx. 2400 mm Max. workpiece weight: 22,000 kg Max. torque at faceplate: 5000 mkg Dwsdpfoua Iw Tjx Aa Hof Faceplate ring gear pitch diameter: 1900 mm Main spindle bore: 120 mm Speed range normal: 0.71–35.5 rpm increased: 1–50 rpm increased: 1.4–71 rpm Total power: 38 kW Total weight: approx. 42.5 tonnes

Stanje: rabljeno, Leto izdelave: 1987, Lead and Feed Screw Lathe Manufacturer: Boehringer Model: DUE 560 Year of manufacture: 1987 Used Technical specifications: Turning diameter: 250 mm Turning length approx.: 1200 mm Swing over bed: 560 mm Swing over cross slide: 365 mm Max. workpiece between centers: 500-800 kg Spindle diameter in front bearing: 100 mm Spindle bore: 62 mm Spindle nose: DIN 55022 No. 8 Travels Cross slide travel: 345 mm Top slide travel: 125 mm Tailstock/quill diameter: 80 mm Tailstock taper: MT 5 Djdpfx Aastud S Uo Howf Quill stroke: 190 mm Longitudinal feed: 60x0.0315-28 mm/rev Cross feeds: 60 x 0.016-14 mm/rev Thread pitch capability: 0.125-112 mm Total connected load: 20 kW Space requirement approx. 3.5 x 2.0 x 2.2 m Weight: approx. 2.5 t

Leto izdelave: 1993, Stanje: pripravljen za uporabo (rabljen), Vertical Turning Machine Center Dörries Scharmann Type VCE 2000/160 Pallet size: 1,600 mm Pallet load: max. 8,000 kg Number of pallets: 13 pcs Table indexing: C-axis 0.001° Table cross travel (X): 2,300 mm Column longitudinal travel (Z): 1,500 mm Crossbeam positions: 9 steps of 100 mm each Feed rate X/Y/Z: 1 – 6,000 mm/min Rapid traverse X/Y/Z: 8 m/min Max. turning diameter: 2,000 mm Max. workpiece height: 1,500 mm Main Spindle Spindle drive motor: 69 kW Spindle speed: 2.8 – 315 rpm Tool magazine for turning: 59 stations – system 240.2 Dodpfjguk S Sex Aa Hswf Live spindle – SK50 Spindle drive motor: 30 kW Spindle speed: 10 – 1,500 rpm Tool magazine for SK50: 61 stations CNC Control: Siemens Sinumerik 880M Accessories FMS: 13 pallets Rotary loading stations: 2 pcs Coolant unit with filtration system Through-spindle coolant Machine weight: Approx. 40 t Year of manufacture: 1993 (See also further offers from this seller)

Leto izdelave: 1989, Stanje: zelo dobro (rabljeno), Article number: MA1060 Manufacturer: Fasti Model: 509/40/6 Year of manufacture: 1989 Machine No.: 5888 Control system: Omron (renewed in 2012) Length [mm]: 4850 Width [mm]: 2450 Dsdpfod Ac D Rjx Aa Hewf Height [mm]: 2100 Weight [kg]: 10,900 Connected load: 380V / 16.5 kW Working area [mm]: 4000 Max. sheet thickness [mm]: 6 Blade length: 4000 Length stop: front 5000 mm / rear stop 1000 mm Accessories: manuals / wiring diagrams

Stanje: dober (rabljeno), Leto izdelave: 1998, številka stroja/vozila: A 1040, Offer 23342 Hydraulic Welding Rotating and Tilting Table – Three Axes – Welding Manipulator Technical Data: - Max. load capacity: 750 kg - Face plate diameter: 700 mm - Min. table height in horizontal position approx.: 720 mm - Average table height in horizontal position approx.: 920 mm - Max. table height in horizontal position approx.: 1,060 mm - Working height adjustable in 3 steps manually - Face plate motorized, can be rotated and tilted - Rotary motion electrically infinitely variable, approx. 0.01 – 2.0 rpm Dwjdpfx Aasraiu Do Hjf - Right- and left-hand rotation - Welding current transmission: approx. 700 A - Drive: 400 V - Connected load: 1.5 kW - Handheld remote control for rotation direction, swiveling, and tilting - Space requirement approx.: W 1,100 x H 750 x D 700 mm - Weight approx.: 500 kg

Stanje: rabljeno, Leto izdelave: 1970, x-travel: 900 mm y-travel: 250 mm z-travel: 370 mm Table clamping surface: 1525 x 325 mm Total power requirement: 9.85 kW Djdpfecxxqrex Aa Hewf Machine weight approx.: 3.1 t Space requirement approx.: 2.0 x 2.5 x 1.7 m

Stanje: zelo dobro (rabljeno), Funkcionalnost: popolnoma funkcionalen, premer struženja nad prečnim suportom: 580 mm, izvrtina vretena: 84 mm, premer struženja: 870 mm, Geminis lathe model GE 870 with 4000mm distance between centers, swing over bed 870mm, swing over cross slide 580mm, swing over gap 1100mm, gap length 340mm, spindle speeds from 13 to 1000rpm, spindle bore diameter 84mm. Equipped with a 3-jaw chuck diameter 315mm, an independent 4-jaw chuck diameter 500mm, and steady rests. The lathe is generally in good condition. Dwedpewqz D Esfx Aa Hsf

Stanje: rabljeno, Leto izdelave: 1966, Dolžina stebla 15 - 130 mm Premer žice 6 - 12 mm Največja dolžina odrezka žice 170 mm Zmogljivost pri zaprti matrici, nastavljiva 100 /min Zmogljivost pri odprti matrici, nastavljiva 67 /min Teža 12,5 t Dimenzije (ŠxDxV) 2,3 x 4,0 x 1,6 m kombinirana dvotlačna hladna stiskalnica za čeljusti in zaprto matrico največji premer žice za visoko trdne vijake in šarnirske vijake 10 mm največji premer žice za komercialne vijake (zaprta matrica) 12 mm Razpon premera žice 6 - 12 mm najkrajša in najdaljša dolžina stebla 15 - 130 mm največja dolžina odrezka žice 170 mm Zmogljivost pri zaprti matrici, nastavljiva - 100 kosov/min Dodpev Sva Eefx Aa Hewf Zmogljivost pri odprti matrici - 67 kosov/min Pogonska moč 15,0 kW Mere orodja - čeljusti 54 x 54 mm

Stanje: rabljeno, Leto izdelave: 1989, Maximum wheel diameter: 400 mm Wheel width: 275 mm Dodpfx Aaou A I Elj Hswf Maximum module: 6 Machine dimensions: 300 x 330 x 245 cm Machine weight: approx. 5.5 t Specification: Maximum wheel diameter: 400 mm Minimum module: 1 Maximum module: 6 Table diameter: 370 mm Maximum wheel diameter: - with counter support: 340 mm - without counter support: 400 mm Maximum axial displacement: 275 mm Maximum tangential adjustment: 100 mm Helix angle of teeth: 45 degrees Maximum cutter diameter: 145 mm Maximum hob length: 170 mm Hob speed range: 63–180 rpm Axial feed, steplessly adjustable: 0.2–10 mm/rev Tangential feed, steplessly adjustable: 0.1–5 mm/rev Radial feed for spur gears: 0.1–4 mm/rev Radial feed for worm gears: 0.025–1 mm/rev Rapid traverse axial: 500 mm/min Rapid traverse tangential: 250 mm/min Radial for spur gears: 400 mm/rev Radial for worm gears: 100 mm/rev Motor power: 7.4 kW
