Valjasti Brusilni Stroj nakup rabljenega (75.669)

Leto izdelave: 2015, Stanje: zelo dobro (rabljeno), On behalf of a customer from Switzerland, I am offering this machine for sale. It is in excellent condition with 5,200 operating hours. Used in prototype construction, currently operational. Equipped with: - Grinding head UR - T1 500 x 80; T2 400 x 63 - 1 HF internal spindle MFM 1224/42 - 1 HF internal spindle MFM 1290 - Semi-automatic balancing system - KEL-TOUCH on the workpiece headstock for internal and external grinding - KELSET grinding wheel measurement - KELPOS longitudinal positioning - Heidenhain CNC GrindPlus 640 - CNC B-axis, hydrostatic - CNC C-axis for polygon and thread grinding - KELSOFT NCG for non-circular grinding - KELTHREAD for thread grinding Ffedpfx Afsgtingslot - KELREMOTE for remote diagnostics - Prepared for measuring controls - Streuli 480 l paper band filter - Extraction unit Available at short notice from location Switzerland.

Stanje: rabljeno, cylindrical grinding machine, external cylindrical grinding machine, internal cylindrical grinding machine, center grinding machine, centre grinding machine Fodpfod Atx Dox Aflsft - Mount below: MT5 - Grinding wheel mount: - Motor specifications: 0.3 kW, 1380 rpm - Dimensions: 370/180/H480 mm - Weight: 36 kg

Stanje: nepreverjeno (rabljeno), Leto izdelave: 1987, Funkcionalnost: nepreverjeno, številka stroja/vozila: 2023, potovalna razdalja osi X: 900 mm, pomik osi Y: 600 mm, pomik po osi Z: 180 mm, največja hitrost vretena: 160.000 obr/min, obremenitev mize: 800 kg, No reserve price – guaranteed sale to the highest bidder! The machine is being sold as part of a business closure auction. Placing a bid obligates the buyer to collect the machine on time between 26.01.2026 and 29.01.2026! TECHNICAL DETAILS Travel X-axis travel: 900 mm Y-axis travel: 600 mm W-axis travel: 635 mm Z-axis travel: 180 mm U-axis travel: 6/20 mm Clearance between uprights: 950 mm Clearance from table to spindle: 735 mm Main spindle diameter: 100 mm Tool holder: E 23 E 19 EF 6 Work Table Table dimensions: 1,020 x 860 mm T-slot width: 14 mm Distance between T-slots: 100 mm Table load capacity: max. 800 kg Taper grinding: max. 16° X/Y digital readout: 0.001 mm X/Y basic deviation at 20°: 0.004 mm Spindle speed: from 4,500 to 160,000 rpm Ffsdpox Rw E Sjfx Aflet Planetary movement (Z-axis): 5 to 250 C-axis NC drive: 0 – 5 Feed Feed rate X and Y axis: 0 to 1,500/3,000 mm/min Feed rate W-axis: 800 mm/min Feed rate Z-axis: 0.5 – 12,000 mm/min MACHINE DETAILS Control: CNC 311 Electrical Data Operating voltage: 3 x 380 V Frequency: 50 Hz Control voltage: 110 V Connection: 8.5 kW Dimensions & Weight Dimensions (L x W x H): 5,000 x 2,000 x 3,300 mm Weight: 7,000 kg EQUIPMENT - Matching workshop cabinet with contents - Various grinding media - Clamping devices - High-frequency grinding spindle - BÜCHE ENF 4000 extraction system

Stanje: zelo dobro (rabljeno), !!!DEMONSTRACIJSKI STROJ!!! Naprodaj je skoraj nov brusilni stroj JET DDS-237 z največjo širino brušenja 940 mm. Stroj je v zelo dobrem stanju, obnovljen in preverjen s strani našega strokovnega osebja. (Popolnoma funkcionalen) Tehnični podatki: -Dvojvaljni brusilni stroj JET DDS-237 -Motor 400 V / 7,5 KM -Hitrost brusilnega valja 1.400 min⁻¹ -Hitrost podajanja 3 m/min -Maks. širina brušenja 940 mm -Debelina brušenja 0,8 do 133 mm -Minimalna dolžina obdelovanca 230 mm -Brusilni valj vsak 152 x 940 mm -Širina brusnega traku 75 mm ali 100 mm -Odvodna priključka 2 x premer 100 mm -Dimenzije (D x Š x V): 1.090 x 1.420 x 1.090 mm -Teža 440 kg Stroj se nahaja v A-8561 Söding in je na voljo za ogled in prevzem kadar koli v skladu z našim delovnim časom. Možnost predhodne prodaje! Ffjdpfx Aex Sqzvoflot Sorodni izrazi: stebrni vrtalnik, namizni vrtalni stroj, sveder Referenca: R-D1618

Stanje: rabljeno, Description: Ffodpfx Afev Armcsljt General: Year of manufacture: 2020 Control system: WEISS CNC Distance between centers: 6 mm Center height: 200 mm Grinding wheel dimensions: 400 x 60 mm + 0 x 60 mm Workpiece spindle head: Rotational speed: 1 rpm Max. workpiece weight: 25 kg Max. grinding diameter: 390 mm Mount: MK4 Grinding spindle head: Peripheral speed: 2 m/s Grinding wheel dimension right: 0 x 60 mm Grinding wheel dimension left: 400 x 60 mm X-axis: 380 mm Z-axis: 1.1 mm B-axis: Torque motor, stepless Tailstock: Quill diameter: mm Quill stroke: 45 mm Mount: MK 4 Micrometer adjustment: +/- 0.04 mm Equipment / Accessories: Position measuring systems: Direct (glass scales) Grinding spindles: 2x grinding spindle (left/right) GAP / Crash Control: Structure-borne noise (Sensotronic) Balancing: MPM balancing device Workpiece measurement: Marposs PF ME Automation: Robot interface prepared Setup mode: Electronic handwheel Emulsion mist separator: Mechanical Dresser: For external grinding wheel left/right Accessories: Various grinding wheels + flanges

Stanje: rabljeno, Leto izdelave: 2013, Wheel diameter – max. 260 mm Wheel width 320 mm Module – max. 4.5 Module – min. 0.5 Control system SIN 840D Helix angle – max. +/- 45° Total power requirement 68 kW Machine weight approx. 15,500 kg Space requirement approx. 3.25 x 3.25 x 3.30 m Fire extinguishing system Siemens Sinorix TM Knoll filtration unit VL1500/8000, year 2017 Oil mist separator 3NINE NINA 1200 Wekal loading cell Ffedpfex R U Hgex Afljt Grinding wheels

Stanje: novo, Leto izdelave: 2025, Funkcionalnost: popolnoma funkcionalen, skupna širina: 581 mm, skupna dolžina: 956 mm, skupna višina: 1.205 mm, skupna masa: 110 kg, vhodna napetost: 380 V, širina brušenja: 75 mm, hitrost brusilnega traku: 30.000 mm/s, trajanje garancije: 12 meseci, dolžina brusnega traku: 2.000 mm, širina brusilnega traku: 75 mm, PODATKI O STROJU: - premer krmilnega koluta fi 200 mm - dimenzije brusnega traku 2000x75 mm - 2 hitrosti vrtenja brusnega traku 15/30 m/s - temperatura delovnega okolja 5-35 stopinj Celzija - priključna napetost 380V/50Hz - dimenzije stroja v obratovanju 956 x 581 x 1205 mm - teža stroja bruto/neto 150/110 kg STANDARDNA OPREMA STROJA: - brusni trak (že nameščen na stroj) - veliko gumirano gnano kolo - nastavek s podporno konzolo za brušenje - nastavek z nagibom na dva valjčka Ffodpox N Sv Aofx Aflet - nastavek za brušenje cevi z valjčkom fi 28 mm - valjčki ta brušenje cevi fi 20, 26, 32, 42, 48, 60, 76 mm - nastavek z nagibnim primežem

Stanje: rabljeno, Leto izdelave: 2001, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: AA0985, vhodna napetost: 400 V, KALIBRIRNI IN BRUSILNI STROJ GOR-DOL SAC MOD. 4R 300 – V SKLADU S CE - Delovna širina 300 mm - Največja višina 150 mm - Najmanjša višina 5 mm - Najmanjša dolžina kosa 240 mm - 2 zgornja valja – premer 254 mm - 1 zgornja krtača Ffjdpfox Riccsx Afljt - 2 spodnja valja – premer 254 mm - 1 spodnja krtača - Podajalna hitrost 4–16 m/min - 4 motorji po 4 kW vsak - Napetost 400/50 - Serijska številka AA0985 - Leto izdelave 2001

Stanje: nepreverjeno (rabljeno), Leto izdelave: 1984, Funkcionalnost: nepreverjeno, številka stroja/vozila: 0175, potovalna razdalja osi X: 650 mm, pomik osi Y: 450 mm, pomik po osi Z: 140 mm, največja hitrost vretena: 80.000 obr/min, obremenitev mize: 500 kg, No reserve price – guaranteed sale to the highest bidder! The machine is being auctioned as part of a business liquidation. Placing a bid obligates the buyer to collect the machine within the specified timeframe: between 26/01/2026 and 29/01/2026! TECHNICAL DETAILS Travel paths X-axis travel: 650 mm Y-axis travel: 450 mm Z-axis travel: 140 mm W-axis travel: 500 mm U-axis travel: 6/20 mm Clearance between columns: 750 mm Clearance from table to spindle: 600 mm Ffedpfxexqd Hte Aflet Main spindle diameter: 100 mm Work table Table dimensions: 770 x 630 mm Table load capacity: max. 500 kg Taper grinding: max. 16° Digital readout X-/Y-axis: 0.001 mm Positioning accuracy at 20°: 0.004 mm Spindle speeds: from 9,000 to 80,000 rpm Feeds Feed rate X- and Y-axis: 0 – 3,000 mm/min Feed rate W-axis: approx. 800 mm/min Feed rate Z-axis: from 15 to 6,000 mm/min MACHINE DETAILS Control: HAUSER Electrical data Operating voltage: 3 x 380 V Frequency: 50 Hz Control voltage: 110 V Connection: 8 kW Dimensions & weight Dimensions (L x W x H): 5,000 x 2,000 x 3,300 mm Weight: 7,000 kg EQUIPMENT Suitable workshop cabinet with contents Various grinding abrasives Assorted high-frequency grinding heads Büche ENF 4000 extraction unit

Stanje: zelo dobro (rabljeno), Heavy-duty double-sided edge sanding machine, oscillating Motor power approx. 3.0 kW Ffodouxqzuepfx Aflet Oscillation with separate motor approx. 0.2 kW Sanding belt dimensions: 3000 mm x 200 mm Front sanding table: 980 x 340 mm Rear sanding table: 750 x 300 mm Space requirement (L x W x H) approx.: 1800 x 1500 x 1000 mm Weight approx. 600 kg Front sanding table with veneer edge sanding device Rear sanding table infinitely adjustable in angle Angle stop on the rear worktable Oscillation via geared motor Pneumatically height-adjustable sanding beam Interchangeable radius sanding discs Pneumatic, adjustable belt tensioning Extraction with blower Possible attachment of feed device 2 side support tables for radius sanding Note on used machines: • Errors in technical details and prior sale excepted. • Quoted prices are ex works—free loading at location! • Machine has been cleaned and function tested. • All machines are sold as inspected, without any claim to warranty. Buyers are welcome to inspect machines on site. • Special agreements are only valid in written form. (We only respond to inquiries that include your address and telephone number!)

Stanje: rabljeno, Leto izdelave: 2019, proizvajalec krmilnikov: Sonstige, model krmilnika: MAPPS IVB, Description: Technical Data: Grinding diameter (max.): 350 mm Grinding length (max.): 150 mm Grinding wheel diameter: 25 – 180 mm Swivel range of grinding spindle head (max.): 230° Grinding Spindle: Technology: Internal grinding spindle Speed range: 3,000 – 20,000 rpm Power (max.): 11 kW Grinding wheel mount: HSK-A63 Drilling Spindle: Technology: Drilling spindle Speed range: 1,500 – 3,500 rpm Power (max.): 7.5 kW Tool mount: HSK-A63 Workpiece Spindle: Technology: Direct drive Clamping area: Ø265 mm Table load (max.): 200 kg Workpiece clamping: Pneumatic chuck General: Travel in X/Z: 965/532 mm Rapid traverse in X/Z: 24/20 m/min Equipment/Accessories: Position measuring system: Direct (glass scale) in X/Y Fsdpfexx Eraex Afljft Chip management: Magnetic belt conveyor Coolant management: Coolant system with paper band filter and temperature control Workpiece measurement: Probe, Renishaw MP 250 with calibration station Tool magazine: 8 stations (4 stations each for grinding and drilling tools) Dresser: Dressing wheel + Single-point diamond (Marposs) Setup mode: Electronic handwheel Automation: Fanuc robot M-20iA with stocker (30 stations Ø329 mm) Mist extraction: Akamatsu HVS-100-CE 044 Other equipment: Spindle cooler, transformer

Stanje: rabljeno, Leto izdelave: 2012, Wheel diameter – max. 300 mm Wheel width 320 mm Module – max. 10 Module – min. 0.5 Helix angle – max. 45° Frequency 50 Hz Voltage 400 V Main fuse 125 A X-axis 270 mm Y-axis 250 mm Z-axis 320 mm A-axis +/- 45° B-axis 360° C-axis 360° Total power requirement 89 kW Fedpfxex R U Hae Aflsft Machine weight approx. 23.5 t Space requirement approx. 11.2 x 5.5 x 2.9 m Automated Oil centrifuge station EWAB workpiece storage Hoffmann coolant filtration system HSF 100 SE/K Minimax fire suppression system W+W air filtration system Promot Automation "Cellmaster" (3 cells) Year 2019

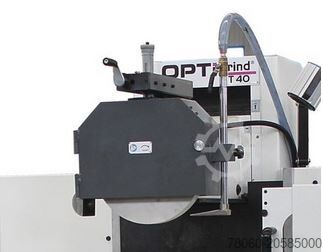

Stanje: kot nova (razstavni stroj), Leto izdelave: 2025, GT 40 – The OPTIMUM Premium NC Grinding Machine with Siemens Touch Screen. • Electromagnetic chuck for securing the workpiece with automatic demagnetizing function • High-quality spindle with precision tapered roller bearings • Hardened and ground table guideways • Counter-guides coated with Turcite-B for high wear resistance and low friction • Grinding spindle with high-precision bearings • Grinding wheel can be dressed directly on the machine using a built-in dressing fixture • Digital position display • Machine base made from a robust, torsion-resistant cast-iron frame for maximum rigidity and stability • Longitudinal, cross, and vertical guides are backlash-free and self-centering, designed as V-flat ways • Precision ball screws Fodpfjxyhvkex Aflsft • Central lubrication for guideways and feed screws • All flat guides are hand-scraped for the highest precision in all manual movements • 24V DC safety electrical system • Large, decoupled handwheels on all three axes • Hydraulic lines according to DIN EN 853 • Grinding accuracy: 0.005 mm • Corundum grinding wheel, grit 46, suitable for all common steels • Swiveling control panel for significantly easier operation • Separate hydraulic unit with heat exchanger reduces vibration and thermal load • Dual-channel safety electronics • Grinding table splash guard • EMC filter class • Equipped with IE3 motor – significantly reduced energy consumption for substantial cost savings Dimensions and Weight Length approx. 3600 mm Width/Depth approx. 2400 mm Height approx. 1900 mm Weight approx. 3600 kg Electrical Data Total connected load: 7.5 kW Operating voltage: 400 V Mains frequency: 50 Hz Surface Grinding Table Clamping area length: 400 mm Clamping area width: 800 mm Grinding Wheel(s) Outer diameter: 350 mm Width: 40 mm Bore: 127 mm Peripheral speed: 27 m/s Spindle Speed: 1,450 rpm Run-out accuracy: 0.005 mm X-Axis Feed speed: 5 – 25 m/min Scope of Delivery Digital position display Coolant system Balancing arbor Grinding wheel grit 46 Diamond dresser Operating tools Manual oil pump LED lamp Electromagnetic chuck Demagnetization function Equipment Electromagnetic chuck Table enclosure splash guard Demagnetizing device Parallel dressing fixture ✔ Coolant system 125 W Work lamp LED Leveling feet ✔

Stanje: rabljeno,

Stanje: nepreverjeno (rabljeno), Funkcionalnost: nepreverjeno, potovalna razdalja osi X: 650 mm, pomik osi Y: 450 mm, pomik po osi Z: 140 mm, največja hitrost vretena: 80.000 obr/min, obremenitev mize: 500 kg, No reserve price – Guaranteed sale to the highest bidder! The machine is being auctioned due to business closure. Bidding obligates you to collect the machine within the specified period from 26/01/2026 to 29/01/2026! TECHNICAL DETAILS Travel Paths X-axis travel: 650 mm Y-axis travel: 450 mm Z-axis travel: 140 mm W-axis travel: 500 mm U-axis travel: 6/20 mm Work Table Table dimensions: 770 x 630 mm Max. table load: 500 kg Spindle Speeds: from 9,000 to 80,000 rpm Feed rates for X and Y axis: 0 – 3,000 mm/min Feed rate for W axis: approx. 800 mm/min Feed rate for Z axis: from 15 to 6,000 mm/min Clearance between columns: 750 mm Clearance table to spindle: 600 mm Main spindle diameter: 100 mm Fjdpfoxqcuvjx Afloft Taper grinding: max. 16° X/Y-axis digital readout: 0.001 mm Positioning accuracy at 20°: 0.004 mm MACHINE DETAILS Electrical Data Operating voltage: 3 x 380 V Frequency: 50 Hz Control voltage: 110 V Power: 7 kW Dimensions & Weight Dimensions (L x W x H): 5,000 x 2,000 x 3,300 mm Weight: 7,000 kg EQUIPMENT Tool holders E 19 and F 6 Includes matching workshop cabinet with contents Contents include various grinding agents High-frequency grinding heads Clamping devices Büche ENF 4000 extraction system

Stanje: novo, With the RFM 320 S SET model, we offer you a grinding machine that allows you to produce bevels up to 16 mm wide quickly and with optimal grinding quality in a single pass. Short setup times ensure efficient processing, even for individual workpieces. The RFM 320 S SET is equipped with a grinding belt oscillation system featuring pneumatic belt cleaning and a pre-milling unit. Standard equipment RFM 320 S SET: › Adjustable grinding tool for 8 radii (2, 3, 4, 5, 6, 8, 10, and 12.5 mm) › Bevel grinding device for bevels up to 16 mm width › Grinding belt oscillation with pneumatic belt cleaning › Integrated base for feed unit › 16A socket for feed › Suction connection Ø 80 mm Pre-milling unit Ffodof E Nqdopfx Aflet Undercarriage Extendable table extension Setup dimensions (L x W x H in mm): 1,300 x 690 x 1,010 Weight: 145 kg

Stanje: zelo dobro (rabljeno), Širokopasovni brusilni stroj SCM Sandya 10 RCS Delovna širina: 1100 mm Delovna višina: 3–160 mm Število brusilnih agregatov: 2 1. Kalibrirni valj 2. Kombiniran agregat s čeveljčkom Ffodpfx Afox Svxysljt CE certifikat Slika stroja je simbolična

Stanje: rabljeno, Leto izdelave: 2020, Premer brušenja 390 mm Dolžina brušenja 650 mm Višina središč 200 mm Ffedpfx Afjx Rn Uqeljt Največja masa obdelovanca 250 kg X-os 380 mm Z-os 1150 mm Premer brusnega koluta 400 mm Obodna hitrost 20-50 m/s Vreteno obdelovanca brezstopenjsko 1 - 650 min⁻¹ Koničnik konjička MK 4 Hod pinole 45 mm Premer pinole 50 mm Skupna potrebna moč 22 kW

Stanje: rabljeno, Leto izdelave: 1995, Konstantni stroj - kombinirana postaja, krtača za prah - naprava za merjenje debeline - elektronska posamezna brusna čevelj MCS sistem Weber 32 mm - utorni jekleni kalibrirni valj - izpihovanje traku - vakuumska preproga. Širina brušenja: 1100 mm. Pogon: 15 kW. Podajanje ca. 1,1 kW. Nastavitev višine 0,25 kW. Dimenzije brusilnega traku: 1150 x 2500 mm. Maksimalna debelina obdelovanca: 150 mm. Širina stroja: 1700 mm. Dolžina stroja: 2000 mm. Višina stroja: 2160 + 150 mm. Teža stroja: 1900 kg. Konstantna delovna višina: 850 mm. Priklop za odsesavanje: trak 180 mm / krtača 120 mm. Količina sesalnega zraka: 0,74 m³/s. Priključna moč: 23 kW. Priključek za stisnjen zrak: 7 bar. Hitrost podajanja: 3–15 m/min. Delovnih ur: 7000 h. Lokacija skladišča: Nattheim Fsdpfxox A Dfme Aflsft

Stanje: zelo dobro (rabljeno), Višina med konicami 127 mm Razdalja med konicami 1000 mm Brusni kolut 350 x 50 x 127 mm + 300 x 25 x 127 mm Hitrost brusnega koluta 1.775–2.400 obr/min Fsdsx R R Ndepfx Aflsft Brusna glava vrtljiva 190/45 ° Z notranjo brusilno napravo Različna dodatna oprema MARCELS MASCHINEN AG

Stanje: nepreverjeno (rabljeno), Funkcionalnost: nepreverjeno, številka stroja/vozila: 70292, dolžina brušenja: 500 mm, premer brusilnega koluta: 400 mm, premer brušenja: 200 mm, teža obdelovanca med konicami: 15.000 g, prehod palice: 270 mm, Brez minimalne cene - zagotovljena prodaja najvišji ponudbi! Stroj se prodaja na dražbi zaradi zaprtja obrata. Oddaja ponudbe zavezuje k pravočasnemu prevzemu med 26.01.2026 in 29.01.2026! TEHNIČNI PODATKI Premer brusilnega koluta: 400 mm Največji premer obdelovanca: 270 mm Največji brusilni premer: 200 mm Dolžina brušenja med konicami: 300 - 500 mm Največja teža obdelovanca med konicami: 15 kg PODROBNOSTI O STROJU Dimenzije & teža Dimenzije (D x Š x V): 4.000 x 2.000 x 2.000 mm Teža: 2.000 kg OPREMA HEIDENHAIN digitalni prikaz Ustrezen delovni pult z vsebino Ustrezni brusilni koluti Vpenjala Ustrezni rezervni deli Fjdpfxoxqgb Te Afljft

Stanje: zelo dobro (rabljeno), Leto izdelave: 1992, Belt dimensions: 2600 x 150 mm Motor power (grinding belt): 2.2 kW Operating voltage: 3 x 400 V + PE / 50 Hz Grinding table height adjustable via handwheel Table size: 975 x 340 mm Height-adjustable grinding table for radii; size: 400 x 200 mm Sanding arm adjustable: 90° – 0° Ffodpfx Aett Da Defljt Extraction port: Ø 120 mm CE certified Required space (L x W): approx. 1600 x 725 mm Weight: approx. 320 kg Note on used machinery: • Technical specifications are subject to error and prior sale. • Listed prices are ex-site and ex-loading. • The machines have been cleaned and functionally tested. • All machines are sold as seen, without any guarantee or warranty. Buyers are welcome to inspect the machines at site. • Special agreements are only valid in written form. (We will only respond to inquiries that include your address and telephone number!)

Stanje: zelo dobro (rabljeno), Funkcionalnost: popolnoma funkcionalen, Širokopasovni brusilni stroj SCM Sandya CLK + Vakum Delovna širina: 1100 mm Delovna višina: 3-160 mm Število agregatov: 2 Kalibracijski valj iz gume Kombinirani agregat z obuvalom Ffsdpfxex Svvfo Aflet Priključki za odsesavanje: 2x 160 mm Slike so zgolj informativne

Stanje: zelo dobro (rabljeno), Leto izdelave: 1998, obratovalne ure: 50.000 h, Funkcionalnost: popolnoma funkcionalen, Machine is not equipped with automation or a fully automatic dressing device (these are available only on the RZ 400/410 series). This is a stand-alone machine, yet it is fully equipped with substantial accessories. The machine is capable of grinding with extremely high precision. Technical Data – Gear Grinding Machine Reishauer RZ 362A Machine Type Gear Grinding Machine Manufacturer Reishauer AG, Wallisellen, Switzerland Model RZ 362A Year of Manufacture 1998 Machine Number 73889 Commission Number 309 CE Certification Present Electrical Data Power supply 3 × 400 V, 50 Hz Machine voltage 3 × 400 V, 50 Hz Control voltage 1 × 230 V, 50 Hz / 1 × 24 V DC Contactor voltage 1 × 24 V DC Valve voltage 1 × 24 V DC Electrical schematics standard Grinding Wheel Data Min./max. outside diameter 280 / 350 mm Max. width with limitations 84 / 104 mm Number of gears with limitations up to 3 Max. usable width with shift motion 90 mm For module >7 or more than 3 gears, Reishauer guidelines apply Grinding Wheel Speeds In grinding operation 1,100 – 2,300 rpm For profiling 50 – 95 rpm In setup mode (special operation) max. 200 rpm Grinding Infeed In grinding operation per grinding stroke 0.01 – 1.0 mm Total infeed (fx tot) 9.99 mm In setup mode (special operation) max. 2 m/min Grinding Stroke Max. grinding stroke 175 mm Automatic retraction of grinding wheel for workpiece change 65 mm Shift Motion Max. shift distance per 1 mm grinding stroke 0 – 1.0 mm Workpiece Data Min. pitch circle diameter depends on grinding wheel diameter With grinding wheel Ø 280 mm: 50 mm With grinding wheel Ø 320 mm: 10 mm With grinding wheel Ø 350 mm: 10 mm Automatic centring with sensor (only RZ 362A): 20 mm Max. workpiece outside diameter 360 mm With “Felsomat” loading system (optional, only RZ 362A) 300 mm With automatic centring via sensor (only RZ 362A) 320 mm Min. distance grinding wheel centre to workpiece centre 165 mm Max. gear width 175 mm For pitch circle diameters < approx. 150 mm, width reduction due to chuck and tailstock geometry Max. workpiece weight 60 kg Ffjdpfjx Sxbdex Aflot With “Felsomat” loader (optional, only RZ 362A) 4 kg Centres Distance Fixed manual tailstock (optional) 645 mm Special manual tailstock (optional) 745 mm Hydraulic tailstock (optional, only RZ 362A) 515 mm (645 mm with reduced grinding stroke) Toothing Min. number of teeth 6, max. 600 Module without automatic centring min. module 0.5 (DP 48) Module with automatic centring min. module 0.8 (DP 32) Max. module 7.0 (DP 3.5) Helix Angle Min. 10° Max. 40° Max. helix angle left and right 45° Shift motion limitations at large helix angles, especially over 30° Profile and Crowning Corrections Tip relief and crowning height Crowning length and taper Max. corrections depend on profiling tool and process parameters Weights (without oil filling) Machine approx. 5,000 kg Control cabinet approx. 1,100 kg Hydraulic unit approx. 600 kg Coolant system RTO 100 (optional) approx. 1,600 kg Coolant system RTM 100 with magnetic prefilter (optional) approx. 1,650 kg Coolant system RTA 150 (optional) approx. 2,500 kg "Felsomat" portal loader (optional, only RZ 362A) approx. 1,600 kg Loading unit approx. 1,000 kg Workpiece magazine approx. 400 kg

Stanje: dober (rabljeno), Leto izdelave: 1980, Funkcionalnost: nepreverjeno, - Krmiljenje ADCOS CNC 400 - Opcija krmiljenja ASS - Naprava za hlajenje Fedpsx Sdr Uefx Afloft - Razni dodatki (vpenjalne tule itd.) - Teža stroja: pribl. 3 t - Stroj je popolnoma priključen na krmilno omaro
