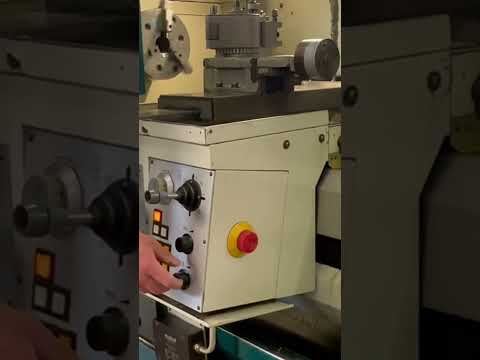

Stružnica s cikličnim vodenjem

Monforts KNC 5 1000

Stanje: rabljeno, Leto izdelave: 2003, Višina koničnika 255 mm Razdalja med koničniki 1.080 mm Premer struženja nad posteljo 500 mm Premer struženja nad suportom 290 mm Dolžina struženja 1.000 mm Krmiljenje EuroTurn Premer vretenaste izvrtine 70 mm Vpenjalni nosilec vretena KK 8 DIN 55027 Premer 3-čeljustnega vpenjalnega tulec 250 mm Širina postelje 360 mm Območje vrtljajev 2 - 2.800 min⁻¹ Hitri pomik - vzdolžno/prečno 10 / 5 m/min Hitromenjalni nosilec PARAT velikost 2 Pogonska moč - motor vretena 11,0 kW Stožec v konjičevem tulecu MK 5 Premer tuleca 80 mm Fsdpswizltofx Abvsfw Hod tuleca 160 mm Obratovalna napetost 400 V Skupna potreba po moči 16,0 kVA Teža stroja cca 3,0 t Potrebne mere prostora cca 2,85 x 1,60 x 1,80 m - Tovarniška št.: 495 / 03 - Krmilnik: EuroTurn - 3-čeljustni klinasti vpenjalni tulec SCHUNK - Hitromenjalni nosilec PARAT - Naprava za hlajenje - Strojna svetilka

Stanje: zelo dobro (rabljeno), Leto izdelave: 2015, Heidenhain TNC 620 V2 control Travel X/Y/Z: 760/480/480 mm Spindle speed: 12,000 rpm Tool magazine for 24 tools, SK40 Ffodpsv Rr Hxofx Abvew Table size: 900 x 410 mm Chip conveyor Automation / robot

Stanje: rabljeno, Leto izdelave: 1999, Centre height: 255 mm Centre distance: 1080 mm Swing over bed: 500 mm Swing over cross slide: 290 mm Turning length: 1000 mm Spindle mount: KK 8 DIN 55027 Control: Sinumerik 810 D SIEMENS Bed width: 360 mm Spindle bore: 70 mm Speed range: 2 - 2800 rpm Rapid traverse - longitudinal/face: 10 / 5 m/min Quick-change tool holder: MULTIFIX type B / CAPTO Fodpfx Absqzm Ngovjfw Drive power - spindle motor: 11.0 kW Tailstock quill taper: MK 5 Quill diameter: 80 mm Quill stroke: 160 mm Operating voltage: 400 V Total power requirement: 16.0 kVA Machine weight: approx. 3.0 t Space required: approx. 2.85 x 1.60 x 1.80 m Chip conveyor: 4.00 x 0.40 x 1.50 m - Factory number: 346 / 03 - Control: SIEMENS Sinumerik 810 D - Main spindle newly mounted, ball screw on Z-axis replaced. - Chip conveyor - Combined quick-change tool post MULTIFIX / CAPTO - Coolant system - Machine lamp

Stanje: rabljeno, Leto izdelave: 1999, x-axis travel: 600 mm y-axis travel: 525 mm z-axis travel: 500 mm Table clamping surface: 1000 x 543 mm Spindle taper: SK 40 Spindle interface: DIN 69871 Spindle speeds - stepless: 20 - 12,000 rpm Feed rates X/Y/Z axis: 20 - 10,000 mm/min Rapid traverse X/Y/Z axis: 18 / 18 / 15 m/min Max. table load: 350 kg Control: HEIDENHAIN MillPlus Head swiveling: +/- 90° Total power requirement: 26 kVA Fodstqqmhopfx Abvefw Machine weight approx.: 4.2 t Machine dimensions (L x W x H): 2.95 x 2.1 x 2.26 m Accessories: various tool holders, coolant system

Stanje: rabljeno, CNC Cycle-Controlled Lathe HARRISON Type Alpha 400 Plus Machine No.: P30180/150 Year of manufacture: 1998 Centre distance: 1250 mm Swing over bed: 400 mm Centre height: 200 mm Swing over cross slide: 245 mm Fodpfx Aoh Hvk Asbvjfw Max. workpiece diameter in bed gap: 585 mm Bed width: 313 mm Cross slide travel (X-axis): 250 mm Tailstock quill diameter: 73 mm Tailstock quill stroke: 140 mm Tailstock taper: MT 5 Spindle bore: 54 mm Spindle nose: Camlock D1 size 6 Spindle speed: 20-2500 rpm Spindle speed ranges: - Range 1: 15-275 rpm - Range 2: 35-795 rpm - Range 3: 110-2500 rpm Feed rate X and Z: 0.03-0.6 mm/rev Rapid traverse X-axis: max. 2000 mm/min Rapid traverse Z-axis: max. 4000 mm/min Thread cutting function: Metric / Inch / Diametral / Module Spindle drive power: 7.5 kW Electrical connection: 400 Volt, 50 Hz, 23.5 kVA - Cycle control: Harrison Alpha / GE FANUC – operating language in French (France) - Automatic 3-stage gearbox (15-275, 35-795, 110-2500 rpm) - Electronic handwheels with selectable graduation (1/10/100) - 3-jaw scroll chuck FORKARDT Ø 250 mm, type CSN, 1 set soft top jaws - Quick-change tool post MULTIFIX size B with 2 tool holders - 1 revolving centre - 1 quick-action drill chuck RÖHM, 3-16 mm - Foldable chuck guard - Hinged work area safety doors - Chip tray with coolant system under machine bed - Switch cabinet fixed to the machine - RS 232 interface Floor space (L x W x H): 2600 x 1450 x 1550 mm Weight: 1950 kg In good condition

Stanje: novo, Bernardo Universal Lathe Titan 660 x 2000 Technical Specifications Centre distance: 2,000 mm Centre height: 330 mm Swing diameter over bed: 660 mm Swing diameter over gap: 900 mm Swing diameter over cross slide: 460 mm Bed width: 400 mm Spindle bore: 105 mm Spindle mount: DIN 55029, D1-8 Speed range (16): 25 – 1,600 rpm Longitudinal feed range (25): 0.044 – 1.48 mm/rev Cross feed range (25): 0.022 – 0.740 mm/rev Metric threads (54): 0.45 – 120 mm Inch threads (54): 7/16 – 80 TPI Quill diameter: 90 mm Quill travel: 235 mm Quill taper: MT 5 Motor power: 7.5 kW (10.0 HP) Machine dimensions (W x D x H): 3,630 x 1,200 x 1,520 mm Fjdofbbx Repfx Abvofw Weight: approx. 2,900 kg Features Versatile applications in general engineering, production, single-part manufacturing, etc. Central, easy-to-use control for feeds and threads using leadscrew and feed shaft Prism bed made of cast iron, induction-hardened and precision-ground Modern main spindle bearing with precision angular contact roller bearings Hardened and ground gears and shafts, including in the feed gearbox Rapid traverse for longitudinal and cross feeds as standard to reduce idle times Large spindle bore (105 mm) for workpieces with large diameters Smooth start via mechanical multi-disc clutch Electromechanical foot brake for reduced idle times Excellent cutting performance even for facing operations The machine bed is reinforced with sturdy ribs to increase rigidity and minimize vibration influences Scope of delivery 3-axis digital readout ES-12 V with LCD display Slip clutch Rapid traverse longitudinal and cross LED machine light 3-jaw steel chuck PO3-315 mm / D8 Faceplate 450 mm Fixed steady rest – max. dia. 180 mm Travelling steady rest – max. dia. 120 mm 2 centre points Motor with magnetic brake according to CE standards Foot pedal with brake function according to CE Initial fill with Shell Tellus 46 Coolant system Quick-change tool post with 4 holders Protection device for quick-change tool post Change gears Reducing sleeve Chip guard Cable routing via energy chain Operating tools

Stanje: skoraj kot novo (rabljeno), Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 2017, obratovalne ure: 2.600 h, vrsta upravljanja: CNC krmiljenje, model krmilnika: Fanuc 32 C, Oprema: dokumentacija / priročnik, Standard programs such as parameter adjustment Dressing settings Fsdpfx Abow I Tt Ssvsfw Speed settings Program management settings Limitation of X + Y travel distances Basic parameter settings Grinding wheel management program Warm-up cycle program Flat plunge grinding program Measuring program Transformer 15 kVA Full enclosure Meister G3 Spindle upgrade to 3.7 kW, wheel 225 ETHER interface for network connection Control module with extended memory Fanuc Macro B option Batch program creation Programmable spindle speed WinWop contour creation program for Windows WINWop error compensation program WinWop post-processor CGS Complete Grinding Solutions software Option: Dressing Swiveling profile dressing device Diamond dressing wheel Pre-dressing device VPA 100 L 100 mm diamond wheel for pre-dressing device Diamond grade resharpening package G3 / W Option – Clamping and Balancing Magnetic chuck 400 x 200 400 mm stop bar with prism Fully automatic balancing device size 1 Grinding wheel flange for G3, bore 51 Option: Filtration systems Band filter unit 175 l Emulsion mist extraction unit 500 Inquiries only from Europe – preferably EU

Stanje: rabljeno, Leto izdelave: 2002, Swing diameter: 820 mm Turning length: 2,000 mm Control: SIN 810 D Center height over flat bed: 400 mm Swing diameter over cross slide: 500 mm X-axis travel: 540 mm Z-axis travel: 2,100 mm Feed rate X/Z axis: 0.01 - 50 mm/min Rapid traverse X-axis: 5.00 m/min Rapid traverse Z-axis: 10.00 m/min Feed force, facing: 12,500 N Feed force, longitudinal: 20,000 N Spindle speeds: 6.4 - 1,600 rpm Spindle speed gearbox stage 1: 6.40 - 376 rpm Spindle speed gearbox stage 2: 27.40 - 1,600 rpm Fjdpjw Dvipsfx Abvjfw Drive power at 60% / 100% duty cycle: 46.00 / 37.00 kW Torque at 60% / 100% duty cycle: 5,073 / 4,069 Nm Constant cutting speed: 1 - 9,999 m/min Spindle nose to DIN 55027 - size 11 Spindle diameter at front bearing: 170 mm Spindle bore: 128 mm Tailstock quill taper: MT 6 Quill diameter: 125 mm Quill stroke: 280 mm Thread pitch: 0.1 - 400 mm Total power requirement: 35.00 kW Machine weight approx.: 11.00 t Space requirement approx.: 6.00 x 3.00 x H2.60 m Controls: SIEMENS Sinumerik 810D, chip conveyor, tailstock, extraction system, 2 steady rests. Spindle bearing refurbished by the manufacturer in 04/2023. Machine can be inspected under power.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2004, Siemens Sinumerik 840D control system Bar capacity: 65 mm Ffedpfx Abswh U D Hjvjw Spindle speed: 5,000 rpm 2 x 12-station turrets with driven tools Turret 1 with Y-axis Parts catcher Band filter system Chip conveyor IRCO Profimat bar feeder

Stanje: novo, Leto izdelave: 2025, New machine. Please request the current daily price and delivery time. Dimensions and Weights: Length (product): approx. 2129 mm Width/Depth (product): approx. 1046 mm Height (product): approx. 1687 mm Weight (net): approx. 645 kg Electrical Data: Drive motor power: 3 kW Ffjdpfx Aerah S Hjbvow Supply voltage: 400 V Mains frequency: 50 Hz Hydraulic pump motor power: 1.4 kW Coolant pump motor power: 100 W Total connected load: 3.8 kW Machine Data: Saw band speed(s): 20 – 80 m/min Saw band length: 3770 mm Saw band width: 34 mm Saw band thickness: 1.1 mm Cutting angle: -45 – 60° Manual operation: hydraulic via push button Semi-automatic operation: automatic Cutting Ranges: Cutting range 0° round (solid material): 355 mm Cutting range 0° square (solid material): 300 mm Cutting range 0° upright rectangle (solid material): 300 x 490 mm Cutting range -45° round (solid material): 290 mm Cutting range -45° square (solid material): 250 mm Cutting range -45° upright rectangle (solid material): 250 x 250 mm Cutting range +45° round (solid material): 350 mm Cutting range +45° square (solid material): 290 mm Cutting range +45° upright rectangle (solid material): 290 x 340 mm Cutting range +60° round (solid material): 230 mm Cutting range +60° square (solid material): 180 mm Cutting range +60° upright rectangle (solid material): 180 x 220 mm
