Stružnica - ciklično krmiljena

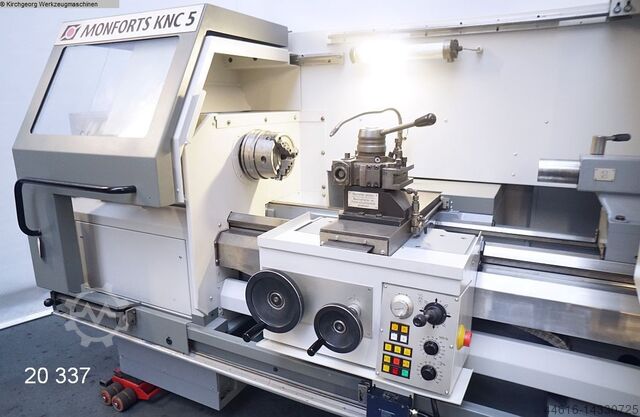

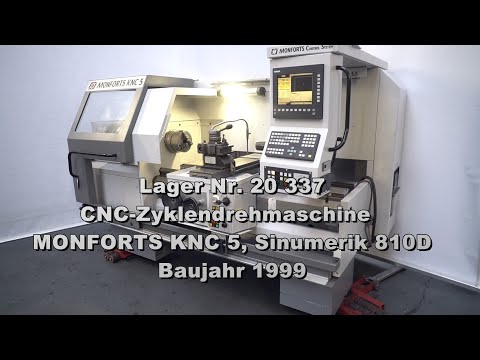

MONFORTS KNC 5 - 1000 / SIEMENS

Stanje: rabljeno, Leto izdelave: 1973, Swing diameter over bed 490 mm Swing diameter over cross slide 280 mm Turning length 2000 mm Centre height 245 mm Centre distance 2000 mm Spindle bore 62 mm Total power requirement 7.5 kW Machine weight approx. 3.5 t Machine dimensions (L x W x H) 3.78 x 1.17 x 1.42 m Accessories: 3-jaw chuck 240 mmø, faceplate 400 mmø, MULTIFIX tool post, Hsdjtqqvvopfx Altjr fixed steady rest, coolant system

Stanje: zelo dobro (rabljeno), Leto izdelave: 1995, Kombinirana enota: Proizvajalec: GSG Podajalnik: Tip: 840.02-027 Drobilnik/lupilec: Tip: 663.02-017 Obseg žice: Ø5,5–16 mm Za valjano žico z natezno trdnostjo pribl. 40–60 daN/mm² Drobilni in upogibni valji: s karbidnimi vložki Nastavitev z reduktorskim motorjem 0,37 kW – 1,15 A Pogon krtače z reduktorskim motorjem 0,25 kW, n = 293 min⁻¹ Priključna napetost: 380–420 V, 50 Hz Enota za suho prevleko: tip: BSG/T Polnjenje: kalcijev stearat (npr. Traxit tip: D S 51 E) Poraba stearata: pribl. 350 g na tono žice Hitrost vlečenja: maks. 15 m/s Pogonska moč: 2 x 0,55 kW reduktorska motorja Kaseta: 2 reži (priloženo 1x valjčni blok + 1x kaseta) Tip: PKG/T (TS) Očiščena valjana žica Trdnost žice pribl. 40–60 daN/mm² Obseg žice: maks. vhodni premer 9,5 mm, končni premer 3,5–8,5 mm Dimenzije valjev: min. Ø115 mm, maks. Ø125 mm Premer izvrtine: Ø82 mm, širina 15–25 mm Premer hladilnega zatiča: 25 mm Poraba hladilne vode pribl. 600 l/h Vlečna stroj: Proizvajalec: Koch Tip: KHZ 5000 Leto izdelave: 1993 Serijska številka: 13.821 Število vlečnih postopkov: 1 vlečenje na blok Vlečni boben: Ø700 mm Vlečna sila: mehansko 5000 N Material žice: mehko jeklo Vhodna trdnost: pribl. 40–45 daN/mm² Maks. vlečni razpon: vhodni premer 5,0–8,5 mm Redukcija preseka: 20 x 25 % (mehanično) Vlečna hitrost: maks. 7,0 m/s Zavora: Twiflex, tip: MRB Pogon: asinhronski motor / frekvenčni pretvornik, Siemens PN=110 kW, n=1485 min⁻¹ Navijalec: Proizvajalec: Koch Tip: KHS 1250 Leto izdelave: 1993 Tovarniška št.: 13741 Premer žice: 5–8,5 mm Trdnost: pribl. 55–70 daN/mm² Hitrost navijanja: V = 7 m/s, prilagojeno vlečnemu stroju Teža polnjenja: pribl. 3000 kg Pogon navijalnega bobna: trofazni motor z zunanjim ventilatorjem Hsdjr Nfvmspfx Alter Tip: 1 PQ 6253 – 6 AA 70- Z A 15 + K 20 + C 14 + H 46 P = 37 kW, n = 1000–2000 min⁻¹, IP54, izvedba B3 Pogon za spiralno polaganje: 66-671U, 1,5 kW, 170 V, 9,8 A, 1680 min⁻¹, IP44, B5-200 S pritrjenim tahogeneratorjem TG 20, 20 V / 1000 min⁻¹ S pritrjenim čelnim zobnikom SK 32, i = 57,53, izvedba B6 Hidravlika: hidravlični agregat tip: H13 AK Pnevmatika: kolutna zavora Twiflex tip: MRB Pnevmatski cilinder tip: SPWG 28032-25 mm hod Dimenzije: 3100 × 3000 × 1700 mm (D × Š × V) brez uteži

Stanje: dober (rabljeno), Hydraulic power unit, hydraulic pump, universal power pack, hydraulic station Hodpfxegz Irvo Altjr - Manufacturer: Rexroth/Hydraudyne, hydraulic station with oil cooler / accumulator / filter ... - Model: 03 HDJ - Motor power: 22 kW / 1460 rpm - Tank capacity: approx. 240 litres - Pressure display: up to 250 bar - Individual components: accumulator / hydraulic tank / filter / valves, see pictures - Quantity: 2 units available - Price: per unit - Dimensions: 1060/820/H1530 mm - Weight: 738 kg

Leto izdelave: 2006, stanje: pripravljen za uporabo (rabljen), A CNC precision parallel lathe Pinacho is available. Center height: 180 mm, distance between centers: 750 mm–1000 mm, turning diameter over bed/cross slide/top slide: 360 mm/335 mm/198 mm, bed width: 250 mm, spindle bore: 42 mm, spindle speed: 4000 rpm, feed rate X/Z: 10 m/min, rapid traverse X/Z: 10 m/min. Tailstock quill diameter: 58 mm, tailstock quill travel: 200 mm, Morse taper: MT3, min. steady rest/follow rest passage: 10 mm, max. steady rest/follow rest passage: 70 mm/114 mm, control: Fanuc 0i. Documentation available. On-site inspection possible. Hodpfewftcvsx Altjr

Stanje: dober (rabljeno), Leto izdelave: 1956, Heavy-duty lathe, lathe, engine lathe, geared head lathe, screw-cutting lathe - Manufacturer: Weisser, Geared Head Lathe Type PF200 - Turning length: 1340 mm - Swing over bed: 420 mm - Swing over cross slide: 240 mm - Spindle bore: Ø 41 mm Hsdpfetzf N Rjx Alter - Spindle speeds: 31.5 - 1400 rpm - Three-jaw chuck: Röhm Ø 250 mm - Accessories: included, see photos - Tailstock taper: MT4 - Drive motor: 2.5/3.5 kW - Dimensions: 2670/1000/H1230 mm - Weight: 1450 kg

Stanje: rabljeno, Tenon cutter / Dowel saw LOSER model AA220 - USED Hodpfxsqpdkce Alter - Capacity: 7500/1500 dowels per hour - Dowel diameter capacity: 6–18 mm.

Stanje: zelo dobro (rabljeno), Krmiljenje: Heidenhain Positip 850; Vpenjalni sistem orodja: SK 40; Hidravlično vpenjanje orodja; Hod pinole: 100 mm; Miza: 800x480 mm; Pomiki: x-600 mm, y-400 mm, z-400 mm; Hitri pomiki; Podajalne hitrosti: 63-800 mm/min (18 stopenj); Hsdpfslkgvbox Altsr Število obratov: 63-3150 vrt/min (18 stopenj); Dodatki: Hladilna naprava, vpenjalna glava za vpenjalne tule, vključno s tulemi, utorni glavi.

Stanje: rabljeno, Leto izdelave: 1992, Dolžina brušenja 0800 mm Širina brušenja 500 mm Višina obdelovanca 400 mm Velikost mize 800 x 400 mm Hitrost mize 1 - 25 m/min Hedpfjwgnz Aox Altjr Avtomatski prečni pomik 0 - 60 mm/hod Dimenzije brusnega kamna 400 x 100 x 127 mm Hitrost brusilnega vretena 1400/2800 obr/min Skupna potrebna moč 10 kW Napetost 380 V Teža stroja ca. 6 t Stroj je opremljen s hladilno napravo, avtomatskim navpičnim pomikom, napravo za oblačenje in držali za kamne. Krmiljenje je zaradi starosti nezanesljivo!

Stanje: rabljeno, x-travel 500 mm y-travel 400 mm z-travel 400 mm O F F E R We can offer you, subject to prior sale and errors excepted, the following from stock on a non-binding basis: DECKEL MAHO CNC Universal Milling Machine Type: DMU 50 M Year of manufacture: 1998 _____ Working area: - Travel X-axis: 500 mm - Vertical travel Z-axis: 400 mm - Cross travel Y-axis: 400 mm - C-axis – table rotation, manual: 360° - B-axis – table tilting, manual: ° Table size: Ø 700 x 500 mm Table tilting range: ° Table rotatability: 360° Max. workpiece weight: 200 kg Distance between table and spindle approx.: 550 mm Reach between machine and spindle min/max: 2 – 6 mm Tool holder: SK 40 Spindle speeds steplessly programmable: 20 – 4,500 rpm Feed rates / rapid traverse max.: 5,000 mm/min AC main drive 0%/40% duty cycle approx.: 9 / 13 kW Total power approx.: 15 kW - 400 V - 50 Hz Weight approx.: 3,000 kg Accessories / Special equipment • 3-axis path control HEIDENHAIN TNC 124 with display and direct input of all data, including electronic handwheels for all 3 axes. • All 3 axes in the milling head, allowing “irregular” workpieces to be machined on the stationary table. • Rotary table, 360° manually rotatable, +/-° manually tiltable (each with clamping). Digital display of tilt angles integrated into the control. • Simple coolant system, attached control cabinet (SIEMENS equipment). • Pneumatic tool clamping, various tool holders, operating manuals, CE certificate, etc. Condition: Good to very good! Ideal for training or single-part production! Click here for a video of the machine: Hsdpfx Ajv Td Elelter Delivery: Ex stock, immediately available, FCA Metzingen Payment: Net - upon receipt of invoice Always a large selection of milling machines in stock – please let us know your requirements!

Stanje: rabljeno, Leto izdelave: 2000, Table length 1160 mm Table width 710 mm Clearance 650 mm Control system WENZEL ME 5007 Total power requirement kW Machine weight approx. 800 kg Space requirements approx. m W E N Z E L CNC-controlled vertical 3-D coordinate measuring machine Type LH 54 CNC, year of manufacture 2000 - Continuously maintained and calibrated by the manufacturer Y-axis: longitudinally traversing measuring bridge 600 mm X-axis: crosswise measuring head slide 500 mm Z-axis: vertical measuring quill approx. 400 mm Max. workpiece weight / table load approx. 200 kg Clearance under measuring bridge approx. 650 mm Usable total table size approx. 1,160 x 710 x 160 mm Table height above floor approx. 850 mm Machine height approx. 2,300 mm Weight approx. 800 kg Hjdpfx Aot Hw S Ioltjr Special equipment / accessories: • Machine delivered with increased accuracy • Measuring table, bridge, and quill made of dark natural hard stone, table with 3 x 4 threaded holes for fixture/workpiece mounting • All axes are air-bearing, enabling smooth and virtually wear-free operation, equipped with incremental scales with 0.0005 mm resolution. • WENZEL CNC control system type ME 5007 for 3 to 6 axes, equipped with ME 4700 portable manual control panel with 2 joysticks for activating all software functions – ideally set up for: • WENZEL measuring software type METROLOG – II Level 2 for measuring regular geometry, graphic 3D workpiece visualization, graphical protocols, etc. including keyboard • RENISHAW control unit model PHC 10 – 2 suitable for • RENISHAW motor-driven rotary and swivel head (automatically indexable in 7.5° steps), model PH 10 T with 5-way probe system model TP 200 with various probe accessories, incl. RENISHAW probe interface PI 200 Automatic probe change possible; 6-position probe magazine model SCR 200 mounted on the table • Reference sphere for mounting on the table, working table with console, various clamping devices • Various cassette tapes and CDs with different software. Separate PC for measuring software and printer Condition: Very good – in stock, can be inspected under power, ready for demonstration, dismantled by a coordinate measuring machine specialist at the seller and reassembled here. Delivery: Ex stock – as is and as inspected Payment: Net – upon receipt of invoice.
