Univerzalni obdelovalni center

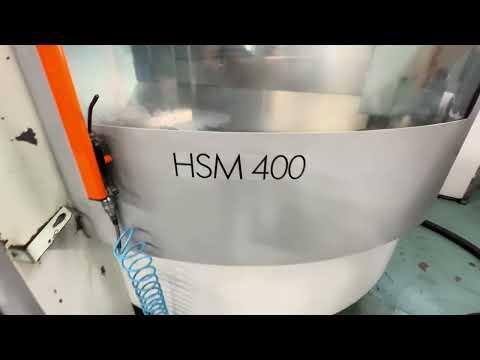

Mikron HSM 400

Stanje: zelo dobro (rabljeno), Number of pallets: 18 Load capacity: 25 kg Maximum workpiece height: 350 mm Godsilp Euspfx Agwoip Maximum workpiece diameter: 230 mm Various accessories MARCELS MASCHINEN AG

Stanje: rabljeno, Leto izdelave: 1981, -1- rabljeni udarni mlin za trde kamnine, vhod ca. 350 x 690, rotor 1000 x 670, zmogljivost do 40 t/h, z električnim motorjem Giedjw N Hk Hspfx Agwep

Stanje: dober (rabljeno), Leto izdelave: 2006, 1. TEHNIČNI PODATKI Delovno območje X-os: 400 mm Y-os: 450 mm Z-os: 350 mm B-os: ±110 ° C-os: 360 ° Delovno vreteno Območje hitrosti: 100 - 42.000 min⁻¹ Nosilec orodja: HSK E 40 Gsdpex H Ntasfx Agwoip Moč vretena pri 40 % ED: 13 kW Moč vretena pri 100 % ED: 10 kW Navor pri 60 % ED: 4,25 Nm Navor pri 100 % ED: 3,2 Nm Mazanje: olje/zrak Pomik Hitri pomik: maks. 40 m/min B-os: 150 min⁻¹ C-os: 250 min⁻¹ Pospešek osi XYZ: maks. 1g (10 m/s²) B-os: 100 rad/s² C-os: 300 rad/s² Menjalec orodja: 68 mest Chip to chip: 12,5 s Čas menjave orodja: 10,0 s Delovna miza: 120 mm Maks. premer obdelovanca za 360° vrtenje: 230 mm Maks. višina obdelovanca: 350 mm Maks. teža obdelovanca: 25 kg Krmilnik: Heidenhain iTNC 530 Teža: 5500 kg

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2007, Funkcionalnost: popolnoma funkcionalen, model krmilnika: iTNC Heidenhain 530, največja hitrost vretena: 42.000 obr/min, kot vrtenja osi C (maks.): 360 °, število osi: 5, No reserve price – guaranteed sale to the highest bidder! The offer includes: 2x 5-axis HSC machining centres + pallet system with robot MIKRON HSM 600 U (Serial number: 217.88.00.070) TECHNICAL DATA Travel distances Travel X: 800 mm Travel Y: 600 mm Travel Z: 500 mm Spindle Spindle speed: 42,000 rpm Tool holder: HSK 40 Axes B-axis swivel range: +30° / −110° C-axis rotation range: 360° C-axis Rotary table rotation range: n x 360° Rotation speed: 360 rpm (2,160°/s) Torque (nominal): 340 Nm Torque (max.): max. 217 Nm Clamping torque: 1,400 Nm B-axis Swivel range: +30° / −110° Swivel speed: 200 rpm (1,200°/s) Swivel torque: 640 Nm Clamping torque: 2,800 Nm Clamping surface: 320 x 320 mm Table load: max. 120 kg Tool magazine: 68 stations Control: iTNC Heidenhain 530 Workpiece weight: max. 120 kg EQUIPMENT Swivel rotary table with Erowa UCP MIKRON HSM 400 U (Serial number: 217.87.00.178) TECHNICAL DATA Giodpfox Hx T Asx Agwjp Travel distances Travel X: 400 mm Travel Y: 240 mm Travel Z: 350 mm Spindle Spindle speed: 42,000 rpm Tool holder: HSK 40 Axes B-axis swivel range: ± 110° C-axis rotation range: 360° C-axis Rotary table rotation range: n x 360° Rotation speed: 250 rpm (1,500°/s) Torque (nominal): 132 Nm Torque (max.): max. 217 Nm Clamping torque: 500 Nm B-axis Swivel range: ± 110° Swivel speed: 165 rpm (990°/s) Swivel torque (nominal): 485 Nm Swivel torque (max.): max. 686 Nm Clamping torque: 2,000 Nm Clamping surface: ITS 148 Powerchuck Table load: max. 25 kg Tool magazine: 36 stations Control: iTNC Heidenhain 530 EQUIPMENT Swivel rotary table EROWA ROBOT MULTI TWIN Gripper change station: 6 positions Grippers: various Storage system Rotary storage: 5 levels Storage allocation: Level 1: 5 x UCP 300 x 300 mm Level 2: 5 x UCP 300 x 300 mm Level 3: 15 x ITS 148 Level 4: 15 x ITS 148 Level 5: 30 x ITS 50 GENERAL EQUIPMENT Absolute measurement systems on all axes Infrared measuring probe LASER Set-up operation with electronic handwheel Graphite extraction: 2x BURN WK 5806 Rotary pallet storage

Stanje: zelo dobro (rabljeno), Leto izdelave: 2000, TEHNIČNI PODATKI Pomik X / Y / Z: 1.250 / 880 / 800 mm Krmiljenje: Heidenhain Hitrost vrtenja: 10.000 vrt/min B-os: avtomatska Število mest v menjalcu orodij: 60 Vpenjalo orodja: SK-50 Število palet: 2 kosa Mere palet: 1.000 x 800 mm PODROBNOSTI O STROJU Čas vklopa: 59.112 h Ure vretena: 21.619 h Transportne mere stroja: 5,5 x 3,0 x 3,1 m; 14,3 t OPREMA - elektronsko ročno kolo - MillPlus 3D krmiljenje poti - pihanje zraka skozi sredino vretena - merilna tipala - izpiralna pištola - dokumentacija - transporter ostružkov (tečajni trak) - hladilna naprava Giodpoxdnclofx Agwjp - odsesavanje oljne megle

Leto izdelave: 2005, stanje: zelo dobro (rabljeno), MIKRON HSM 400 U High-Speed Machining Center The exact scope of supply can be seen in the photo gallery. Included, among others: touch probe, oil mist separator, fire extinguishing system, chip conveyor, handling device, oil cooler, band filter system, approx. 50 HSK tool holders, etc. 1. TECHNICAL DATA Work Area X-axis: 400 mm Y-axis: 450 mm Z-axis: 350 mm B-axis: ±110° C-axis: 360° Spindle Speed range: 100 – 42,000 rpm Tool holder: HSK E 40 Spindle power at 40% duty cycle: 13 kW Spindle power at 100% duty cycle: 10 kW Torque at 60% duty cycle: 4.25 Nm Torque at 100% duty cycle: 3.2 Nm Lubrication: oil/air Feed Rapid traverse speed: max. 40 m/min B-axis: 150 rpm C-axis: 250 rpm Axis acceleration, XYZ: max. 1g (10 m/s²) B-axis: 100 rad/s² C-axis: 300 rad/s² Tool changer: 68 positions Chip-to-chip time: 12.5 s Tool change time: 10.0 s Worktable: 120 mm Max. workpiece diameter (for full 360° rotation): 230 mm Max. workpiece height: 350 mm Max. workpiece weight: 25 kg Control system: Heidenhain iTNC 530 Weight: 5,500 kg No guarantee is given for the correctness, completeness or currentness of the information provided. Gijdpfx Agoigrf Iswep

Stanje: zelo dobro (rabljeno), Leto izdelave: 2002, potovalna razdalja osi X: 1.250 mm, pomik osi Y: 880 mm, pomik po osi Z: 800 mm, višina obdelovanca (maks.): 1.230 mm, premer obdelovanca (maks.): 1.250 mm, hitrost vretena (min.): 18.000 obr/min, največja hitrost vretena: 18.000 obr/min, Krmiljenje Heidenhain iTNC 530 Menjalnik orodij za 60 orodij Avtomatska glava +180/-7° brezstopenjsko HSK A63 Število palet: 2 kosa Velikost palete: 1000*800 mm Gedjw Ngipopfx Agweip

Stanje: dober (rabljeno), vrsta goriva: dizel, Leto izdelave: 1997, obratovalne ure: 10.314 h, številka stroja/vozila: JEE0055599, CASE 621 B wheel loader, serial number JEE0055599 Year: 1997 Power: 93 kW Operating hours: 10,314 h Gisdpfxsvxh R Ao Agwjp

Stanje: rabljeno, prevoženi kilometri: 71.000 km, moč: 445 kW (605,03 KM), prva registracija: 07/2012, vrsta goriva: dizel, skupna masa: 50.000 kg, vrsta prenosa: polavtomatski, emisijski razred: Euro 5, Oprema: filter saj, - Odlično stanje - 4300 delovnih ur črpalke - 52-5 Putzmeister - Pogon 10x6 Vzmetenje: Listnate vzmeti Godpfx Ageyg Al Uowsip

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2000, obratovalne ure: 33.831 h, potovalna razdalja osi X: 1.250 mm, pomik osi Y: 880 mm, pomik po osi Z: 800 mm, model krmilnika: '3D contouring control Millplus, teža obdelovanca (maks.): 1.000 kg, skupna dolžina: 7.000 mm, skupna širina: 3.500 mm, skupna masa: 3.902 kg, hitrost vretena (min.): 18.000 obr/min, moč vretenovega motorja: 15.000 W, Year of manufacture: 2000 CNC control: 3D contouring control Millplus Axes Travel X-axis mm: 1250 Travel Y-axis mm: 880 Travel Z-axis mm: 800 C-axis indexing degrees: 360º (0.001) Feed rate m/min: 40 Rapid traverse m/min: 40 NC milling/turning table: Number of pallets: 1 Pallet dimensions mm: Ø1000 Max. workpiece weight kg: 1000 Max. torque Nm: 7900 Spindle Max. spindle speed rpm: 18000 Spindle drive power kW: 15/10 (40% duty cycle/continuous) Cooling Tank capacity liters: 600 Tool system Tool holder: CAT 40 Number of tools in magazine: 60 Tool changer type: Double gripper Equipment Electronic handwheel Chip conveyor Internal coolant supply Rotating viewing windows Rinsing gun Prepared for RENISHAW probe Accuracy package Prepared for internal coolant (40/80 bar) Paper band filter Machine run time: Gjdjxvrbiepfx Agweip Hours powered on: 33831 Spindle working hours: 6328 Total power requirement kVA: 55 Base machine: Dimensions/Weight Length mm: 7000 Width mm: 3500 Height mm: 3902
