Vodoravna žaga za plošče

Holz-Her Cut 110

HOLZ-HER – 6310 CUT 110 580

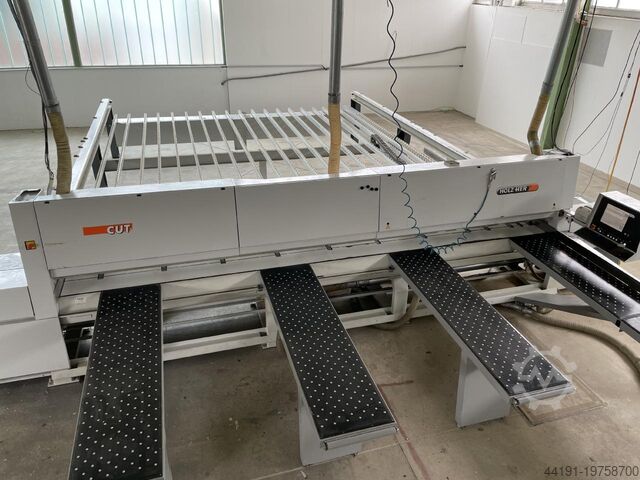

Computer-controlled panel dividing saw

Watch the video for more information about the machine:

Year of manufacture: 2007 Machine number: 136

The machine has been overhauled in all major mechanical components
New PC, new label printer, etc. in 2023

Technical specifications and description:

Base machine: pressure beam saw
Version: fence on the right side
Saw cycle: away from the stop
Cutting length: 5850 mm
Cutting width: 5850 mm

Saw blades
Main saw blade Ø 400 x 4.4 x 30 mm, Z72, FZ/TZ (not included!)
Carbide pre-scoring blade Ø 180 x 4.4/5.4 x 30 mm, conical (not included!)

Cutting height
Cutting height: 110 mm
Saw blade protrusion: 120 mm

Pressure beam: pneumatic, pressure force adjustable

Extraction system
Central, travelling dust channel at the unit
Extraction connection on base machine: 1x Ø 160 mm, positioned on the right side
Dust channel in the pressure beam: 2x Ø 120 mm – 1x top left, 1x top right
For SL 5850 mm: 3x Ø 120 mm – 1x top left, 1x top center, 1x top right
Extraction air speed: 30 m/s
Air volume: 4000 m3/h at 30 m/s

Compressed air
Compressed air requirement: approx. 32 l/min at 6 bar per cutting cycle

Switchable clamping pressure
Switchable from the control panel
For sensitive panel materials

Automatic cutting length limitation
The saw unit detects the end of the workpiece via a contactless sensor and optimises the sawing cycle

Offcut device
For cuts without waste pieces
Clamps retract into recesses in the pressure beam

Width stop
Precision-guided, freely programmable width stop with clamps
Rack-and-pinion drive for precise positioning
With surface-hardened linear guides

Return speed of panel pusher: 80 m/min
Feed speed of panel pusher: 80 m/min (EU – feed speed max. permitted: 25 m/min)
Opening dimension for clamps max. 120 mm
For longitudinal and cross cuts

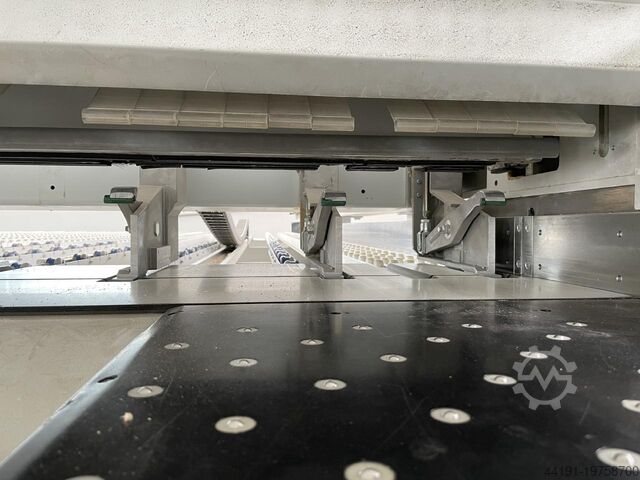

Clamps, floating version
Compensate for internal stresses upwards in panel stacks
- 6 units for 3250 mm cutting length
- 7 units for 4250 mm cutting length
- 8 units for 5850 mm cutting length

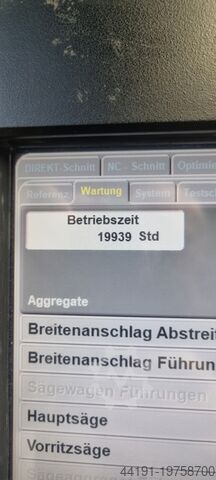

Control: CUTCONTROL 2
With 15" TFT display
Operating system: Windows 2000
RJ45 network connection 10/100 Base-T Fast Ethernet
Intel Celeron processor
Midi Tower
US keyboard
Optical mouse
CD ROM drive

Control panel on the fence side
Clearly arranged, graphical user interface for easy operation and management of jobs and materials, Windows-based
Realtime visualisation
Cedpsw I Uxpofx Aa Rshc
Large, clearly arranged buttons
All functions accessible from one screen
No limitation in input fields and unlimited entry of jobs possible

Control functions
Direct cut:
Manual cuts by direct entry of cutting dimensions.
Handling of absolute, serial, or format cuts with integrated grooving, notching, or positioned cuts.
Unlimited number of jobs programmable.
Assignment of priorities to individual jobs (prioritisation possible at any time).
Job programming in parallel with cutting operation.

NC·Cut:
Processing of optimised jobs.
Graphical overview of the machine with machine process function, as well as constant...
