Gubish šestvretenska skobeljna

Gubish

Stanje: zelo dobro (rabljeno), Leto izdelave: 2022, Funkcionalnost: popolnoma funkcionalen, dolžina podajanja os X: 4.200 mm, dolžina pomika po osi Y: 1.600 mm, Homag Centateq E-310 / Profi BMG 310/42/16/F/V/K Pripravljen za 1 glavno vreteno s lepilno skupino, nameščeno desno na portalni prečnik. Glavno 5-osno vreteno, 12 kW Vrtalna glava s 31 vreteni: 21 vertikalnih in 10 horizontalnih Lhsdpfsx Irzcex Al Nef Vrtalni list za utore, nagib 90° Pihalna šoba za borbo 60 mm Krožni magacinski sistem za 32 orodij, HSKF63 Linearni magacinski sistem za 8 pozicij Krožni magacinski sistem za 10 pozicij Lepilna skupina Power Edge Pro Duo Varnostni nadzor z odbijačem Odrezovalni trak za ostružke Vakuumska črpalka Upravljalna programska oprema PowerTouch, WoodWop

Stanje: zelo dobro (rabljeno), Four-side planer Weinig Maximum planing width: 230 mm Maximum planing height: 120 mm 5 heads: bottom - 5.5 kW; left and right - 11 kW each; top - 11 kW; bottom - 5.5 kW Feed motor - 4 kW Fully adjustable heads Electrically adjustable height and width of planing Spindles: 40 mm Feed on cardan shafts, with stepless adjustment Solid planer from WEINIG Total machine length: 415 cm Lhsdjrigxyjpfx Al Nef Machine tested, in original condition

Stanje: rabljeno, Number of spindles: 6 pcs. Working width: 230 mm Planing height: 120 mm Planer table length: 2500 mm Feed motor: 3 kW Feed speed: 5-24 m/min Total power requirement: 27 kW Dimensions (L/W/H): 3900 x 2200 x 2000 mm Machine weight approx.: 2500 kg Weinig four-sided planer Profimat 23 window version with glazing bead separation or can be used as a grooving spindle. Ljdpfxjxpn T Uj Al Nohf ATS control and program control ----- In 2024, the machine was factory-refurbished by Weinig. Technical data summary (possibly including additional accessories – please inquire) General ----- > Working width: 230 mm > Working height: 120 mm > Number of spindles: 6 pcs. > Planer table length: 2500 mm > Feed motor: 3 kW > Feed speed: 5-24 m/min > Total power requirement: 27 kW > Dimensions: 3900 x 2200 x 2000 mm > Machine weight approx.: 2500 kg Spindle arrangement ----- > Spindle 1: bottom > Spindle 2: right, pneumatically activated up/down > Spindle 3: left > Spindle 4: top > Spindle 5: bottom > Spindle 6: glazing bead saw, pneumatic up/down Spindle specifications ----- > Spindle 1: 4 kW, 6000 rpm, 40 mm diameter > Spindle 2: 7.5 kW, 6000 rpm, 40 mm diameter > Spindle 3: 6000 rpm, 40 mm diameter > Spindle 4: 5.5 kW, 6000 rpm, 40 mm diameter > Spindle 5: 4 kW, 6000 rpm, 40 mm diameter > Spindle 6: glazing bead saw 2.2 kW, 6000 rpm, 40 mm diameter Additional features ----- > Glazing bead separation or usable as grooving unit > ATS control, automatic 2-axis positioning for width and height (left and top spindle) with memory for 99 programs > Machine operation: window package Combined control of the right spindle and glazing bead separator via manual selector switch on the control panel > Spindles with mechanical digital display (technical data as per manufacturer – subject to confirmation!)

Stanje: rabljeno, Leto izdelave: 1980, številka stroja/vozila: GUS 71 Typ 26.813, Frame saw by Wusterer & Dietz including: Frame saw Saw blade tensioner Splitting wedge Roller conveyor for frame saw 4-strand puller Inspection possible by appointment. Lodpfjv Ummbox Al Njhf

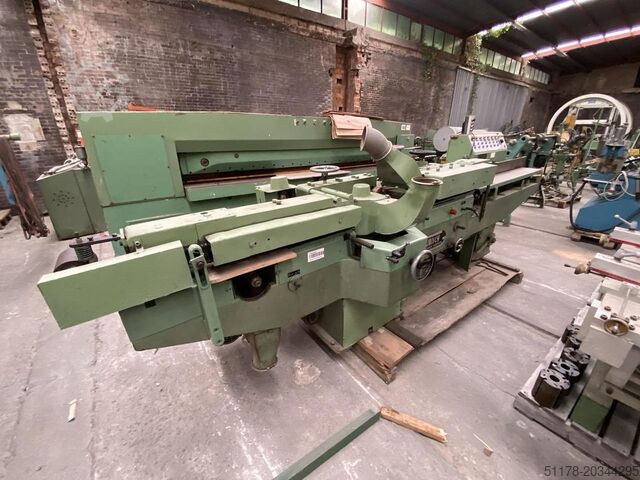

Stanje: dober (rabljeno), Leto izdelave: 1973, Weinig Planing Machine 4-sider / U250 / Unimat 250 Planing width: 250 mm Planing height: 120 mm Bottom spindle 7.5 kW Right spindle 5.5 kW Left spindle 7.5 kW Right spindle 7.5 kW Top spindle 7.5 kW Bottom spindle 7.5 kW Saw unit spindle 7.5 kW Includes planing heads Includes milling tools Includes knives Lhsdpfx Aorigq Sol Nef Includes all accessories Good condition - immediately available Location: Austria, near Sankt Pölten

Stanje: rabljeno, - Working width (mm): 140 - Shafts: 7 1st shaft: bottom 2nd shaft: right 3rd shaft: left 4th shaft: right 5th shaft: top 6th shaft: bottom Lhjdpfxjrg Exro Al Nof 7th shaft: universal shaft

Stanje: rabljeno, Leto izdelave: 2005, Used machine Year of manufacture: 2005 Features and Technical Data: - Base machine 555 - Processing dimensions for edge milling: - X = 3514 mm - Y = 1544 mm - Maximum processing dimensions: - X = 3868 mm - Y = 1746 mm - Z = 325 mm - Workpiece support with 8 consoles, pneumatically clamped - Drilling unit 7968: - 18 vertical drilling spindles with 32 mm pitch - 12 in X-axis and 6 in Y-axis - individually selectable - T-shape arrangement - max. drilling diameter 35 mm (depending on panel thickness) - spindle stroke: 70 mm - rotation direction: alternating clockwise/counterclockwise - speed: 4725 rpm, infinitely variable - 2 horizontal drilling units in X-direction, 1 horizontal drilling unit in Y-direction - Saw unit 7946: - Motor: 3.5 kW - 90° pneumatic swivel - speed: 5300 rpm - Tool holder A Ø = 200 mm, I Ø = 30 mm, B = max. 3.5 mm - sawing/grooving in X and Y directions - Milling unit 7935: - with 6 kW spindle, water-cooled - Milling unit 7982: - for mortise lock case milling Lhedpox Enpqofx Al Nsf - Tool changer 7996: - 18-position magazine (carousel) - Vacuum pump with 140 m³/h - Hand-held control device - PC control with TwinCAM WOP system - Siemens control Availability: short-term Storage location: 63934 Röllbach

Stanje: generalkompletno obnovljen (rabljeno), 6-shaft moulder, with 22 cm feed table and grooved table for processing short pieces. Automatic left spindle: automatically adjusts according to the width of the workpiece. Motor configuration and power ratings: Bottom spindle 5.5 kW Right spindle 4 kW Automatic left spindle 5.5 kW Right spindle 5.5 kW Top spindle 5.5 kW Lsdpfx Alsvhbf So Njhf Lower spindle 4 kW Feed motor 4 kW Hydraulic unit for automatic left spindle 0.55 kW

Stanje: rabljeno, Leto izdelave: 1994, Frame press Schafberger & Sprödhuber Type: Super 4 kW 3 m x 6 m Lodjilurnepfx Al Njhf

Stanje: rabljeno, Leto izdelave: 2021, only 24 operating hours – like new Base machine: 1 unit Cutting Technology Meets the Future The CONTROL has always defined its very own class—the premium class for vertical panel saws. Yet, even this advantage never stands still. We have expanded the CONTROL to become a premium-class vertical panel processing center, featuring increased automation of the sawing process and additional equipment options. Above all, the 12" touchscreen computer and new machine software provide significantly improved operator comfort in every detail. Saw Frame: • Precision assembly of machine components to 1/100 mm tolerance • Robust, self-supporting, fully welded, torsion-resistant saw frame • Full-coverage support wall made of birch multiplex, with integrated small-parts shelf • Auxiliary stop profile with own measuring tape and 3 auxiliary stops for repeat cuts • Automatic detection of center support • Automatic roller locking during sawing Saw Beam: • Rigid, durable steel saw beam construction • Automatic saw beam locking with cut-line detection Saw Unit: • Play-free, smooth-running guides • Robust support for the motor carriage ensures high cutting precision • Powerful 5.5 kW (7.5 hp) motor with strong torque • Increased comfort thanks to largely automated operation • Laser-guided display of horizontal cut • Automatic motor carriage clamping • Automatic plunge and swivel of the saw motor • Pneumatic clutch for easy switch to manual operation • SUPERSILENT sound insulation to reduce saw blade noise • Electromagnetic motor brake Control: • 12" touchscreen computer with optimal user guidance • Multi-language interface • Tool database guarantees high flexibility and absolute repeat accuracy • Fully automatic sawing cycle • Continuously adjustable feed speeds from 10–25 m/min • Selectable saw cycle • Panel end detection • Constant return speed • Operating hours counter • Network connectivity Dimension Setting: • Digital measuring system DMS.x (horizontal axis for vertical cuts) • Electronic positioning system EPS.y incl. ABO (vertical axis for horizontal cuts) Design, Ergonomics: • Typical STRIEBIG product design • Multiple award-winning (incl. Design Award Switzerland) • Function- and operator-oriented ergonomics Installation: • Wall-mounted or free-standing (optional) Note: Permissible ambient temperature: min. +5°C / max. +40°C Relative humidity: 19–95% In case of mains voltage fluctuations greater than +/-10% from the rated voltage, a voltage stabilizer must be installed at the installation site. Type 5216 Cutting area: 4300 x 2160/2016 x 80 mm • 1 unit • Cutting length: 4,300 mm • Cutting height, vertical cut: 2,160 mm • Cutting height, horizontal cut: 2,016 mm • Max. cutting depth: 80 mm • Min. cutting depth: 4 mm (automatic feed) • Min. cutting depth: 2 mm (manual feed) Please refer to the catalogues or installation plans for exact installation dimensions. Lhedeyyqz Sjpfx Al Nef ProLock Easy-Fix tool clamping system: 1 unit Electronic positioning system “EPS” – X: 1 unit (horizontal axis for vertical cuts) Paper holder: 1 unit Small-part support made of aluminum (2-pieces): 1 set Kit for free-standing installation (Type 5168, 5216, 5224, 6168, 6216, 6224): 1 set Storage location: Customer
