Radialni vrtalni stroj, vrtalni stroj, stebrni vrtalni stroj, konzolni vrtalni stroj

CSEPEL RFh 75 / 1500

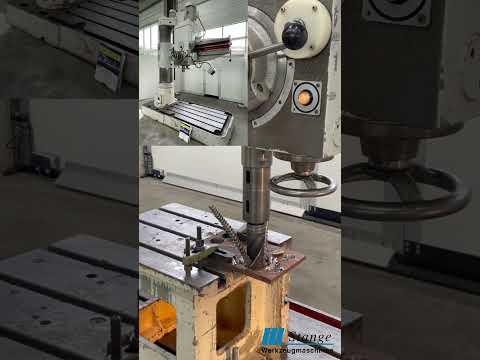

Radial Drilling Machine CSEPEL Type RFh 75 / 1500
Machine No. 13704 Year of manufacture: 1985
Drilling capacity in steel: Ø 75 mm
Crodpelhwr Rofx Aa Roh
Drilling capacity in cast iron: Ø 90 mm
Spindle taper: MK 5
Rated arm reach: 1500 mm
Maximum spindle reach: 1500 mm (to column)
Minimum spindle reach: 440 mm (to column)
Distance spindle nose – clamping surface: 370 - 1700 mm
Vertical adjustment of arm: 950 mm
Table size / clamping surface: 1800 x 1100 mm
Column diameter: 450 mm
Quill travel: 380 mm
Spindle speed: 19-1900 rpm, 21 steps
Feed: 0.047-2 mm/rev, 12 steps
Motor power: 11 kW
Mains connection: 380 Volt, 50 Hz, 15 kW
- Forward/reverse spindle rotation via hand lever switch
- Hydraulic gear shifting for spindle speed and feed
- Hydro-mechanical central clamping
- Motorized arm height adjustment
- Without coolant system
- Machine lamp
- Operating manual
Required space: Length 2720 mm x Width 1170 mm x Maximum height 3770 mm
Transport height with motor on column: 3500 mm
Transport height without motor on column: 3250 mm
Weight: 6.3 tons
Good condition
