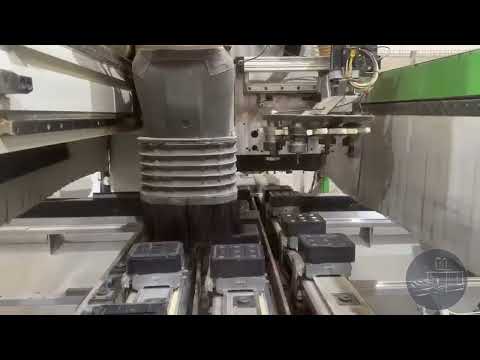

Obdelovalni center

BIESSE ROVER C 9.65

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2006, širina mize: 1.520 mm, dolžina mize: 6.200 mm, potovalna razdalja osi X: 6.821 mm, pomik osi Y: 1.963 mm, pomik po osi Z: 663 mm, proizvajalec krmilnikov: BIESSE, model krmilnika: XP600 PC-based control with Windows XP WRT, moč vretenovega motorja: 9.000 W, največja hitrost vretena: 22.000 obr/min, število mest v zalogovniku orodij: 22, število osi: 5, This 5-axis BIESSE Rover C 9.65 was manufactured in 2006. It features a working area of 6200 mm in X and up to 1935 mm in Y, with a Z-axis travel of 663 mm. The machine is equipped with a powerful 8 kW spindle and a tool changer with 22 positions. If you are looking for a high-quality CNC milling machine, you should consider the BIESSE Rover C 9.65 that we are offering for sale. Contact us for further details. • X-axis drive system: Rack and pinion • Y-axis drive system: Ball screw • Z-axis drive system: Ball screw • Guide system: Linear guides with recirculating ball carriages • Motors: Brushless motors with digital drives • Programming formats: DXF and CID3 • Main spindle type: 5-axis interpolating machining unit • Spindle power S1: 8 kW at 12,000 rpm • Spindle power S6: 9 kW at 12,000 rpm • Maximum spindle speed: 22,000 rpm • Tool interface: HSK F63 • C-axis rotation: 360° continuous • C-axis speed: 13.5 rpm • B-axis rotation: ±100° (positioning) / ±98° (interpolation) Cedpfxjzugvrs Aahjrg • B-axis speed: 13.5 rpm • Z-axis feed rate: 30 m/min • Vacuum system: Multi-zone vacuum with dual-sided connections • Vacuum pump capacity: 250 m³/h (50 Hz) / 300 m³/h (60 Hz) • Worktable: ATS system with modular supports • Number of workpiece supports: 10 • Number of module carriers: 40 • Module size: 132 x 132 x H41.5 mm • Vacuum module size: 132 x 146 x H74 mm / 132 x 54 x H74 mm • Total module height: 115.5 mm • Clamping system: Vacuum and pneumatic (Uniclamp optional) • Uniclamp clamping force: 220 kg at 7 bar • Minimum workpiece length (Uniclamp): 140 mm • Boring unit: BH 42 L • Vertical boring spindles: 29 • Horizontal boring spindles: 6 (double performance) • Grooving saw diameter: 120 mm • Boring spindle speed: up to 6,000 rpm • Tool changer: Chain type • Tool changer capacity: 22 positions • Tool spacing: 180 mm • Max. tool diameter (full load): 175 mm • Max. tool diameter (single): 250 mm • Maximum tool length: 268 mm • Max. tool weight: 7.5 kg • Total tool weight: 100 kg • Pick-up tool changer: 1 position • Max. pick-up tool weight: 8 kg • Electrical connection: 380/400/415 V 50/60 Hz • Spindle inverter: up to 14 kW • Cooling system: Liquid cooling for electrospindles (1600 W) • Lubrication system: Automatic central lubrication • Safety system: CE-compliant with safety mats, guards, and emergency stop switch • Chip removal: Integrated chip conveyor In 2023, the machine received a new 5-axis spindle head HS552 A HD 0S2 + ES360 F63 9 kW.
