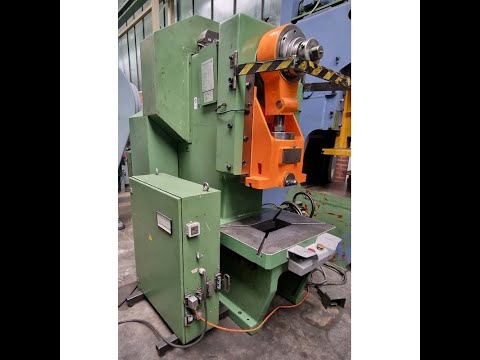

Ekscentrični pritisk - enojni stolpec

BETZ EZH 100 (UVV)

Leto izdelave: 1972, Stanje: rabljeno, številka stroja/vozila: 51512/72, Pressing force: 75 t Rsdsb Tdquepfx Ag Tep Throat depth: 300 mm Table size: 620 x 800 mm Pass-through hole in table: 225 x 325 mm Table adjustment: 175 mm Ram surface: 180 x 475 mm Ram adjustment: 80 mm Stroke adjustment: 16 - 140 mm Strokes per minute: 90 Drive motor: 380 V, 3 kW Required space: 1700 x 1200 x 2500 mm Weight: 3.3 t

Stanje: rabljeno, Leto izdelave: 2007, številka stroja/vozila: 001669, Single-Sided Decoiler ARKU AH 3000/ST-M Year of manufacture: 1995 Maximum strip width: 600 mm Maximum load capacity: 3,000 kg Maximum coil outer diameter: 1,800 mm Expansion: hydraulic Hold-down arm: hydraulic Decoiler with auxiliary drive and brake Fixed coil loading saddle + decoiler traversing device Included: High-Performance Precision Straightening Machine LORENZ BRM 50/620.9 Rjdpfohigmbex Ag Top Year of manufacture: 2007 Machine No.: 001669 Maximum pass-through width: 620 mm Number of straightening rolls: 9 Straightening roll diameter: 50 mm Material thickness: 0.7 to 6.0 mm Straightening rolls are multi-point supported against deflection All rolls driven via distribution gearbox and cardan shafts. Used, as-is ex stock, immediately available. Overhaul available on request. Delivery time by arrangement. Further data available shortly or on request.

Stanje: rabljeno, Leto izdelave: 2015, številka stroja/vozila: A2536805, Pressure: 40 t Stroke: 250 mm Return force: 6.3 t Motor: 5.5 kW Max. working height: 450 mm Max. rapid approach speed: 90 mm/sec Pressing speed: 10 mm/sec Travel distance - w: 250 mm Rjdpfx Agsfxyhfj Tep Ram plate: 500 x 200 mm Table plate: 600 x 650 mm with T-slots Table cut-out: 200 x 170 mm Table height: 850 mm Oil tank: 200 l The described machine can be custom-built for you. Production lead time is approx. 5 months after receipt of payment. Rapid approach: The press moves at up to 90 mm/sec to the zero point. Positioning accuracy is 0.5 mm or better. Return: The press returns to the end point at up to 90 mm/sec. Accuracy is 0.5 mm or better. The dwell time can be adjusted from 0 to 10 seconds (in 0.1 sec increments). Pressing force is adjustable in bars, corresponding to 10 to 40 tons. Further details on the control system: Operation can be locked via a key switch. The control key switch provides the following functions: - Manual operation via two-hand control at 9.5 mm/sec in setup mode. (Stop at any desired position by releasing the switches.) - Manual operation for bending at up to 9.5 mm/sec via two-hand control, with automatic return to TDC upon releasing both buttons. - Automatic operation with safe tools at up to 200 mm/sec. This function is labeled with a warning on the control panel. In automatic mode, the machine is strictly intended for use with enclosed, safe tools only. This warning is clearly displayed on the front of the machine. In manual setup mode, the machine can also be operated via two-hand control at a maximum of 9.5 mm/sec. Bending operations can also be performed in setup mode. The key-operated selector switch allows switching between automatic and manual operation. Position adjustment for TDC and BDC, and the shift point for speed reduction, are managed by sensors adjustable on a chrome-plated rod. The sensor can be finely adjusted with a locking thread – accuracy +/- 0.5 mm. The press can be equipped with a bending blade and operated via two-hand control for sheet metal bending. In automatic mode with safe tools, it can punch, notch, and bend.

Stanje: dober (rabljeno), Leto izdelave: 2002, Manufacturer: BRÜCK Model: 12/1600 Load capacity: 12,000 kg Maximum sheet width: 1,600 mm Coil diameter: 1,800 mm Weight: approx. 14 t Rsdpohrnbkefx Ag Tjp Without control cabinet.

Stanje: delavnici obnovljeno (rabljeno), Leto izdelave: 1983, Press force: 2,000 kN Rsdpfxsgpxc Sj Ag Top Strokes per minute: 60 1/min Adjustable stroke: 20 - 120 mm Shut height: 450 mm (largest stroke, up) Ram adjustment: 100 mm Table surface: 850 x 810 mm Passage opening: 00 x 0 mm Ram surface: 750 x 810 mm Drive power: 22 kW Features: - 1 connecting rod - 6-way ram guide - Hydraulic overload protection - Motorized oil circulation lubrication - Motorized ram adjustment - Manual stroke adjustment - Pneumatic ram weight compensation cylinder - Vibration-damping machine feet

Leto izdelave: 2002, Stanje: rabljeno, Pressure: 63 t Reach: 315 mm Stroke: 8–100 mm Stroke rate: 140 strokes/min Ram adjustment: 63 mm Table surface: 1200 x 630 mm Ram surface: 800 x 315 mm Through hole in table: Ø 110 mm Table height: 820 mm Ram bore: Ø 50 mm Installation height: 335 mm Total power requirement: 7.5 kW Machine weight: approx. 5 t Pneumatic clutch-brake combination Centralized oil lubrication Hydraulic overload protection Manual stroke adjustment Manual ram adjustment Two-hand operation Foot control Roller block strips in table Hydraulic clamp on the ram Rodpjlp U D Tofx Ag Tjp Counterbalance cylinder Approved for manual loading operations

Leto izdelave: 1971, Stanje: dober (rabljeno), Decoiler – expanding mandrel decoiler with coil lifting table Strip width: 1,200 mm Strip thickness: 0.3 – 5 mm Rodped Ha E Ssfx Ag Tjp Coil weight: 10 t Mandrel Ø: 508 mm

Stanje: novo, Pressure 8.5 kN Stroke 40 mm Throat depth 95 mm Working height from/to 95 - 240 mm Table surface 160 x 110 mm Spindle diameter 25 mm Machine weight approx. 27 kg Dimensions (L x W x H) 160 x 230 mm Direct-acting pneumatic presses deliver full pressing force across the entire stroke length. They are primarily used when long-stroke parts need to be processed with constant force. Outstanding technology - Long and precise spindle guidance for maximum dimensional accuracy - Hardened and ground piston rod for virtually unlimited service life Rjdpfx Agofv Awaj Tep - Double-acting cylinders with end-position cushioning on both sides - Dual guide rings on the piston for smooth and consistent operation - Oil-resistant sealing elements Unique features of the PND series - Spindle locked against rotation - For the PND 85/S, spindle return occurs via only one cylinder chamber for further air savings - Fine adjustment of working height is easy, quick, and precise in two steps: - Basic setting by simply loosening the clamping screws on the column - Precision fine adjustment via the stroke limit ring on the piston rod Additional advantage: Faster cycle time and air savings

Stanje: novo, POVSEM NOVI NC-ROTACIJSKI MIZI / NC-OBRATNE MIZI IZ TOVARNE Delovni položaj: vertikalno - horizontalno Uporabe: pozicioniranje - brezstopenjsko vrtenje // interpolacija Premer vpenjalne plošče rotacijske mize: 500 / 600 / 800 / 1.000 / 1.200 mm - Vpenjalna površina je lahko tudi kvadratna Maks. teža obdelovanca (horizontalno): do 20.000 kg Rodpfx Ajm Tvz Deg Tsp Maks. teža obdelovanca (vertikalno): do 4.000 kg Pozicijska natančnost: ± 3 ločne sekunde Integracija v stroje z HEIDENHAIN ali SIEMENS krmiljenjem. Odgovarjamo samo na povpraševanja iz Nemčije / Obdelujejo se le povpraševanja iz Nemčije.

Stanje: rabljeno, Leto izdelave: 1970, številka stroja/vozila: 120895, Pressing force: 63 t Throat depth: 250 mm Stroke: 8 - 100 mm Strokes per minute: 120 s.p.m. Table: 715 x 500 mm Installation height: 330 mm Ram adjustment: 63 mm Rodsfx Hv Hjpfx Ag Tep Clamping plate: 700 x 480 mm Pass-through opening in the table: 240 mm Pass-through opening in the clamping plate: 110 mm Ram clamping surface: 450 x 280 mm Machine weight approx.: 5.5 t Required floor space approx.: 1.2 x 1.7 x 2.7 m Single-column eccentric press in tiltable design, via hydraulic adjustment system, tiltable in 4 stages, pass-through opening to the rear (325 x 500 mm) or downward (360 x 160 mm), with central lubrication via hand pump, additional clamping plate 700 x 480 x 850 mm, two-hand operation, foot release can be configured, operation mode selector for continuous or single stroke setup, emergency stop switch, piece counter, various accessories.
