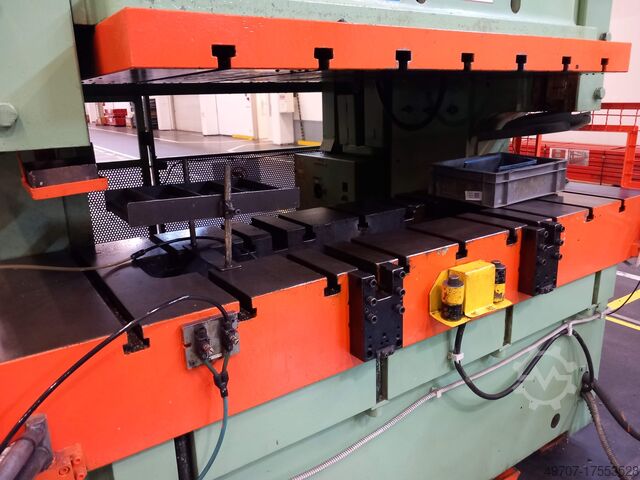

Ekscentrična stiskalnica AIDA NC2-160 ton

AIDA NC2-160

Stanje: rabljeno, številka stroja/vozila: 632/6, Pressure: 30 t Stroke rate: 100–600 strokes/min Sheet width: 120 mm Table size: 480 x 450 mm Bruderer precision double-roll feeder: left side Adjustable stroke: 16–40 mm Distance between columns: 330 x 300 mm Nwsdpfocxxycox Ag Tec Required floor space approx.: 2.10 x 1.65 x 0.75 m High-speed punching press in 3-column design, air clutch, BRUDERER precision double-roll feeder left

Leto izdelave: 2009, Stanje: dober (rabljeno), Lifting capacity: 30 t Precision lift Lifting height: 9 meters Nsdsqiz N Rjpfx Ag Tewc

Stanje: rabljeno, Leto izdelave: 1969, Wheel diameter - max. 160,175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Centre distance between centres 410 mm Number of teeth - min. 2, 3 Nsdpfx Aovzhf Sog Tswc Cutter diameter max. 115 mm Cutter length max. 105 mm Axis distance between cutter and workpiece - max. 138 mm Axis distance between cutter and workpiece - min. 30 mm Milling head - swivelling 120° Cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Change gears - Milling arbors - Clamping devices - Documentation

Stanje: kot nova (razstavni stroj), Leto izdelave: 2022, Oil Hydraulic Double Column Press 400 T with Sliding Table Press Design: Double column press Thermally neutral: 80 – 120 °C Number of operator sides: 1 side Forces Pressing force, max.: 4000 kN Stripping force, max.: 400 kN Pressure build-up time (closed tool, steel on steel): max. 4 sec. Dimensions: 3,800 mm length x 4,475 mm width Max. opening width: 800 mm Stroke: 800 mm Table height above floor: 1100 mm Height above floor (overall machine height): approx. 4300 mm Minimum hall height: 5500 mm Parallelism deviation at 20°C: +/- 0.1 mm Deflection Measured at max. closing force with 70% coverage: ≤ 0.2 mm/m Weight Total weight of the press (without operating fluids and table plate): approx. 28 tons Press table Table size: 1500 x 1500 mm Speeds Fast closing: 100 mm/sec Pressing speed: 8 – 3 mm/sec Sound Pressure Nwedpfx Aeph Uk Nog Tsc Sound pressure level (measured at 1.5 m height at the control panel, per DIN 45635-T16-KL3): max. 78 dB(A) Hydraulics Number of press/drive cylinders: 1 pc. Operating pressure, max.: 300 bar Pressure build-up time (pressing): 4 sec. Pressing stroke pressure accuracy: +/- 3 bar Main pump: BOSCHREXROTH axial piston pump, approx. 145 L/min Oil volume: HLP 46 MW approx. 1000 liters Ambient temperature, max.: 40°C Oil temperature, max.: 55°C Preheat temperature: °C Auxiliary pump: BOSCHREXROTH gear pump 10 L/min, pressure maintenance up to 300 sec. Electrical Main supply: 400 V AC Control voltage: 24 V DC Frequency: 50 Hz Hydraulic connection main motor: 40 kW Sliding Table Press with 400 T Capacity Closing speed up to 100 mm/sec (adjustable via touchscreen) Opening speed up to 100 mm/sec (adjustable via touchscreen) Initial pressing speed 10 mm/sec (adjustable via touchscreen) Table plate size: 1500 x 1500 mm Ram size: approx. 1600 x 1500 mm Oil temperature monitoring: 55°C warning, 60°C shut-down Automatic lubrication (adjustable via touchscreen) Free positioning of the ram (adjustable via touchscreen) SICK/PILZ light barriers, 14 mm, front, up to 1800 mm height Hydraulic and mechanical ram locks Oil circuit cooling (adjustable via touchscreen) Ejector in table, 20 T pressing force, 350 mm stroke Ejector moves externally with the table Table plate, precision milled, with DIN 22 T-slots Pressure adjustment from 60 T up to 400 T (adjustable via touchscreen) Travel limiter adjustable by pressure or position Setup, single stroke, and cycle operation (adjustable via touchscreen) Swiveling control panel on the cabinet Two-hand operation, with open button, manual/single stroke/cycle switch Assembly, commissioning, operator training at extra charge Control system by SIEMENS (S7 1200), including 9-inch touchscreen monitor. Remote maintenance unit SECOMEA - Ethernet included in scope of supply. Side of the press with two windows (1000 mm high, 800 mm wide) with double doors each. (Sliding table press, hydraulic press, double column press)

Stanje: novo, stiskalna sila: 100 t, hod: 400 mm, - Cylinder stroke 400 mm - Working width 1010 mm Nodpfx Asgp Dc Rjg Tswc - Movable cylinder - Electrically or manually operated - Pressure gauge - Emergency stop - 400V

Leto izdelave: 1998, Stanje: skoraj kot novo (rabljeno), Type of Laser: Q-switched pulsed solid-state laser Laser Medium: Nd:YAG Wavelength: 1064 nm Beam Diameter: approx. 1.2 - 1.3 mm after output coupling mirror at TEM00 Beam Divergence: 5 mrad multimode, 2 mrad TEM00 Pulse Duration (Time): CW / 90 ns Max. Output Power: 65 W (130 W optional) multimode, 16 W single mode Njdpfx Asd Dhw Neg Towc Pulse Energy: 16 mJ (30 mJ optional) at 3 kHz Operating Modes: CW, Q-switched from 0.1 to 100 kHz Beam Deflection System: Galvanometer system Line Width in mixed mode: approx. 0.12 mm

Leto izdelave: 2012, Stanje: rabljeno, vrsta goriva: električni, Load capacity in kg: 2500 kg Lift height: 3700 mm Fork length: 900 mm Tyre type: Super elastic Battery year: 2013 Overall height: 2630 mm Machine weight approx.: t Nwjdpfx Agefibh Rj Tec Compact forklift Duplex mast / Full free lift

Leto izdelave: 2003, Stanje: rabljeno, Pressure: 100 t Stroke: 10–130 mm Strokes per minute: 30–90 spm Throat depth: 330 mm Ram adjustment: 100 mm Table area: 950 x 660 mm Ram area: 540 x 440 mm Through-hole in table: Ø 230 mm Table height: 1000 mm Pin hole in ram: Ø 50 mm Total power requirement: 7.5 kW Machine weight approx. 7 t Pneumatic clutch-brake combination Beutler Datatech press control Centralized oil lubrication Hydraulic overload protection in ram Manual stroke adjustment Nwedpfxjra Rr Ee Ag Toc Manual ram adjustment Two-hand operation Foot operation GSW feed straightener VRMA 40/78, year of manufacture 2003 Feed control HDS 50 BSA decoiler NO20/400V-AP

Stanje: rabljeno, Širina materiala: 300 mm Teža koluta: 3 t Debelina materiala: 2 - 4 mm Ravnalko, 7 valjev, proizvajalec Schleicher, tip RM 6-95/160 Širina traku: 300 mm Debelina traku: 2 - 4 mm Ravnalni presek: 1200 mm² Nedpfjcdrmmjx Ag Tewc Napetost: 220/380 V 50 Hz Moč: 3,1 kW Razvijalec s pritiskalnim valjem, proizvajalec Schleicher, tip H-3 Maksimalna obremenitev: 3 t Širina traku: 400 mm Napetost: 220/380 V 50 Hz Moč: 3,92 kW Brez krmiljenja

Stanje: rabljeno, Leto izdelave: 1990, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 07-16 1990, potovalna razdalja osi X: 2.000 mm, pomik osi Y: 2.000 mm, pomik po osi Z: 800 mm, Na prodaj je stroj v dobrem stanju, kot je prikazano na slikah, izdelan leta 1990 in opremljen z upravljanjem NCT 90. Zelo malo uporabljen, prodaja se zaradi neizkoriščenosti. Skupna teža stroja je 33 ton. Stroj je popolnoma delujoč. Razstavljanje in transport sta odgovornost kupca. Nsdpjw Sx Agofx Ag Tjwc
