Erozijski sistem

Zimmer & Kreim ZK Genius 700/Chameleon Quad

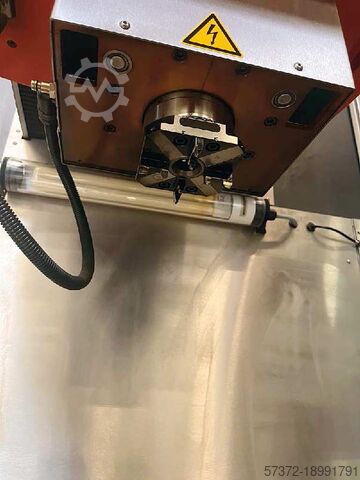

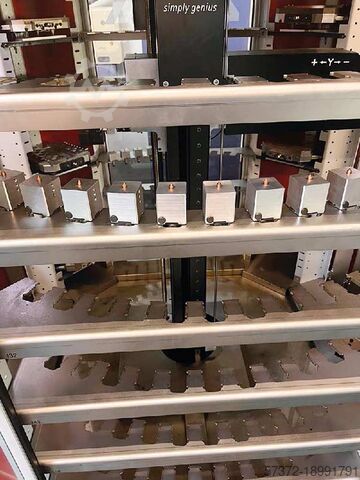

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2015, število osi: 4, Two wire EDM machines from 2015 and 2019. These 4-axis machines—ZK Genius 700 (2015), ZK Genius 700 (2019), and Chameleon-Quad (2015)—feature a travel range of 400 x 350 x 350 mm and a table size of 575 x 500 mm, and can accommodate workpieces up to 700 kg. Equipped with a CNC-controlled C-axis, rotary spindle, and a Kraft & Bauer CO2 fire extinguishing system. Consider the opportunity to purchase these ZK Genius 700 (2015), ZK Genius 700 (2019), and Chameleon-Quad (2015) wire EDM machines. Contact us for further details. • 1x ZK Genius 700 (2015) – 22,056 operating hours • 1x ZK Genius 700 (2019) – 8,255 operating hours • Table size: 575 x 500 mm • Max. workpiece weight: 700 kg • Generator power: 96 A • CNC-controlled C-axis and rotary spindle • C-module (for carbide, PCD, or dressing applications) • O-module (for ultra-fine surface finishes) Nodpfeyip Arjx Am Hsda Additional equipment: • Kraft & Bauer CO2 fire extinguishing system • Extraction unit • CIMCO editor for erosion programming • 1x Chameleon Quad (2015) automation: • 176 electrode positions • 9 UPC pallet positions with loading drawer • Dual rotary gripper for Erowa ITS • Single gripper for UPC pallets

Stanje: kot nova (razstavni stroj), Leto izdelave: 2026, Centre height: 181 mm Centre distance: 1000 mm Max. grindable workpiece diameter: 360 mm Max. cantilever load: 1000 N (100 kg) Max. load between centres: 3000 N (300 kg) Ndedpfxetqf Rzo Am Hsa Z-axis: Table swivel angle: 10° Hydraulic table drive: 0-4 m/min X-axis: Cross slide travel: 80 mm Rapid traverse (hydraulic): 50 mm Coarse adjustment (air cushion): 280 mm Feed drive via DC motor Rapid feed speed: 48 mm/min/Ø Feed operation: Plunge grinding / longitudinal grinding 4 presettable feed rates mm/min/Ø: 0.01-48 4 presettable feed amounts mm: 0.001-0.1 Sparkout during form grinding: 0-99 s / 0-99 strokes Tip feed mm/Ø: 0.001 Grinding spindle head: Universal, swiveling 0-180° Grinding wheel (external): D x w x d mm: 500 x 100 x 127 or 203.2 Grinding wheel (face; option): D x w x d mm: 250 x 32 x 76.2 Grinding wheel (internal; option): D mm: (2-250) Drive power – external/face: 5.5 (7.5) kW Drive power – internal: 2.2 kW Peripheral speed – external: 35 (50) m/s Grinding wheel wear (external): 160 mm/Ø Guard width: 100 mm Grinding spindle diameter: 60 mm Internal spindle mounting: 80 (100) mm Workpiece spindle head: Infinitely variable drive: Mk 4, 1/min: 30-270 / 50-450 Workpiece spindle lockable Spindle mount: Mk 4/24 mm Spindle nose for flange mounting: Mk 4, cylindrical Ø63H6 x 6 mm Workpiece spindle head swivels on rotary part: 0-90° Tailstock: Quill mounting/quill diameter: Mk 4/750 mm Quill stroke: 45 mm Quill force: 100-800 N / 250-1400 N adjustable Quill operation: manual (foot switch) Fine quill adjustment: ±40 µm Connection values: Total machine connected load: 6.5-10 kW Grinding spindle head: 5.5 (7.5) kW Workpiece spindle head: 0.55 (1.1) kW Coolant filtration: 0.75–2.2 kW Lubrication pump for guideways: 0.1 kW Hydraulic pump: 1.5 kW Hydraulic reservoir: 80 L Pneumatic system: 6 bar Comparable to: Weiss / EMAG / GP cylindrical grinders / Studer / Kellenberger / Schaudt / Tschudin / Tacchella / Dannobat

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2014, največja hitrost vretena: 8.000 obr/min, število osi: 9, This 9-axis TRAUB TNL 32 Swiss-type lathe was manufactured in 2014. It features a TX8i-s control unit with a 64-bit RISC CNC/PLC processor, a TFT color display, and an electronic handwheel. The main spindle offers a 32-mm bar capacity, and the machine is equipped with a counter spindle featuring a C-axis. It includes an upper tool turret with double drive and a lower turret with nine tool holders. Consider the opportunity to purchase this TRAUB TNL 32 Swiss-type lathe. Contact us for more information. • Control: TRAUB TX8i-s CNC/PLC with 64-bit RISC processor and fiber optic PC; TFT color flat screen; electronic handwheel • Software/extensions included: Polyform (C-axis programming), Helical (3D Y-axis interpolation), thread cutting without compensating chuck, part-off tool breakage monitoring, part-off tool ejection monitoring, axis disabling, T-ATC • Main spindle: motor spindle with hollow clamping system; 32 mm bar/drill capacity; C-axis max. speed 8,000 rpm • Max. stroke: 305 mm (L version) / 127 mm (K version) • Counter spindle: partial hollow clamping, C-axis; cleaning unit mounted on lower tool turret • Upper tool turret: X/Y/Z/H/B axes; 10 tool holders; double drive • Lower tool turret: X/Y/Z/H axes; 9 tool holders; combined drive; separate counter spindle operation • Measurement/feedback: glass scales on X axes (upper and lower turret); encoder on C axis • Backworking: 8-position rear station with combined drive for up to 3 tools; ready for internal coolant feed • Clamping: clamping direction reversal device and counter clamping pressure unit on main and counter spindle • Coolant system: standard unit with 3-bar and 8-bar pumps (50 Hz) in a 500-liter tank; additional 28-bar pump (50 Hz), flow rate 19 l/min • Extraction: D 150 mm connection for central extraction system Additional equipment Nsdpfsx D Drcjx Am Hoda • None specified (no robots, bar feeders, chip conveyors, or external automation listed)

Stanje: rabljeno, Leto izdelave: 1987, Technical details: Number of spindles: 8 Spindle bore: 51 mm Item: Multi-spindle automatic lathe Make: Schütte Model: AF51 Year of manufacture: 1987 Six-spindle automatic lathe 8 main spindles Max. nominal bore D=51mm Control system: SIEMENS SIMATIC S5 Gripper in position 7 for rear-side machining Thread cutting drive Independent feed in position 2/3 Electronic cam switchgear Balluff Plain text display Wöhrle Coolant booster pump Magnetic cartridge filter Oil operation Including bar feeder IEMCA PRA40/37/F, year of manufacture 1987 (bundle loader) Ndjdoiay Sfepfx Am Hoa Painted in light blue and light grey Tool configuration may differ from illustrations. Please contact us for more information and pictures via mail(at) or

Stanje: delavnici obnovljeno (rabljeno), Leto izdelave: 2002, CNC Vertical Machining Center MIKRON VCP 800 W Ndedoviq U Eopfx Am Hsa With Heidenhain iTNC 530 path control Year of manufacture: 2002 Travel paths: X 800 mm, Y 650 mm, Z 500 mm Spindle speed range: 0 – 20,000 rpm, stepless Including the following accessories: Rigid angle table 900 mm x 600 mm clamping surface Vertical tool changer with 30 magazine slots (HSK 63) Fully enclosed cabin with sliding doors and interior lighting Electronic handwheel Tool measurement in the working area (BLUM laser) 3D infrared touch probe Renishaw Chip conveyor Coolant system 4 adjustable leveling machine feet Operating manuals

Leto izdelave: 2014, stanje: pripravljen za uporabo (rabljen), Clamping force: 600 kN, weight: 9 t, operating hours: 3,638 h, equipped with ENGEL viper 20 handling robot. Ndjdpfxoh Nypfs Am Hja

Stanje: dober (rabljeno), Leto izdelave: 2004, IXION AUERBACH IA2 TLF-1200.4 Rok výroby: 2004 Generálna oprava vo výrobe: 2023 Ovládanie: HEIDENHAIN 430M X os (stôl, pozdĺžna): 1 200 mm Y os (jednotka pre hĺbkové vŕtanie a frézovanie, vertikálna): 1 200 mm Z os (veža, horizontálna): 700 mm W os (jednotka pre hĺbkové vŕtanie a frézovanie, horizontálna): 1 200 mm A os (otáčanie jednotky pre hĺbkové vŕtanie a frézovanie): +25°/-15° B os (NC otočný stôl): 360° NC otočný stôl s 5 upínacími drážkami: 1 000 x 1 000 mm Max. hmotnosť obrobku: 7 000 kg Menovitý výkon pohonu (S1 / S6): 12 / 18,5 kW Krútiaci moment: 115 Nm Rozsah otáčok: 60 - 6 000 ot./min Max. hĺbka vŕtania (na jeden záťah): 1 200 mm (2 pohyblivé lunety) Njdpfjydmuuex Am Heda Vysokotlakové chladiace zariadenie pre olej na hĺbkové vŕtanie: 100 bar & 42 l/min Zásobník na 24 nástrojov Vyfukovanie vretena Max. dĺžka nástroja: 300 mm Max. hmotnosť nástroja: 3,5 kg Priemer nástroja: Bez voľnej susednej pozície: max. 90,0 mm S voľnou susednou pozíciou: max. 160,0 mm Vybavenie pracovného priestoru Plne uzavretý pracovný priestor so strechou Odsávanie olejovej hmly Dopravník triesok Potrebný priestor: 5 150 x 5 350 x 4 020 mm

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2022, Funkcionalnost: popolnoma funkcionalen, potovalna razdalja osi X: 600 mm, pomik osi Y: 300 mm, pomik po osi Z: 700 mm, skupna višina: 2.800 mm, skupna dolžina: 1.350 mm, skupna širina: 1.260 mm, teža obdelovanca (maks.): 300 kg, širina mize: 450 mm, skupna masa: 2.300 kg, vrsta vhodnega toka: trifazni, dolžina mize: 888 mm, globina vrtanja: 500 mm, Technical Equipment - 4-position guide changer - 32-position electrode changer - Preparation for rotary-swivel axis - High-quality drive axes and guideways - Integrated compressor cooling units for electronics and external connection option for dielectric cooling - High erosion performance thanks to MOSET generator - Fine filter for working with small tube diameters EROSIX CONTROL - Fast probing - Easy programming of complex 5-axis machining operations - Comprehensive measuring cycles Ndodpfjvppw Sox Am Hja - Program transfer and storage via TCP/IP interface - High operating convenience

Leto izdelave: 2020, stanje: kot nova (razstavni stroj), Premer elektrode: 0,5 do 3 mm Pot gibanja: 300x400x350 mm Ndjdpfx Amjf Hmn As Hoa Certifikat CE potrjuje najvišjo možno stopnjo varnosti Celotna serija izdelkov je zasnovana za namestitev na površini Elektrode: premer 0,5–3 mm Pot gibanja po osi X: 300 mm Pot gibanja po osi Y: 400 mm Pot gibanja po osi Z: 350 mm Pot gibanja po osi W: 300 mm Hitrost gibanja po osi C: 30–60 mm/min Hitrost hitrega gibanja po osi Z: 120 mm/min Razmerje stranic: 300:1 Dimenzije mize: 320x440 mm Maksimalni delovni tok: 30 A

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2023, An optical 3D coordinate measuring system Keyence with a 360° 3D scan is available. Measurement accuracy: +/-10µm, repeatability: 2µm, resolution: 0.1µm, point density: 16 million, measuring diameter (low magnification): 300mm, measuring diameter low magnification/stitched: 200mm/500mm, rotation range: 360°, tilt range: 45°, maximum table load: 50kg. Machine dimensions X/Y/Z: approx. 1000mm/1000mm/1000mm, weight: approx. 65kg. Documentation is available. An on-site inspection is possible. Nsdpfx Aswx Rcyom Hsda
