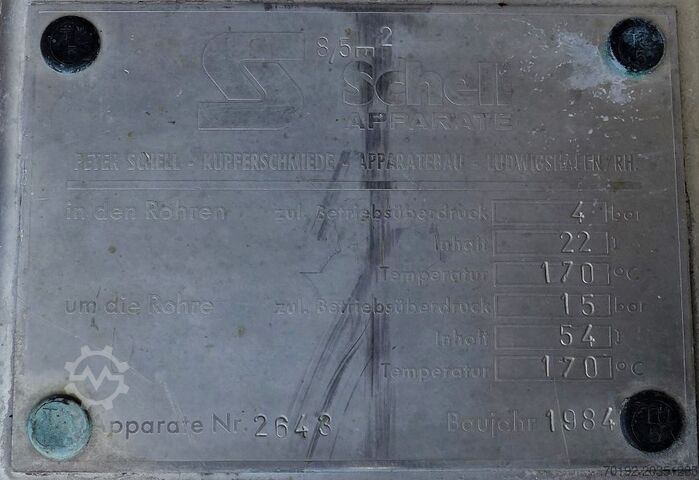

8,5 m² ohišje in cevni izmenjevalnik toplote iz nerjavečega jekla

Schell Apparate 7880

Stanje: rabljeno, Tube bending machine, mandrel bending machine, bending machine for tubes and profiles Tube bending unit with SIEMENS servo motor and planetary gear Year of manufacture: 2003 Bending capacity: max. Ø 20 x 1 mm Bending radius: max. R 70 mm Bending angle: max. 200° - Last used for round tube Ø 15.4 x 0.8 mm, R 60 mm Lrodpfed E A I Isx Abbjg - Bending tools and bending dies are interchangeable - Drive of the bending tool via AC servo motor and Alpha helical gear, planetary gear - 2-piece bending tool opens and closes via hydraulic lifting movement - MERKLE hydraulic round block cylinder, type 014445 for hydraulic tool opening - Pneumatic height adjustment of the bending die via Festo pneumatic cylinder - Without electrical control system - Without hydraulic power unit Dimensions (L/W/H): 760 x 400 x 150 mm Weight: approx. 60 kg Good condition Dismantled from a fully functional special-purpose machine, tested before removal. Drive: Brushless permanent magnet servo motor SIEMENS Type: 1FK6061-7AF71-1EG0 Rated torque = MO: 6.4 Nm Rated current = Io: 6.1 A Max. speed = n. max.: 5,500 rpm - Brushless permanent magnet servo motor SIEMENS ----- 5 units in right-hand version available. 5 units in left-hand version available. The stated price refers to one bending unit with servo motor. Upon request, we also sell individual subassemblies of the bending unit. We also offer electrical components for servo motor control. Hydraulic power units are also available.

Stanje: rabljeno, Pneumatic folding and edging machine FASTI Type 606 - 11 - 1.0 Seaming machine for pre-bending sheet metal seams For producing a folded edge Edge folding machine for thin sheet metal as an alternative to press brakes Serial No. 9166002 Year of manufacture: 1991 Working length: 1100 mm Material thickness at 45 kg/mm²: 1 mm Compressed air requirement: 6 bar - Pneumatic foot switch - Roller adjustment via knurled threaded screws Space requirement (L x W x H): 1600 x 300 x 1050 mm Weight: approx. 250 kg Good condition Lredpjdzqblefx Abbeg A seam is the doubling of the sheet metal at the edge, i.e. folded once to increase the rigidity of the sheet. Folding creates a rounded edge, which reduces the risk of injury from sharp sheet edges. Ideal for processing sheet metal for furniture manufacturing, cladding panels, or for HVAC and silencer production.

Stanje: zelo dobro (rabljeno), Offered is a used solids pump / dirty water pump. SDAG Wismut-Aue. Ljdpfx Aehwnfcebborg For further details, please refer to the photos.

Stanje: rabljeno, potovalna razdalja osi X: 6.000 mm, pomik osi Y: 1.800 mm, pomik po osi Z: 1.000 mm, največja hitrost vretena: 4.500 obr/min, Oprema: vrtilna hitrost brezstopenjsko nastavljiva, X AXIS TRAVEL: 6000 MM Y AXIS TRAVEL: 1800 MM Z AXIS TRAVEL: 1000 MM Lrjdpfjv H D Exox Abbeg WORKTABLE DIMENSIONS: 7300 X 1090 X H 900 MM SPINDLE NOSE MOUNT: ISO 50 SPINDLE SPEEDS: 0 - 4500 RPM AUTOMATIC INDEXING HEAD: 2.5° X 2.5° CNC CONTROL: SELCA 3045 PD HIGH-PRESSURE INTERNAL AND EXTERNAL COOLING TOOL CHANGER WITH 60 POSITIONS NO. 01 CNC-CONTROLLED DIVIDING HEAD

Stanje: pripravljen za uporabo (rabljen), Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 1999, skupna masa: 22.800 kg, stiskalna sila: 250 t, CNC Press Brake Manufacturer: Weinbrenner Model: GP250 Machine Specifications: Lrjdpfor Sxq Rox Abbsg - Crowning system - Die shifting - Back gauge, Type 2 - Front bending aid (disassembled for transport) - DNC 900PS control system All documentation for the machine is available.

Stanje: rabljeno, Leto izdelave: 2001, Technical details: Lrjdpsu Ibvhofx Abbjg Tube diameter: 74 mm Wall thickness: 5 mm Tube diameter min.: 10 mm Tube diameter max.: 74 mm Round bar material (steel): max. 40 mm Control system: Trumpf Rohrtechnik IsoBend 2.0 Bending radius max.: max. 300 mm / min. 65 mm Bending angle max.: max. 195° / min. 0.1° Bending speed: (°/s): 90 / (°/s²): 190 °/s Tube loader length: 3000 mm Hydraulic operating pressure: operating pressure max. 300 bar Total power requirement: 43 kVA Machine weight approx.: 8.5 t Machine dimensions (LxWxH) approx.: 6.5 x 1.6 x 1.6 m Control panel dimensions (LxWxH): 0.8 x 0.6 x 1.4 m This is a multi-radius tube bending machine with bending head and pivot arm (cold bending machine). Applications: Suitable only for processing tubes, round bars, and wires made of steel, stainless steel, and non-ferrous metals. The cross-slide of the bending head offers the following advantages: - Freely programmable X and Y axes - Cross-slide level change: travel = 300 mm (vertical position freely programmable) and max. horizontal movement 350 mm - Bending dies of different sizes within a bending die stack can be approached at will. The bending direction is to the right. Trumpf Rohrtechnik IsoBend 2.0 control software Hydraulic unit with high-pressure multi-flow pump Mandrel retraction unit Sliding rail (max. speed 362 mm/sec and max. acceleration 1100 mm/sec) In good condition.

Stanje: generalkompletno obnovljen (rabljeno), Leto izdelave: 1988, Funkcionalnost: popolnoma funkcionalen, Löser centreless tube grinding machine - belt grinding machine - centreless tube polishing machine - cylindrical grinding machine Centreless tube grinding/polishing machine for workpieces with a minimum length of 1,100 mm. The machine was built in 1988 and completely overhauled in 2012. During the overhaul, the machine was converted for polishing applications and has since only polished around 10,000 parts. Following that, the machine was taken out of operation. As part of the complete overhaul, all motors, bearings, and the entire control cabinet, including frequency converters, were replaced with new components. The machine is suitable for both wet grinding and polishing. A wastewater treatment unit, including pumps, is currently not available. However, we can retrofit this as per customer requirements. The conveyor systems (roller conveyors) between the grinding stations must also be retrofitted to suit your workpieces. The machine can process tube diameters from 10 mm to 160 mm. The grinding/polishing motors offer a power output of 7.5 kW per station. The system can be inspected by appointment in our warehouse at D-63128 Dietzenbach. Lsdpfx Aepugwiebberg

Stanje: rabljeno, Sheet width: 250 mm Coil outer diameter: 1400 mm Load capacity: 2500 kg Sheet thickness: 2 ... 4 mm Straightening speed: 2.5 ... 15 m/min Decoiler: expansion range in mm Total power requirement: 1 + 4 kW Lrjdpfx Abofn Aqmobjg Machine weight: approx. 1.8 t Space requirement: approx. [missing data] Decoiler MHR 250/4: Max. coil diameter: 1400 mm Inner coil diameter: 450 - 530 mm Unbraked decoiler with hold-down roller Straightening machine MR 250/4: Strip entry height: 1250 mm The system has been dismantled, tested, and newly painted.

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2008, potovalna razdalja osi X: 4.000 mm, pomik osi Y: 1.700 mm, pomik po osi Z: 1.500 mm, hitrost vretena (min.): 6.000 obr/min, širina mize: 1.100 mm, dolžina mize: 4.200 mm, največja hitrost vrtenja: 6.000 obr/min, Krmilnik Heidenhain iTNC 530 Menjalnik orodij za 60 kosov Avtomatska univerzalna glava, 0,02 stopinje v obeh oseh Lrjdpfx Asw Ngd Tebbog Stroj bo obnovljen leta 2025

Stanje: zelo dobro (rabljeno), Sheet Straightener CAMU LTC 150 Technical data: Side feeding guides Max. sheet width: 1,590 mm Max. sheet thickness: 5 mm Rubberized entry rollers 8-roll straightener Rotary disc blade shears, 4 upper and 4 lower Control panel Main motor: 5.5 kW The set includes 4 sheet metal rollers/trolleys Lrsdpfx Abjvkg Idebjg Dimensions: Length: 1,900 mm Height: 2,200 mm Width: 1,400 mm Suitable for carbon steel, copper, small batches, and frequent production changes.
