Žaga za določanje velikosti plošč

SCHEER PA 4027

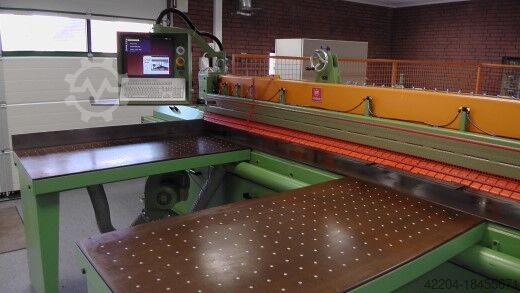

Panel Dividing System SCHEER PA 4027 – 4200 x 4200

The PA 4027 is a high-performance, electronically controlled panel saw designed for precise, efficient, and automated cutting of wood-based materials. It is ideally suited for industrial applications in joineries, furniture manufacturing, and panel processing operations.

Condition & Service:
Condition: Very good (fully overhauled by our technicians)

Functionality: Fully operational

Warranty: 12 months

CE-compliant / BG-guideline compliant / Dust tested (limit < 2 mg/m³)

Main Technical Data & Features:
Cutting length / Table length / Fence depth: each 4200 mm

Maximum cutting height: 70 mm

3-stage cutting height adjustment

Automatic forward and return movement of the saw unit

Feed speed: 2 – 50 m/min (infinitely variable)

Return speed: 70 m/min

Regulated saw unit for controlled exit from the material

Scorer saw adjustable from outside – no need to open guard cover

Remnant cutting device for precise finish cuts

Semi-automatic angle pressure device: Adjustment range up to 2400 mm

Air cushion tables:
1 angle fence table
2 workpiece support tables
Closed Pertinax surfaces in the angle fence area

Pusher with parallel stop:
7 clamping fingers
Servo drive
Feed: max. 25 m/min
Return: max. 40 m/min

Integrated extraction ducts in machine base and pressure beam

Guard hood lock with louvered safety curtain

Control & Operation:
New control unit with modern Ubuntu Linux operating system

Proven SCHEER user interface retained

Cedpfxsvxid Dj Agtjrh
15" flat screen monitor, keyboard, and mouse on a swiveling control panel

Graphic display of cutting plans and workflows

PLC control: Siemens S5

Network capable – LAN & WLAN (compatible with Windows, Linux, Mac, Novell)

Remote maintenance & software updates via Internet possible

Software / Programs:
OPTIMAX (optional): Office optimization, offcut calculation, material requirement

OPTIMIN: Direct optimization at the machine PC

Processing possible via USB or online

Customizable label settings & label printing during sawing process (optional)

Supports manual, automatic, and special operating modes (e.g., grooving, veneered panels)

Reliability in Continuous Operation:
This machine is in use worldwide – under extreme conditions. Whether in the dry climate of Africa or high humidity in Southeast Asia (e.g., Thailand): the PA 4027 operates reliably in 3-shift systems – 365 days a year – excelling in maximum stability and endurance.

Warranty:
We are so confident in the quality and durability of our machines that we provide a 7-year warranty on the machine frame and guideways.
(Excludes electrical supply parts and wear parts.)

📞 Contact us for a customized offer or to arrange a viewing appointment.
Machine available from stock. Delivery, commissioning, and training available as options.
