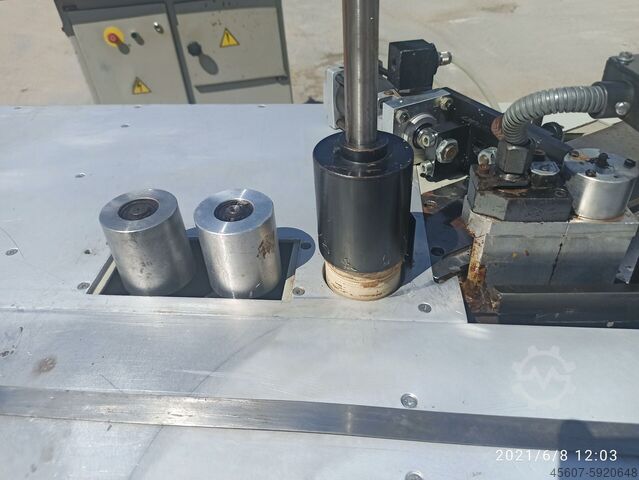

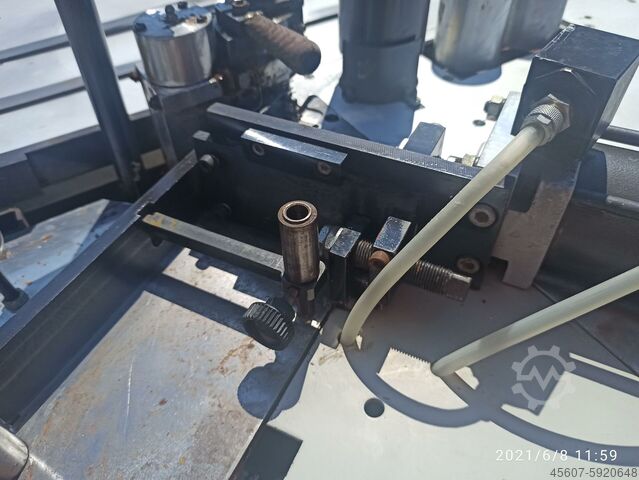

Okleiniarka krzywoliniowa JAROMA DCGA II

Okleiniarka krzywoliniowa JAROMA DCGA II Okleiniarka krzywoliniowa JAROMA DCGA II

Stanje: novo, Leto izdelave: 2026, Funkcionalnost: popolnoma funkcionalen, Nanxing NCG3021L(LL) este un centru de prelucrare CNC de nesting, performant, conceput pentru tăiere, găurire, frezare și etichetarea pieselor, într-un flux de lucru complet automatizat. Acest model integrează sisteme automate de alimentare, descărcare și etichetare, combinând automatizarea, inteligența și producția digitalizată. Portul deschis permite conectarea cu software-uri de proiectare mobilier și ERP, permițând optimizarea completă a procesării plăcilor. Software-ul profesional de optimizare FCC crește eficiența tăierii, reduce deșeurile și facilitează gestionarea integrată a producției. Acest utilaj reprezintă soluția ideală pentru fabricarea inteligentă a mobilierului, reducând costurile cu forța de muncă fără a compromite precizia sau productivitatea. Caracteristici principale: - Sistem automat de alimentare și descărcare cu masă de ridicare de 3 tone, dispozitiv de pre-push și cortine de siguranță. - Sistem rotativ de etichetare cu imprimantă Honeywell – etichetare și prelucrare simultană. - Masă de vacuum (3100×2150 mm) împărțită în 10 secțiuni, ce asigură o fixare puternică și uniformă. - Două pompe de vacuum puternice (2×7,5 kW, răcite cu ulei) pentru aspirație maximă și zgomot redus. - Cadru tip portal cu rigiditate ridicată – asigură precizie și stabilitate pe termen lung, chiar și la viteze mari. - Electrospindlă italiană de 12 kW (HSK-63F, ATC, 24.000 rpm) cu suflare internă și externă pentru o curățare perfectă a prafului. - Magazin de scule automat cu 12 poziții (ATC) – economisește timp și susține operațiuni complexe. - Grup de găurire cu 21 de axuri pentru operațiuni de găurire verticală și orizontală. - Sistem automat de ungere care reduce mentenanța și prelungește durata de viață. - Sistem de colectare a prafului cu puncte de extracție față/spate pentru un mediu de lucru curat. - Design orientat spre siguranță: împrejmuire completă și barieră optică de siguranță (opțional). - Sistem de comandă SYNTEC CNC cu interfață intuitivă, compatibil cu fișiere MPR, DXF, TCN, NC. Specificații tehnice: - Zonă de lucru: X: 3100 mm / Y: 2150 mm / Z: 50 mm - Înălțime blat de lucru: 1010 mm - Viteză maximă de deplasare: X/Y 70 m/min, Z 20 m/min - Electrospindlă principală: 12 kW, HSK-63F, 24.000 rpm - Schimbător de scule: ATC servo, 12 poziții - Cap de găurire: 21 axuri verticale, 2,5 kW, 4000 rpm, max Ø găurire 35 mm - Capacitate pompă vacuum: 2×7,5 kW, 250 m³/h - Putere totală instalată: 47 kW - Dimensiuni utilaj: 13.800 × 3.950 × 2.600 mm - Greutate: 6.000 kg - Alimentare electrică: 380V / 50Hz / 3 faze Hnodpfoxcwnbox Aflok Aplicații: - Producție mobilier din plăci (bucătării, dressinguri, mobilier birou) - Debitare și găurire nesting pentru MDF, PAL, placaj - Linii automatizate cu etichetare pentru fabrici inteligente Industry 4.0 Avantaje: - Soluție complet automatizată: alimentare, nesting, găurire, frezare, etichetare și descărcare. - Eficiență ridicată: software optimizat + dublu portal sincronizat dublează viteza de procesare. - Reducere semnificativă a necesarului de personal. - Ideal pentru producția de serie: calitate stabilă, precisă și constantă.

Stanje: rabljeno, Leto izdelave: 2018, Used machine Year of manufacture: 2018 Special feature: Machine suitable for edging heights up to 100 mm! Condition: Factory-inspected by Lange Maschinenbau Equipment and technical data: - Machine table with 13 roller tracks for improved workpiece guidance - Edge feed, synchronized with the belt feed - Edge thickness adjustable via digital counter - Pneumatic roller separation with blade (for cuttable edges) - Three pressure rollers - Belt feed: - 0.25 kW - approx. 1,250 mm length - approx. 6.0 m/min - 50 mm wide toothed belt with thick, workpiece-friendly rubber surface - Digital counter for height adjustment - Direct glue application to the workpiece: Leak-proof glue pot with bottom glue supply and quick heat-up time after machine downtime - End trimming unit: - For front and rear edges of the workpiece - Automatic sensing on the workpiece - Pneumatic end trimming with blade for cuttable edges - Flush trimming unit: - With vertical sensing and horizontal guide - Reproducible adjustment using digital counters - Two powerful 0.4 kW high-frequency motors - Continuously adjustable from 4,000 to 18,000 rpm - Cutter diameter 70 mm, Z4, radius 2 mm/15° - Central extraction port Ø 100 mm - 2 chip extraction hoods with hose Ø 60 mm - Automatic height adjustment of the upper trimmer with the belt feed - Continuous workpiece support approx. 1,800 mm long - Extendable workpiece support rail, approx. 300 mm extendable - Rotating film reel Ø: 800 mm - Workpiece width: min. approx. 80 mm - Workpiece thickness: 10 – 100 mm - Workpiece length: min. approx. 220 mm - Edge thickness: 0.4 – 2.0 mm - Roller separation: max. 1.0 x 55 mm, 2 x 45 mm - Glue pot heating power: 2.7 kW - Heat-up time: approx. 10 minutes - Working height: approx. 880 mm - Electrical connection: 400V, 50 Hz, 3Ph + N - Total connected power: 3.8 kW - Pneumatic connection: 6 bar Dimensions (without film reel): approx. 1,800 x 700 x 1,300 mm Weight: approx. 260 kg Availability: short-term Hjdewka S Ispfx Aflonk Location: Flörsheim

Stanje: rabljeno, Leto izdelave: 2013, Venjakob Perfect Paint Finishing Line: - Manufacturer: Venjakob - Year of Manufacture: 2013 - Working width: 1,300 mm - Max. workpiece length: 6,500 mm - U-shaped layout with corner transfer Consisting of: 1. Infeed conveyor, length 3,050 mm 2. Open space for sanding machine (optional) 3. Automatic spray machine VEN SPRAY PERFECT, length 5,510 mm 4. Flash-off dryer OIR, length 6,000 mm 5. Jet dryer VEN DRY AIR JET, length 4,160 mm 6. 180-degree corner transfer with jet dryer 7. Supply air system for corner transfer, 25,000 m³/h 8. Jet dryer VEN DRY AIR JET, length 5,160 mm with 4 IR emitters 9. Jet dryer VEN DRY AIR JET, length 5,160 mm with 4 IR emitters 10. Jet dryer VEN DRY AIR JET, length 5,160 mm with 4 IR emitters 11. 3D-UV Dryer, VEN DRY UV, GA + HG Hjdpfxou Afu Rj Aflenk 12. Discharge area, belt of UV dryer 13. Supply air unit for hall, 30,000 m³/h Further information: On request

Stanje: rabljeno, številka stroja/vozila: 008167, Delovno območje os X: 6000 mm Delovno območje os Y: 1750 mm Delovna površina: Z vakuumskimi konzolnimi nosilci Moč glavnega vretena: 12 kW Število krmiljenih osi: 5 osi Hnsdex A Hczepfx Aflok Število vrtalnih vreten: 30 Število mest za orodja: 72

Stanje: rabljeno, številka stroja/vozila: 007716, Working area X-axis: 3250 mm Working area Y-axis: 1220 mm Working table: With vacuum pod supports Hodpfx Afewuz N Nsljnk Main spindle power: 12 kW Number of controlled axes: 4 axes Number of drilling spindles: 18 Number of tool positions: 16

Stanje: novo, Leto izdelave: 2024, Working width: 600 mm Working height: 150 mm Units: 4 brush units, individually adjustable Hnjdpfjug Ty Hex Afljk 1st unit, rotor group: Group of 5 oscillating rotary brushes, Ø 115 mm, each with 3 kW motor 2nd unit, rotor group: Group of 5 oscillating rotary brushes, Ø 115 mm, each with 3 kW motor 3rd unit, brush: Scotch Brite Hard / diameter 220 mm, variable-speed drive 4th unit, brush: Scotch Brite Hard / diameter 220 mm, variable-speed drive Height adjustment: electric Height display: digital Control system: touchscreen Feed speed: 4 - 12 m/min Feed motor power: 0.37 kW Machine length: Machine width: Weight:

Stanje: novo, Leto izdelave: 2026, Construction size: 6 Nominal heat output: 170 kW -- Complies with BImSchV Stage 2 and CE -- Combustion chamber fully lined with fireclay Suitable for rooms: 4,800 m³ (according to DIN) Fuel: Firewood, chipboard, wood chips, briquetted wood shavings Fuel consumption: 40 - 50 kg/h Fan air output, free blowing: 14,000 m³/h Discharge opening: Ø 700 mm Flue pipe connection: Ø 220 mm Hnjdpfedlhdbex Aflek Weight: 2,150 kg PLC control cabinet: 380 Volt

Stanje: rabljeno, Leto izdelave: 2014, CNC Machining Center Biesse Skill 12 24 G FT Year of manufacture: 2014 Machine no.: 60961 Tool holder: HSK F63 10 vertical drilling units 12 tool changer positions Software: BiesseWorks X-axis: 2465 mm Y-axis: 1260 mm Z-axis: 324 mm Disassembled for transport on a standard trailer; dimensions: 4500x2200x2400 mm; net weight: 2000 kg - Special features: - Note: The pallet with the white control cabinet does not belong to this machine - Year: 2014 - Documentation available: Yes - CE certificate available: No - Serial number: 60961 - Number of router spindles: 1 - Type of router table: flat table - Tool clamping system: HSK-F63 - Drilling unit included: Yes - Vertical drilling spindles: 10 - Tool changer positions: 12 - System/software: BiesseWorks - Safety feature: safety fence - Vacuum pump included: Yes - Quantity: 1 - Brand: Becker - Working area X [mm]: 2465 - Working area Y [mm]: 1260 - Working area Z [mm]: 324 Financial Information VAT: The stated price is exclusive of VAT Hedpfx Afjwnhanolsnk VAT / differential taxation: VAT reclaimable for businesses Delivery and trade-in possible at any time for all items from the industrial sector Glenn Smeets

Stanje: rabljeno, številka stroja/vozila: 006279, Delovno območje os X: 3100 mm Delovno območje os Y: 1250 mm Delovna površina: gnezdilna miza Število krmiljenih osi: 3 osi Hedekw H Ekepfx Afljnk Število vrtalnih vreten: 11 Število mest za orodja: 8

Stanje: rabljeno, Paint finishing line consisting of: Item 1 Belt Conveyor Infeed - Manufacturer: Venjakob - Working width: 1,300 mm - Length: 3,000 mm - Feed speed adjustable via handwheel ~ 2.5 – 7.5 m/min - Voltage, Hz: 400 / 50 - Colour: RAL 7035 Item 2 Cefla Dust Removal Machine - Manufacturer: Sorbini - Model: VS/32-E - Year of manufacture: 1998 - Working width: 1,300 mm - Working height: 900 mm ± 20 mm - Operator side: right - Roller conveyor - Air blast channel, top 2 pcs. - Air blast channel, bottom 1 pc. - Deburring brush - With ionizing bar from above - With ionizing bar from below - With its own drive - With its own control system - Length: approx. 910 mm - Width: approx. 2,600 mm - Weight: 1,260 kg - Extraction stub diameter: 180 + 120 mm - Total connected load: 7.6 kW - Voltage, Hz: 400/50 Item 3 Venjakob VEN SPRAY Perfect Automatic Spray Machine - Manufacturer: Venjakob - Model: VEN SPRAY PERFECT - Year of manufacture: 2013 - Working width: 1,300 mm - Working height: 940 ± 20 mm - Operator side: left - IR pre-heating, number of emitters: 2 pcs. - Dual gun drive - Dry extraction - Extraction stub diameter: 600 mm - Exhaust air capacity: 10,000 m³/h - Belt conveyor system - Feed speed steplessly adjustable ~ 4-10 m/min - Belt cleaning system - Paint recovery via V-belt system - Spray gun control: EPS-CNC CNC 7000 - Color management system for 3+1 pumps Hnsdpfxev I Akvj Aflsk - Number of installed airless spray guns: 4 pcs. - Quick-change system for spray units - Remote maintenance system - Dust protection hood at machine outfeed - Exhaust air recirculation system - Extraction fan exhaust air control - Suitable for water-based paints - Suitable for solvent-based paints - Length: 5,509 mm - Width: 4,500 mm + 2,400 mm - Height: 3,380 mm + 510 mm - Total connected load: approx. 20 - 26 kW - Voltage, Hz: 400/50 - Colour: RAL 7035 - Kremlin AVX AirMix spray guns - Small quantity container - Gun carrier arm system for quick removal of 4 AirMix spray guns from the spray booth, including quick couplings for pneumatic and material hoses. Item 4 Venjakob Belt Conveyor - Manufacturer: Venjakob - Working width: 1,300 mm - Length: 2,000 mm - Feed speed adjustable via handwheel ~ 2.5 – 7.5 m/min - Voltage, Hz: 400 / 50 - Colour: RAL 7035 Item 5 Cefla Vertical Dryer - Manufacturer: Cefla - Model: VN 2000/5500/190.5/30 - Year of manufacture: 2003 - Working width: 1,300 mm - Number of trays: 30 pcs. - Tray length: 5,600 mm - Usable tray length: 5,300 mm - Load capacity per tray: 300 kg - Max. part height: approx. 110 mm - Clear height between trays: 120 mm - Dimension: tray center to tray center 3,658 mm - Max. part length: approx. 5,200 mm - Number of controllable temperature zones: 2 pcs. - Supply air capacity: 6,000 m³/h - Exhaust air capacity: 6,000 m³/h - Heating capacity max.: 175 kW - Max. drying temperature: approx. 55 - 60°C - With heat exchanger, heating water - Without heating water control valves - Pass-through direction: U-shape - Infeed side: right - Feed speed via frequency control ~ 2-20 m/min - Suitable for water-based paints - Suitable for solvent-based paints - Length: 7,820 mm - Width: 6,130 mm - Height: 3,905 mm - Total connected load: approx. 23 kW - Voltage, Hz: 400 / 50 - Voltage fluctuation max. +/- 5 % - Without control valves and water pumps Item 6 Belt Conveyor Infeed - Manufacturer: Cefla - Working width: 1,300 mm - Length: 2,000 mm - Feed speed adjustable via handwheel ~ 2.5 – 7.5 m/min - Voltage, Hz: 400 / 50 - Colour: RAL 7035
