Wenzel Lh nakup rabljenega (55)

Stanje: rabljeno, Leto izdelave: 2001, proizvajalec krmilnikov: Sonstige, model krmilnika: WPC 2040, _____ Opis: Tehnični podatki: Obseg meritev v osi X/Y/Z: 800 x 1.000 x 700 mm Velikost mize: 1.040 x 1.780 mm Masa obdelovanca (maks.): 800 kg Oprema/dodatna oprema: Njdsznqy Iopfx Altjcw Tipalski sistem: Renishaw PH 10M Merilna glava: Renishaw TP 200 Sistem za hitro menjavo: Renishaw SCR 200 Upravljanje: Nadzorna plošča s krmilnikom (joystick) HT100 Dodatna oprema: Različne tipalke in kalibracijska krogla

Stanje: zelo dobro (rabljeno), Leto izdelave: 2007, Funkcionalnost: popolnoma funkcionalen, merilno območje os X: 1.000 mm, merilno območje osi Y: 3.000 mm, merilno območje os Z: 800 mm, Območje meritev Osn X: 1.000 mm Osn Y: 2.000 mm Njdpfx Aley Ewgxetjcw Osn Z: 800 mm Granitne vodila Osi, ki uporabljajo zračno ležaje Natančnost meritev Odstopanje pri merjenju dolžine približno 1,3 µm + L 400 odvisno od izvedbe in stanja kalibracije Sistem tipala Možne so tipala Renishaw Sistem tipala za dotik in optično skeniranje PH10 TP20 SP25 SP80, odvisno od opreme Teža obdelovanca Dovoljena obremenitev mize do približno 2.000 kg odvisno od izvedbe Nadzor CNC nadzor z ročnim upravljalnikom Programska oprema Metrosoft CM, različica 3.112 WENZEL Quartis R16 Električno napajanje 230 V, 50–60 Hz Poraba električne energije približno 1 kVA Pnevmatsko napajanje Stisnjen zrak, 6 do 10 barov filtriran in suh

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2018, potovalna razdalja osi X: 800 mm, pomik osi Y: 1.500 mm, pomik po osi Z: 700 mm, število osi: 3, Ta 3-osna koordinatna merilna naprava Wenzel LH 87 je bila izdelana leta 2018. Ima merilno območje 800 mm v osi X, 1.500 mm v osi Y in 700 mm v osi Z. Naprava je opremljena z naprednimi programskimi moduli, vključno z WM Quartis GEO in WM Quartis SCAN, ki zagotavljajo visoko kakovost meritev. Če iščete visokokakovostne možnosti merjenja, razmislite o koordinatni merilni napravi Wenzel LH 87, ki jo ponujamo v prodajo. Za več informacij nas kontaktirajte. • Programska oprema: WM Quartis R2021-2 Ncodpezmxm Tefx Altow • Vrsta krmilnika: WPC 2040 • Vrsta krmiljenja: Tip 1 • Različica programske opreme krmilnika: 31.46 • Datum krmiljenja: 05.07.2018 • Različica PMAC: 1.945 • Merilna glava: Renishaw PH10M-PLUS • Merilna konica: Renishaw SP25M • Magazin za menjavo tipala: Renishaw FCR25 • Modul tipala: SP25M • Ročni krmilnik: WENZEL HT400 • CAD-vmesnik: STEP • CAD-vmesnik: IGES • CAD-vmesnik: VDA-FS • Programski modul: WM Quartis GEO • Programski modul: WM Quartis SCAN • Programski modul: WM Quartis SURF • Programski modul: WM Quartis CURVE • Programski modul: WM Quartis EMD • Programski modul: WM Quartis IMPEX-ELEM • Programski modul: WM Quartis PRC • Potrdilo o kalibraciji: na voljo • Nalepka za kalibracijo: 2024

Leto izdelave: 2000, stanje: rabljeno, x-travel 1000 mm y-travel 1600 mm z-travel 800 mm Control system: WENZEL WPC 2040/FW31.351 Total power requirement: kW Machine weight approx. 5500 kg Required space approx. m WENZEL CNC-controlled vertical 3-D coordinate measuring machine Ncedpjt Hw Nyofx Altow Model: LH 108 CNC Year of manufacture: 2000 (continuously serviced and calibrated by manufacturer) Y-axis as longitudinally movable measuring portal: 1,600 mm X-axis as transverse measuring head carriage: 1,000 mm Z-axis as vertical measuring spindle: approx. 800 mm Max. workpiece weight / table load: approx. 2,250 kg Clearance under measuring portal: approx. 900/1000 mm Overall table size: approx. 2,600 x 1,250 mm Table height above floor: approx. 700 mm Table plate thickness: 380 mm Machine height: approx. 3,100 mm Weight: approx. 5,500 kg Special Equipment / Accessories: • Measuring table, crossbeam, and spindle made of dark natural hard stone; table with 6 x 9 threaded holes for securing workpieces/fixtures • All axes are air-bearing, making them easy to operate, virtually wear-free, and equipped with incremental linear scales with a resolution of 0.0005 mm • WENZEL CNC control unit Type WPC 2040 / FW31.351 built into the workstation (Control system was replaced approx. 3 years ago) • WENZEL measuring software Type METROSOFT QUARTIS R 12 SP 1 with SurfPro package and QUARTIS Q-DAS • RENISHAW motorized rotary and swivel head (automatic indexing in 7.5° steps) with measuring probe Model PH 10 M Plus and measuring probe TP 20 plus various probe accessories • RENISHAW Probe Head Controller Type PHC 10 C-3 Plus, also integrated into the workstation • Automatic probe change possible, 6-position probe magazine Model MCR 20 mounted on the table • Mobile hand control panel with progressive control lever (joystick) for manual adjustment of all 3 axes with continuously adjustable travel speeds • Reference sphere for setup on the table, workstation, various clamping devices, etc. Condition: Very good – can be inspected under power in stock, ready for demonstration, was professionally disassembled by a measuring machine specialist at previous owner and reassembled at current location. Delivery: Ex stock – as is and as inspected Payment: Net – upon receipt of invoice.

Stanje: rabljeno, Leto izdelave: 2000, Table length 1160 mm Table width 710 mm Clearance 650 mm Control system WENZEL ME 5007 Total power requirement kW Machine weight approx. 800 kg Space requirements approx. m W E N Z E L CNC-controlled vertical 3-D coordinate measuring machine Type LH 54 CNC, year of manufacture 2000 - Continuously maintained and calibrated by the manufacturer Y-axis: longitudinally traversing measuring bridge 600 mm X-axis: crosswise measuring head slide 500 mm Z-axis: vertical measuring quill approx. 400 mm Max. workpiece weight / table load approx. 200 kg Clearance under measuring bridge approx. 650 mm Usable total table size approx. 1,160 x 710 x 160 mm Table height above floor approx. 850 mm Nedpfx Aot Hw S Isltjcw Machine height approx. 2,300 mm Weight approx. 800 kg Special equipment / accessories: • Machine delivered with increased accuracy • Measuring table, bridge, and quill made of dark natural hard stone, table with 3 x 4 threaded holes for fixture/workpiece mounting • All axes are air-bearing, enabling smooth and virtually wear-free operation, equipped with incremental scales with 0.0005 mm resolution. • WENZEL CNC control system type ME 5007 for 3 to 6 axes, equipped with ME 4700 portable manual control panel with 2 joysticks for activating all software functions – ideally set up for: • WENZEL measuring software type METROLOG – II Level 2 for measuring regular geometry, graphic 3D workpiece visualization, graphical protocols, etc. including keyboard • RENISHAW control unit model PHC 10 – 2 suitable for • RENISHAW motor-driven rotary and swivel head (automatically indexable in 7.5° steps), model PH 10 T with 5-way probe system model TP 200 with various probe accessories, incl. RENISHAW probe interface PI 200 Automatic probe change possible; 6-position probe magazine model SCR 200 mounted on the table • Reference sphere for mounting on the table, working table with console, various clamping devices • Various cassette tapes and CDs with different software. Separate PC for measuring software and printer Condition: Very good – in stock, can be inspected under power, ready for demonstration, dismantled by a coordinate measuring machine specialist at the seller and reassembled here. Delivery: Ex stock – as is and as inspected Payment: Net – upon receipt of invoice.

Stanje: rabljeno, Leto izdelave: 2019, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 199102, WENZEL LH 108 CNC Coordinate Measuring Machine Manufacturer: WENZEL Model: LH 108 Design: CNC 3D Coordinate Measuring Machine (Bridge Type) For sale is a precise and high-performance WENZEL LH 108 coordinate measuring machine. This machine is ideally suited for quality assurance, production metrology, as well as demanding measuring tasks in tool and mold making. The LH 108 stands out due to its sturdy granite construction, air-bearing axes, and high measurement accuracy. Thanks to CNC control, both single and series measurements can be carried out efficiently. Technical Data Ncsdpfx Aljy Tnyfotew Measuring Range: approx. X 1000 / Y 1600 / Z 800 mm Maximum Workpiece Weight: up to approx. 2000 kg High measurement accuracy in the micron range Features Air bearings on all axes Granite guides for maximum stability Modern CNC control with joystick operation Various probe systems (depending on configuration) Temperature compensation (model-dependent) Fields of Application Quality assurance and goods-in inspection Batch and single part measurement Freeform surfaces and complex components Reverse engineering Other Information Machine in used condition. Inspection by appointment possible.

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2014, potovalna razdalja osi X: 800 mm, pomik osi Y: 1.000 mm, pomik po osi Z: 700 mm, število osi: 3, This 3-axis CMM from Wenzel, model LH 87, was manufactured in 2014. It offers a measuring range of 800 mm in X, 1000 mm in Y, and 700 mm in Z, with a maximum workpiece weight capacity of 800 kg. The machine features air bearings on all axes and is equipped with a motorized, indexable Renishaw PH10M Plus probe head. If you're looking for high-quality measurement capabilities, you should consider the Wenzel LH 87 CMM, which we have available for sale. Please contact us for further details. - Volumetric length measurement error (E0, MPE): 2.2 µm + (L / 300.0 mm) µm - Length measurement error along the optical axis (E150, MPE): 2.2 µm + (L / 300.0 mm) µm - Max. workpiece/component weight: 800 kg - Axis bearings: Air bearing system integrated on all axes - CNC control: WPC 3-axis trajectory control configuration - Control hardware: WPC2040 Basic combined with Renishaw PHC10-3 PLUS control rack unit - Machine control panel: Wenzel HT400 wired manual joystick control handbox - Probe head system: Renishaw PH10M Plus motorized indexable probe head - Touch probe system: Renishaw TP200 high-precision strain gauge touch trigger probe - Change rack system: Renishaw SCR200 6-position autonomous stylus change rack (5 stylus change positions are active in the visual configuration) - Active stylus configurations (in rack): Nodpfx Aey Uvtvoltjcw * Port 1: Stylus 1001 (Ø 1.00 mm) * Port 2: Stylus 2001 (Ø 2.0 mm cylindrical) * Port 3: Stylus 3001 (Ø 2.00 mm ruby ball) * Port 4: Stylus 4001 * Port 5: Configured (visual confirmation: angle/star arrangement) - PC hardware: Fujitsu Esprimo desktop PC tower, housed in a dedicated controller compartment beneath the desk - Visual workstation monitors: 2 x BenQ 24" TFT flat screens - Input peripherals: Wired keyboard, mouse, and Wenzel-branded workflow mousepad - Core operating system: Windows 10 Pro (Version 10.0, Build 19045, 64-bit Edition) - Metrology software suites: * Wenzel WM | Quartis Standard (Build R2025-1 / R2025-2 backward-compatible ecosystem) * CM Wenzel CNC Control Geometry Software Module * CM Wenzel CNC Freeform Surface Software Module - Software licensing & security: Metrokey dongle protection (ID: 45984, Status: valid, local workstation), driver version 7.6.0 - Native CAD data core interfaces: STEP, NX, VDA-FS, IGES, EMD (Q-DAS), IMPEX-ELEM, CURVE, SURF, IPH, PRC - Optional expansion interfaces: CATIA, Pro-E, SolidWorks - Included calibration accessories: High-purity ceramic reference calibration sphere complete with base extension and column block

Leto izdelave: 1997, stanje: zelo dobro (rabljeno), številka stroja/vozila: 971696, Technical Data Manufacturer: Wenzel Model: LH87 / CNC Year of manufacture: 1997 Machine no.: 971696 Measuring range X-axis: 800 mm Y-axis: 1000 mm Z-axis: 700 mm Probe system Probe head: PH10M Probe type: TP20 Control panel: HT400 Ncsdpfjd Sv D Njx Altjw Controller: WPC 2010 The machine can be upgraded with new accessories according to customer requirements. Price: on request! Installation and commissioning available! We are happy to provide you with a detailed quotation! Note: Our offer is intended exclusively for professional customers! (Specifications and information are subject to change or error. Prior sale reserved!)

Leto izdelave: 1995, stanje: zelo dobro (rabljeno), številka stroja/vozila: LH951333, Technical Data Manufacturer: Wenzel Model: LH86 / CNC Year of manufacture: 1995 Machine no.: LH951333 Measuring range X-axis: 800 mm Y-axis: 1000 mm Z-axis: 600 mm Probe system Probe head: PH10M Probe system type: TP20 Probe system no.: 438P68 Control panel: HT400RC V2 wireless Probe head controller: PHC 10 Control unit: WPC 2040 Calibration sphere: DIA 29.369 (Ideal for star stylus) The machine can be upgraded with new accessories to meet customer requirements. Price: on request! Installation and commissioning possible! We would be pleased to provide you with a detailed quotation! Ncjdped Hqyzjfx Altsw Note: Our offer is directed exclusively at professional customers! (Subject to prior sale and to changes or errors in the technical data, information, and prices!)

Stanje: zelo dobro (rabljeno), Leto izdelave: 2001, Avtomatski merilni stroj Wenzel Lh 108 Merilno območje: 1000x1600x800 Glava: Renishaw Ph10M Senzor: TP20 Menjalnik tipal: -- Krmilnik: Wenzel WPC 2030 (Pantec Eagle) Programska oprema: CMM Manager Lite 2025 Leto izdelave: 2001 Garancija: pogoji po dogovoru Nodpfx Aljipq I Istocw Opis: stroj popolnoma delujoč in v odličnem estetskem stanju; Pnevmatski sistem popolnoma prenovljen;

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2003, potovalna razdalja osi X: 500 mm, pomik osi Y: 1.000 mm, pomik po osi Z: 400 mm, število osi: 5, This 5-axis CMM machine, Wenzel LH 54, was manufactured in 2003. It features a measuring range of 500 mm on the X axis, 1000 mm on the Y axis, and 400 mm on the Z axis. The machine is equipped with a granite base, air-bearing guides, and a gantry design, making it suitable for quality assurance applications and series production. If you are looking for high-quality measuring capabilities, you should consider the Wenzel LH 54 CMM machine we are offering for sale. Contact us for further details. Njdpoyxqfuefx Altscw • Condition: Fully inspected and retrofitted; new software • Machine construction: Granite base; air-bearing guideways; gantry design • Applications: Quality assurance; series production • Availability: Currently powered on and available for demonstrations • Calibration/Verification: Factory calibration certificate available; determination of length measurement uncertainty, probing uncertainty, and repeatability range • Measuring range: Maximum spatial diagonal 4660 mm • Measuring uncertainty: E0 = 2.5 + L/300 µm • Controls and software: WPC2040 Basic control; installed software WM Quartis R2026-1 • Probe system: TP20; PH10T probe head; PHC10-3 PLUS probe head interface; PI200 Combi probe interface; HT400 joystick • Options and services: Creation of measurement programs for customer parts available; optional upgrade with Renishaw SP25M probe system (additional hardware and service included in upgrade); additional software modules on request; custom accessories and fixture systems available Additional equipment: • PC system with Windows 11 (meeting current Wenzel requirements) and WM Quartis R2026-1 installed • 2 × 24" TFT monitors (new) • Mouse and keyboard • MCR20 probe changer rack (unfitted/empty) • 1 × TP20 standard force module • M2 stylus kit

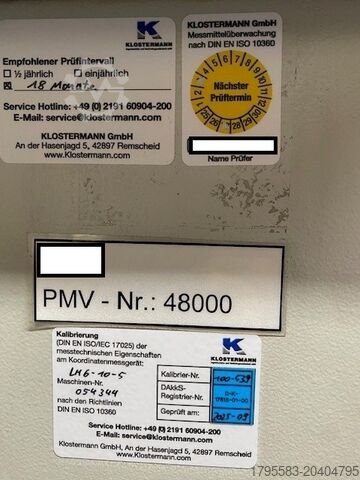

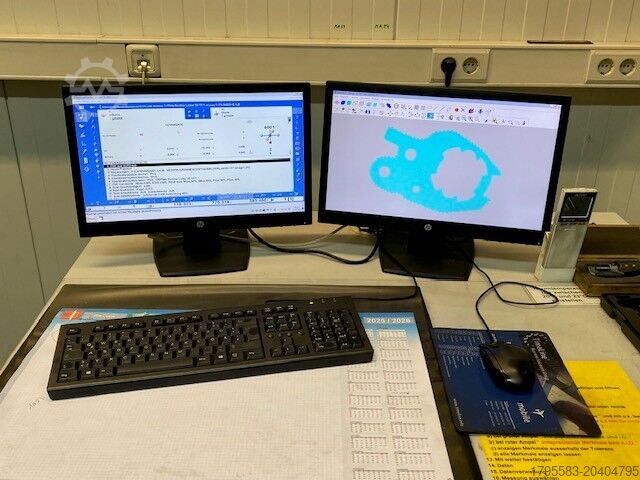

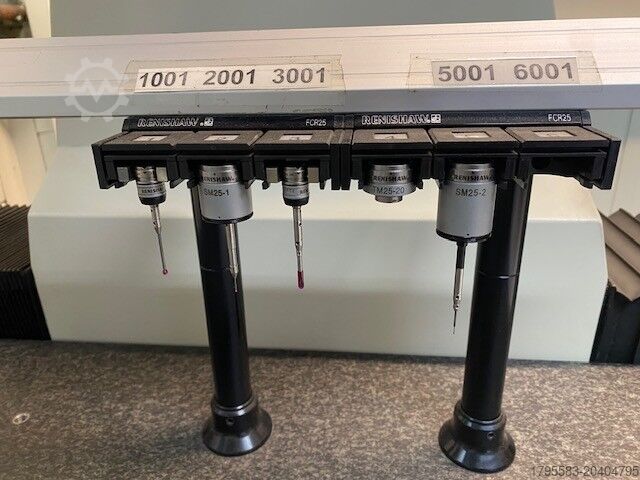

Stanje: zelo dobro (rabljeno), Leto izdelave: 2005, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 054344, Oprema: Na voljo je tipska ploščica, Wenzel LH 65 Podatki o stroju: MBX 650-MBY 1000-MBZ 500 Serijska številka 054344 Leto izdelave 2005 Krmilnik: WPC 2030 Merilni sistem: Renishaw Izmenljivi most: Renishaw Programska oprema Metrosoft CM 3.111 Programska oprema Quartis R10 Merilna glava: PH 10M PHC: PHC 10 Tipalo: 2x SM25-1 Tipalo: 1x SM25-2 Tipalo: 1x TM25 (adapter) Nedpfx Aloxr Av Netscw DAkkS kalibracijski certifikat z dne 05.09.2025 Merilni stroj je popolnoma funkcionalen in v odličnem stanju

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2001, Pomik osi X/Y/Z: 500 mm/600 mm/400 mm, maksimalna napaka dolžinskega merjenja: 2,9 + L/350, maksimalna točkovna napaka: 2,9, krmiljenje: Pantec Eagle Pro/3. Vključen merilni glavi PH10M Plus, PHC-2, senzor TP200, 20-delni komplet sond, kalibracijska krogla, industrijski PC, merilna programska oprema Inca 3D Premium s STEP in tovarniško kalibracijo. Stroj se lahko opremi z dodatnimi možnostmi. Dokumentacija je na voljo. Ogled na lokaciji je mogoč. Ncedpfxjw H Auqs Altow

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 1999, Travel X/Y/Z: 600 mm / 750 mm / 500 mm, max. length measurement error: 3 + L/350, max. single point error: 3, control: Pantec Eagle Pro/3. Includes PH10M Plus probe head, PHC-2, TP200 sensor, 20-piece stylus kit, calibration sphere, industrial PC, measuring software Inca 3D Premium with STEP and factory calibration. The machine can be equipped with additional options. Documentation available. On-site inspection possible. Ncsdpfx Aew H Auwjltjw

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2012, Travel X/Y/Z: 800mm/2000mm/700mm, max. length measurement error: 2.5 + L/350, max. single point error: 2.5, control: Pantec Eagle Pro/3. Includes probe head PH10M Plus, PHC-2, TP200 sensor, 20-piece stylus set, calibration sphere, industrial PC, Inca 3D Premium measurement software with STEP and factory calibration. The machine can be equipped with additional options. Documentation available. An on-site inspection is possible. Ncjdpfx Aljw H Au Rjtow

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2005, Measuring dimensions X/Y/Z: 800mm/1000mm/700mm, max. workpiece weight: 800kg, measuring accuracy: 0.0005mm, repeatability: 0.002mm, measuring table dimensions X/Y/Z: 1040mm/1780mm/250mm, rotary-swivel head: Renishaw PH 10T Plus. The PH 10T was replaced in 2023. Documentation available. On-site inspection possible. Ncodpfxou Ur Sqs Altsw

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2006, Working area X/Y: 1000mm/2200mm, accuracy: 0.8 + L/450µm, max. workpiece weight: 800kg, machine dimensions X/Y: approx. 3000mm/2800mm, weight: approx. 4000kg. Includes Wenzel HT 400 manual control, computer with 2 TFT monitors, and Kyocera laser printer. Probe not included. Documentation available. On-site inspection possible. Ncodpfxsu T Rhzj Altew

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2006, Travel range X/Y/Z: 800mm/1000mm/700mm, max. length measurement error: 2.5 + L/350, max. single point error: 2.5. Control system: Pantec Eagle Pro/3. Includes PH10M Plus probe head, PHC-2, TP200 sensor, 20-piece stylus kit, calibration sphere, industrial PC, Inca 3D Premium measuring software with STEP, and factory calibration. The machine can be equipped with additional options. Documentation is available. On-site inspection is possible. Nodpfow H Au Djx Altscw

Stanje: rabljeno, Leto izdelave: 2003, Coordinate Measuring Machine Wenzel LH 54 (Year of manufacture: 2003) in well-maintained and fully functional condition. The machine features a robust granite construction combined with air bearings for its guideways. This design ensures that the bridge and axes move smoothly and almost frictionlessly over the granite, providing a proven basis for high measurement accuracy and repeatability. The LH 54 is designed for reliable use in quality assurance and series production, consistently delivering stable measurement results during ongoing operations. Prior to delivery, the machine is thoroughly inspected and test-run by our service engineers in Remscheid, ensuring full functionality. The system is currently powered on and can be inspected and demonstrated at any time. PC System (modernized): - After purchase, a completely new PC system that meets current WENZEL requirements will be installed. This system is up to date and will be thoroughly tested before the machine is finalized for the purchaser. Optional services (upon request) - Installation and commissioning of the measuring machine within North Rhine-Westphalia (NRW) - Issuance of a factory calibration certificate - Determination of length measurement uncertainty - Determination of probing uncertainty - Determination of repeatability range - Execution according to DIN EN ISO 10360-2:2010-06 - Maximum spatial diagonal: 4,660 mm - Determination of probing uncertainty according to DIN EN ISO 10360-5:2020-11 - Including documentation - DAkkS calibration by accredited Klostermann Calibration Laboratory - Accreditation number: D-K-17518-01-00 - Accredited according to DIN EN ISO/IEC 17025:2018 - Training for the WM | Quartis measurement software - Contract programming for your components Additional information: Upon request, the machine can be retrofitted with the proven Renishaw SP25M probe. The retrofit includes additional service options and hardware, resulting in a corresponding adjustment of the above-mentioned purchase price. Additional software modules, customizations, as well as individual accessories and clamping systems are available upon request—optimally tailored to your specific measuring requirements. Measuring range X: 500 mm Measuring range Y: 1,000 mm Measuring range Z: 400 mm Measurement uncertainty: Eo = 2.5 + L/300 [μm] Installed software: WM | Quartis R2026-1 Controller: WPC2040 Basic PC system: Windows 11 (current configuration) Touch trigger system: TP20 Probe head: PH10T Probe module: 1 × TP20 Standard Force Module Articulating head interface: PHC10-3 PLUS Probe interface: PI200 (Combi) Joystick: HT400 Change rack: MCR20 (empty) Accessories: Stylus kit M2 | Mouse & keyboard | 2 × 24" TFT monitors | Printer Included services: Final inspection upon purchase | Disassembly and transport preparation | Packing | Loading onto customer-provided truck Included transport frame: Provided on loan Nsdpey Dcivefx Altocw

Stanje: rabljeno, Leto izdelave: 2007, številka stroja/vozila: 75388, Stroj: Wenzel LH87 Nodpfxjx Ey Dao Altjcw Serijska številka: 075388 Letnik izdelave: 2007 X-os: 800 mm Y-os: 1000 mm Z-os: 700 mm Merilna glava: SP80

Stanje: rabljeno, Leto izdelave: 2008, #: Programska oprema: WM I QUARTIS (najnovejša različica) Ncodpfxsh Nct Ao Altow Merilno območje: 800 x 2.000 x 700 [mm] Merilna negotovost: Eo = 2,3 + L/300 [μm] Maksimalna teža obdelovanca: 800 [kg] Vmesniki CAD: VDA, IGES, STEP Dodatne informacije: • Zračno vzmeteno po vseh osi • CNC nadzor za 3 osi WPC • Standardna geometrija in prosta oblika (najnovejša različica) • Računalniški sistem (NOV) • 2 x 24" monitor (NOV) • Tipalski sistem PH10M/TP200 • Referenčna krogla • Nadzorna miza Možnosti: Dodatni programski moduli, spreminjalnik tipalk, dodatna oprema in sistem za vpenjanje na zahtevo. Storitve: Namestitev • Uvedba v obratovanje in preverjanje natančnosti • Potrdilo o kalibraciji DAkkS po želji • Individualno usposabljanje • Pakiranje/transport/zavarovanje Integrirana rotacijska miza, npr. za merjenje zobnikov.

Stanje: rabljeno, Leto izdelave: 2006, Premer obdelovanca: 5 - 1.000 mm Modulni razpon: 0,2 - 25 Kot nagiba: < 90° Krmiljenje: Wenzel GearTec Premer čeljustne plošče: 750 mm X-os: 1.200 mm Y-os: 550 mm Z-os: 1.000 mm Skupna priključna moč: 6,5 kW Njdpfozkvvyox Altscw Teža stroja cca: 11 t Potrebni prostor cca: 3,30 x 3,15 x 2,70 m Upravlja naslednje programe: BMain, FPDFPPostAction, GrafTool, TAlign, TAnalyse, TApplication, TCali, TCut_INPUT, TCut_MEAS_EVAL, TGear_INPUT, TGear_MEAS_EVAL, THob_INPUT, THob_MEAS_EVAL, TMesblatt, TPlot, TRoot_INPUT, TShaft_INPUT, TShaft_MEAS_EVAL, TStat, TStylus, WMI, wingeco.

Stanje: dober (rabljeno), Leto izdelave: 2008, Funkcionalnost: popolnoma funkcionalen, skupna širina: 1.700 mm, skupna dolžina: 1.765 mm, potovalna razdalja osi X: 500 mm, pomik osi Y: 450 mm, pomik po osi Z: 400 mm, priključek za stisnjen zrak: 4 letvica, Wenzel Smart Gear - Gear and 3D Coordinate Measuring Machine The machine is in very good condition and fully functional. It has been regularly maintained and well cared for. Machine Data: • Machine dimensions: L=1765mm, W=1700mm, H=2232mm • Max. rotary table workpiece diameter: 5 to 270mm • Gear measurement accuracy according to VDI/VDE2612/2613 Group II • Max. rotary table load: 20 daN • Travel ranges: X=500mm, Y=450mm, Z=400mm • Scanning probe head: Renishaw SP600M • 7x SP600 probe change trays included • Module measuring range: 0.4 – 10mm Ncsdpjvvudksfx Altew • Active air damping of the machine • Year of manufacture: 2008 • Accessories such as drivers, reference sphere, etc. as pictured • 3-jaw chuck, D=80mm with internal and external jaws • 24-inch monitor, mouse, keyboard The following software modules are included: Gear software: • TMain – Program management • TStylus – Probe management • TCali – Probe calibration • TAmo – Analytical determination of axis positions • TGear – Spur gear measurement program • TGear – Addendum and dedendum circle option • TWorm – Worm gear measuring program 3D Software: • Metrosoft CM 3.8

Stanje: rabljeno, Leto izdelave: 2004, Koordinatna merilna naprava WENZEL SCM 500 Smart, v dobrem in delovno sposobnem stanju. Naprava temelji na robustni in kompaktni konstrukciji, ki je posebej zasnovana za prilagodljivo uporabo neposredno v proizvodnem okolju ali v merilnici. V kombinaciji z natančnimi vodili ta preizkušena konstrukcija zagotavlja visoko natančnost meritev, stabilnost in odlično ponovljivost pri minimalnih zahtevah glede prostora. Naprava je zasnovana za zanesljivo uporabo pri zagotavljanju kakovosti, pregledu vhodnega blaga in serijski proizvodnji ter zagotavlja trajno natančne in ponovljive rezultate meritev tudi v zahtevnih pogojih. Pred dostavo bodo naši serviserji v Remscheidu temeljito pregledali merilno napravo in jo podvrgli popolnemu funkcionalnemu testu. Na ta način zagotovimo, da je naprava ob predaji tehnično brezhibna. Naprava je trenutno priključena na električno omrežje in si jo lahko kadar koli ogledate in preizkusite. Računalniški sistem (posodobljen): - Naprava je že opremljena z najnovejšim, zmogljivim računalniškim sistemom, na katerem je nameščen najnovejši operacijski sistem Windows 11. Neobvezne storitve (po dogovoru): - Montaža in zagon merilne naprave na območju zvezne države Severno porejnje-Vestfalija (NRW). - Izdelava tovarniške kalibracijske potrditve. - Ugotavljanje negotovosti merjenja dolžine. - Ugotavljanje negotovosti tipanja. - Določitev ponovljivosti. - Izvedba v skladu s standardom DIN EN ISO 10360-2:2010-06. - Največja prostorska diagonala: 4.660 mm. - Ugotavljanje negotovosti tipanja po standardu DIN EN ISO 10360-5:2020-11. - Vključno z dokumentacijo. - Kalibracija po standardu DAkkS, ki jo izvaja akreditirani laboratorij Klostermann. - Številka akreditacije: D-K-17518-01-00. - Akreditirano po standardu DIN EN ISO/IEC 17025:2018. - Usposabljanja za merilno programsko opremo WM | Quartis. - Programiranje naročil za vaše komponente. Merilno območje X: 500 mm Merilno območje Y: 450 mm Merilno območje Z: 400 mm Negotovost merjenja: Eo = 8,0 + L/250 [μm] Nameščena programskopredaja: WM | Quartis R2026-1 Krmilnik: WPC2030 Računalniški sistem: Windows 11 Tipalski sistem: TP20 Tipalska glava: PH6 Tipalski modul: 1 × TP20 Standard Force Module Ročica: HT400 Dodatna oprema: Komplet tipk M2 | Brezžična miška in tipkovnica | 2 x 24" TFT monitorji | Tiskalnik Vključene storitve: Končni pregled ob nakupu | Razstavljanje in priprava za transport | Pakiranje | Nakladanje na tovornjak, ki ga zagotovi kupec. Ncsdpfozkug Rsx Altew

Stanje: pripravljen za uporabo (rabljen), Velikost plošče: 600 x 1000 mm Debelina plošče: 120 mm Potrebni prostor na spodnji omari: 600 x 1000 x 930 mm Teža Ncedpfx Aezh H Tqeltjw
