CNC center za struženje in rezkanje

Mazak QUICK TURN Nexus 200

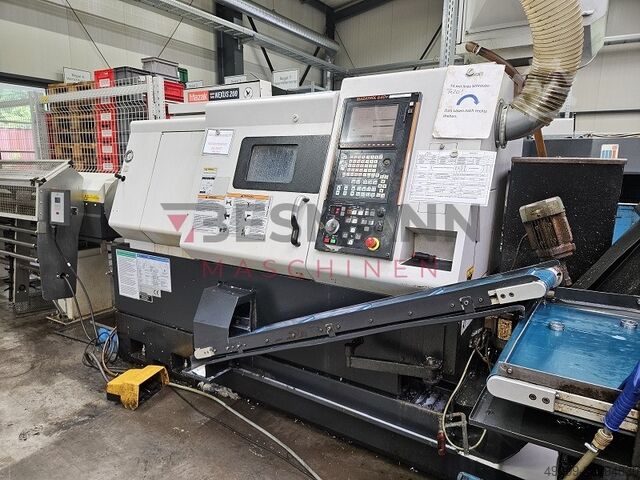

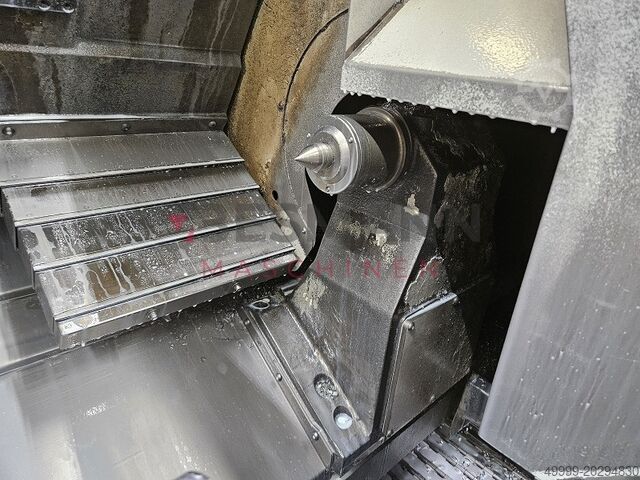

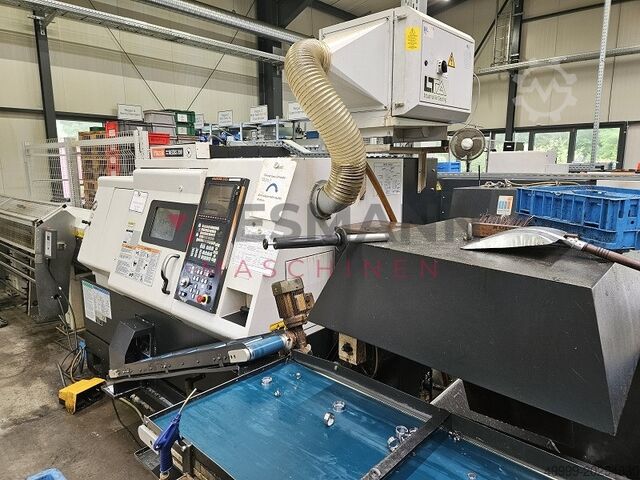

Stanje: delavnici obnovljeno (rabljeno), Leto izdelave: 2006, MAZAK QUICK TURN NEXUS 200-II MY Nksdexlzp Iepfx Abbjt Maks. premer obdelave: 380 mm Maks. dolžina obdelave: 538 mm Maks. hitrost frezanja: 4.500 o/min Maks. hitrost vretena: 5.000 o/min Maks. premer palice: 65 mm Stroj je opremljen z: - CNC krmiljenje Mazatrol Matrix - KITAGAWA trivilčno vpenjalo BB-208, premer 210 mm - Tool Eye - C-os - Y-os - Vmesnik za podajalec palic - Avtomatski izmetovalnik delov - NC konjiček - Ojačana črpalka za hladilno tekočino - Transportni trak za odrezke MAYFRAN - 8 fiksnih nosilcev orodij - 2 gnana nosilca orodij

Stanje: zelo dobro (rabljeno), Leto izdelave: 2010, Funkcionalnost: popolnoma funkcionalen, stružna dolžina: 810 mm, premer struženja nad prečnim suportom: 800 mm, premer struženja: 320 mm, moč vretenovega motorja: 25.000 W, največja hitrost vretena: 5.000 obr/min, izvrtina vretena: 73 mm, potovalna razdalja osi X: 210 mm, pomik osi Y: 110 mm, pomik po osi Z: 810 mm, hitro pomikanje X-os: 30 m/min, hitri pomik os Y: 20 m/min, hitri pomik na osi Z: 50 m/min, največja hitrost vrtenja: 6.000 obr/min, CNC FANUC MSX-701 / MAPPS IV CAPACITIES Swing diameter over bed: 800 mm Swing diameter over cross-slide: 800 mm Maximum turning diameter: 320 mm Standard turning diameter: 200 mm Maximum distance between centres: 1,130 mm Maximum turning length: 810 mm Maximum workpiece dimensions: 300 mm TRAVELS Turret X axis 1 & 2: 210 mm Turret Y axis 1 & 2: +65 / -45 mm Turret Z axis 1 & 2: 810 mm Head B axis 2: 920 mm MAIN SPINDLE Maximum spindle speed: 5,000 rpm Spindle motor power (30 min / continuous): 25/22 kW Maximum bar working diameter: 65 mm Spindle bore: 73 mm Spindle diameter at front bearing: 120 mm Spindle nose: JIS A2-6 C-axis resolution: 0.001° SUB-SPINDLE Maximum speed: 5,000 rpm Spindle motor power (30 min / continuous): 25/22 kW Maximum bar diameter: 65 mm Spindle bore: 73 mm Spindle diameter at front bearing: 120 mm Nedpewlvlgsfx Abbskt Spindle nose: JIS A2-6 C-axis resolution: 0.001° FEED RATES Turret 1 rapid traverse X/Y/Z: 30/20/50 m/min Turret 2 rapid traverse X/Y/Z: 30/20/50 m/min TOOL TURRETS Number of turrets: 2 Number of tool stations per turret: 16 Turning tool shank section: 20 x 20 mm Maximum boring bar shank diameter: 32 mm Turret rotation time (1 position): 0.18 sec Max speed of driven tools: 6,000 rpm Driven tool motor power (5 min / continuous): 7.5/5.5 kW DIMENSIONS Footprint with chip conveyor: 5,120 x 2,720 mm Net weight: 8,300 kg Machine equipped with: • High-pressure coolant system • Bar feeder interface • Gantry parts discharge arm • Cut force management and load monitor system • No. 1 double radial driven tool holder • No. 3 axial driven tool holders • No. 2 external tool holders • No. 2 double boring bar tool holders • No. 2 single radial driven tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centring chucks, 210 mm diameter • No. 1 set of jaws for each self-centring chuck • Operating manuals and CE Declaration Year of manufacture: 2010

Leto izdelave: 2005, Stanje: pripravljen za uporabo (rabljen), Splošni podatki Mere širina: 1780 mm Nsdpfox D Rmtox Abbekt Mere globina: 2765 mm Mere višina: 1840 mm Teža stroja: 5100 kg Krmilna enota Blagovna znamka: MAZATROL Glavni pogon Območje hitrosti vretena: 5000 vrt/min Moč motorja vretena: 26 kW Število osi: 3 Pomiki Pomik X-osi: 230 mm Pomik Z-osi: 575 mm Revolver Število revolverjev: 1 Orodja Število postaj: 12 Ta 3-osni Mazak Quick Turn NEXUS 200MS je bil izdelan leta 2005. Omogoča največji premer struženja 380 mm, glavno vreteno doseže do 5000 vrt/min, sekundarno vreteno do 6000 vrt/min. Stroj je opremljen z Mazatrol 640T Nexus CNC krmiljem in robustno zasnovo z merami 2765x1780x1840 mm ter težo 5100 kg. Če iščete kakovostne zmogljivosti struženja, priporočamo Mazak Quick Turn NEXUS 200MS, ki je na voljo pri nas. Za več informacij nas kontaktirajte. Uporabna področja Struženje

Stanje: rabljeno, Leto izdelave: 2004, MAZAK QUICK TURN NEXUS 200-M CNC STRUŽNICA Mazak Quick Turn Nexus 200 M CNC stružnica z upravljanjem Mazatrol Nexus 640T, nova 8'' močanska glava z velikim izvrtino za prehod do 80 mm, merilnik orodja, lovilec obdelovancev, transporter odrezkov, komplet držal orodij, vpenjalna glava za vložke in vmesnik za avtomatsko podajanje materiala (barfeed). * Opomba: Fotografirano ob prihodu… še čaka na čiščenje in pripravo. Specifikacije: Maksimalen premer vrtenja: 675 mm / 26,57 in Maksimalen premer struženja: 380 mm / 14,960 in Maksimalna kapaciteta obdelave iz palice: 65 mm / 2,6 in Maksimalna dolžina obdelave: 541 mm / 21,300 in Nedpfx Aewx Nl Hebbekt Velikost glave glavnega vretena: 8 in – z veliko izvrtino Maksimalna hitrost: 5.000 min⁻¹ Izhodna moč motorja (30-minutna ocena): 19 kW / 25,0 KM Revolver (zgornji), število orodij: 12 Maksimalna hitrost: 4.500 min⁻¹ Izhodna moč motorja (5-minutna ocena): 6 kW / 7,5 KM Pomik po oseh – X-os: 230 mm / 9,06 in Pomik po oseh – Z-os: 575 mm / 22,64 in

Stanje: rabljeno, Leto izdelave: 2009, Offered here is a used machining centre from the manufacturer Deckel Maho DMG. The machine is under power and can be inspected at our facility. Ex works, loaded on truck Manufacturer: DMG Deckel Maho Model: DMC 125 H duoBlock Year of manufacture: 2009 Control: Siemens 840 D Solutionline (PCU 50) Technical data: Travel X, Y, Z axes: 1250 x 1000 x 1000 mm Feed rate X, Y, Z axes: 20 - 60,000 mm/min Rapid traverse X, Y, Z axes: 60 m/min B-Axis travel: 360 x 0.001° B-Axis feed rate: 10,800°/min Max. table rotation speed: 30 rpm Spindle speed: 20 - 8,000 rpm Gear ranges: 2 Max. workpiece diameter: 1,250 mm Max. workpiece height: 1,580 mm Clamping area: 800 x 800 mm Max. workpiece weight: 1,500 kg Pallet weight: 570 kg Max. permissible weight difference for pallet loading: 1,000 kg Nedpfxew Ew T So Abbskt Tool holder: SK 50 according to DIN 69871 Maximum tool length: 650 mm Tool magazine: 120 positions Transport dimensions: 6,500 x 3,000 x 3,200 mm Transport weight of the machine (without magazine or other accessories): approx. 20,000 kg Required space: approx. 7,000 x 6,000 mm Total weight of the machine: 24,000 kg Accessories: - Chip conveyor with coolant tank - Coolant system - 4x machine pallets - Tool magazine - Oil mist extraction - Various new spare parts: 1x Y-axis length measuring system (new) 1x lubrication unit 230V 0.12 30bar (new) 1x gear unit P-AGG*MKF1-KW2-20036 (new) 1x Cyclo gearbox F1C-A25 (new) 1x retrofit kit power module (new) 1x lifting devices for the machine

Stanje: zelo dobro (rabljeno), Leto izdelave: 1998, x-axis travel 800 mm y-axis travel 600 mm z-axis travel 500 mm OFFER We can offer you the following ex-stock, subject to prior sale and errors excepted, without obligation: HERMLE 5-Axis Universal Machining Center in gantry design with swiveling rotary table Model C 800 U Year of manufacture 1998 12648 _____ Milling head travel longitudinal X-axis 800 mm Nkjdpsx Dndcofx Abbet Milling head travel transverse Y-axis 600 mm Milling head travel vertical Z-axis 500 mm NC swivel axis A-axis -20 / +90 ° NC rotary table C-axis 360,000 ° Maximum projection of vertical spindle approx. 600 mm Max. installation height under spindle approx. 100 / 600 mm Table size (swing diameter Ø 630 mm) 540 x 540 mm Max. table workpiece weight approx. 300 kg Spindle taper SK 40 Spindle speeds, infinitely variable 18,000 rpm Feeds/rapid traverse, infinitely variable 2 – 35,000 mm/min. Feed force approx. 11/16 Nm Spindle drive 15 kW Total power consumption approx. 37 kW - 400 V - 50 Hz Weight approx. 8,000 kg Accessories / Special equipment: • Compact, modified gantry design with 3 axes in the milling head for feeds up to 35 m/min. All drives and guides positioned outside the working area. • Machine bed made from mineral cast with high damping properties, can be installed without foundation, with high static and dynamic stability. • SIEMENS 5-axis path control, Type 840 D, with graphics and all modern programming features for full 5-axis machining of complex workpieces with electronic handwheel • NC Swiveling Rotary Table (C-axis 360,000° / B-axis -20/+90°) Ø 630 mm • Robust vertical head with HERMLE milling spindle up to 18,000 rpm with automatic swiveling nozzle block • Tool changer with extended (auxiliary) magazine for up to 87 tools • Coolant system with chip conveyor, oil mist extraction with filter, complete enclosure • Extensive accessories including approx. 50 tool holders, operating manuals. Condition: Very good – machine under power and ready for demonstration A video of the machine will be available here shortly (please click on the link): C 800 U/4 Delivery: ex stock – immediate availability, FCA Metzingen Payment: strictly net – immediately upon receipt of invoice, prior to delivery of the machine

Stanje: rabljeno, Leto izdelave: 2012, Funkcionalnost: popolnoma funkcionalen, potovalna razdalja osi X: 600 mm, pomik osi Y: 500 mm, pomik po osi Z: 540 mm, hitro pomikanje X-os: 24 m/min, hitri pomik os Y: 24 m/min, hitri pomik na osi Z: 20 m/min, hitrost pomika os X: 16 m/min, hitrost podajanja osi Y: 16 m/min, hitrost podajanja os Z: 16 m/min, nazivna (navidezna) moč: 16 kVA, proizvajalec krmilnikov: Heidenhain, model krmilnika: ITNC 530, obremenitev mize: 800 kg, skupna masa: 5.300 kg, hitrost vretena (min.): 10.000 obr/min, delovne ure vretena: 8.500 h, moč vretenovega motorja: 12 W, nos vretena: ISO B40, število vreten: 1, število mest v zalogovniku orodij: 24, vhodna napetost: 400 V, vrsta vhodnega toka: trifazni, Oprema: dokumentacija / priročnik, transportni trak za ostružke, Machine in very good condition, maintained by the manufacturer. Available for quick delivery. Renishaw probe. Video available upon request. Nkodpfx Aowxrgtsbbot Delivery and installation by our team can be arranged.

Stanje: dober (rabljeno), Leto izdelave: 2019, številka stroja/vozila: XD-38II-CP-0703-H, premer struženja nad prečnim suportom: 38 mm, največja hitrost vretena: 6.500 obr/min, premer struženja: 38 mm, izvrtina vretena: 39 mm, moč: 7,5 kW (10,20 KM), The machine can be inspected at our location in Immendingen by prior arrangement. Included are the original chip conveyor and a FMB 3-36 turbo bar feeder. Also included: Büchele SFB-301 high-pressure unit, 150 bar, 4 valves. Nedpsvtmalsfx Abbekt

Stanje: zelo dobro (rabljeno), Leto izdelave: 2010, stružna dolžina: 995 mm, izvrtina vretena: 80 mm, Maksimalni premer struženja: 530 mm Os X: 260 mm Os Z: 995 mm Nedpfxsx I Nbto Abbokt Vretenina odprtina: 80 mm Hitrost vretena: 5000 vrt./min Moč vretena: 22 kW Hitrost protivretena: 6000 vrt./min Premer prehoda protivretena: 62 mm Moč protivretena: 11 kW Menjalnik orodij: 12 pozicij Hitrost pogonskih orodij: 6000 vrt./min Tool Eye: da Delovne ure: 2800 h Dolžina: 3000 mm Širina: 1800 mm Višina: 1900 mm Teža: 6350 kg Opozorilo: Podatki na tej strani so bili po najboljšem vedenju zbrani z naše strani in, kjer je bilo mogoče, od proizvajalca. Podatki so predstavljeni v dobri veri, vendar natančnost ni zagotovljena. Podatki ne predstavljajo pravne podlage ali zavezujočih pogojev. Priporočamo, da vse pomembne podatke pred nakupom preverite.

Stanje: dober (rabljeno), Leto izdelave: 1989, obratovalne ure: 64.136 h, Centre height: 350 mm Turning length: 1000 mm Max. swing diameter over bed/ways cover: 600 mm Max. swing diameter over cross slide: 360 mm Spindle bore: 107 mm Speed range: 16 – 3,150 rpm Feed range, longitudinal and facing: 0.5 – 5,000 mm/min Rapid traverse, longitudinal + facing: 9 m/min Main drive: 30 kW Machine dimensions with chip conveyor (L x W x H): 5,400 x 2,200 x 2,000 mm Weight: 6,400 kg Accessories / Special Features: • CNC control GILDEMEISTER EPL 2 with TFT screen General Description: CNC manual input control system with program input via function and numeric keypad. All information is entered in dialogue with the screen. Integrated menu navigation and plain text display of all functions. Control keyboard, screen, and handwheel are housed in a separate chip protection cover. The EPL control offers the following features: Programs can be entered and edited directly by the operator via the EPL control without manual program preparation. NC programs in ISO/EIA format can be entered, output, or directly input manually via the serial interface RS 232. Machining cycles: Turning cycles for longitudinal, facing, and contour turning, including stock allowance. Thread cutting. Undercuts as per DIN 509 Form E and F and DIN 76, grinding allowance programmable. Axial and radial grooves according to DIN 471 and 472, including bottom finishing. Radii 90° and chamfers 45°. Automatic cutter radius compensation for cycles, undercuts, grooves, radius, and chamfering. Programming: Block-oriented, metric/inch, diameter in absolute input, radius in incremental input, full circle programming, subprogram technique, skip levels for program sections. Zero offset. Operating mode selection via menu. Program input and output: Menu-guided dialogue with operator prompts or direct dialogue. • Hydraulic 3-jaw chuck Ø 315 mm with hollow spindle Ø 80 mm • Hinged belt chip conveyor • 12-station VDI 40 turret, 6 standard tool stations + 6 driven tool stations • Coolant system • RS 232 interface • Electronic handwheel • Electric footswitch for 3-jaw chuck and tailstock quill • Lighting • 12 pcs. various standard tool holders (details to be discussed on site) Overhauled servo drive for main spindle, 06/2025 Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel Nkodpfx Absvr Eh Esbjt
