Rezervoar za shranjevanje iz nerjavečega jekla 36,9 cbm

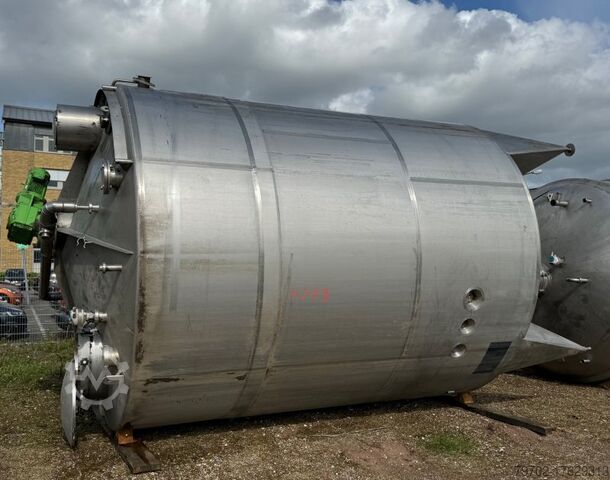

1-cylinder upright stainless steel tank, used

Capacity: 36.9 m³
Order No.: 4217
Material: 1.4571 product-contact surfaces
1.4301 other parts
Interior weld seams ground smooth

Dimensions:
3,350 mm internal diameter
3,550 mm external diameter
4,000 mm cylindrical height
490 mm upper dished end
650 mm lower dished end
600 mm ground clearance
450 mm agitator height
Lajdpju Iafbjfx Ah Djh
6,190 mm approx. overall height

Design:
Upright cylindrical unit, mounted on 4 height-adjustable legs
With conical ends
Anchor agitator, top-mounted, eccentric
5.5 kW, 30 rpm; for transport, bolts loosened
Half-pipe coil around cylinder and lower end, 3 circuits, operating overpressure 3 bar
Insulation around cylinder and ends,
Stainless steel cladding, fully welded

Connections:
1 hinged manway DN 800 in upper end
as well as 3 x DN 150
1 x DN 100
9 x DN 50
also 2 spray heads
and vent hood
Bottom central outlet DN 100
