Enostranski stroj za robove

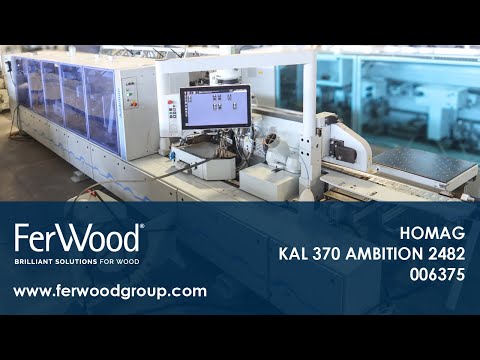

HOMAG KAL 370 AMBITION 2482

Leto izdelave: 2018, stanje: zelo dobro (rabljeno),

Stanje: rabljeno, Leto izdelave: 2018, skupna dolžina: 5.000 mm, skupna širina: 1.500 mm, skupna višina: 1.650 mm, Weight: 1,450 kg Price: On request - Year of manufacture: 2018 - Documentation available: Yes - CE marking present: Yes - CE certificate available: No - Serial number: 1408 - Max. cutting length [mm]: 3800 - Max. cutting height [mm]: 95 - Max. saw blade diameter [mm]: 350 - Saw blade bore diameter [mm]: 30 - Dust extraction port diameter [mm]: 125 - Controlled axes: Tiltable, parallel fence - Electrically adjustable axes: Parallel fence, tiltable - Spindle speed: - Max. spindle speed [rpm]: 4000 Hnedsx Igayjpfx Adksi - Tiltable saw unit: - Min. tilting angle [°]: 0 - Max. tilting angle [°]: 45 - Voltage [V]: 400 - Power consumption [A]: 19 - Transport dimensions: 5000mm x 1500mm x 1650mm (L x W x H) - Transport weight [kg]: 1450kg - Number of transport packages: 2 Financial Information VAT: The quoted price is net of VAT VAT / Margin scheme: VAT deductible for businesses Delivery and trade-in possible at any time for all items from the industrial sector Yorick Diebels

Stanje: rabljeno, Leto izdelave: 2013, Venjakob Perfect Paint Finishing Line: - Manufacturer: Venjakob - Year of Manufacture: 2013 - Working width: 1,300 mm - Max. workpiece length: 6,500 mm - U-shaped layout with corner transfer Consisting of: 1. Infeed conveyor, length 3,050 mm 2. Open space for sanding machine (optional) 3. Automatic spray machine VEN SPRAY PERFECT, length 5,510 mm 4. Flash-off dryer OIR, length 6,000 mm 5. Jet dryer VEN DRY AIR JET, length 4,160 mm 6. 180-degree corner transfer with jet dryer 7. Supply air system for corner transfer, 25,000 m³/h 8. Jet dryer VEN DRY AIR JET, length 5,160 mm with 4 IR emitters 9. Jet dryer VEN DRY AIR JET, length 5,160 mm with 4 IR emitters 10. Jet dryer VEN DRY AIR JET, length 5,160 mm with 4 IR emitters 11. 3D-UV Dryer, VEN DRY UV, GA + HG 12. Discharge area, belt of UV dryer 13. Supply air unit for hall, 30,000 m³/h Hnjdsu Afu Rspfx Adkei Further information: On request

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2000, Funkcionalnost: popolnoma funkcionalen, skupna višina: 245 mm, skupna dolžina: 211 mm, skupna širina: 212 mm, največja hitrost vretena: 5.000 obr/min, dolžina podajanja os X: 650 mm, dolžina pomika po osi Y: 350 mm, dolžina podajanja os Z: 720 mm, premer brusilnega koluta: 250 mm, skupna masa: 5.000 kg, Stroj je deloval samo z oljnim hlajenjem, opremljen je z diamantnim orodjem za oblačenje, merilno tipalo, pnevmatskim vpenjanjem obdelovanca. -- Nova linearna vodila in prenova krmiljenja v letu 2014. Hnedoug H R Sspfx Adkei

Stanje: novo, Leto izdelave: 2023, Funkcionalnost: popolnoma funkcionalen, The ultimate symbol for pallet wrapping machines is the robot: easy operation, flexible application, and strong productivity make it the ideal solution for businesses of all types. Our latest generation robots are specifically designed to meet a wide range of packaging requirements. Engineered to move efficiently in any industrial setting, they can wrap a pallet in under a minute while securing even light, fragile, deformable, and irregular loads. Minimum pallet size: 600x600mm Maximum pallet height: 2,200mm Hnedor Nc Swspfx Adksi Minimum pallet weight: 45kg

Stanje: novo, Leto izdelave: 2026, Kündig Perfect-2 1350 RED-L Wide Belt Sander incl. intermediate lacquer sanding setup Special price for demonstration unit – showroom machine – - Robust, space-saving wide belt sander for the highest demands. - Consistent working height thanks to upper section adjustment - Working width: 1350 mm - Top sanding, with 2 sanding units - Grooved rubber contact roller of proven hardness - Infinitely variable height adjustment of contact roller per abrasive scale - Electric lifting/lowering of the contact roller according to selected unit - Electronically controlled segmented sanding pad - Complete sanding pad unit tiltable by 10 degrees - Parallel spring-loaded, ground steel pressure roller at infeed - Rubberized pressure rollers between sanding units and at outfeed - 2 motors: 18.5 kW and 11 kW, 400 Volt, 50 Hz - Motor-driven, finely adjustable height adjustment with digital display - Pneumatic belt tensioning, tracking, and oscillation - Compressed air consumption approx. 2 l/min - Optimum safety with automatic instant stop and disc brake in case of belt break, etc. - Workpiece feed 2.2 kW with transport belt and drive roller - Vacuum device for entire worktable with additional perforation over 200 mm for smaller workpieces - Automatic thickness setting across whole working width - Over-thickness protection with immediate feed stop and lift-off mechanism - Infinitely variable chip removal adjustment - Electronic feed adjustment on control panel, stepless 3 - 15 m/min - PLC control with teach-in memory function - Pneumatic belt control - Workpiece support with rollers at infeed and outfeed - Enormatic: Fully automated fast setup and feed activation - Eco energy-saving mode - Fault diagnosis - Passage height 210 mm up to 18.5 kW - Sanding belt dimension 1350 x 2000 mm Perfect - Equipment Features: - High-quality swiveling plexiglass control panel - 10" touch screen - Industrial control system - Automatic pressure regulation and memory for sanding pad elements - Electronic compensation of abrasive belt grit size - Job and operating hour counters Hedpok Dpp Sofx Adkoni Lacquer equipment - Infinitely variable sanding belt speed on 2nd unit - Blast nozzles for sanding belt cleaning of 2nd unit, operation-controlled - Electronic sanding pad with 22 mm segment width - Additional sanding pad insert Additional options included with the machine: Foldable outfeed table extension (without panel) C10) LED package ASB5+AS3) ECS workpiece air-blow-off with fan Location: 54634 Bitburg – Immediately available –

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 1995, obratovalne ure: 41.000 h, Funkcionalnost: popolnoma funkcionalen, FOR SALE: BRUDERER BSTA 50USL High-Performance Stamping Press With Automatic Feeder BBV 190 500 kN | 100–1120 strokes/min | Fully automatic | Swiss premium quality Technical Highlights: Rated force: 500 kN Stroke rate: 100–1120 strokes per minute Operating hours: 41,000 h Main drive: 22 kW Control voltage: 24V DC Power supply: 400V / 50Hz / 62 kVA Adjustable stroke: 16 / 19 / 25 / 32 / 38 / 44 / 51 mm Ram adjustment: 64 mm Work Areas: Max. tool installation width: 1100 mm Strip feed width: up to 256 mm Ram area: 980 × 420 mm Hedpfx Aswpg Rbjdksni Table area: 1080 × 650 mm Adjustable strip entry height: 60–140 mm Max. strip width: 120 mm Max. feed length: 85 mm Max. material thickness: 4 mm Feed angle: 180° Machine dimensions (incl. BBV 190): Footprint (L × W × H): 2407 × 1278 × 3150 mm Weight (approx.): 8,000 kg Equipment: Feeding system BBV 190 – fully synchronized mechanical strip feeder Integrated control cabinet Pneumatic clutch and brake Adjustable stroke and ram height Compressed air connection: 6–10 bar Oil cooling unit included Ready for integration into peripheral systems Condition & Delivery: Machine in excellent technical and visual condition Fully serviced and inspected Immediately available ex Europe Worldwide shipping and installation support available Contact us today for pricing and further technical details. We are happy to help you modernize your production line with Swiss precision.

Stanje: rabljeno, Leto izdelave: 2016, Vitap Eclipse Kantenanleimmaschine für runde, gebogene Werkstücke Halbautomatische Kantenanleimmaschine für große, runde oder gebogene Werkstücke mit einer Plattenstärke von 10 bis 60 mm und einer Bandstärke von 1 bis 3 mm. Die Höhe von 60 mm ist nur bei einer Kantenbandstärke von 1 mm möglich. Bei stärkerem Kantenband hängt es von der Qualität des Bandes ab und muss in Verbindung mit dem Schneidaggregat vorab getestet werden. Beschreibung: - Zwei Kopierrollen zur Abtastung der Werkstückkontur - Leimstation - Leimbecken mit 1 kg Fassungsvermögen - Zwei 800W-Heizelemente mit elektronischer Temperaturanzeige über die SPS - Leimauftragung durch Leimwalze - Leimbecken aus Aluminium zur optimalen Wärmeverteilung - Leimzufuhr per Knopfdruck regulierbar - Automatische Schereinheit für Kantenmaterial von der Rolle mit Breiten zwischen 3 und 45 mm - Aggregat wird über Sensor für geschlossene Kantenanleimung oder über Encoder bei einseitiger Bekantung gesteuert - Lasersystem für Längenermittlung, keine Vormessung notwendig - Zu-/Abschaltmöglichkeit für Durchlaufbetrieb - Höhenverstellbarer Tisch für schmale Paneele - Zu-/Abschaltmöglichkeit für das Fräsaggregat - Zwei Kopierrollen zur Abtastung der Werkstückgeometrie - Fräsaggregat ausgestattet mit 2 x 0,5 kW (15.000 U/min Hochfrequenz) und oberen, unteren sowie vorderen Kopierrollen - Fräsaggregat mit Messern R=2, Phase 15°, D=69, Z=6 - Großzügiger Plattenteller mit Vakuum zur Fixierung des Werkstücks Hnedpjwgb Hxsfx Adkei (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Die besten Holzbearbeitungsmaschinen aus den Niederlanden

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2018, številka stroja/vozila: 25167180701, Funkcionalnost: popolnoma funkcionalen, moč: 4,5 kW (6,12 KM), višina obdelovanca (maks.): 60 mm, skupna višina: 60 mm, skupna širina: 1.000 mm, potreba po zraku: 2.000 m³/h, hitrost podajanja osi Y: 50 m/min, hitrost podajanja os Z: 20 m/min, vrtljajska hitrost (min.): 4.000 obr/min, CNC Processing Center Manufacturer: Masterwood Model: Project TF 100 2.0 Technical Specifications: Axes: X-Axis: Max. workpiece length: unlimited Min. workpiece length: 250 mm Travel speed: 0–25 m/min Y-Axis: Max. workpiece width: 1,000 mm for all units Min. workpiece width: 80 mm Travel speed: 0–50 m/min Z-Axis: Max. workpiece thickness: 60 mm Min. workpiece thickness: 10 mm Travel speed: 0–20 m/min The minimum and maximum workpiece sizes depend on the weight and also on the length-to-width ratio. – Air tables in the working area – Roller support at infeed and outfeed – Plate measuring sensor – Ball screw and linear guides – Rack and pinion drive Hnodpfxjxz Hgdj Adkoi – Centralized lubrication – Import of DXF files Milling unit Including Masterwork Software extension Spindle speed: 1,000 to 18,000 rpm. Motor (frequency controlled): 3.3 kW Incl. integrated extraction control (While drilling, only the drill head is extracted; during milling, only the milling unit is extracted) Drilling head with 16 drills for 5-sided machining Grooving saw unit Milling unit with 6-position tool changer Incl. grooving saw blade, 2 diamond milling cutters, 1 WPL finishing cutter Preparation for CLAMEX and door package 2 foldable roller conveyors Milling unit for Clamex connectors Milling unit designed for door processing for machine with tool changer, complete incl. dedicated tool change station in the tool changer, angle gearbox for receiving a mortise lock cutter, macro for mortise lock Automatic centrally controlled lubrication Monitoring camera

Stanje: dober (rabljeno), BRANDT highflex 1440 Edge Banding Machine Well-equipped, available for inspection prior to purchase. - Pre-milling cutters - Glue application unit - Pneumatic pre-cutting guillotine - Pressure rollers - Trim saws for precise end cutting - Top and bottom milling unit (pre-milling) - 2x multifunctional finishing milling units - Profile scraper - Flat scraper Hnjdpjt Hxxpofx Adksi - Polishing unit The machine is equipped with NC cutter control and a pneumatic package. - Max workpiece height: 60 mm - Max edge band thickness (roll): 3 mm - Max feed speed: 14 m/min The machine is well-maintained and in very good condition.
