Brusilni stroj za robove

Holzkraft KSO 150 F PRO

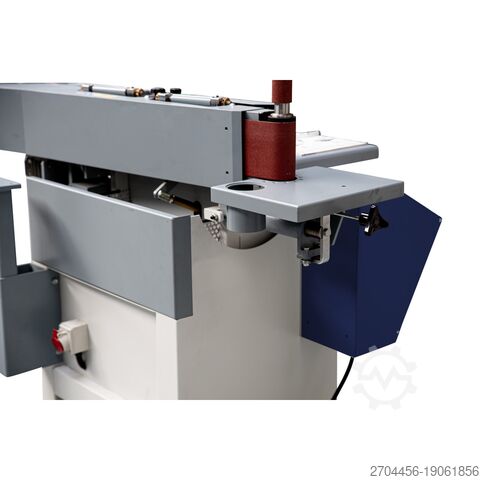

Stanje: novo, Leto izdelave: 2025, Holzkraft Edge Sanding Machine: KSO 150 F PRO Oscillating sanding belt for optimal sanding results Article number: 5390020 Brand: Holzkraft Sanding unit tiltable via hand crank The machine stand is made of welded steel, ensuring high torsional rigidity and vibration-free operation Oscillating sanding belt with separate geared motor for improved sanding performance Oscillation can be switched on or off as desired Graphite-coated sanding pad for increased belt service life Height-adjustable sanding table for utilizing the full belt width Additional table with extraction openings for sanding radii on the rubber-coated idler drum Sanding drum device with attachable work table Spring-loaded belt tension automatically compensates for belt length differences Equipped with adjustable stops, ideal for veneer sanding The grooved veneer stop allows for precise sanding of veneer overhangs TECHNICAL DATA Dimensions and Weights Length (Product) approx.: 1700 mm Width/Depth (Product) approx.: 1000 mm Height (Product) approx.: 1150 mm Net Weight approx.: 300 kg Extraction Connection Number of extraction ports: 2 Extraction port diameter: 100 mm Work Table(s) Work table length: 950 mm Work table width: 450 mm Work table height adjustment: 110 mm Electrical Data Rated voltage: 400V Mains frequency: 50 Hz Oscillation motor power: 0.11 kW Ksdpov Sk Nnefx Agkjdw Sanding Unit Belt length: 2640 mm Belt width: 150 mm Belt speed: 14 m/s Oscillation stroke: 15 mm Sanding area length: 800 mm Sanding area width: 150 mm Sanding unit tilt: 0 – 45° SCOPE OF DELIVERY 1x Sanding belt K100 5x Rubber drums Ø25, Ø30, Ø40, Ø45, Ø50 mm 6x Sanding sleeves K80 – Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm Service tools Miter gauge

Stanje: novo, Saw blade diameter: 370 mm Cutting capacity at 90 degrees (round): 120 mm Cutting capacity at 90 degrees (square): 100 mm Cutting capacity at 90 degrees (rectangular): 180x100 mm Working height: 925 mm Saw blade speeds: 15 - 70 rpm Total power requirement: 1.8/2.2 kW Machine weight: approx. 0.71 t Space requirement: approx. 1.9 x 1.45 x 2.1 m SPECIAL OFFER PRICE!!! High-Performance Vertical Circular Saw, Hydropneumatic Fully Automatic (20192) · Mitre cutting left 60° / right 45° · Hydro-pneumatic control of the saw unit · Electro-pneumatic automatic material feed unit · Smooth-running, high-performance worm drive with large gear ratio, integrated into a robust cast housing for optimal cutting results · Vise with double clamping arm for low-burr cuts, additionally with quick lateral positioning for mitre adjustment · Precision prismatic guide for the gearbox head, laterally adjustable · Particularly stable base frame with integrated automatic coolant system Ksdpfx Ajd Iin Hegkjdw · Large chip drawer · Chip removal brush in the saw blade guard MPS control system: · Storage of cut start/end positions · Display of current consumption, piece count, cutting time... · Adjustable water cooling · Cutting pressure regulator IMPORTANT: Price does NOT include saw blade! (Saw blade price €204)

Stanje: novo, Leto izdelave: 2022, Exhibition machine Year of manufacture: 12/2022 Features and technical data: DESCRIPTION - Grinding unit tiltable via hand crank - Machine base made of welded steel ensures high torsional rigidity and vibration-free operation - Oscillating sanding belt with separate geared motor for improved sanding results - Oscillation can be optionally enabled - Graphite-coated sanding shoe for extended belt life - Height-adjustable sanding table to utilize the full width of the sanding belt - Auxiliary table for sanding radii with integrated extraction ports - Drum sanding attachment with removable work table - Spring-loaded belt tension automatically compensates for belt length variations - Equipped with adjustable stops—ideal for veneer sanding - Veneer protrusion can be sanded down effortlessly TECHNICAL DATA Dimensions and Weights - Length (product): approx. 1700 mm - Width/Depth (product): approx. 1000 mm - Height (product): approx. 1150 mm - Weight (net): approx. 300 kg Drive power - Oscillation motor power: 0.11 kW Extraction connection - Extraction port diameter: 2 x 100 mm Kdsdsw I Uvzepfx Agksw Work table(s) - Work table length: 950 mm - Work table width: 450 mm - Work table height adjustment: 110 mm Electrical data - Supply voltage: 400 V - Mains frequency: 50 Hz Sanding unit - Sanding belt length: 2640 mm - Sanding belt width: 150 mm - Belt speed: 14 m/s - Oscillation stroke: 15 mm - Sanding surface length: 800 mm - Sanding surface width: 150 mm - Grinding unit tilting range: 0 – 45° SCOPE OF DELIVERY - 1x sanding belt K100 - 5x rubber rollers Ø25, Ø30, Ø40, Ø45, Ø50 mm - 6x sanding sleeves K80 – Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm - Service tools - Mitre fence Location: Hochheim Availability: Immediate

Stanje: novo, Edge sanding machine KSO 150 M F 3 PRO by Holzkraft Special offer model available from stock Includes: - 1x sanding belt grit K100 - 5x rubber rollers Ø25, Ø30, Ø40, Ø45, Ø50 mm - 6x sanding sleeves K80 - Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm - Tool kit - Mitre gauge Dimensions and weight: Kedpsu R S Dzefx Agksdw - Length (approx.): 1820 mm - Width/Depth (approx.): 1050 mm - Height (approx.): 1470 mm - Net weight (approx.): 400 kg Drive performance: - Oscillation motor power: 0.38 kW Extraction connection: - Extraction port diameter: 150 mm Work table(s): - Table length: 1000 mm - Table width: 280 mm - Table tilt: 45 / 35 ° Electrical data: - Connection voltage: 400 V - Mains frequency: 50 Hz Sanding unit: - Sanding belt length: 2640 mm - Sanding belt width: 150 mm - Belt speed: 14 m/s - Oscillation stroke: 20 mm - Sanding surface length: 890 mm - Sanding surface width: 150 mm - Max. sanding height: 150 mm Subject to prior sale. - New demonstration machine -

Stanje: generalkompletno obnovljen (rabljeno), Leto izdelave: 2013, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: D91402707010001/2013, skupna masa: 1.500 kg, Moteur électrique à vendre Description conformément à la plaque signalétique (voir photos) Vente uniquement dans les États membres de l'UE ! Pas de vente privée. Le moteur électrique peut être inspecté sur rendez-vous. Toute garantie est exclue. Kdodpewittpefx Agkew Nous déclinons toute responsabilité quant à l'exactitude des données techniques et de l'année de fabrication, à l'exhaustivité des accessoires et des équipements, ainsi qu'au respect de toutes les exigences de sécurité et de protection de l'environnement mentionnées dans les réglementations relatives à la prévention des accidents.

Stanje: novo, Leto izdelave: 2023, Stock clearance Year of manufacture: 2023 Description: - Grinding unit swivels by handwheel - The machine base made of welded steel ensures high torsional rigidity and vibration-free operation - Oscillating sanding belt with separate gear motor for improved sanding results - Oscillation can be switched on as needed - Graphite-coated sanding shoe for increased belt service life - Height-adjustable sanding table to utilize full belt width - Auxiliary table with extraction ports for sanding radii on the rubber-coated idler roller - Drum sanding attachment with removable worktable - Spring-loaded belt tension automatically compensates for belt length variations - With adjustable stops, ideally suited for veneer sanding - Grooved veneer fence allows overhanging veneer to be trimmed accurately TECHNICAL DATA Dimensions and Weight Length (product): approx. 1,700 mm Width/Depth (product): approx. 1,000 mm Height (product): approx. 1,150 mm Weight (net): approx. 300 kg Drive Performance Oscillation motor output: 0.11 kW Dust Extraction Connection Extraction port diameter: 2 x 100 mm Work Table(s) Table length: 950 mm Table width: 450 mm Table height adjustment: 110 mm Electrical Data Connection voltage: 400 V Mains frequency: 50 Hz Grinding Unit Sanding belt length: 2,640 mm Sanding belt width: 150 mm Belt speed: 14 m/s Oscillation stroke: 15 mm Sanding area length: 800 mm Sanding area width: 150 mm Grinding unit swivel range: 0 – 45° Kdodpfx Agsvwfxbekow SCOPE OF DELIVERY 1x sanding belt K100 5x rubber rollers Ø25, Ø30, Ø40, Ø45, Ø50 mm 6x sanding sleeves K80 - Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm Tool kit Mitre fence

Stanje: novo, Leto izdelave: 2022, Stock clearance Year of manufacture: 2022 Description: - Separate work tables for solid wood and veneer sanding, each manually swivellable by 45° and 35° respectively - Veneer sanding fence adjustable with 0.1 mm precision - Electrically height-adjustable sanding unit - Additional table with suction ports for sanding radii on the rubber-coated contact roller - Sanding sleeve device with attachable work table - Welded steel machine frame ensures high torsional rigidity and vibration-free operation - Oscillating sanding belt with separate gear motor for improved sanding results - Oscillation function can be switched on or off as required - Abrasion-resistant, highly slidable plastic surfaces on the work table - Graphite coating on the sanding platen for extended sanding belt life - Spring-loaded belt tensioning system automatically compensates for belt length differences - Rubber-coated and grooved sanding roller - Convenient operation from both sides via a swivelling control panel above the machine - Centrally positioned mounting for feed unit Technical data: Dimensions and weights: - Length (product): approx. 1820 mm - Width/depth (product): approx. 1050 mm - Height (product): approx. 1470 mm - Weight (net): approx. 400 kg Drive performance: - Oscillation motor power: 0.38 kW Extraction connection: - Extraction nozzle diameter: 150 mm Work tables: - Work table length: 1000 mm - Work table width: 280 mm - Table tilt: 45° / 35° Electrical data: - Supply voltage: 400 V - Mains frequency: 50 Hz Sanding unit: - Sanding belt length: 2640 mm - Sanding belt width: 150 mm - Belt speed: 14 m/s - Oscillation stroke: 20 mm - Sanding area length: 890 mm - Sanding area width: 150 mm - Maximum sanding height: 150 mm Scope of delivery: 1x Edge sanding machine KSO 150 M F 3 PRO 1x Sanding belt K100 Kedpfevwfa Sox Agksdw 5x Rubber rollers Ø25, Ø30, Ø40, Ø45, Ø50 mm 6x Sanding sleeves K80 - Ø25, Ø30, Ø35, Ø40, Ø45, Ø50 mm Service tools Mitre fence

Stanje: rabljeno, Leto izdelave: 2025, *Nova stroj* E-Rotor z v profilu vrezanimi žepki za nože. Dolžina rotorja 600 mm, premer rotorja 260 mm. Velik vstopni lijak 600 x 800 mm. Varno podajanje materiala s hidravlično vodenim potisnikom. Stabilne gumijaste noge za učinkovito blaženje vibracij. Držalo na potisniku za dolge in velike kose. Veliki noži 40 x 40 mm za optimalni vlek materiala. Posebni strgali proti bočnemu zatikanju. Mrežasta odprtina 10 – 40 mm. Krmilna omarica vklj. električno krmiljenje (Siemens PLC) in zvezda-trikot zagon. Zelo robusten menjalnik. Odprtina lijaka: 600 x 800 mm. Prostornina lijaka: 0,6 m³. Delovna širina rotorja: 600 mm. Premer rotorja: 252 mm. Pogonska moč: 15 kW. Hitrost rotorja: 90 obr/min. Lokacija: Pri dobavitelju. Kdsdpfxevvi Ano Agkow

Stanje: novo, ELMAG HGS-A 3100x6mm Hydraulic Guillotine Shear Versatile Application The hydraulically powered HGS-A swing-beam shears deliver robust cutting performance for all sheet thicknesses up to 6.0 mm or 8.0 mm. Their ultra-hard, precision-ground high-grade steel blades always produce a clean, straight cut. Key Benefits of Swing-Beam Technology: - High cut quality - Long-term machine accuracy - Extended blade service life - Long intervals between regrinding Standard Features - Upper and lower blades suitable for stainless steel processing - Hydraulic blade gap adjustment - Upper blade with two cutting edges, special steel hardened - Lower blade with four cutting edges, special steel hardened - Blade gap adjustment device - NC-controlled backgauge with ball screw spindle - Cutting line illumination - Automatic hold-down system - CE-conforming safety features - Support arm with ruler and side stops - Support table with ball transfer rolls - HGS-A control console - CybTouch 6 control with color touchscreen - Mobile control station with foot pedal and emergency stop - Operating manual / CE documentation Optional Equipment Ksdjt Egb Nepfx Agkedw - Angle gauge with scale - Sheet support device type I or type II - Support arm length up to three meters, with ruler - Laser cutting line indicator - Light curtain finger guard - CNC HGS-A with CYBELEC DNC 61 G control ADVANTAGES High quality standards Robust industrial models manufactured with the latest technology High cutting accuracy Welded, extremely stable, stress-relieved monoblock steel frame with excellent vibration damping S275-grade material for high tensile strength Premium BOSCH-REXROTH or HOERBIGER hydraulic system Low-noise ATOS hydraulic pumps with high-pressure capability Powerful, honed and chrome-plated hydraulic cylinders Upper blade with two cutting edges, special steel hardened Lower blade with four cutting edges, special steel hardened Central blade gap adjustment for quality cuts on various material types and thicknesses NC-controlled, motor-precision adjustable backgauge with ball screw spindle High adjustment speed of 110 mm/s, range 1,000 mm Backgauge with automatic reset Cutting line illumination Automatic hold-down system with high clamping force for secure material support and anti-tilt during cutting CE-compliant safety devices Built-in safety via blade gap guard Light barrier at the rear of the machine Emergency stop buttons on both the machine and the control station TECHNICAL DATA Cutting length: 3100 mm Cutting capacity at 42 kg/mm²: 6 mm Cutting capacity at 70 kg/mm²: 4 mm Blade gap min. / max.: 0.05 - 0.8 mm Strokes per minute: 20 Hold-downs: 14 units Hold-down force: 12 t Main drive motor power: 11 kW Backgauge motor power: 0.75 kW Backgauge adjustment range: 1000 mm Adjustment speed: 110 mm/s Cutting angle: 1.2° Table length: 3400 mm Support arms: 2 units Width without support arms: 2410 mm Transport width: 2100 mm Table height: 800 mm Oil tank volume: 150 l Length: 4000 mm Width: 3010 mm Height: 1640 mm Weight: 5500 kg

Stanje: novo, Particularly heavy-duty design with high intrinsic weight for maximum smoothness of operation. Extremely smooth and precise running thanks to a torsion-resistant machine housing. Large cast-iron parallel fence with round bar guide, easily adjustable. Cast-iron flywheels with rubber coating and cleaning brush. Large grey cast iron saw table, tiltable with ground and polished surface. Precise cut height adjustment via rack and pinion with millimetre scale. Doors with safety cut-off switches. Self-braking motor. Two extraction ports. High-quality GL-type bandsaw blade guides, top and bottom. Useful accessories make these woodworking bandsaws even more versatile: GEBS 640 AS Bandsaw blade thickness min./max.: 0.5/0.6 mm Working table dimensions: 870 x 620 mm Working table height: 840 mm Cutting speeds: 1660 m/min Kedpfx Agsviq D Hokedw Flywheel diameter: 640 mm Maximum cutting height: 400 mm Maximum cutting width: 620 mm Bandsaw blade length: 4780 mm Precision guides: top / bottom Table tilt: 0° to +15° Motor power: 2.2 kW / 400 V Weight: 320 kg Special offer prices plus VAT: €4,239.00*
