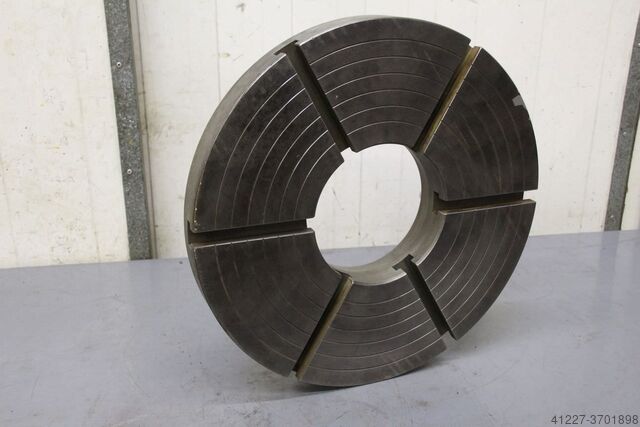

Prednja plošča

Guss Typ 500 mm

Stanje: rabljeno, Faceplate, faceplate chuck Dodsdu Ufmjpfx Aa Hswf - Chuck size: Ø 500 mm - Camlock: short taper mount, taper size 11, bolt circle Ø 235 mm - Weight: 67 kg

Leto izdelave: 1987, Stanje: pripravljen za uporabo (rabljen), Centre distance: 400–800 mm, spindle speed: 1000–2700 rpm, workpiece diameter: 10–300 mm, grinding wheel diameter: 40–300 mm, swiveling range: -45 to 45°, length: 3000 mm, width: 2500 mm, height: 2275 mm, equipped with Hoffmann oil mist separator (new filter inserts), Faudi gravity band filter system, hydraulic unit, additional grinding head for worm wheel grinding, grinding arbors with diameters 50, 40, 27, 22 mm, holders for SK40 and MK5, driver sets for various clamping diameters, operating manual, circuit diagrams in paper form, inspection is possible. Dwjdpfsrgahxsx Aa Hjf

Stanje: rabljeno, Leto izdelave: 2007, Control system: Siemens Sinumerik 840 D Weight: 57,000 kg Operating voltage: 400 V Gleason-PFAUTER CNC Gear Hobbing Machine P 2400/2800 For the hobbing of cylindrical and worm gears as well as all other regularly occurring hobbed profiles and shapes on cylindrical workpiece circumferences. Large hobbing machines from Gleason deliver maximum productivity for roughing and finishing of cylindrical gears for a wide range of industries: wind energy, industrial gearboxes, mining and shipbuilding, gear manufacturing, and many more. The drive power range is designed with future tool developments in mind. Of course, the hobbing head drive is also backlash-free. These machines are particularly suitable for the use of state-of-the-art cutting materials, regardless of whether dry or wet machining is preferred. The machine can be used for both dry and wet machining and is equipped for both methods with the appropriate chip conveyor. The machine is equipped with an internal profile milling head as a motor-driven milling head. --> Working area and technical data Workpiece nominal diameter: 2,400 mm --> Maximum machinable diameter: approx. 2,800 mm --> Minimum/maximum distance between cutter and workpiece axis: 100/1,200 mm --> Maximum axial slide travel (special version): 1,300 mm --> Maximum clampable cutter (internal milling head): --> Maximum diameter: 440 mm --> Maximum cutter width: 90 mm --> Swivel range of internal profile milling head/vertical axis: +/- 15° --> Cutter arbor taper: HSK-B160 --> Maximum cutter traverse path: 300 mm --> Table diameter: 2,500 mm --> Index gear diameter: 2,200 mm --> Table bore --> Diameter: 800 mm --> Depth: 875 mm --> Maximum table load approx.: 40,000 kg --> Max. feed and rapid traverse speeds: --> Axial (Z-axis): 4,000 mm/min --> Radial (X-axis): 3,000 mm/min --> Tangential (Y-axis): 3,000 mm/min --> Cutter cooling lubrication system/Electric centrifugal pump: approx. 150 l/min --> Discharge height of elevated magnetic chip conveyor: 1,600 mm --> Raised main column: 1,300 mm axial slide travel --> Internal profile milling head as motorized milling head instead of standard motorized milling head Dwedpfswzyp Iex Aa Hef --> Max. machinable profile depth in steel with approx. 600 N/mm² tensile strength: approx. 65 mm --> Infinitely variable cutter speed: 50 – 150 rpm --> Max. cutter diameter: 440 mm --> Min. cutter root circle diameter: 310 mm --> Max. cutter width: 90 mm --> Min. internal diameter at 0° helix angle: 800 mm *) --> Max. workpiece height at 0° helix angle: 600 mm --> Max. workpiece ring thickness (including clamping device): 500 mm

Stanje: rabljeno, Leto izdelave: 2007, Werkstück-Nenndurchmesser 2400 mm Werkstückdurchmesser - max. 2800 mm Modul - max. 30 mm Steuerung Siemens Sinumerik 840 D Teilraddurchmesser 2200 mm Tischdurchmesser 2500 mm Tischbohrung Durchmesser / Tiefe 800 / 875 mm max. Tischbelastung 40000 kg Tischdrehzahl 4,5 min-1 Dsdpfxsw Rf S Se Aa Hswf Einspannlänge max. 375 mm Einspanndurchmesser max. 350 mm Fräser Durchmesser max. 2800 mm Fräserdornkegel HSK-B160 Schwenkbereich Fräskopf + 30/-45° Abstand Fräser - Werkstück 615 / 1600 mm Maschinengewicht ca. 57 t Schlittenantriebe: - Vorschub - & Eilganggeschwindigkeit: - axial 4000 mm/min - radial 3000 mm/min - tangential 3000 mm/min Ausstattung/Zubehör: - Innenfräskopf IFK2 - Fräsdorn mit Distanzscheiben - Späneförderer - Ölnebelabsaugung - technische Dokumentation

Stanje: rabljeno, Face plate diameter: 400 mm Maximum pitch circle diameter: 133.4 mm Short taper mount, size 6 / DIN 55027 Clamping plate / four-jaw chuck with individually adjustable jaws Short taper mount size 6 according to DIN 55027 Stud bolts with collar nut Dwjdpfx Aajfu Tr Sj Hef Including 2 sets of jaws

Stanje: rabljeno, face plate, faceplate chuck, four-jaw chuck Dodod Ez Rtjpfx Aa Hjwf - Chuck size: Ø 400 mm - Short taper spindle mount: 6 - Weight: 66.5 kg

Stanje: rabljeno, Faceplate, faceplate chuck, four-jaw chuck Dodpfxsdz U S Hj Aa Howf - Chuck size: Ø 367 mm - Thread: M76x6 mm / M91x3 mm - Weight: 31 kg

Stanje: rabljeno, Face plate, face plate chuck, four-jaw chuck - Chuck size: Ø 900 mm - Short taper: 11 Dwedpfx Aaec Ih Rwo Hsf - Taper diameter: Ø 196 mm - Bolt circle: Ø 235 mm - Through-hole diameter: Ø mm - Weight: 238 kg

Stanje: rabljeno, Face plate, face plate chuck, four-jaw chuck, facing lathe chuck - Chuck size: Ø 350 mm - Mounting thread: M60 x 5.5 mm - Recess diameter: 64 mm, length: 27 mm Djdpoduiw Eofx Aa Howf - Weight: 20 kg

Stanje: rabljeno, Faceplate, faceplate chuck, four-jaw chuck - Chuck size: Ø 400 mm - Taper mount with keyway: Ø 105 mm - Bore: Ø 80 mm - Weight: 35 kg Dwsdpfoduiw Tox Aa Hof
