Aluminijasta krožna žaga

GRAULE ZS 170 N

Stanje: novo, Crosscut and Mitre Circular Saw GRAULE ZS 170 N - tiltable - Included: - Crosscut and Mitre Circular Saw GRAULE ZS 170 N - tiltable - - without machine stand and saw blade - Included: - Machine Stand GRAULE for type ZS 135 N and ZS 170 N Included: - Infeed Roller Conveyor GRAULE type RO complete with support legs and connecting angle Ball-bearing plastic rollers Ø 40 mm, Roller width 300 mm, roller spacing approx. 300 mm, Support legs for roller conveyor height 885 +/- 10 mm Included: - Roller Conveyor/Length Stop GRAULE type RLK with scale and material stop foldable to the rear. Ball-bearing plastic rollers Ø 40 mm, Roller width 300 mm, roller spacing approx. 300 mm, Support legs for roller conveyor height 885 +/- 10 mm Lajdpfou R Sypsx Ahusc - new showroom machine -

Leto izdelave: 2008, stanje: zelo dobro (rabljeno), Funkcionalnost: popolnoma funkcionalen, Elektronski nadzor osi X Pozicijska hitrost osi X (m/min): 25 Pnevmatsko nagibanje glav Zunanji naklon 45°/22° Mehanična nastavitev vmesnih kotov Olepnevmatični pomik žage Ljdpfx Ahoyv Ag Seujac Uporabna dolžina reza (mm): 5.000 Minimalni standardni rez z 2 glavama pri 90° (mm): 310 Premer žaginega lista (mm): 450 dotikalo

Stanje: zelo dobro (rabljeno), Leto izdelave: 1996, številka stroja/vozila: 1996/1/20, Funkcionalnost: popolnoma funkcionalen, vhodna napetost: 230.400 V, vhodna frekvenca: 50 Hz, premer žaginega lista: 420 mm, vrsta nastavitve višine: mehanski, izvrtina žagine plošče: 40 mm, vrsta aktuacije: ročni, skupna dolžina: 9.000 mm, skupna širina: 1.400 mm, skupna višina: 1.800 mm, višina mize: 900 mm, leto zadnje generalne obnove: 1996, Oprema: CE označba, GRAULE ZS 170N Abläng- und Gehrungskreissäge - schwenk und neigbar – Sägeblattdurchmesser: 420 mm Nennspannung: 400/230 V, 50 Hz Elektronische Anzeige für Gehrung und Neigung neigbar nach links 45 °, nach rechts bis 25 ° links schwenkbar bis 60° rechts schwenkbar bis 45° Schnitthöhe 170 mm Schnittbreite 430 mm bei 90° Inklusive Maschinenständer und Sägeblatt Zubehör: Zufuhrrollenbahn GRAULE komplett mit Stützfüßen und Anschlusswinkel Lodpfx Ahjzbh Hgjusac Kugelgelagerte Kunststoffrollen Ø 40 mm, Rollenbreite 300 mm, Rollenabstand ca. 300 mm, Stützfüße für Rollenbahnhöhe 885 +/- 10 mm Rollenbahn mit Handradlängenanschlag GRAULE mit elektronischer Längenanzeige SIKU pneum. nach hinten wegklappbarer Materialanschlag. Kugelgelagerte Kunststoffrollen Ø 40 mm, Rollenbreite 300 mm, Rollenabstand ca. 300 mm, Stützfüße für Rollenbahnhöhe 885 +/- 10 mm Späneabsaugung

Stanje: zelo dobro (rabljeno), Leto izdelave: 2011, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 2011/67/47, premer žaginega lista: 420 mm, vhodna napetost: 400 V, izvrtina žagine plošče: 40 mm, vhodni tok: 6 A, Ponujamo zelo dobro ohranjeno GRAULE ZS 170 N za poševno in kotno žaganje aluminija in lesa, letnik 2011. Tip: ZS 170 N Letnik/serijska številka: 2011/67/47 Premer žaginega lista: 420 mm Premer odprtine: 40 mm Nazivna napetost: 400/230 V Ledpfx Asy D Nkgohueac Nazivni tok: 6,4/11,0 A Frekvenca: 50 Hz Če imate vprašanja ali potrebujete več informacij, nam pišite ali nas pokličite.

Leto izdelave: 2004, stanje: pripravljen za uporabo (rabljen), A fully automatic glazing bead saw by Schüco is available. Saw blade diameter: 400mm, cutting angles: 45°/90°, motor type: E63SP-2, speed: 2800 rpm. An on-site inspection is possible. Lodpfxowu Ez Ne Ahueac

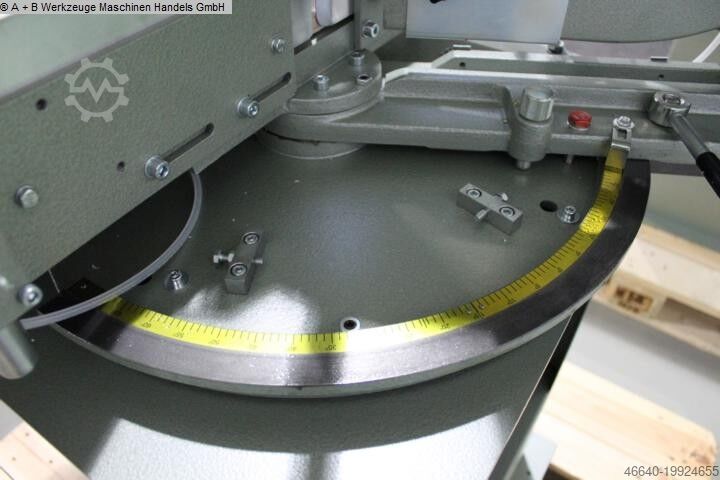

Stanje: novo, Description: - Crosscut and mitre circular saw with a maximum cutting height of 170 mm - Saw head adjustable in two planes for mitre cuts - Sturdy cast iron construction - Precision ball bushing guide for tool carriage on hardened and ground steel shafts - Manual saw feed - Quick mitre adjustment up to 25° horizontally and up to 45° vertically - Adjustable fixed stops at 90° and 45° - Lower blade guard connectable to extraction system Scope of delivery: Laedpsvwf Rdofx Ahuec 1 x Graule crosscut and mitre circular saw, Type ZS 170 N incl. surcharge for 3 kW 400 Volt motor 1 x machine stand for types ZS 135 N and ZS 170 N Technical data: - Motor: 400 V / 3.0 kW - Speed: 3500 rpm - Cutting length: 410 mm - Cutting width: 410 mm at 90° / 290 mm at 45° - Cutting height: 170 mm at 90° / 115 mm at 45° - Mitre range horizontal: 45°-90°-25° - Mitre range vertical: 90°-45° (tilted to the left) - Saw blade diameter: 420 mm - Extraction connection diameter: 100 mm - Weight: 120 kg

Stanje: novo, Description: - Crosscut and mitre circular saw with a maximum cutting height of 170 mm - Saw head manually adjustable for mitre cuts on two planes - Robust grey cast iron construction - Precision linear ball bearing guide for the saw head on hardened and ground steel shafts - Manual saw feed - Rapid mitre adjustment up to 25° horizontally and up to 45° vertically - Adjustable positive stops at 90° and 45° - Lower blade guard can be connected to an extraction system Scope of delivery: 1 x Graule crosscut and mitre circular saw type ZS 170 N incl. surcharge for 3 kW 400 Volt motor Technical data: - Motor: 400 V / 3.0 kW - Speed: 3,500 rpm Laedpfxovwf N Te Ahuoc - Cutting length: 410 mm - Cutting width: 410 mm at 90° / 290 mm at 45° - Cutting height: 170 mm at 90° / 115 mm at 45° - Mitre range horizontal: 45°-90°-25° - Mitre range vertical: 90°-45° (tilts left) - Saw blade diameter: 420 mm - Extraction connection diameter: 100 mm - Weight: 120 kg

Stanje: zelo dobro (rabljeno), Four-side planer Weinig Maximum planing width: 230 mm Maximum planing height: 120 mm 5 heads: bottom - 5.5 kW; left and right - 11 kW each; top - 11 kW; bottom - 5.5 kW Laodpfx Aerigxyohujc Feed motor - 4 kW Fully adjustable heads Electrically adjustable height and width of planing Spindles: 40 mm Feed on cardan shafts, with stepless adjustment Solid planer from WEINIG Total machine length: 415 cm Machine tested, in original condition

Stanje: novo, Leto izdelave: 2025, Funkcionalnost: popolnoma funkcionalen, izvrtina žagine plošče: 40 mm, Oprema: dokumentacija / priročnik, Krožna žaga za vzdolžne in poševne reze Tip: ZS 170N Motor: 400 V / 2,0 kW Hitrost vrtenja: 3500 obr/min Dolžina reza: 410 mm (pri 90°) Višina reza: 170 mm (pri 90°) Območje poševnih rezov - horizontalno: 45°-90°-25° Območje poševnih rezov - vertikalno: 90°-45° (levo) Premer žaginega lista: 420 mm Premer odsesovalnega nastavka: 100 mm Teža: 120 kg Lsdpfx Aeypwhpshueac

Stanje: rabljeno, Leto izdelave: 2025, Cutting height at 90°: 170 mm Cutting length: 430 mm Mitre range horizontal: 45°-90°-25° Mitre range vertical: 60°-90°-30° Swivel adjustment with hand crank: yes Roller conveyor / support table: no Saw blade diameter: 420 mm Speed: 2800 rpm Motor power: 3 kW Motor brake: yes Extraction connection: 100 mm Machine length: Ljdpfxsiixxns Ahueac Machine width: Weight: 110 kg

Stanje: novo, Load capacity 500 kg Number of suction cups: 6 Diameter of suction cups: 215 mm Vacuum Lifter VH 6-500 For horizontal transport of smooth, dry, and airtight panels. Robust load-bearing structure made of steel, painted in RAL 2000 with low dead weight. Consisting of: - 1x Galvanized longitudinal beam, length 2,400 mm - 3x Galvanized crossbeams, each 1,000 mm in length - 6x Spring-mounted, articulated, and adjustable suction cup holders - 6x Suction cups Ø 215 mm; in case of wear, the sealing ring can be replaced separately from its metal carrier, cost-effectively and without tools - 6x Ball valves for individually shutting off each suction cup, enabling smaller formats to be lifted without moving the suction cups or beams - 1x Spiral connection cable, small coil: * extendable to 3,500 mm, version as extension cable with CEE plug and coupling * routed next to the load chain to the hoisting device - Low-maintenance, high-quality, dry-running rotary vane vacuum pump with a suction capacity of 8 m³/h and a final vacuum of 85% (150 mbar) - Electrical connection: 3-phase 230/400 V + PE, 50 Hz, with cable (approx. 0.5 m long) and CEE plug (16 A). Isolation transformer integrated into the control system (necessary if the vacuum lifter is connected via the crane trolley and there is no neutral conductor) - Extendable operator handle to 1,000 mm from beam center. Sturdy metal pouch for your crane control included at no extra charge. - Operation "Suction / Release" via manual slide valve: Wear-free and highly robust manual slide valve for safe suction and release after pressing the release button (double-action release according to EN 13155) - Control and safety unit for vacuum lifter: * Robust control box * Contactor circuit for the vacuum pump * Safety warning device with audible signal * Vacuum gauge with danger zone indication * Large vacuum reservoir with safety non-return valve * Double-action operation for load release - Fine dust filter to protect the vacuum pump - Comprehensive and easily understandable documentation - Warranty on material and manufacturing defects: one year in single-shift operation (excluding wear parts) Laedpjq Sc Aujfx Ahujc Initial inspection according to UVV 18, VBG 9a with CE declaration of conformity according to EN 13155 - Packaging suitable for truck transport.

Stanje: novo, Leto izdelave: 2024, številka stroja/vozila: 2024/121/47, Funkcionalnost: popolnoma funkcionalen, premer žaginega lista: 420 mm, GRAULE crosscut and mitre circular saw Type ZS 170 N (tiltable) 400 Volt three-phase brake motor 2.2 kW Saw blade diameter: 420 mm Blade bore: 40 mm Laodpjtwz Tlofx Ahujc Cutting height: 170 mm Blade tilted at 45°: cutting height 115 mm, cutting length 410 mm Including the following accessories: 1 pc. machine tiltable from behind on both sides by hand crank: from 90° to the left up to 45° and to the right up to approx. 30°, up to approx. 60° 1 pc. TCT (carbide-tipped) circular saw blade 420x3.4/2.4x30 mm, 48 teeth, negative hook angle for wood 1 pc. machine stand
