Vibracijski stroj za dodelavo

GERD WOLFF VKUE 200

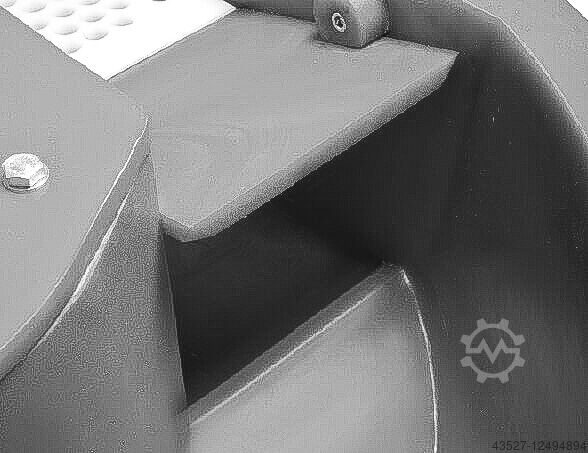

Stanje: novo, Leto izdelave: 2025, Weight: 340 kg Diameter: 960 mm Pgedpfxot U Sffo Adyjg Height: 980 mm Capacity: 219 l Vibratory finishing machines with separator The VKUE series machines can be used for surface finishing of metallic and non-metallic workpieces. These machines feature a large screening area, allowing for easy separation of workpieces from abrasive media. Optional accessories: - Pneumatic sound-dampening cover - Pneumatic flap control - Frequency control - Dosing pump - Magnetic valve - Basic control panel - Rinsing pipe (various types) Images are for reference only. Optional accessories are available at an additional cost.

Stanje: rabljeno, Leto izdelave: 1992, Clamping force 600 kN Clamping plate 460x460 mm Distance between columns 300x300 mm Machine weight approx. 4.5 t Clamping stroke 230 mm Ejector force 40 kN Ejector stroke 70 mm Mold height 120-350 mm Pedsfrvzvjpfx Adyjgg Column diameter 56 mm Casting force 55 kN Casting stroke 130 mm Casting plunger diameter 45, 50, 55 mm Casting volume (DIN 24480) 76, 121, 165 cm² Specific casting pressure 345, 280, 231 kp/cm² Associated parting surface 174, 214, 260 cm² Withdrawal stroke 150 mm Used die casting machine DAW 50 with SBC2 control unit for use with zinc alloys. Available from used machinery stock. The machine is equipped with an electric furnace by Rauch MO50E and a used pneumatic spraying device 401 by Oskar Frech. Manufacturer's recommendation is an overhaul at the refurbishing facility. The scope of the overhaul can be agreed upon.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2014, obratovalne ure: 66.600 h, Funkcionalnost: popolnoma funkcionalen, Oprema: dokumentacija / priročnik, transportni trak za ostružke, vrtilna hitrost brezstopenjsko nastavljiva, We offer you the following: Technical data: Controller: Heidenhain iTNC 530 HSCI Travel ranges: - X-axis travel: 600 mm - Y-axis travel: 500 mm - Z-axis travel: 500 mm Main spindle: - Speed range: 20 – 18,000 rpm NC rotary table: - Clamping surface: 600 x 500 mm - Maximum load: 400 kg - B-axis: -5° to +110° - C-axis: 360° Tool changer: - Tool holder: HSK-A63 - Number of tool positions: 210 Equipment and accessories: - Heat exchanger for spindle and table Pedpfx Aexgnz Tsdysgg - Active cooler for control cabinet - Direct measuring system - Full enclosure - 3D control - DMG ERGOline control - Direct measuring systems in NC swivel rotary table incl. table cooling - Laser tool measurement BLUM NT - Calibration arbor with tool holder - Infrared probe, Heidenhain TS 649 - Prepared for 3D quickSET - Scraper belt chip conveyor - ICS (internal coolant supply), 40 bar, 600l tank, incl. rotating inspection window, barrier air, linear measuring systems, bed flushing - Rinsing gun - Mechanical oil and emulsion mist separator - Air blast through the center of the spindle - Operating mode 4 - Machine preparation for handling systems, consisting of: - Automatic, lateral loading door - Electrical interface for articulated-arm robot - Pneumatic control and monitoring of the zero point clamping system - Selection/deselection of handling system via switch on the machine control panel - Incl. additional rinsing in the working area - Incl. machine preparation for job management - Incl. control panel arrangement left - Energy supply to the machine table incl. two-channel rotary union - Additional machine-side clamping hydraulics, 1 clamping circuit: - Clamping hydraulics, 1 circuit, 30 – 240 bar, pressure adjustment via proportional valve technology - Incl. rotary union extension to 4 channels Power-on hours: approx. 66,600 h Spindle hours: approx. 44,800 h The robot shown in the images is not included in the scope of delivery. The machine will be available approximately from October/November 2025. The ball screws and linear guides in the X and Z axes have been renewed. Accessories, pictured tools, and clamping devices are included in the delivery only if explicitly stated in the additional information. Technical data, specifications, and prior sale subject to change and errors!

Stanje: zelo dobro (rabljeno), Leto izdelave: 2010, Funkcionalnost: popolnoma funkcionalen, stružna dolžina: 810 mm, premer struženja nad prečnim suportom: 800 mm, premer struženja: 320 mm, moč vretenovega motorja: 25.000 W, največja hitrost vretena: 5.000 obr/min, izvrtina vretena: 73 mm, potovalna razdalja osi X: 210 mm, pomik osi Y: 110 mm, pomik po osi Z: 810 mm, hitro pomikanje X-os: 30 m/min, hitri pomik os Y: 20 m/min, hitri pomik na osi Z: 50 m/min, največja hitrost vrtenja: 6.000 obr/min, CNC FANUC MSX-701 / MAPPS IV CAPACITIES Swing diameter over bed: 800 mm Swing diameter over cross-slide: 800 mm Psdpfswlvlgox Adyogg Maximum turning diameter: 320 mm Standard turning diameter: 200 mm Maximum distance between centres: 1,130 mm Maximum turning length: 810 mm Maximum workpiece dimensions: 300 mm TRAVELS Turret X axis 1 & 2: 210 mm Turret Y axis 1 & 2: +65 / -45 mm Turret Z axis 1 & 2: 810 mm Head B axis 2: 920 mm MAIN SPINDLE Maximum spindle speed: 5,000 rpm Spindle motor power (30 min / continuous): 25/22 kW Maximum bar working diameter: 65 mm Spindle bore: 73 mm Spindle diameter at front bearing: 120 mm Spindle nose: JIS A2-6 C-axis resolution: 0.001° SUB-SPINDLE Maximum speed: 5,000 rpm Spindle motor power (30 min / continuous): 25/22 kW Maximum bar diameter: 65 mm Spindle bore: 73 mm Spindle diameter at front bearing: 120 mm Spindle nose: JIS A2-6 C-axis resolution: 0.001° FEED RATES Turret 1 rapid traverse X/Y/Z: 30/20/50 m/min Turret 2 rapid traverse X/Y/Z: 30/20/50 m/min TOOL TURRETS Number of turrets: 2 Number of tool stations per turret: 16 Turning tool shank section: 20 x 20 mm Maximum boring bar shank diameter: 32 mm Turret rotation time (1 position): 0.18 sec Max speed of driven tools: 6,000 rpm Driven tool motor power (5 min / continuous): 7.5/5.5 kW DIMENSIONS Footprint with chip conveyor: 5,120 x 2,720 mm Net weight: 8,300 kg Machine equipped with: • High-pressure coolant system • Bar feeder interface • Gantry parts discharge arm • Cut force management and load monitor system • No. 1 double radial driven tool holder • No. 3 axial driven tool holders • No. 2 external tool holders • No. 2 double boring bar tool holders • No. 2 single radial driven tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centring chucks, 210 mm diameter • No. 1 set of jaws for each self-centring chuck • Operating manuals and CE Declaration Year of manufacture: 2010

Stanje: novo, Leto izdelave: 2026, The EVP-RA 350 vibratory finishing machine by ERBA features an inclined process channel bottom with integrated separation. The machine is equipped with an easily replaceable screening unit and is distinguished by high operational efficiency thanks to an integrated drop zone. Unloading and separation are carried out via the integrated discharge flap (manual/pneumatic). Upon request, the machine can be fitted with a reinforced spring assembly and a more powerful motor for higher loads. The motor speed can be infinitely adjusted with a frequency converter (optional). Thanks to its side discharge outlet, the EVP-RA 350 can be linked with other machines. The system can be optionally equipped with a fully automatic PLC control. ERBA vibratory finishing systems are renowned for their durability and longevity, owed in part to the hot-cast polyurethane lining of the process channel. Technical specifications: - Gross volume: 385 liters - Channel width: 340 mm Pgsdpfon Ut Urjx Adyog - Imbalance motor output: 2.2 kW - Speed: 1,400 rpm - Internal diameter of process channel: 1,200 mm All prices are net, plus the applicable statutory VAT and shipping costs. The images may show the machine with accessories, which are optionally available at additional cost. If you are interested, we look forward to hearing from you. We will be happy to advise you without obligation. The European Commission provides a platform for out-of-court online dispute resolution (ODR platform). The offer is intended solely as an online presentation of our goods. Contract negotiations take place via telecommunications (email, telephone, messaging portal). In the first instance, we will provide you with a non-binding offer, which includes our general terms and conditions with legal notice and information on the right of withdrawal before any purchase/contract conclusion.

Stanje: novo, Leto izdelave: 2023, Highly Efficient Series Production Clamping – Enter cutting dimension – Start. Automatic saws with feed are standard in efficient serial processing of bar and bundle materials. Maximum cutting range up to 290 x 320 mm. Equipment Automatic hydraulic sawing machine with NC control designed for cuts from 0° to 60° right, compliant with all CE safety standards The unit features 9 programs, each consisting of up to 99 individual steps, with a total of approximately 890 cutting positions and corresponding piece counter Function: Material feed, closing of fixed vice, blade rotation, distribution of emulsifiable fluid, bow descent until completion of the cut and return of the feed carriage to Pgjdpfx Ajfww Sqsdyog the set position, bow return and blade rotation stop via coolant distribution, cycle repetition Hydraulic feed, cut by cut, without length limitation Numeric control of quantity and cut length Hydraulic control unit with adjustable cutting pressure Blade tension is monitored electro-mechanically via microswitch. Device with brush for band cleaning Bimetallic band 3200 x 27 x 0.9 mm Kerf 1.2 mm Material feed stroke 600 mm Hydraulic power unit motor 0.75 kW Electric pump 0.09 kW for band cooling You are welcome to inspect the desired system at any time in our production/demo hall. Do not hesitate to contact us for more information. Plantec Maschinen GmbH

Stanje: zelo dobro (rabljeno), Leto izdelave: 2001, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 930088, Country of manufacture: CH Voltage: 400V / 50/60Hz / 3ph. Net weight (machine + control cabinet): 3,250 kg + 400 kg Customs tariff number: 8456.30 20 Dimensions: 260 x 281 x 225 cm TECHNICAL SPECIFICATIONS Type of machining: immersion Maximum workpiece dimensions: 1200 x 700 x 400 mm Maximum workpiece weight: 1,500 kg Table dimensions: 900 x 600 mm Floor to table distance: 900 mm Total dielectric volume: 1,200 L X, Y, Z, U and V axes Travel X, Y, Z: 550 x 350 x 400 mm Travel U, V: 550 x 350 mm Collision protection: X, Y, U, V, Z axes Taper cutting, max. angle: +/- 30° / 400 mm Available wire diameters: Ø 0.25 mm (options 0.1/0.2/0.3 mm) Wire guide type: closed diamond, no gap Available spool weight and type (DIN standard): 1.6 kg (K 100) to 8 (K 160) Available spool weight and type (JIS standard): 3 (P3) to 5 (P5) Dielectric Paper filters: 2 cartridges Dielectric temperature: +/- 1°C Total deionization resin volume: 20 L Maximum injection pressure: 20 bar Psdpfsw Ucyujx Adyjgg Generator: dual Isopulse source Power supply: 380/400V 3-phase Total power: 10 KVA Maximum cutting speed: 400 mm²/min Minimum achievable surface roughness: 0.20 micron Ra Measuring system: glass linear scales Measuring resolution: 0.5 micron Servomotors: AC type All technical data is given without obligation and subject to errors or omissions.

Stanje: zelo dobro (rabljeno), Hello, We are offering used Erowa PalletSetW vices. All items have been cleaned and tested by us. - ER-025895 Vice PalletSet W 40mm - ER-054922 Flat Vice 8mm PalletSet W - ER-055774 Vice 0-170mm Additionally, a full functionality check was performed. These vices show minor signs of use, but are in very good technical condition. Single unit purchase is also possible. Spare parts are available as well. If you have any questions, please do not hesitate to contact us. Psdsitcq Topfx Adyogg

Stanje: rabljeno, Leto izdelave: 1998, Polnilna prostornina 620 litrov Zunanji premer posode 1695 mm Dolžina posode (raztegnjena) 3800 mm Širina delovne kadi 430 mm Število vrtljajev 900 - 1485 obr/min Obratovalna napetost 400 V Skupna priključna moč 7,5 kW Pgedow Hnr Iopfx Adyog Teža stroja pribl. 1600 kg Potreben prostor pribl. 1,80 x 1,70 x 1,30 m - Tovarniška št.: 18585/98-03 - z brezstopenjsko nastavitvijo vrtljajev (frekvenčni pretvornik) - s pnevmatsko ločevalno loputo

Stanje: dober (rabljeno), Leto izdelave: 2011, GILDEMEISTER CNC twin-spindle turning center Model: CTX beta 1250 4 A Machine No.: 00700000211 Year of manufacture: 2011 Control: CNC path control incl. 19” TFT Siemens Sinumerik 840 D sl solution line with ERGOline control and ShopTurn 3 G Power-on hours: 41,378 h Program run time: 24,814 h Psdpfjwcxlwjx Adysgg Technical data and equipment available on request
