Formatna žaga

FIMAL CONCEPT 350

Stanje: novo, Moč motorja 5 kW Premer žaginega lista 300-350 mm Hitrost podajanja 0-40 m/min Teža približno 1.300 – 1.800 kg Fimal - Concept 350 Elite "Partnership Edition" krojna žaga z pritiskalnim nosilcem Dolžina reza: 3.200 mm (druge dolžine reza na zahtevo) ----- združuje prednosti različnih sistemov žaganja. Je prilagodljiva, kot je krožna žaga za rezanje plošč, natančna in varna, kot je krojna žaga z pritiskalnim nosilcem, in ergonometrična, kot je vzdolžna žaga. ----- Opis proizvajalca: - Aluminijasta strojna miza in miza za pritrditev - Žagana glava, ki se nagiba do 46° - Pritiskalni nosilec, vključno z LED osvilitvijo s 3 različnimi barvami: BELA: Stroj v stanju počitka RDEČA: Pritiskalni nosilec se spušča ali funkcija izrednega ustavitve MODRA: Žagana glava se premika - Univerzalna miza za podpiranje, 1.000 x 500 mm - Sistem predrezovanja z glavnim žagnim listom pri sočasnem delovanju - Samodejno zaznavanje dolžine obdelovanca za minimalne poti premikanja - Mobilna in po višini nastavljiva upravljalna plošča, vključno z: stojalom za žagni list, nosilcem za predloge, gumbom za izredno ustavitvijo, gumbom za zagon, izbirnim stikalom za žaganje utorov/rezov/plošč, rotacijskim stikalom za hitrost podajanja, stikalom za laser (opcija) in vtičnico USB Partnership Edition vključuje: - Motorizirani bočni omejevalnik s 4 aluminijastimi omejevalniki, ki se sinhronizirano premikajo. Vsi 4 omejevalniki se premikajo do 1.300 mm. Miza je približno 2.000 mm široka. - Nadzor s zaslonom Windows (10‘‘ zaslon na dotik). Grafični vmesnik ponuja naslednje funkcije: baza podatkov za orodja, izračun naklonjenega reza na dolžinskem omejevalniku, izdelava in shranjevanje načrtov rezanja, programi se lahko shranjujejo, izvažajo in uvažajo na USB. - Teleskopski omejevalnik, ki se razširi do 3.400 mm, vključno z 2 digitalnima prikazovalnikoma Tehnični podatki: - Maks. previs žaginega lista 350 mm, žagni list: 100 mm pri 90° / 70 mm pri 45° - Žagni list: premer 300 – 350 mm, luknja 30 mm - Hitrost vrtenja žaginega lista: 4.000 vrt/min. - Motor: 5 kW (= 7,5 KM) - Hitrost podajanja: 0 – 40 m/min. - Skupna dolžina: približno 2.650 - 4.250 mm (odvisno od dolžine reza) - Teža: od približno 1.300 do 1.800 kg (odvisno od dolžine reza in opreme) - Potreben tlak zraka: 7 bar - Odvodni priključek: 1 x 100 mm, 1 x 120 mm ----- Cena zgoraj omenjenega stroja z izbrano opremo na zahtevo! ----- Modelne variante: - CONCEPT 350 Elite z dolžino reza 2.600 mm - CONCEPT 350 Elite z dolžino reza 3.200 mm - CONCEPT 350 Elite z dolžino reza 3.800 mm - CONCEPT 350 Elite z dolžino reza 4.200 mm in več na zahtevo! Splošne možnosti z dodatno ceno: Dusdpjwli Nrjfx Altew - 47/17 Multistop 2.100 mm, motorizirani bočni omejevalnik se premika do 2.100 mm namesto do 1.300 mm - FIMAL389 višina reza 150 mm s fiksno žagno glavo, popolnoma vključno z: programirljivim nastavljanjem višine žaginega lista žagnim motorjem z brezstopenjsko regulacijo hitrosti 1.500 – 4.300 vrt/min - 3410451 laserski žarek za označevanje linij reza, zelen - žagni motor z 7,5 kW (10 KM), vključno z avtomatskim zagonom z zvezdo-trikot - 41/04 programirljivo nastavljanje višine žaginega lista, vključno s korekcijo višine pri nagibanju žagne glave - 3380132 nagibni omejevalnik +/- 50°, nagibna možnost z izravnavo dolžine, vključno s teleskopskim omejevalnikom z zložljivim omejevalnikom - 3380135 nagibni omejevalnik +/- 50°, nagibna možnost z izravnavo dolžine...

Stanje: rabljeno, Leto izdelave: 2016, skupna dolžina: 6.400 mm, skupna širina: 1.500 mm, skupna višina: 1.700 mm, Teža: 1.500 kg Cena: Na zahtevo - Letnik izdelave: 2016 - Dokumentacija na voljo: Ne - CE certifikat: Ne - Maksimalna dolžina reza [mm]: 3200 - Minimalni premer žage [mm]: 300 - Maksimalni premer žage [mm]: 350 - Premer luknje žage [mm]: 30 - Premer odvodnega priključka za prah [mm]: 120 - Hitrost vretena: Avtomatska - Maksimalna hitrost vretena [rpm]: 4000 - Napetost [V]: 400 - Poraba električnega toka [A]: 18,5 - Varovalka [A]: 25 Dusdpfxeyvh Rvo Altjw - Dimenzije za transport: 6400 mm x 1500 mm x 1700 mm (d x š x v) - Teža za transport [kg]: 1500 kg - Paketi za transport [kos]: 2 Finančne informacije Davek na dodano vrednost: Navedena cena je brez davka na dodano vrednost. Davek na dodano vrednost/razlika: Davek na dodano vrednost je odbitljiv za podjetja. Dobava in odkup so mogoči kadar koli za vse izdelke iz industrijskega sektorja. Yorick Diebels

Stanje: zelo dobro (rabljeno), Leto izdelave: 2022,

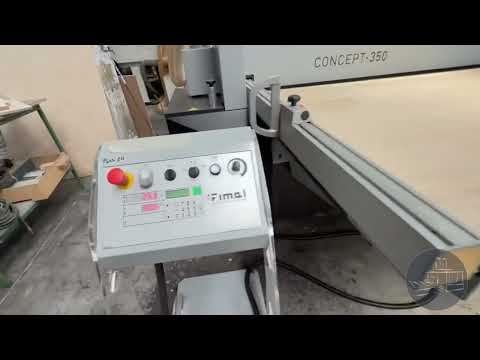

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2020, hitrost žaginega lista: 4.000 obr/min, Panel saw from 2020. The FIMAL concept 350 offers a bending length of 3200 mm and a blade diameter of 300 to 350 mm. It operates at a blade speed of 4000 rpm and features a main motor power of 7.5 HP. If you are looking for a high-quality cutting machine, consider the FIMAL concept 350, which we have available for sale. Contact us for further details. • Model: Concept 350 - 3200 • Squaring length: 3200 mm • Blade diameter: 300–350 mm Dedpoy Dc Dasfx Altjuw • Blade bore: 30 mm • Blade projection (90°): 100 mm (75 mm) • Blade projection (45°): 67 mm (45 mm) • Blade speed: 4000 rpm • Blade group speed (inverter): 40 m/min • Main motor power: 7.5 HP (5.5 kW) • Extraction port: 120 / 100 mm • Extraction air volume: 1800 m³/h • Extraction air speed: 25 m/s • Operating pressure: 7 bar • Air consumption: 85 l/h

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2016, Funkcionalnost: popolnoma funkcionalen, premer žaginega lista: 350 mm, izvrtina žagine plošče: 30 mm, največja hitrost vrtenja: 4.000 obr/min, dolžina rezanja (maks.): 3.200 mm, premer sesalne cevi: 120 mm, TEHNIČNI PODATKI Maksimalna dolžina reza: 3.200 mm Minimalni premer žaginega lista: 300 mm Maksimalni premer žaginega lista: 350 mm Premer luknje žaginega lista: 30 mm Premer nastavka za odsesavanje prahu: 120 mm Maksimalno število vrtljajev vretena: 4.000 obr/min (samodejna nastavitev) PODATKI O STROJU Duodpfxsy Ai U Ao Altew Napetost: 400 V Poraba toka: 18,5 A Varovalka: 25 A Transportni paketi: 2

Stanje: novo, - NEW - Concept 350 ELITE Partnership Edition - Cutting Length 3200 mm - General Features: - Aluminium machine and extension tables - Saw unit tiltable up to 46° - Pressure beam, including LED lighting with 3 different status colors: WHITE: Machine in idle position RED: Pressure beam lowering or emergency stop function BLUE: Saw unit in operation - Variable support table 1,000 x 500 mm - Scoring system using the main saw blade with synchronized rotation - Automatic workpiece length detection for minimal travel distances - Mobile and height-adjustable control panel, including: Saw blade holder, template holder, emergency stop button, start button, selector switch for grooving, scoring, sawing, rotary switch for feed rate, switch for laser (option) and USB socket Partnership Edition, including: - Motorized rip fence with 4 synchronously moving aluminium stops All 4 stops travel up to 1,300 mm. The table is approx. 2,000 mm long. - Windows 10 screen control (10" touchscreen). The graphical interface offers the following functions: Tool database, miter cut adjustment via length stop, Cutting plans can be created and saved, programs can be stored, exported, and imported via USB. - Telescopic fence extendable to 3,400 mm including 2 digital displays Dujdpfxswzmvbe Altew Technical Data: - Max. saw blade projection 350 mm - Sawing height: 100 mm at 90° / 70 mm at 45° - Saw blade: diameter 300 – 350 mm, bore 30 mm - Saw blade speed: 4,000 rpm - Motor: 5 kW (= 7.5 HP) - Feed speed: 0 – 40 m/min. - Overall length: approx. 4,250 mm - Weight: approx. 1,300 – 1,700 kg (depending on cutting length and equipment) - Required air pressure: 7 bar - Extraction connections: 1 x 100 mm, 1 x 120 mm - Order No.: FIMAL379 Included: - Motorized rip fence with 4 aluminium stops that travel up to 2,100 mm instead of 1,300 mm. Order No.: 47/17 - Cutting line laser Order No.: 3410451 - Saw motor 7.5 kW (10 HP) including automatic star-delta starting Order No.: Programmable saw blade height adjustment including height correction when tilting the saw unit Optional accessories (available at extra cost): - Mitre fence, tiltable +/- 50° with length compensation Order No.: 3380132 including telescopic fence and flip stop

Stanje: kot nova (razstavni stroj), Funkcionalnost: popolnoma funkcionalen, moč: 7,35 kW (9,99 KM), največja višina reza: 105 mm, največja širina rezanja: 2.100 mm, premer žaginega lista: 350 mm, skupna dolžina: 4.300 mm, The FIMAL CONCEPT 350 ELITE is the further development of the proven CONCEPT 350 PLUS and sets new standards in precision, safety, and efficiency. With a reinforced machine frame, optimized dust extraction, and a redesigned Multi-Stop fence table, it offers even greater comfort and performance for carpenters, furniture manufacturers, and for industrial panel processing. Thanks to its pressure beam with automatic feed, the ELITE combines the flexibility of a panel saw with the cut quality of a beam saw – all within a footprint of just 28 m². Technical Data: ⦁ Aluminum machine and extension tables ⦁ Saw unit tiltable up to 46° ⦁ Pressure beam, incl. LED lighting with 3 action colors: WHITE: machine in standby RED: pressure beam lowering or emergency stop BLUE: saw unit in motion ⦁ Versatile support table, 1,000 x 500 mm ⦁ Scoring system utilizing the main saw blade running in sync ⦁ Automatic workpiece length detection for minimized travel paths ⦁ Mobile and height-adjustable control panel, incl.: Blade holder, template holder, emergency stop button, start button, mode selector switch grooving/scoring/sawing, feed speed rotary switch, switch for laser (option) and USB socket ⦁ Max. blade projection with 350 mm saw blade: 100 mm at 90° / 70 mm at 45° ⦁ Blade diameter: 300–350 mm, bore 30 mm ⦁ Blade speed: 4,000 rpm ⦁ Motor: 5 kW (= 7.5 HP) ⦁ Feed speed: 0–40 m/min ⦁ Total length: approx. 4,250 mm ⦁ Weight: approx. 1,300–1,700 kg (depending on cutting length and equipment) ⦁ Required air pressure: 7 bar ⦁ Extraction ports: 1 x 100 mm, 1 x 120 mm ⦁ Outrigger table size: 3,670 mm / 4,270 mm / 4,870 mm (total length) ⦁ Tiltable: 0–46° ⦁ Sliding table: 1,000 x 400 mm (extension table) ⦁ Crosscut fence: 3,200 mm with 2 digital stops ⦁ Speed: 4,000 rpm ⦁ Air requirement: 6 bar ⦁ Motor voltage: 400 V (50 Hz) ⦁ Feed speed: 0–40 m/min Optional equipment - Multi-Stop, cutting width 2,100 mm instead of 1,300 mm - Programmable saw blade height adjustment Djdpsw Axf Rsfx Altsuw - Mitre fence +/-50° - Cutting line laser Includes delivery and installation in postal code areas 71, 72, 73, 77, 78, 79, 86, 87, 88, 89

Stanje: kot nova (razstavni stroj), Leto izdelave: 2023, Funkcionalnost: popolnoma funkcionalen, moč: 7,35 kW (9,99 KM), vhodna napetost: 400 V, vhodna frekvenca: 50 Hz, največja višina reza: 105 mm, največja širina rezanja: 1.300 mm, premer žaginega lista: 350 mm, največja hitrost vrtenja: 4.000 obr/min, skupna dolžina: 4.300 mm, skupna masa: 1.300 kg, dolžina rezanja (maks.): 3.200 mm, vrtilni razpon: 45 °, The Concept 350 combines the advantages of various saw systems: as flexible as a panel saw, the cutting quality of a pressure beam saw, and as ergonomic as an edging saw. The sawing concept for modern industrial production. The machine is a returned lease unit. Further technical details: - Motor-driven width stop with 4 synchronized aluminum stops - Screen control with 8" touchscreen - Air requirement: 6 bar - Sliding table: 1,000 x 400 mm (extension table) Dodpfxjwzuips Altjuw - Outfeed table size: 3200 mm with 2 digital stop jaws - Extraction connection: 1 x 100 mm, 1 x 120 mm - Feed speed: 0 - 40 m/min Special equipment: - Programmable saw blade height adjustment - Miter fence +/-50° - Cutting line laser - Additional support table 800 x 200 mm With the new Concept 350, you no longer need a panel saw! The workpiece rests on the machine and is precisely positioned with a pressure beam. The saw unit, which can be swiveled from 90-45°, is guided precisely and cuts your workpiece at a constant feed speed of 0-40 m/min. This guarantees excellent cutting results. The standard cross-cut fence enables quick cutting to length and efficient working – all while taking up significantly less space than any panel saw! Advantages over a panel saw with sliding table: - Requires significantly less space - Pressure beam fixes the workpiece on the machine for optimal cutting results - Pressure beam prevents the operator from reaching into the saw blade - Ergonomic operation, as the operator no longer moves the material through the blade - Time savings, as the operator does not need to guide the material during sawing Including delivery and installation in postcode areas 71, 72, 73, 77, 78, 79, 86, 87, 88, 89
