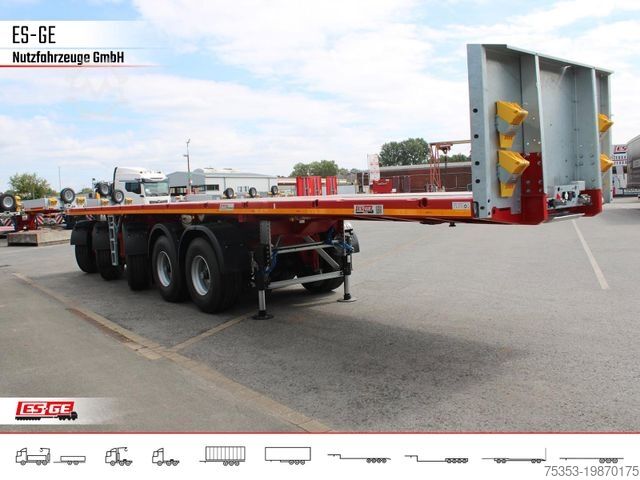

FAYMONVILLE MAX Trailer MAX410 Ballastauflieger

You can find our complete stock of vehicles, including those available immediately and at short notice, on our website.

Excerpt of equipment. Full equipment details available upon request.

Load Area:

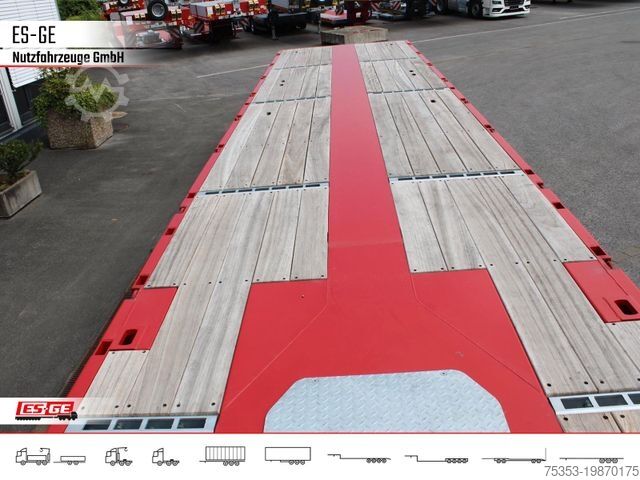

* Load area with approx. 30 mm thick hardwood flooring
* 10 pairs of outward-folding lashing rings (LC 10,000 daN)

Landing Legs:

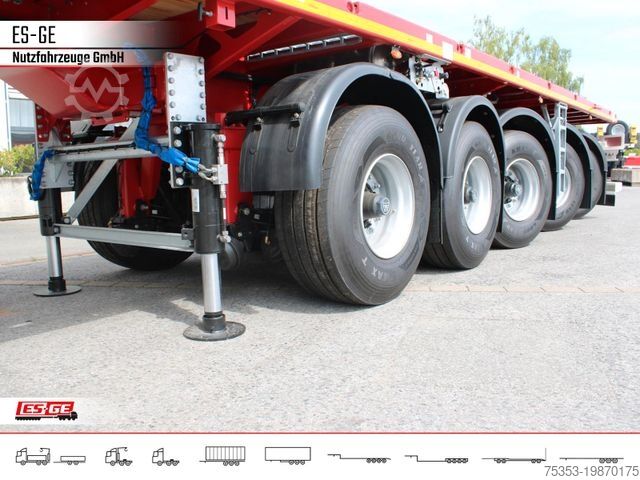

* JOST mechanical landing legs with two-speed gearbox, approx. 24 t lifting capacity (approx. 50 t test load)

Axles and Suspension:
* BPW axles, technical capacity 12,000 kg each
* 1st axle with steered leading axle, 2nd axle rigid, all other axles hydro-mechanically forced steered, mounted on turntables
* Air suspension with lift and lower valve
* Axle tools

Tyres:
* Tyres 445/65 R 22.5 169K - Brand of our choice, TPMS
* TPMS tyre pressure monitoring system as per ECE R 141
* Data transmission to the truck is via standardised EBS interface per ISO 11992
* For correct display, the truck must be capable of transmitting and displaying this data

Brake System:
* Wabco brake system according to EU regulations with EBS-E (4S3M), without connecting lines to the tractor unit

Electrical System:
* Electrical system according to EU regulations
* Lighting 24 Volt ASPÖCK-NORDIK (ASS3)
* All LED side marker lamps flash with the indicator
* ASPÖCK-UNIBOX at the front connection panel with sockets 24N, 24S & 15 pin connection as per ISO. 24N ISO-1185 24S ISO-3731 15 pin ISO-12098

Steel Construction:
* Steel construction made from high-strength fine-grain steels
* Steel grades: S355J2+N/S355MC (yield strength 355MPa) S690QL/S700MC (yield strength 690MPa)

Painting:
* Complete steel construction automatically shot-blasted after welding
* Second abrasive blasting with corundum for optimal adhesion of the coating system
Crodpfx Asw Tpr Usgtoh
* HRM metallisation of the entire vehicle chassis with ZINACOR 850 (85% zinc/15% aluminium) to ensure the best corrosion protection
* Final painting with 2 layers of 2K topcoat, single colour in RAL 3002 Carmine Red according to RAL system 841GL
* Rear section metallised and painted in RAL 9010 (Pure White)
* Rims in silver grey
* Paint system tested in salt spray test according to ISO 9227-NSS
* Cavity sealing with special wax
* Metallic paint not possible

Includes the following accessories:
* Load area with approx. 30 mm thick hardwood flooring
* 2-inch king pin
* One galvanised steel front wall (EN12642-XL), approx. 1,200 mm high
* Yellow-red air couplings at the galvanised front connection rail
* Storage for approx. 1,000 mm plug-in stakes in the rear centre beam
* At the gooseneck and rear panel left and right, each with a holder for warning plates, including socket
* Remote steering from the front and rear via cable remote control with push buttons, with axle tracking monitoring (without installation in the tractor unit)
* Electro-hydraulic unit
* 13 pairs of stake pockets for plug-in stakes approx. 100 x 50 mm in the outer frame of the load area
* Lift axle on 1st and 2nd axle with control via TEBS E depending on current axle load and loading condition
* 7 pairs of galvanised plug-in stakes, approx. 100 x 50 mm, approx. 1,000 mm high
* 5 pairs of transverse stake pocket strips mounted in the load area, for plug-in stakes approx. 100 x 50 mm
* 2 pairs of WADER container pockets in the load area, for 1x10'
* 1 shunting coupling with reinforcement bolted to the rear crossmember
* BEKAMAX (Pico) central lubrication system with standard grease NLGI-2 and removable protection around the pump
* Hydraulic...
