Avtomatska stružnica

Citizen B 16 E6

Stanje: dober (rabljeno), Leto izdelave: 2023,

Stanje: dober (rabljeno), Leto izdelave: 2005, CITIZEN K12 CNC Lathe Automatic TECHNICAL SPECIFICATIONS Max. machining diameter: 12 mm Max. machining length: 200 mm Max. extraction length: 80 mm Max. front drilling diameter: 10 mm Max. front thread diameter: M8 Spindle diameter: 16 mm Spindle speed: 15,000 rpm Max. machining diameter of sub spindle: 12 mm Max. machining length of sub spindle: 40 mm Max. drilling diameter for back machining: 6 mm Max. thread diameter for back machining: M5 Sub spindle speed: 10,000 rpm Tool turret, number of tools: 8 Speed of driven tools: 6,000 rpm X1-axis: 122 mm Z1-axis: 200 mm Z2-axis: 150 mm Weight: 1,950 kg Hjdevrz H Rspfx Af Tofb SCOPE OF DELIVERY Includes (list not exhaustive): Citizen K12 CNC automatic lathe Chip tray Transformer Complete operating documentation Exact scope of delivery as per photo documentation We do not accept any liability for the accuracy, completeness or timeliness of the information provided.

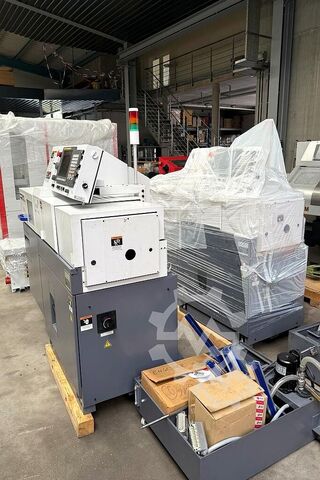

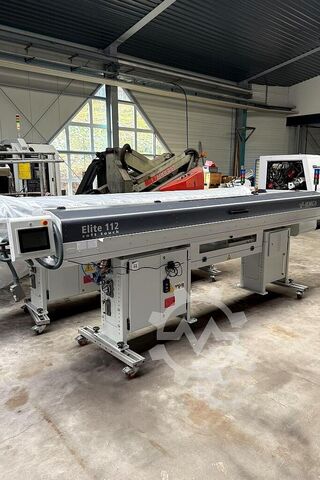

Stanje: zelo dobro (rabljeno), Leto izdelave: 2023, Funkcionalnost: popolnoma funkcionalen, The machine is offered with an Iemca Elite 112/32 bar feeder! TECHNICAL DETAILS Machining Main spindle max. bar diameter: 16 mm Max. machining length without regripping: 135 mm Main spindle max. drilling diameter: 6 mm Main spindle max. thread diameter: M 6 Sub spindle max. bar diameter: 16 mm Sub spindle max. drilling diameter: 5 mm Sub spindle max. thread diameter: M 3 Spindles Main spindle speed: 200–8,000 rpm Sub spindle speed: 200–6,000 rpm Main spindle C-axis indexing: 1° Rapid traverse Rapid traverse X, Y: 21 m/min Rapid traverse Z1, Z2: 15 m/min Tools Driven tool speed: 200–4,500 rpm Max. number of tool positions: 16 Hjdpfx Aoxgd Rkof Tjfb Tool holder: 10 × 10 mm MACHINE DETAILS Drive power Main spindle: 3.7 / 2.2 kW Sub spindle: 1.0 kW Driven tools: 0.5 kW Coolant pump: 0.25 kW Central lubrication pump: 3 W Electrical connection Operating voltage: 200 V Frequency: 50 Hz Phases: 3 Main transformer input voltage: 400 V Main transformer output voltage: 200 V Connected load: 5.2 kVA Pneumatic connection Compressed air connection: min. 5 bar Compressed air consumption: 44 NL/min Machine data Dimensions: 1,590 × 837 x 1,761 mm Spindle height (floor–spindle centre): approx. 1,000 mm Machine weight: 1,150 kg Control Control type: CNC path control Fanuc 0i-TD Smallest input increment: 0.001 mm Smallest output increment: 0.001 mm (Z) / 0.0005 mm (X) Input options: incremental and absolute Interface: RS232 Spindle synchronization: main and sub spindle EQUIPMENT Work area lighting Ejector and parts removal system Coolant tank and central lubrication Door interlock Parts catcher and workpiece container 5 turning tool holders 10 × 10 mm Coolant unit with adjustable spray nozzles Power chucking system for main and sub spindles

Stanje: zelo dobro (rabljeno), Leto izdelave: 2012, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 14891, Leto 2012 s Fanuc 18i-TB Popolnoma pregledan s strani Citizen in pripravljen za proizvodnjo Poreklo izdelave: JP Napetost: 200V/50-60Hz/3f. Dimenzije: 1400x900x1300 mm Neto teža stroja: 950 kg TEHNIČNE ZNAČILNOSTI Krmilnik: Fanuc, Serija 18i-TB, 6 osi (X1/Y1/Z1/X2/Y2/Z3), Največji premer palice: 4 mm, Največja dolžina struženja: 40 mm, Glavno vreteno, največje število vrtljajev: 16.000 rpm (12.000 rpm) Indeksacija: 1° Rotacijska orodja max.: 8.000 vrt/min Proti-vreteno, največje število vrtljajev: 10.000 vrt/min, indeksacija 1° Orodni postaji: skupaj za 8 orodij Hfodpfew T S Iljx Af Tjb Enota vodilne puše: standardno Podatki so podani brez jamstva za morebitne napake ali opustitve.

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2022, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: FA2097, stružna dolžina: 135 mm, največja hitrost vretena: 15.000 obr/min, premer struženja: 12 mm, TECHNICAL DETAILS Max. machining diameter: 12 mm Max. machining length: 135 mm Number of axes: 6 + 2 Main spindle: Z1 + C1 Vertical holder: X1 / Y1 Main spindle Max. drilling diameter: 8 mm Max. tapping diameter: M6 Spindle bore diameter: 20 mm Speed with/without guide bushing: max. 15,000 / 12,000 rpm Sub spindle Max. clamping diameter: 12 mm Max. overhang length: 80 mm Max. overhang length over workpiece: 30 mm Max. drilling diameter: 8 mm Max. tapping diameter: M6 Speed: max. 12,000 rpm Tools in vertical holder Max. drilling diameter: 5 mm Max. tapping diameter: M4 Speed: max. 10,000 rpm Driven tools for rear side machining Max. drilling diameter: 5 mm Max. tapping diameter: M4 Speed: max. 9,000 rpm Tool capacities Vertical holder turning tools: 7 x 12 mm Driven tools on vertical holder: 4 Drill tools: 2 Driven tools for rear side machining: 8 (4 fixed + 4 rotating) Tool dimensions Turning tools: 12 mm Drill sleeves: 19.05 mm MACHINE DETAILS Hsdpfx Afjvyhxpj Tofb Power: 6.6 kVA Voltage: 400 V Net weight: 2,300 kg Dimensions: 1,840 x 970 x 1,710 mm EQUIPMENT - CNC control Meldas 70M - Siemens control panel Logi TDE (year 2022) - Integrated coolant preparation with filtration unit - LNS Tryton bar feeder (year 2022) - Büchele SFB-200 Small pressure boosting unit

Stanje: rabljeno, TECHNICAL DATA - Number of axes: 7 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 16 mm - Max. machinable length: 200 mm - Spindle speed: 15,000 rpm Hfodpfx Afouhbb Io Tob - Spindle drive power: 3.7 kW - Minimum C-axis resolution: 0.001° SUB SPINDLE - Max. bar diameter: 16 mm - Travel Z: 80 mm - Spindle speed: 10,000 rpm - Spindle drive power: 1.1 kW - Minimum C-axis resolution: 0.001° TOOL HOLDER 1 - Number of positions: 10 - Number of driven positions: 4 - Driven tool speed: 6,000 rpm FRONT TOOLING STATION - Number of positions: 4 BACK WORKING STATION - Number of positions: 3 ELECTRICAL SUPPLY - Supply voltage: 200 V - Total power: 8 kW WEIGHT AND DIMENSIONS - Footprint: 1850 x 1610 mm - Machine height: 1050 mm - Machine weight: 2050 kg MACHINE HOURS - Operating hours: 26,001 h EQUIPMENT - Control: Fanuc 31i - Driven guide bushing - Parts catcher - Parts ejector - Coolant tank - Bar feeder: LNS ALPHA ST320 - Electrical transformer
