Laserski stroj za rezanje

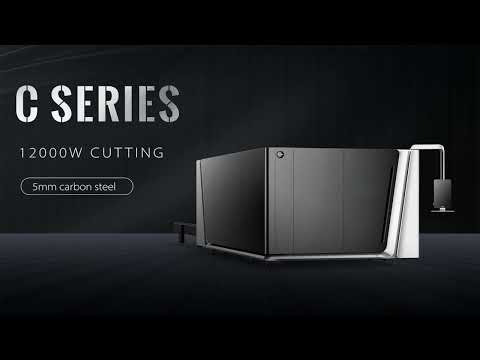

Bodor C3

Stanje: novo, Leto izdelave: 2026, Table length: 3048 mm Table width: 1524 mm Number of cutting heads: 1 Control: CNC Workpiece weight: 1095 kg Travel speed: 180 m/min Machine weight: 4150 kg Floor space required: approx. 9392 x 2232 x 2307 mm Laser cutting system with automatic shuttle table Configuration 1. Bodor Power 12 kW laser source 2. Bodor Genius laser cutting head with autofocus 3. Bodor Thinker 3.0 control system 4. Mortise-and-tenon style welded segmented machine bed 5. Extended aluminium gantry 6. Bodor servo motor and drivers 7. Bodor rack and pinion system 8. One-click operation 9. Bodor Lightning perforation technology 10. Expert database for high-speed cutting 11. Automatic cutting gas pressure adjustment 12. Safety interlock for open door 13. Fault alarm during cutting 14. Ergonomic remote control (Bodor Mango®) 15. Active anti-collision feature 16. Intelligent anti-shake technology 17. Gas-saving continuous flow nozzle 18. Intelligent maintenance reminder 19. WIFI internet connectivity 20. Water chiller 21. Extraction unit 22. Set of wear parts Hfjdpfxjx I Sgls Ab Eod CUTTING CAPACITY: CARBON STEEL (mm): 35 STAINLESS STEEL (mm): 35 ALUMINIUM (mm): 25 OPTIONAL: LANTEK EXPERT II CUT software incl. post-processor

Leto izdelave: 1981, stanje: dober (rabljeno), številka stroja/vozila: 3626, OFFER 21448 Technical Data: - Maximum working width: 2540 mm - Maximum cutting capacity (Steel 40): 4 mm - Motorized cutting angle adjustment - Cutting gap adjustment via scaled adjustment screws - Number of hydraulic hold-downs: 14 pcs Hfodpfxjhhc Ixo Ab Esd - Motorized backgauge with positioning system: 10 – 1000 mm - Strokes per minute (depending on cutting angle and length): 23 per min - Hydraulic drive: 400 V / 7.5 kW - Table height: 1030 mm - Required floor space: approx. W 2500 x H 1630 x D 2150 mm - Weight: approx. 3600 kg Includes: - Pneumatically assisted sheet support - Front squaring arm and supporting arms - Electronic cutting depth adjustment - Cutting line illumination - Electric foot switch

Stanje: novo, Leto izdelave: 2026, Table length: 3048 mm Table width: 1524 mm Number of torch heads: 1 Control system: CNC Workpiece weight: 911 kg Travel speed: 180 m/min Machine weight: 4150 kg Space requirements: approx. 9392 x 2232 x 2307 mm Laser cutting system with automatic shuttle table Configuration: 1. Bodor Power 3kW laser source 2. Bodor Genius laser cutting head with autofocus 3. Bodor Thinker 3.0 control system 4. Mortise-and-tenon nameplate welded segmented bed 5. Extended aluminum gantry 6. Bodor servo motor and driver 7. Bodor rack and pinion 8. One-click operation 9. Bodor Lightning perforation technology 10. Expert database for high-speed cutting 11. Automatic adjustment of cutting gas pressure 12. Safety interlock for open door 13. Cutting malfunction alarm function 14. Ergonomic remote control (Bodor Mango®) 15. Active anti-collision function Hfodpfx Abewnt Eie Esd 16. Intelligent anti-shake 17. Gas-saving constant current nozzle 18. Intelligent maintenance reminder 19. WIFI internet connectivity 20. Water chiller 21. Extraction unit 22. Set of wear parts CUTTING CAPACITY: MILD STEEL: 14 mm STAINLESS STEEL: 10 mm ALUMINIUM: 6 mm OPTIONAL: LANTEK EXPERT II CUT software including postprocessor

Stanje: novo, Leto izdelave: 2025, Model: C3 Delovno območje: 3048 mm × 1524 mm Izhodna moč laserja: 40 kW / 30 kW / 22 kW / 20 kW / 12 kW / 6 kW / 3 kW / 2 kW / 1,5 kW Hodsg Iwypjpfx Ab Eefd Natančnost pozicioniranja: ±0,05 mm Ponovljivost pozicioniranja: ±0,03 mm Maksimalna usklajena hitrost: 110 m/min Maksimalno pospeševanje: 1,5 G 1. Aktivna funkcija proti trkom Učinkovito zmanjša stopnjo poškodb laserskih glav in pomaga znižati stroške vzdrževanja. 2. Eno-klikovno obdelovanje Vse funkcije sistema so logično in pregledno razporejene, kar omogoča popolnoma avtomatizirano serijsko proizvodnjo. 3. Brez tresljajev pri rezanju tankih pločevin Serija C omogoča rezanje robov tankih pločevin brez vidnih sledi tresljajev. 4. Raztegljiv aluminijasti prečni nosilec Togost povečana za 60 % Teža zmanjšana za 20 % Hitrost delovanja opreme povečana za 50 % 5. Varjena postelja z utorno-spojnim sestavom Vsak okvir postelje je varjen po utorno-spojnem sestavu, kar zagotavlja boljšo stabilnost in trdnost.

Stanje: dober (rabljeno), Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 2010, obratovalne ure: 15.996 h, skupna masa: 6.750 kg, vhodna napetost: 400 V, 1000 kN Max. stroke: 200 mm Weight: 6,750 kg Noise level: 74 dB Year of manufacture: 07/2010 Voltage: 400 V / 50Hz Rated current: Current operating hours: 15,996 hours With manual angle measurement and correction system With safety laser UVV inspection carried out as scheduled / Maintenance always carried out regularly by Amada Accessories: Tool Die: 2 pcs UKB 20.478 V8/12 30° 835 mm 3 pcs UKB 20.344 V4/V7 88° 835 mm Tool Holder: 4 pcs UKB Substructure for Double V Die 20.287 + 60.919 835 mm Press Brakes: 5 pcs UKB 10.261 H100 R0.6/90° 2 pcs UKB 11.158 H80 R0.6/30° 2 pcs UKB 11.200 H66 R0.8/90° Hedetwliwspfx Ab Eefd Miscellaneous: Light barrier requires repair (new price approx. €4,500) – included separately as a replacement (has already been renewed) The machine can be inspected under power in DE84051 Mettenbach by appointment. Sale only to businesses and without any warranty!

Stanje: kot nova (razstavni stroj), Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 2023, obratovalne ure: 951 h, laserske ure: 951 h, laserska moč: 6.000 W, najv. debelina jeklene pločevine: 25 mm, potovalna razdalja osi X: 3.000 mm, pomik osi Y: 1.500 mm, TECHNICAL DETAILS General Information Operational status: fully functional Laser hours: 500 h Working Area and Travel Distances Working area: 3,048 x 1,524 mm Travel distance X-axis: 3,000 mm Travel distance Y-axis: 1,500 mm Performance and Power Supply Laser head: BodorGenius Laser source: Bodor Power Power: 6 kW (8.16 hp) Laser power: 6,000 W Input voltage: 400 V Type of input current: three-phase Compressed air connection: 7 bar Positioning and Accuracy Positioning accuracy: 0.05 mm Repeatability: 0.03 mm Sheet Metal Processing Sheet thickness steel O2: 25 mm Sheet thickness steel N2: 20 mm Sheet thickness aluminum N2: 20 mm Sheet thickness brass: 12 mm Hjdsv Up S Tepfx Ab Eofd Max. workpiece weight: 1,000 kg Machine Structure Machine bed: Segmented bed in mortise-and-tenon design Gantry structure: Made of extruded aluminum Axis Drive and Guidance Axes (X/Y/Z): Servo motor and drive Linear guides: included Control and Display Control system: BodorThinker Display size: 21.5 inch MACHINE DETAILS Overall length: 9,100 mm Overall width: 2,500 mm Overall height: 2,055 mm Total weight: 8,000 kg Connected load: 59.8 kVA / 90.9 A EQUIPMENT Chiller unit

Stanje: novo, Leto izdelave: 2025, BODOR laser cutting systems in top quality at top prices. - Easy programming – including service and training, installation and commissioning. - Machines available with 3 kW to 30 kW power User-friendly and suitable for both beginners and established companies. Hfsdsfbg Hbjpfx Ab Eed

Stanje: zelo dobro (rabljeno), Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 2012, obratovalne ure: 55.771 h, laserske ure: 35.157 h, laserska moč: 3.200 W, najv. debelina pločevine: 20 mm, najv. debelina jeklene pločevine: 20 mm, maks. debelina aluminijaste pločevine: 8 mm, dolžina mize: 3.000 mm, širina mize: 1.500 mm, potovalna razdalja osi X: 3.000 mm, pomik osi Y: 1.500 mm, pomik po osi Z: 150 mm, hitrost pozicioniranja: 140 m/min, natančnost pozicioniranja: 0,02 mm, leto zadnje generalne obnove: 2024, dolžina podajanja os X: 3.000 mm, dolžina pomika po osi Y: 1.500 mm, dolžina podajanja os Z: 150 mm, Oprema: dokumentacija / priročnik, hladilna enota, varnostna svetlobna zapora, Laser je v obratovanju, možen ogled in preizkus. Redno servisiran, v dobrem tehničnem stanju. Vsa ogledala so bila popolnoma zamenjana leta 2024. Hfodjv Hxbbopfx Ab Eod

Stanje: novo, Leto izdelave: 2025, Einsteiger-Level Faserlaser-Blechschneidmaschine Niedrige Laserschneidkosten und einfache Bedienung Der modulare Schneidtisch mit Versteifungen spart Zeit beim Zerlegen und bietet erhöhte Benutzerfreundlichkeit und erhöhte Steifigkeit. Die spezielle Faserlaser-Düse und der angepasste Schneidprozess ermöglichen ein schnelleres Sauerstoffschneiden von Baustahl, besonders gas- und kostensparendes Schneiden von Edelstahl mit Niederdruck-Stickstoff sowie eine verbesserte Schnittqualität beim Luftschneiden von Baustahl. Faserlaser-Schneidköpfe erkennen herausragende Hindernisse und reduzieren damit effektiv die Beschädigungsrate und senken die Wartungskosten des Laserschneiders. Verarbeitbare Materialien: Metall Zustand: Neu Hsdpfx Abjhv Hkas Ejfd Lasertyp: Faserlaser Schneidbereich: 3000 x 1500 mm Schneidgeschwindigkeit: 0-40.000 mm/min Unterstützte Grafikformate: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT Schnittstärke: 0-30 mm CNC: Ja Kühlung: Wasserkühlung

Stanje: novo, Leto izdelave: 2025, Model: C3 Delovno območje: 3048 mm × 1524 mm Izhodna moč laserja: 40 kW / 30 kW / 22 kW / 20 kW / 12 kW / 6 kW / 3 kW / 2 kW / 1,5 kW Natančnost pozicioniranja: ±0,05 mm Ponovljivost pozicioniranja: ±0,03 mm Maksimalna usklajena hitrost: 110 m/min Maksimalno pospeševanje: 1,5 G 1. Aktivna funkcija proti trkom Učinkovito zmanjša stopnjo poškodb laserskih glav in pomaga znižati stroške vzdrževanja. 2. Eno-klikovno obdelovanje Vse funkcije sistema so logično in pregledno razporejene, kar omogoča popolnoma avtomatizirano serijsko proizvodnjo. 3. Brez tresljajev pri rezanju tankih pločevin Serija C omogoča rezanje robov tankih pločevin brez vidnih sledi tresljajev. 4. Raztegljiv aluminijasti prečni nosilec Togost povečana za 60 % Teža zmanjšana za 20 % Hitrost delovanja opreme povečana za 50 % Hfsdpfx Abjg D Ntme Eed 5. Varjena postelja z utorno-spojnim sestavom Vsak okvir postelje je varjen po utorno-spojnem sestavu, kar zagotavlja boljšo stabilnost in trdnost.
