Stebrni vrtalnik

Alzmetall AB4/SV

Stanje: rabljeno, Technical details: Drilling capacity in steel (diameter): 28 mm Throat depth: 345 mm Drilling stroke: 190 mm Drilling capacity in cast iron: Ø 35 mm Spindle taper: MT4 Spindle speed: 50 - 1280 rpm / 4-step stepless Feed: 0.1; 0.2; 0.3 mm/rev manual/automatic Maximum spindle-to-table distance: 200 - 800 mm Table clamping surface: 450 x 600 mm Table rotation: 360° Table adjustment: vertical 600 mm Column diameter: Ø 160 mm Machine weight approx.: 273 kg Machine dimensions (LxWxH) approx.: 1.0 x 0.71 x 2.0 m Ledpsyq Rpijfx Adkshd Tapping operation selectable for right- and left-hand rotation via foot switch and/or depth stop Table adjustment via hand crank Coolant device Machine vice Röhm Supra quick-action chuck, 3 - 16 mm Slight damage to cover as is/in current condition *

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2013, Funkcionalnost: popolnoma funkcionalen, Ficep 1201 DE 601 Excalibur drilling machine for processing flat steel and profiles, featuring a longitudinally moving drilling unit. This machine has been fully cleaned and inspected. The drilling machine is equipped with a numerically controlled, longitudinally moving drilling unit (X-axis), range 0 - 15,000 mm, and an automatic tool changer with HSK A80 holder for 6 tool positions. With its 19 kW drilling spindle drive, this machine is suitable for use with carbide drilling tools. Technical details: Profile and flat steel support with guide rail and fixed table Total length: 15 m Mobile drilling unit for longitudinal positioning on workpieces Horizontal drilling head with one drilling spindle Lhodpfx Ajv Iamzedkod Additional tool storage in X-axis direction Clamping device for securing material Position detection device Max. profile size: 1200 x 1200 mm Number of drilling spindles: 1 pc. Drilling diameter: 5 - 40 mm Thread cutting: M6 - M30 Drilling spindle speed: 180 - 3000 rpm Holder: HSK A 80 Tool changer: 1 x 6 For more information, please contact us.

Stanje: rabljeno, Leto izdelave: 1978, Zmogljivost vrtanja v jeklu (premer) 40 mm Lhsdpfx Adsv Ehftskjd Izpetina 345 mm Vrtalni hod 200 mm Vpenjalna površina mize 720 x 560 mm Število obratov 60 - 765 min⁻¹ Pomik 0,15 - 0,2 - 0,3 - 0,36 mm/obrat Vpenjalo orodja MK 4 Skupna potrebna moč 3,0 kW Teža stroja pribl. 0,4 t Vrtalni stroj z: Samodejnim pomikom 2 prestavi v menjalniku Levi/desni tek Nožni pedal Črpalka za hladilno sredstvo Strojna svetilka Novo hitrovpenjalno glavo

Stanje: rabljeno, Leto izdelave: 1993, Vrtalna zmogljivost v jeklu (premer): 40 / 23 mm Izpust: 320 mm Vrtalni hod: 180 mm Vpenjalni stožec: MK 4 Območje obratov: 30 - 765 obr/min Velikost mize: 720 x 550 mm Teža: 480 kg Dimenzije: 750 x 900 x 1900 mm Oprema: - Večvretena glava, premer vrtanja 23 mm Lhodsyfwzuepfx Adkod - Avtomatski pomik - Naprava za dovod hladilne tekočine - Brezstopenjska regulacija vrtljajev - Nastavljiv omejevalnik globine vrtanja

Stanje: delavnici obnovljeno (rabljeno), Univerzalni rezkalni stroj za orodje Blagovna znamka: harich (DECKEL) Model: B (FP 2) brezstopenjski prenovljen s CE geometrijski prevzem z merilnim protokolom z garancijo Ledpfxevfdate Adkohd Oprema: - 3-osni digitalni merilni sistem FAGOR Innova 30i-M - Fiksna ali univerzalna miza - Vertikalna rezkalna glava SK 40 - Centralno mazanje, ročno upravljano - Naprava za hladilno tekočino - Navodila za uporabo CE in varnostna oprema: - nova električna napeljava stroja z razdelilno omarico - elektronsko nadzorovan pokrov na vertikalni rezkalni glavi - Zaščitni pokrov vpenjalne glave z električnim varovanjem - Pogonski motor z zavorno funkcijo - Krmilna konzola z gumbom za nujni izklop, odklepanje, zagon in zaustavitev, potenciometer za nastavitev podajanja - nova dokumentacija za stroj in razdelilno omarico - Izjava o skladnosti CE

Stanje: rabljeno, Leto izdelave: 1978, Number of spindles: 3 Drilling capacity in steel (diameter): 40 mm Drilling stroke: 180 mm Machine weight approx. 2.3 t Including coolant system For further specifications, see image. Ljdpfod Ih S Sox Adkjhd

Stanje: dober (rabljeno), Leto izdelave: 1999, številka stroja/vozila: 20403, Angbot 25170 Lhjdpfx Aowncaiedkod Technical Data: - Drilling capacity in steel ST 60: 40 mm - Maximum drilling diameter in steel ST 60: 50 mm - Spindle taper: MT 4 - Spindle stroke: 180 mm - Infinitely variable spindle speeds with intermediate gearbox: - Range 1: 60 – 210 rpm - Range 2: 210 – 765 rpm - Range 3: 120 – 420 rpm - Range 4: 420 – 1530 rpm - Throat depth: 330 mm - 3 automatic feed rates: 0.1 / 0.2 / 0.3 mm/rev - Table with 2 T-slots: 720 x 360 mm - Table height adjustable via rack and pinion with hand crank - Max. distance table to spindle: approx. 780 mm - Max. distance base plate (machined) to spindle: 1250 mm - Coolant system - Work light - Machine vice - Assorted 10 pcs. HSS drills - Power supply: 400 V / 2.6 / 4 kW - Space requirement: approx. W 720 x H 2050 x D 1150 mm - Weight: approx. 350 kg

Stanje: novo, Operating pressure: 8 bar Effective delivery rate: 235/165 L/min Tank capacity: 50 / 10 l / bar Machine weight: approx. 37.5 kg Number of cylinders: 2 pcs. Motor: 230V / 1.5KW V / kW Lhodpfx Adou Imp Hokod Dimensions (L x W x H): 790 x 400 x 730 mm This oil-free and compact Hyundai compressor features a low weight and ultra-quiet operation. Extremely quiet, approx. 53-60dB! (Suitable for indoor use) Equipped with: - Safety valve - Pressure regulator with gauge and coupling - Tank drain valve - Moisture separator

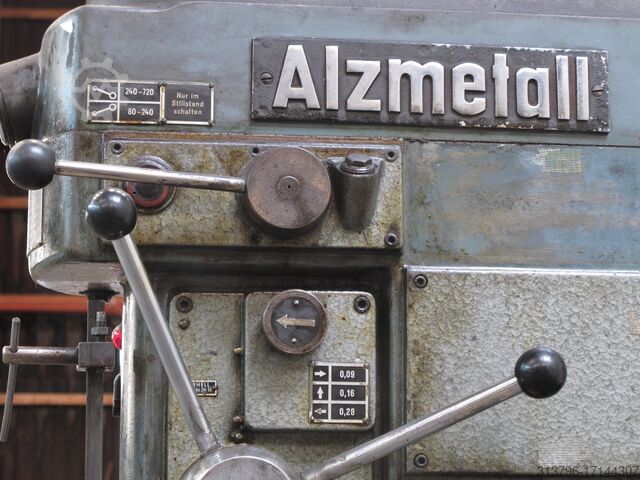

Stanje: rabljeno, Leto izdelave: 1965, Drilling capacity in steel (diameter): 40 mm Total power requirement: 4 kW O F F E R We can offer you, without obligation, ex stock, subject to prior sale and error: A L Z M E T A L L Heavy Duty Column Drilling Machine Model: AB 4 / SV Year of manufacture: approx. 1965 Serial number: 10024 Lhedpfx Aev S Iqcsdksd Drilling capacity in steel: 60 / 40 mm Drilling capacity in cast iron: 55 mm Morse taper: MK 4 Throat depth: 340 mm Column diameter: 160 mm Quill stroke: 160 mm 3 feed rates: 0.09 / 0.16 / 0.28 mm/rev Table size: 700 x 550 mm Machined base plate: 450 x 600 mm Table adjustment (vertical): 750 mm Table rotation around column: 360° Installation height (lower table to spindle): approx. 1,200 mm Spindle speed range Step 1, infinitely variable: 60–210 or 200–600 rpm Step 2, infinitely variable: 130–400 or 400–1,200 rpm Total drive power: approx. 2.3 or 3 kW – 380 V – 50 Hz Weight: approx. 750 kg Accessories / Special features • 2-step gearbox and stepless speed adjustment via belt drive, pole-changing motor for 2 speeds • Automatic quill feed with depth stop and shut-off • Equipment such as drill chuck included Condition: good – ready for demonstration under power Delivery: ex stock – as inspected Payment: strictly net – upon receipt of invoice We kindly ask for your order. Additional upright and column drilling machines are always in stock – please inquire with us.

Stanje: rabljeno, Mounting: MK 4 Lsdob N Ezropfx Adkshd

Stanje: rabljeno, Column Drilling Machine ALZMETALL Type AB 3 ESV Machine No. 15967 Year of manufacture: 1977 Drilling capacity: 32 mm Spindle taper: MK 3 - short quill Distance spindle nose - table: 545 mm (short quill) Distance spindle adapter - table: 395 mm (with MK adapter) Throat depth: 290 mm Quill stroke: 160 mm Table size: Ø 545 mm Column diameter: 220 mm Ljdsharwvjpfx Adkjhd Spindle speed: 55 - 1450 rpm, stepless Motor power: 1 / 1.6 kW Electrical connection: 380 Volt, 50 Hz - Spindle speed via 2 gearbox stages, 2 motor speeds, and stepless adjustment via variator - Intermediate stage for high torque at low speeds - MK adapter from MK3 to MK4 - Automatic feed: 0.1 - 0.2 - 0.3 mm/rev - Rotating drill table - Table height adjustment via hand crank - Heavy-duty machine base with machined workpiece support surface (not original Alzmetall) - Work area lighting Space requirement (L x W x H): 1150 x 650 x 2000 mm Weight: 850 kg Good condition

Stanje: dober (rabljeno), Leto izdelave: 1984, številka stroja/vozila: 15470, Offer 25095 Technical Data: - Drilling capacity in steel ST 60: 40 mm - Maximum drilling capacity in steel ST 60: 50 mm - Spindle taper: Morse taper 4 - Spindle stroke: 180 mm - Infinitely variable spindle speeds with gear change: - Range 1: 50 – 175 rpm - Range 2: 175 – 640 rpm - Throat (distance spindle to column): 330 mm - 3 automatic feeds: 0.1 – 0.2 – 0.3 mm/rev - Table with 2 T-slots: 720 x 360 mm - Table height adjustable by rack and hand crank - Max. distance table – spindle approx. 780 mm - Max. distance machined base plate – spindle approx. 1250 mm - Coolant system - Work light Ledpowd Ii Ujfx Adkohd - Drive motor: 400 V / 4 kW - Footprint approx.: W 720 x H 2050 x D 1150 mm - Weight approx.: 500 kg

Stanje: rabljeno, Leto izdelave: 1989, številka stroja/vozila: 19216, Lg. No. 22614 Technical Specifications: Lhjdpfx Adst Etiyjkjd - Drilling capacity in steel ST 60: 40 mm - Maximum drilling diameter in steel ST 60: 50 mm - Drill spindle taper: MT 4 - Drill spindle stroke: 180 mm - Infinitely variable spindle speeds via layshaft: - Range 1: 60 – 210 rpm - Range 2: 210 – 765 rpm - Throat depth: 330 mm - 3 automatic feeds: 0.1 – 0.2 – 0.3 mm/rev - Table with 2 T-slots: 720 x 360 mm - Table height adjustable via rack and pinion with handwheel - Max. distance table – spindle: approx. 780 mm - Max. distance machined base plate – spindle: approx. 1250 mm - Coolant system - Machine lighting - Drive: 400 V / 4 kW - Installation dimensions (approx.): W 720 x H 2050 x D 1150 mm - Weight (approx.): 500 kg

Stanje: rabljeno, Leto izdelave: 1994, Funkcionalnost: popolnoma funkcionalen, globina grla: 1.250 mm, Radial drilling machine Make: Breda Model: R 55-1250 Year: 1994 Technical Details Manufacturer: BREDA Model: R 55-1250 Arm reach: 1250 mm Drilling capacity in steel: 55 mm Drilling capacity in cast iron:70 mm Thread cutting in steel: M 50 Thread cutting in cast iron: M 65 Spindle taper: MT 5 Arm reach: 1250 mm Cross travel of spindle head: 930 mm Lodpov Rpf Sofx Adkjhd Min./Max. distance from base plate: 536 – 1375 mm Vertical movement of arm: 705 mm Spindle stroke: 310 mm Number of spindle speeds: 12 Spindle speed range: 30 – 1200 rpm Number of feeds: 8 Feeds: 0.06 – 1.0 mm/rev Base plate size: 2070 x 910 mm Clamping area of base plate: 1325 x 910 mm Motor power: 4.4 kW – 380 V Dimensions (L x W x H): 2.1 x 1.0 x 2.5 m Weight: 3 t Accessories Drilling table: 750 x 600 x 550 mm Coolant system Hydraulic clamping All information is supplied without guarantee. A demonstration is possible at any time in our showroom.
