Drsna namizna žaga

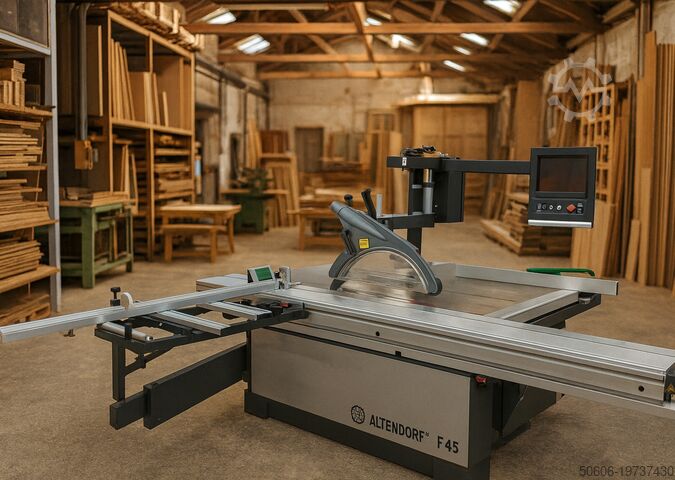

Altendorf F 45

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2011, Funkcionalnost: popolnoma funkcionalen, največja širina rezanja: 1.300 mm, premer žaginega lista: 500 mm, Oprema: dozator, TEHNIČNI PODATKI Dolžina dvojnega vozička: 3.000 mm Širina reza: 1.300 mm Pogonska moč: 5,5 kW Premer žaginega lista: 500 mm Podaljšek mize: 840 mm OPREMA Knedpfx Asxnx Hcsh Djc Enota za vretenje s 2 osmi Kotno-nagibno vodilo

Leto izdelave: 2008, Stanje: pripravljen za uporabo (rabljen), Ta Altendorf F45 ELMO IV je bila izdelana leta 2008. Gre za robustno formatno žago z dvojnim valjčnim pomičnim pultom dolžine 3400 mm in širino reza 1300 mm, s CNC upravljanjem. Opremljena je z močnim VARIO pogonom 5,5 kW in omogoča uporabo krožne žaginega lista do premera 500 mm. Idealna je za natančna in raznolika rezanja. Za več informacij o stroju nas kontaktirajte. Vrste uporabe Knedpfjxp Spaox Ah Dec Žaganje (les)

Stanje: rabljeno, Leto izdelave: 1993, Sliding table length: 2800 mm Cutting width at rip fence: 1250 mm Cutting width at crosscut fence: 2800 mm Cutting depth: 145 mm Scoring unit: yes Saw blade height adjustment: electric Saw blade tilt adjustment: electric Rip fence adjustment: manual Kjdpfx Ahjxp Rake Dsnc Saw blade angle display: digital Cutting height display: - Rip fence display: scale Crosscut fence display: scale Saw blade diameter: 450 mm Speeds: 4 Motor power: 5.5 kW Motor brake: yes – automatic Extraction connection: 80 mm and 120 mm Machine length: 3000 mm Machine width: 2200 mm Weight: 1000 kg

Stanje: rabljeno, Leto izdelave: 2018, Used machine Year of manufacture: 2018 Basic equipment: - Electrically powered height and tilt adjustment - 0-46° with automatic cutting height correction during tilting - Controls at eye level, swiveling - Double roller carriage, carriage length 3,000 mm - Parallel fence, manually adjustable via measuring scale, incl. manual fine adjustment, cutting width 1,000 mm - Mitre fence with fixed 90° position, manually adjustable via measuring scale up to 3,200 mm - Max. saw blade projection 150 mm Knsdpfxexppv Re Ah Doc - Max. saw blade diameter 450 mm - Drive power 4 kW (5.5 HP) at 4000 rpm - AKE tool clamping system for the main saw blade - Working height 91 cm Productivity equipment package: Motor 5.5 kW (7.5 HP) with VARIO F45 - Infinitely variable speed control from 2,000 to 6,000 rpm - Exact speed adaptation to the material increases cut quality and saw blade service life Extended cutting height for single-sided tilting - This option is for single-sided tilting with a large extraction hood for a max. saw blade diameter of 550 mm and a blade projection of max. 204 mm. - In combination with a scoring unit, the max. saw blade diameter is 500 mm or 179 mm cutting height. Only available with at least 5.5 kW (7.5 HP) drive power. Double-sided tilting! 3-axis scoring unit RAPIDO Plus - With electric height and lateral adjustment, programmable scorer blade height, quick lowering and raising, drive motor 0.75 kW (1 HP), 8,200 rpm. Retrofit only possible on machines prepared for scoring units. LED lighting - Highly energy-efficient LED technology marks the danger area around the scorer for good visibility. Double roller carriage with 3,000 mm carriage length Basic equipment Double roller carriage with carriage length 3,000 mm The Altendorf double roller carriage is renowned for its smoothness and precise running. It can be locked steplessly in any position. The large double rollers, precision-machined from hardened steel, keep the upper carriage absolutely true to the lower carriage along the respective hard-chrome plated guide rods. This running quality is maintained even after decades of use and contamination. The carriage construction is designed as a highly torsion-resistant and dimensionally stable multi-chamber system. The table surface is precisely planed and anodized. A hard-chrome plated round rod, positively fitted into the upper carriage, serves as a mount for the cross-slide and as an interface for various accessories. The entire unit requires minimal maintenance and no lubrication. Mitre cross fence DIGIT-L, crosscuts up to 3,500 mm - This ALTENDORF patented fence with integrated length compensation simplifies precise angle and mitre cutting in one operation. In both positions, the swiveling angle can be adjusted steplessly by 49° and is shown digitally. The play-free and robust fence flaps can be easily moved and set individually over the total range up to max. 3,500 mm. For crosscuts up to approx. 1700 mm, the stable telescopic arm with roller support takes over.

Stanje: zelo dobro (rabljeno), Leto izdelave: 1993, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 93-09-128, premer žaginega lista: 350 mm, moč: 5,5 kW (7,48 KM), dolžina pomične mize: 2.800 mm, Formatna žaga Altendorf F 45, letnik 1993, z vozičkom 2800 mm, maks. list 350 mm, glavni motor 5,5 kW, motor predrezila 0,75 kW, z razširitvijo širine in dolžine. Knodpfexp Rk Njx Ah Doc

Stanje: zelo dobro (rabljeno), CATALOGUE NUMBER 7731 - Maximum main saw blade diameter without scorer: 400 mm - Maximum main saw blade diameter with scorer: 350 mm - Cutting height with 400 mm blade: 110 mm - Electric height and angle adjustment of the blade - Electronic angle display - Spindle diameter: 30 mm - Scoring unit diameter: 120 mm - Electric adjustment of scorer: up/down, left/right - With sliding table - Cutting length on sliding table: 2900 mm - Clamping bar: 1480 mm - Sliding table guidance on steel rods - Cutting width at the rip fence: 1350 mm - With side table - Main motor: 5.5 kW - Scorer motor: 0.75 kW - Electric brake - 4 rotation speeds: 3000/4000/5000/6000 rpm - Electronic speed display - Extraction nozzle diameter: 90, 120 mm - Table dimensions with extension and widening: 2060 x 1410 mm - Saw blade guard - Dimensions (L x W x H): 3150 x 3650 x 1550 mm Knsdsxa Elpjpfx Ah Djc - Weight: 1155 kg ADVANTAGES – German-made – Electric adjustment of blade and scorer – With scorer – Clamping bar – Not repainted – Used saw, in very good condition Net price: 33,900 PLN Net price: 7,980 EUR (based on exchange rate 4.25 EUR) (Prices may vary with significant exchange rate fluctuations)

Stanje: zelo dobro (rabljeno), Leto izdelave: 1986, Used, in good condition Manufacturer: Altendorf Model: F45 Year of manufacture: 1986 Machine no.: 86-4-143 GS-certified Motor: 5.5 kW Carriage length: approx. 2500 mm Cutting width: approx. 800 mm Tilting up to 45° Saw blade diameter: 450 mm Parallelogram guard Mitre gauge Extraction connection: D 80 mm and 120 mm Space requirement: approx. 2500 mm x 1600 mm x 1500 mm Kjdpfx Aswhgd Soh Djnc Weight: approx. 1000 kg Stock location: arriving at warehouse 54634 Bitburg Free loaded, unpacked Sale as inspected, in current condition Without warranty or guarantee

Stanje: delavnici obnovljeno (rabljeno), Leto izdelave: 2020, Funkcionalnost: popolnoma funkcionalen, dolžina rezanja (maks.): 3.400 mm, širina reza pri vzporednem vodilu: 1.300 mm, premer žaginega lista: 450 mm, dolžina mize: 840 mm, moč: 5 kW (6,80 KM), Oprema: dozator, osvetlitev, vrtilna hitrost brezstopenjsko nastavljiva, Rabljeni stroj GM010.0303 Leto izdelave: 2020 F45 ElmoDrive Višina stroja 910 mm Upravljanje na višini oči Obojestranski nagib (+/- 46°) Maks. premer žaginega lista 450 mm Motor 5,0 kW (7,5 KM) VARIO 2-osni utorni žagin list z vključenim parkirnim položajem LED osvetlitev Podaljšek mizne plošče 840 mm Dvojni valjčni voziček, dolžina vozička 3400 mm Digitalni kotni prislon DIGIT L CNC vzporedni prislon 1300 mm Ksdpfx Ahew Im I Aj Dsnc Laserski prikazovalnik reza

Stanje: rabljeno, Leto izdelave: 1993, Carriage length: 2,800 mm Cutting width at rip fence: 1,250 mm Knodpfoxp N U Tjx Ah Dec Cutting width at crosscut fence: 3,200 mm Cutting height at 0°: 150 mm Cutting height at 45°: 145 mm Scoring unit: no Saw blade height adjustment: hydraulic Saw blade tilting adjustment: hydraulic Rip fence adjustment: manual Saw blade angle display: digital Cutting height display: - Rip fence display: scale Crosscut fence scale: scale Saw blade diameter: 450 mm Speeds: 3,000 / 4,000 / 5,000 / 6,000 Motor power: 5.5 kW Current consumption: 11.5 A Motor brake: yes Extraction port: 80 mm / 120 mm Machine length: 3,300 mm Machine width: 2,000 mm Weight: 1,100 kg

Stanje: rabljeno, Leto izdelave: 2006, Dolžina sani: 3000 mm Širina reza pri vzdolžnem prislonu: 1000 mm Širina reza pri prečnem prislonu: 3200 mm Globina reza: 154 mm Predrezilo: da Višinsko nastavljanje žaginega lista: električno / pozicijsko upravljanje Nagibno nastavljanje žaginega lista: električno / pozicijsko upravljanje Nastavitev vzdolžnega prislona: električna / pozicijsko upravljanje Nastavitev prečnega prislona: ročna Prikaz kota žaginega lista: digitalni prikaz Prikaz globine reza: digitalni prikaz Prikaz vzdolžnega prislona: digitalni prikaz Prikaz prečnega merila: skala Prečno merilo z funkcijo za poševni rez: da Premer žaginega lista: 450 mm Hitrosti vrtenja: variabilna Moč motorja: 5,5 kW Priključek za odsesavanje: 80 in 120 mm Dolžina stroja: 3200 mm Širina stroja: 2200 mm Knjdpfexp Radox Ah Doc Teža: 1200 kg
