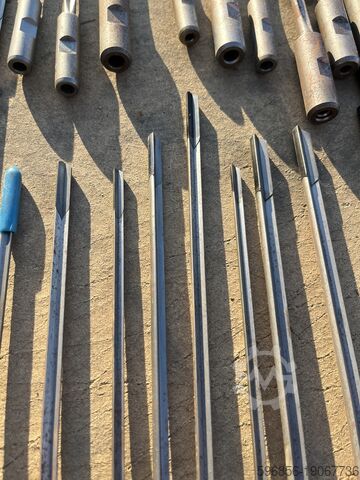

Botek sveder za pištolo ø 3, ø 4, ø 6,8, ø

Wiertło lufowe Botek ø 3, ø 4, ø 6.8, ø chłodzone z węglikiem K15B

Stanje: dober (rabljeno), Core drill, twist drill, drill bit Kjdpforqin Hex Agksdw - Manufacturer: Gühring / Maysso / Titexplus, 7 twist drills Ø 29 - 48 mm - Type: Two-flute, Morse taper shank MK4 - Size/quantity: see photo item list - Price/offer: for complete set - On request: various sizes/quantities available from additional stock - Shipping dimensions: 340/290/H45 mm - Weight: 12.1 kg

Stanje: pripravljen za uporabo (rabljen), Funkcionalnost: popolnoma funkcionalen, The HURON NU-4 is equipped with various buttons, switches, and levers to control its operation. x-travel: 1100 mm y-travel: 700 mm z-travel: 500 mm spindle/table distance: 9-509 mm Kdjdperiulgefx Agksw spindle head - swivelling: 360° spindle taper: SK 40 spindle speed range: 30 - 2066 rpm spindle speed steps: 27 feed rates: 1.6 - 820 mm/min feed steps: 27 table surface: 1435 x 460 mm rapid traverse on X and Y axes: 2.8 m/min rapid traverse on Z axis: 1.4 m/min total power requirement: 10 HP machine weight approx.: 3.1 t machine dimensions approx.: 2.36 x 1.65 x 1.45 m (W x H x D)

Stanje: novo, For grinding HSS and carbide engraving cutters, as well as single- or multi-fluted end mills in various shapes, such as radius cutters or cutters with a negative conical angle. The universal indexing head is provided with 24 positions so that any specific angle of form can be achieved; a free rotation of 360° or 10° is allowed for grinding end mills, twist drills, and lathe tools. Simply replace the attachment on the indexing head to switch between tools, without complex assembly required. Standard accessories 3 collets: Ø4, Ø6, Ø8 mm Grinding wheel ×1 Twist drill grinding attachment ×1 End mill grinding fixture ×1 Lathe tool grinding fixture ×1 Options Collets: Ø3, Ø1/8, Ø5, Ø9, Ø10, Ø12, Ø14, Ø16, Ø18 mm Max. collet capacity Ø3 - Ø18 mm Max. grinding diameter Ø18 mm Kodpfx Asq E Ry Hsgkodw Conical angle 0~180° Relief angle 0~45° Negative angle 0~25° Speed 5300 rpm Grinding wheel Ø100 x 50 x Ø20 mm Motor 375 W Dimensions 550 x 460 x 490 mm Weight 51 kg

Stanje: dober (rabljeno), Leto izdelave: 2004, TBT ML 200-2-800 Deep Hole Drilling Machine TECHNICAL DATA Type: ML 200-2-800 Year of manufacture: 2004 Control: Simatic OP17 Number of spindles: 2 Kedpfxevcbg Ss Agkjdw Spindle distance: 12 mm Drill slide stroke: 800 mm Drilling range: 1 – 10 mm Method: Single-lip drill Drilling depth: Plunging spindle: 110 mm Sealing housing: 430 mm Sealing housing with steady rest: 400 mm Spindle drive: Power: 1.7 / 2.9 / 1.3 kW Voltage: 240 / 350 / 350 V Frequency: 100 – 800 Hz Weight: Approx. 2.6 t We do not assume any liability for the correctness, completeness, or currentness of the information provided.

Stanje: rabljeno, PTP VPU 1 Conventionele Freesmachine Tafel afmetingen: 260x1000mm Conus: 40mm X as: 500mm Y as: 300mm Z as: 400mm Afmetingen: 170x130x145mm Variabele toeren Verticaal en horizontaal te gebruiken Voeding Kop in graden verstelbaar Met koelpomp Locatie: Hamont-Achel, België Bel of mail voor meer informatie Bekijk ook onze andere advertenties Tevens zijn wij het hele jaar door opzoek naar industriële machines. Heeft u overbodige machines, mail ze ons met foto's en informatie. PTP VPU 1 Conventional Milling Machine Table dimensions: 260x1000mm Cone: 40mm X axis: 500mm Y axis: 300mm Z axis: 400mm Dimensions: 170x130x145mm Variable speeds Can be used vertically and horizontally Power supply Head adjustable in degrees With cooling pump Location: Hamont-Achel, Belgium Call or email for more information Also view our other advertisements We are also looking for industrial machines all year round. If you have redundant machines, email them to us with photos and information. PTP VPU 1 Conventional Milling Machine Dimensiones de la mesa: 260x1000mm Cono: 40mm Eje X: 500mm Eje Y: 300mm Eje Z: 400mm Dimensiones: 170x130x145mm Velocidades variables Adecuada para trabajo vertical y horizontal Alimentación eléctrica Cabezal orientable en grados Con bomba de refrigeración Ubicación: Hamont-Achel, Bélgica Llame o envíe un correo electrónico para más información Consulte también nuestros otros anuncios Estamos buscando máquinas industriales durante todo el año. Si tiene máquinas excedentes, envíenos un correo electrónico con fotos e información. PTP VPU 1 Machine à fraiser conventionnelle Dimensions de la table : 260x1000mm Cône : 40mm Axe X : 500mm Axe Y : 300mm Axe Z : 400mm Dimensions : 170x130x145mm Vitesses variables Utilisable à la verticale et à l’horizontale Alimentation électrique Tête orientable en degrés Avec pompe de refroidissement Emplacement : Hamont-Achel, Belgique Appelez ou envoyez un email pour plus d’informations Consultez également nos autres annonces Kdsdpfx Agsrzbktsksw Nous recherchons également des machines industrielles toute l’année. Si vous disposez de machines excédentaires, envoyez-nous un email avec photos et informations.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2018, globina vrtanja: 1.250 mm, skupna dolžina: 8.100 mm, skupna širina: 6.300 mm, skupna višina: 4.300 mm, teža obdelovanca (maks.): 7.000 kg, skupna masa: 31.000 kg, potovalna razdalja osi X: 1.600 mm, pomik osi Y: 1.250 mm, pomik po osi Z: 1.100 mm, največja hitrost vretena: 6.000 obr/min, premer vrtanja: 36 mm, 4-Seiten-Komplettbearbeitung Schwenkbare Bohr- und Fräseinheit DCM (Dynamic Collision Monitoring) CAM-Modell QCK (Quick Check Kinematics) Kdsdsvn Sv Uspfx Agkow Durchgangsbohrzyklus (380–382) IKZ-Kühlmittelsystem 90 bar Zusätzlicher ATC-Turm mit 24 Plätzen (4 x 6) HSK 63 Doppel-Kugelgewindetrieb Klarwassertank 1650 l und Spänewassertank 1300 l Späneförderer Max. Bohrdurchmesser Stahl: 36 mm Bohrtiefe: 1250 mm X-Verfahrweg: 1600 mm Y-Verfahrweg: 1250 mm Z-Verfahrweg: 1100 mm W-Verfahrweg: 1600 mm Tischbelastung: 7000 kg Tischgröße L x B / oder Ø: 1500 x 1100 mm Spindelaufnahme: HSK-63Mk Spindelleistung: 23 kW Drehzahlbereich: 6000 U/min Länge: 8100 mm Breite: 6300 mm Höhe: 4300 mm Gewicht: 31000 kg

Stanje: rabljeno, EWAG WS 11 SP Werkzeugschleifmaschine Kdjdpfewp T Nksx Agkjw

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2017, obratovalne ure: 1.963 h, Funkcionalnost: omejena funkcionalnost, številka stroja/vozila: 7191-0005, EWAG LASER LINE PRECISION LETO 2017 EDINA TEŽAVA JE NAPAKA, KI JO LAHKO VIDITE NA SLIKAH. Vse-v-enem laserska precizna obdelava diamantnih orodij. Kdodpfx Ajwh U A Negksw Glavni parametri: LASER LINE PRECISION nadomešča dosedanje metode brušenja in erodiranja zelo trdih materialov, kot so PCD, CVD-D, CBN in MCD, z uporabo laserjev. Drži rotacijsko simetrična orodja do premera 200 mm in dolžine do 250 mm ter izmenljive ploščice od 3 mm notranjega premera do 50 mm zunanjega premera.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2002, Funkcionalnost: popolnoma funkcionalen, DESCRIZIONE TECNICA Rettificatrice CNC a 6 assi per utensili EWAG Ewamatic Line. Marca: EWAG Modello: Ewamatic Line ERS - SK2000 Anno: 2002 Tipo di controllo: CNC Controllo: NUM 1050 Origine: Svizzera Peso macchina: ca. 4 t Dimensioni macchina: ca. 2365 x 2920 x 2810 mm Corsi: Asse trasversale X: 360 mm Regolazione in altezza Y: 150 mm Asse di avanzamento Z: 230 mm Asse di rotazione B: +/-120° Asse di inclinazione A: -15...+25° Controtesta con funzione di rettifica cilindrica, variante di serraggio HSK63 (asse C 1000 giri/min) Torretta portamole a 6 posizioni inclinabile: Mandrini di rettifica Ø 80 mm, numero 6, disposti a stella Mole di rettifica Ø max. 250 mm Kdjdpfxov Tbfpo Agkjw Motore mandrino molatura: 7,5 kW, velocità 12.000 giri/min Stazione di misura 3D RENISHAW Dispositivo di ravvivatura per la dressatura automatica di mole diamantate e CBN Impianto di raffreddamento Completa di aspiratore per nebbie oleose Donaldson

Stanje: novo, Leto izdelave: 2025, Dimensions (L/W/H): 0 x 0 x 0 mm Weight: 29 kg Kjdpfxjv A Hhhs Agksdw Total power requirement: 0.25 kW Circular Saw Blade Sharpening Machine SBS 8-70 - Saw blade diameter: 80 - 700 mm - Saw blade holder swivel: -30° to +45° - Grinding angle: -20° to +20° - Speed: 2850 rpm - Grinding wheel dimensions: 125 x 10 x 32 mm - Motor: 250 W - Connection: 230 V / 50 Hz - Weight: 29 kg Scope of delivery: - Diamond grinding wheel for carbide-tipped circular saw blades - Cast iron base for increased precision - Rubber feet for vibration dampening and quiet operation - Spacer rings for different saw blade bores
