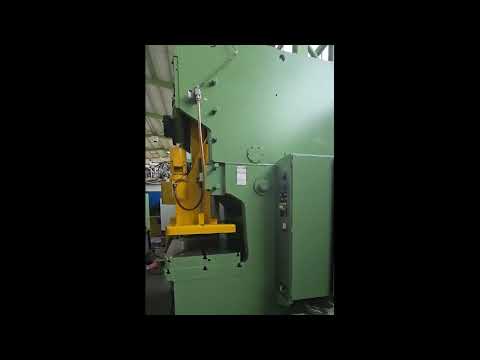

Ekscentrični pritisk - enojni stolpec

WEINGARTEN ARP 250 (UVV)

Stanje: rabljeno, Leto izdelave: 1989, Pressure: 250 t Stroke: 20 - 190 mm Strokes per minute: 24 / 48 Throat depth: 500 mm Clearance between frame walls: 1000 mm Installation height: 615 mm Table area: 1400 x 880 mm Pass-through opening in table: 450/500 mm Table height above floor: 800 mm Ram area: 1380 x 620 mm Ram adjustment: 125 mm Drive power: 29.0 kW Weight: 27.0 t Required floor space approx. 2.0 x 2.6 x 4.1 m (L x W x H) Bedpfjvut Ncex Afrewn Approved for manual loading operations according to German Accident Prevention Regulations (UVV). Equipped with pole-changeable motor, pneumatic clutch/brake combination, hydraulic overload protection in the ram, pneumatic ram counterbalance, motorized ram adjustment, semi-automatic stroke adjustment, motorized central lubrication, two-hand operation control. The machine can be inspected under power at our warehouse.

Stanje: novo, Table width: 3000 mm Table length: 1500 mm Torch heads: 1 Control system: CNC Feed rate: 20,000 mm/min Total power requirement: 15 kVA Required floor space: approx. 4.5 x 2.5 m * Heavy-duty machine bed with precision guides for smooth machine movement * Ball-bearing cross carriage for height adjustment with 400 mm vertical stroke * Thermal separation of drive and cutting areas ensures maximum precision * Automatic height sensing and torch height control during cutting * Torch holder with collision protection and automatic shut-off in case of collision * Machine setup or relocation possible using a plug & play process with forklift, pallet truck, or crane * 3-sided access to the cutting area due to cantilever design SATOTEC Downdraft Table: The SATOTEC table system features a robust table construction for a max. cutting thickness of 150 mm. For cutting workpieces up to 150 mm thick, oxy-fuel cutting technology is required. The workpiece support frame is fitted with replaceable flat steel slats, 3 mm thick and mounted at a 45° angle. The slat spacing is 50 mm. Kjellberg Q1500 Power Source: * Precise plasma cutting of all electrically conductive materials from 0.5 to 60 mm, both dry and under water * Recommended cutting range 0.5 to 40 mm * Maximum pierce thickness 30 mm, upgradable using ProPierce Technology * Marking, notching, and center punching possible even on coated metal materials * Inverter power source with digitally controlled, fully electronic process * Integrated cooling with semi-automatic filling and draining Gas Control: Fully automatic, processor-controlled plasma all-gas console Q-Gas for cutting all metals Lantek Expert Cut Inside: CAD/CAM module integrated in the machine control TEKA EcoCube 5.5 kW Extraction Unit Filter medium: dry, grease-free or oil-free dust/fume Filter area: 100 m² (4 cartridges at 25 m² each) Filter cartridge: BIA M, Type Nano Separation efficiency: 99% (according to BGIA test certificate) Filter control: automatic filter cleaning, PLC Bodpspm U U Nofx Afrswn Fan capacity: 4,500 m³/h Motor power: 5.5 kW Connection voltage: 400V/50Hz or 480V 60Hz Current draw: 11.5 A Current type: 3Ph+N+PE Fan mounted on the system, incl. silencer bend, right side Motor control: frequency inverter Noise level: 75 dB(A) + max. 10 dB(A) during cleaning pulse Intake socket: NW 250 mm via intake duct, left side Exhaust: via silencer bend Dimensions (W x D): approx. 800 x 800 mm System color: - Fan housing: light gray - Cartridge housing: RAL 5007 brilliant blue Special equipment: - Closing hooks and toggle latches - Compressed air connection and condensate drain each fitted with a bulkhead fitting - Compressed air connection with hose tail d=8mm - System equipped with grounding stud - Cables in UL specification - EATON frequency inverter on the left in the attached control cabinet

Stanje: rabljeno, Leto izdelave: 1988, Maximalni prečnik obrade preko ležišta 2000 mm Prečnik obrade preko nosača / mm Dužina obrade / mm - Tip 1 K 671 320 F3 - Godina proizvodnje 1988 (prva instalacija 1998) - Dužina obrade 10.000 mm - Prečnik obrade preko ležišta 2.000 mm (modifikovan) - Prečnik planske ploče 1.950 mm - Opseg stezanja planske ploče 400 - 1.350 mm - Brzine obrtanja 1,00 - 140 o/min - Obrtni moment 125.000 Nm - Maksimalna glavna snaga rezanja 130 kN - Konjički centar automatski se uvodi Bwsdpfx Afoxn Tz Isrsn - Maksimalna masa obratka 70 t - Maksimalna masa obratka sa lunetom 100 t - Pogonska snaga 100 kW - Broj kliznih vodilica ležišta 4 - Dimenzije 22.000 x 6.200 x 2.900 mm - CNC upravljanje SIEMENS 840D (2010. za 220.000,00 €) - Posmična brzina suport X-Z 0,3 - 4.000 mm/min - Brzina brzog hoda suport X-Z 4.000 mm/min - Dimenzije unutrašnjeg konusa 140 x 1:7 - Mašina je u skladu sa CE direktivama - uključuje 2 lunete, 1 valjkasti oslonac, 4 stezne čeljusti, napravu za bušenje - Stanje: vrlo dobro stanje

Stanje: pripravljen za uporabo (rabljen), Broadbent težki stružnica 1041 mm x 10.000 mm Leto izdelave: približno 1973. Premer vrtenja nad posteljo: 1041 mm (41") Premer vrtenja v mostu: 1575 mm (62") Razdalja med konicama: 9300 mm (30' 6") Premer vretena: 115 mm (4 ½") Število vrtljajev vretena (18 stopenj): 3,3 – 360 vrt/min Bjdev I T Ewopfx Afrswn Motor vretena: 30 KM ali 40 KM (potrditev še sledi) Konjiček: 6 MT Rezkanje z navojem v inčnih in metričnih sistemih z menjalnimi zobniki 36" obrazna plošča s 4 nastavljivimi čeljustmi, 54" obrazna plošča, Nastavek za konusno struženje, Pogonski pomik na zgornji suport, 2 x 18" tritočkovna opora, 24"/28" opora.

Stanje: rabljeno, Leto izdelave: 1983, Technical Specifications: Press force: 160 t Throat depth: 360 mm Ram stroke (max.): 500 mm Distance table/ram: 800 mm Clamping plate on table: 1250 x 630 x 100 mm Pass-through openings in table: 4 x Ø 62 mm Ram speed forward: 200 mm/s Ram speed return: 125 mm/s Ram surface: 450 x 850 mm Bwodpou Nfvuefx Afron Borehole in ram: Ø 49 mm Height above floor: 810 mm Total power requirement: 17 kW Machine weight approx.: 7,200 kg Machine dimensions approx. (LxWxH): 2.1 x 1.4 x 3.4 m Manual counter i.O.

Stanje: rabljeno, Leto izdelave: 1994, Technical Details: Number of spindles: 8 Spindle passage: 32 mm Item: Cam-controlled multi-spindle automatic lathe Brand: Schütte Model: AF32 S DNT Year of manufacture: 1994 Eight-spindle automatic lathe with 8 main spindles Max. nominal bar capacity: D=32 mm Control system: Siemens SIMATIC S7 Electronic cam controller: Balluff Gripper in position 8 for rear-side machining CNC cross slide at position 6 CNC cross slide at position 7 Workpiece conveyor belt KSS cooling system (Schimpke) Chip conveyor with magnetic separator Thread-cutting clutches The tooling shown may differ from the scope of delivery! Please contact us for further information and photos via email (at) or Bwedel Su Rxepfx Afren *

Stanje: zelo dobro (rabljeno), Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 1984, Load capacity: max. 300 kg Reel plate diameter: 1,000 mm Bedpfx Ajf S I I Hsfrjwn Maximum outer coil diameter: 900 mm Inner coil diameter: 240 - 560 mm Maximum coil width: 180 mm

Stanje: novo, Leto izdelave: 2025, Tlačna peskalna kabina DSK 11.11.30. Peskalni prostor: širina 1050 mm, globina 1050 mm, višina 955 mm. 1 TÜV-preizkušen tlačni rezervoar 30 l s stožčastim iztočnim lijakom. 1 ventil za doziranje peskalnega sredstva s pnevmatskim uravnavanjem količine. 1 vgrajen zapiralni stožec z vodilno cevjo. 1 priključek za stisnjen zrak s pnevmatskim zapornim ventilom in iztokom za krmilni zrak. 1 regulator tlaka za nastavitev peskalnega tlaka. 1 peskalna cev DN19. 1 ročnik z bor-karbidno Venturi šobo 8 mm. 1 par peskalnih rokavic. Električno nastavljiva višina kabine za ergonomičen položaj telesa. Shranjevanje višinskih položajev v spominu za 3 nastavitve. Filter za odpraševanje 2000 m³/h 2,2 kW. Bwjdpfxoga Ehbo Afrsn

Leto izdelave: 1965, stanje: rabljeno, Pressure: 150 t Outreach: 550 mm Stroke: 10 - 140 mm Table surface: 1180 x 980 mm Strokes per minute: 40 Installation height: 500 mm Ram surface: 1040 x 800 mm Ram adjustment: 70 - 150 mm Pin hole (depth x diameter): 435 x 55 mm Power requirement: 15 kW Machine weight: approx. 12 t Space requirements: approx. 3 x 1.7 x 3 m - with additional brake - ram weight compensation Bwjdpfx Ascubatjfron - motorised ram adjustment - central grease lubrication (manual) - break plate - table clamping plate - safe for manual feeding operations - operating manual available

Stanje: pripravljen za uporabo (rabljen), Erfurt PKZe 500/1000 trimming press Pressing force: 500 t Table dimensions: 1020 x 1420 mm Stroke: 400 mm Bwjdpfsvbcxtex Afron Strokes per minute: 12 Main motor power: 41 kW Video available
