Zbiralni stroj
Theisen & Bonitz tb sprint B 312 VP + tb sprint 304 QSM

Name: Theisen & Bonitz tb sprint B 312 VP + tb sprint 304 QSM
Brand: Theisen & Bonitz
Availability: InStock

Leto izdelave

2005

Stanje

Rabljeno (popolnoma funkcionalen)

Lokacija

Nordrhein-Westfalen Nemčija

Zbiralni stroj Theisen & Bonitz tb sprint B 312 VP + tb sprint 304 QSM

Theisen & Bonitz tb sprint B 312 VP + tb sprint 304 QSM

Spremljaj dražbo

Podatki o stroju

Opis stroja:: Zbiralni stroj

Proizvajalec:: Theisen & Bonitz

Model:: tb sprint B 312 VP + tb sprint 304 QSM

Leto izdelave:: 2005

Stanje:: generalkompletno obnovljen (rabljeno)

Funkcionalnost:: popolnoma funkcionalen

Tehnične podrobnosti

Višina zlaganja:: 30 mm

Največja gramatura papirja:: 1.000 g/m²

Dolžina izdelka (min.):: 500 mm

Največja širina izdelka:: 350 mm

Oprema:: CE označba

zagotovitev

Lokacija:: Nordrhein-Westfalen, Nemčija – Razdalja: pribl. 764 km

Razpoložljivost:: takoj po zaključku dražbe

Dobavni pogoji:: EXW

Stroški demontaže in nakladanja:

Prevzem na lokaciji:
brezplačno

Stroški pošiljanja:

Opis

No reserve price - guaranteed sale to the highest bidder!

Bidding obligates timely collection by 17.10.2025. As these are floor-standing machines, removal can be carried out easily.

The offer includes tb sprint B 312 VP & tb sprint 304 QSM! Both machines have been completely overhauled in 2023.

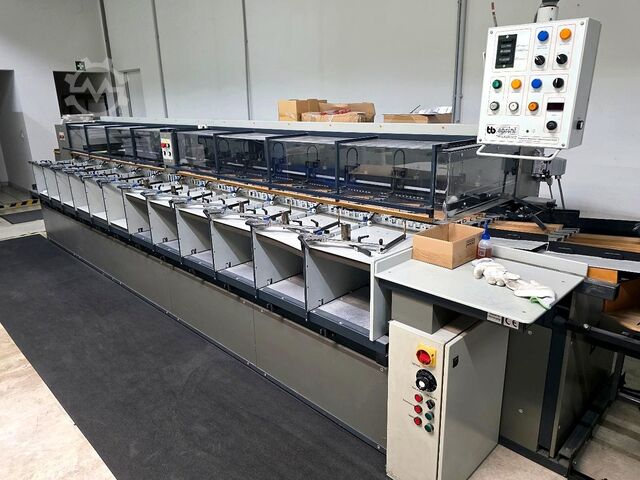

tb sprint B 312 VP

TECHNICAL DETAILS

Stations: 12
Variable stack height: up to 30 cm
Formats: max. 35 x 50 cm, min. 6.5 x 10 cm
Paper weights: 18 to 1,000 g/m²
Performance: up to 3,200 cycles/h

MACHINE DETAILS

Electrical
Voltage: 3/N/PE 400
Frequency: 50 Hz

EQUIPMENT
CE marking
Shaker bridge as removable link to a downstream machine
Manual feed station left
Lateral blast air
Single suction and blow nozzles, individually adjustable
Controlled blow and separation air
Photoelectric miss-sheet control at each station
Electromechanical double sheet control at the delivery, motor-adjustable
Shingling table for cross transport
Paper jam detection for transport table
Illuminated transport table
Manual feed station right
Delivery jogger for straight and offset stacking, selectable by switch
Total and pre-set counters
Digital speed display in cycles/h, steplessly adjustable

tb sprint 304 QSM

TECHNICAL DETAILS

Formats: max. 35 x 50 cm, min. 6.5 x 15.5 cm
Smallest booklet: 6.5 cm spine length x 6.5 cm
Performance: up to 3,100 cycles/h, depending on format and paper

Stitching
Stitch heads: 2 narrow stitch heads for standard stapling up to 5 mm, Hohner Universal
Turnover boxes: complete with turnover boxes and wire reels
Automatic staple thickness adjustment: yes
Block stapling: up to maximum format
Cross adjustment: of staples to fold

Folding
Folding system: frictionless knife fold with automatic layer thickness adjustment and pressing for approx. 120 pages standard paper 80 g/m²
Notching: single for block stapling

Trimming
Front trim: upper and lower knife incl. air blast for trim to 6.5 cm and offcut greater than 1.5 cm
Format adjustment: stepless for front trim
Head and foot trim: each 3 – 20 mm for approx. 80 pages standard paper 80 g/m²
Knives: upper and lower knife
Paper collection box: available
Continuous operation: formats as with the 303 QSM

Delivery
Shingled delivery: shortened with double-sided electrically driven material feed and steplessly adjustable shingle spacing
Delivery angle: with format-adjustable tray for booklet and block stapling

MACHINE DETAILS

Electrical
Voltage: 3/N/PE 400
Frequency: 50 Hz

Machine configuration
Execution: Quick Set motorised (QSM)
Feed rollers: with upper belt transport system
Vacuum belt: present
Motorised format adjustment: availa
