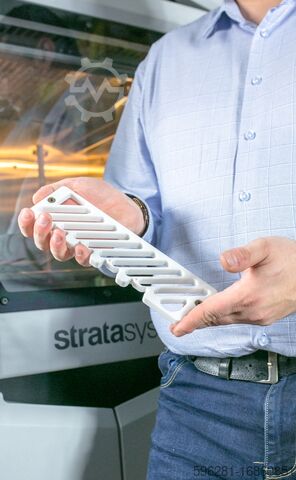

3D tiskalnik

STRATASYS FORTUS 380 MC

Stanje: pripravljen za uporabo (rabljen), Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 2017, obratovalne ure: 4.438 h, TECHNICAL DETAILS Max. Build Volume: 356 x 305 x 305 mm Used Material Type: ASA Material Types According to Manufacturer: ABS-M30, ABS-M30i, ABS-ESD7, ASA, FDM Nylon 12, FDM Nylon 12cf, PC-ABS, PC, SR20, SR30, SR35, SR100, SR110, PC-BASS Accuracy: ± 0.127 mm or ± 0.0015 mm (depending on material) MACHINE DETAILS Network LAN Connection: Required for communication and file transfer Interface: 100 Base-T, Ethernet protocol, RJ45 IP Configuration: DHCP or static Hfsdpfx Afev U Uw Io Tob EQUIPMENT - Transformer 3x400 V to 3x230 V included

Stanje: zelo dobro (rabljeno), Leto izdelave: 2002, Funkcionalnost: popolnoma funkcionalen, Longueur de tournage: 3 000 mm Diamètre de tournage au-dessus du chariot transversal: 520 mm Course de l’axe X : 600 mm Course de l’axe Y : 150 mm Course de l’axe Z : 3 150 mm Diamètre de tournage : 520 mm Longueur de tournage : 3 000 mm Commande : SIN 840 D Siemens Axe Z : 3 150 mm Avance axe Z : 1 - 40 000 mm/min Rapide axe Z : 40,00 m/min Axe X : 600 mm Avance axe X : 1 - 30 000 mm/min Rapide axe X : 30,00 m/min Broche principale S1 Plage de vitesse de broche : 1 - 3 300 tr/min Hfodpexpfd Djfx Af Tob Puissance d’entraînement à charge 100 % : 29,00 kW Nez de broche DIN 55026 - taille A11 Diamètre de broche au palier avant : 160 mm Alésage de broche : 115 mm Axe C : 360 x 0,001 ° Broche de fraisage S2 Montage d’outil : Capto C6 Vitesse en continu : 1 - 6 000 tr/min Axe Y : -100 / +150 mm Axe B : -110 / +110 ° Magasin d’outils 100 postes Puissance totale requise : 145 kW Poids de la machine env. 24 t

Stanje: zelo dobro (rabljeno), Leto izdelave: 2021, Stružna dolžina: 1.500 mm Maks. stružni premer: 670 mm Maks. hitrost glavnega vretena: 5.000 obr/min Maks. hitrost protivretena: 5.000 obr/min Orodno držalo rezkalne enote: CAPTO C6 Vključuje: HAINBUCH vpenjalna glava z menjalnim sistemom Vključuje: podajalnik palic Vključuje: KNOLL transporter za ostružke / tračni filter Vključuje: razna orodja Vključuje: celotno dokumentacijo Hfsdex Nm Uaspfx Af Teb

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2017, obratovalne ure: 59 h, Funkcionalnost: popolnoma funkcionalen, dolžina brušenja: 400 mm, širina brušenja: 200 mm, dolžina podajanja os X: 510 mm, dolžina podajanja os Z: 220 mm, hitrost pomika os X: 20 m/min, premer brusilnega koluta: 205 mm, razdalja od mize do središča vretena: 357 mm, obremenitev mize: 120 kg, vrsta vhodnega toka: trifazni, širina brusilnega kolesa: 16 mm, največja hitrost vretena: 3.600 obr/min, hitrost vretena (min.): 1.000 obr/min, skupna masa: 2.100 kg, moč motorja brusilnega vretena: 2.200 W, hitrost brusnega kolesa: 3.600 obr/min, vhodna napetost: 400 V, Oprema: dokumentacija / priročnik, TEHNIČNE LASTNOSTI: Leto izdelave: 2017 Barvni zaslon na dotik: Da Največja dolžina × širina brušenja: 400 × 200 [mm] Hod osi X (premik mize): 510 [mm] Najmanjša hitrost hoda osi X: 100 [mm/min] Največja hitrost hoda osi X: 20.000 [mm/min] Hod osi Z (prečni premik): 220 [mm] Min. razdalja med nosom vretena in mizo: 22,5 [mm] Maks. razdalja med nosom vretena in mizo: 357,5 [mm] Največja obremenitev na mizi: 120 [kg] Najmanjša hitrost brusnega kolesa: 1.000 [obr/min] Največja hitrost brusnega kolesa: 3.600 [obr/min] Moč motorja brusnega vretena: 2,2 [kW] Največji premer brusnega kolesa: 205 [mm] Največja širina brusnega kolesa: 16 [mm] Najmanjša širina brusnega kolesa: 6 [mm] Premer luknje brusnega kolesa: 31,75 [mm] Število delovnih ur: 59 [h] Napajalna napetost: 400 [V] Skupna potrebna moč: 11 [kVA] Teža: 2.100 [kg] PRILOŽENA OPREMA: x1 rezervoar za hladilno tekočino 150 [L] FB1/R s papirnim filtrirnim sistemom FB1 x1 elektro-permanentna magnetna miza BRAILLON tip EPEFINE 2 x1 daljinski upravljalnik za magnetno mizo BRAILLON, z mikroprocesorskim upravljanjem, tip T10 x5 prirobnic za brusna kolesa x1 hladilnik olja x1 transformator x2 servisna ključa x1 uravnoteževalna os x1 komplet transportnih nosilcev osi STANDARDNI KONVERZACIJSKI NAČIN PROGRAMIRANJA: Ravnsko in kotno oblačenje (standard) Površinsko brušenje, večkratno vrezovanje in čelno brušenje (standard) VKLJUČENO ISO PROFILIRANJE: Profiliranje koles Obdelava obrisev obdelovanca Polna funkcionalnost za programiranje V-oblik in prostih oblik na brusnem kolesu ter ISO konturiranje na obdelovancu Natančno pozicioniranje vključeno: +/- 1 [μm] Hedpfew Hf Hiox Af Tofb Stroj je možno videti pod napajanjem v naših prostorih po predhodnem dogovoru. Cena na povpraševanje, nalaganje na tovornjak vključeno. Možnost dostave po vsem svetu. Podatki na tej strani so bili zbrani po naših najboljših zmožnostih. Zaradi tega točnosti ni mogoče jamčiti. Podobni stroji kot znamke Jones & Shipman, Jung, Favretto, Blohm, Studer. Prav tako preverite valjčne brusilke, stružnice, obdelovalne centre, rezkalne stroje.

Stanje: dober (rabljeno), Leto izdelave: 1998, Premer mize 1800 mm Premer struženja 2060 mm Zunanji premer kroženja 2000 mm Delovna višina 1557 mm Pogonska moč – rezkalno vreteno 30 kW Teža obdelovanca 12 t Hsdpfx Asw H Dkmef Tjfb Pogon mize 100 kW 2-stopenjski menjalnik Pogon brusilnega vretena 30 kW Rezkalno vreteno SK50 z brusilnim vretenom

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2013, Funkcionalnost: popolnoma funkcionalen, Cylindrical Grinding Machine – External / Manufacturer: WMW / Type: SA 6U x 3000 Year of Overhaul (Retrofit): 2013 (Machine Rebuilder: SerWeMa/Germany) Workpiece Range: Straightening rollers, grinding spindles, general shaft machining. Special Feature: Machining possible with up to 6 steadies. The machine can be inspected under power by appointment. TECHNICAL DATA: Working Area: - Centre height: 260 mm - Maximum swing diameter: 515 mm - Maximum grinding length: 3,000 mm - Maximum grinding diameter: 515 mm - Maximum workpiece weight: 500 kg Workpiece Headstock: - Infinitely variable speed: 12.5 – 355 rpm - Centre taper: Morse No. 5 Tailstock: Hjdpsxymdaefx Af Tofb - Maximum quill stroke: 40 mm - Centre taper: Morse No. 5 Grinding Spindle Head: - Grinding wheel: * Maximum external diameter: 630 mm * Maximum width: 125 mm EQUIPMENT: - Dust extraction - Documentation - CE marking No guarantee for completeness and correctness of the technical information and equipment details. – Subject to prior sale – A detailed technical datasheet and information on equipment are available on request.

Leto izdelave: 1995, Stanje: rabljeno, številka stroja/vozila: 18891, Tractive force: 10 t. Lift: 1000 mm Hjdpjbrcmkofx Af Tjfb 3 clearing stations With chip conveyor + platform for above-floor installation and safety door.

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 2005, Funkcionalnost: popolnoma funkcionalen, A used CNC gantry milling machine with carousel turning unit / C-axis for turning operations Hirth coupling TRAVEL DISTANCES X: 3,000 mm Y: 2,500 mm Z: 1,000 mm Table diameter: 2,000 mm Max. turning diameter: 2,500 mm Max. turning height: 1,000 mm Machine: Uniport 6000 Boring mill operations, as well as CNC turning, CNC milling, and angle head machining — all in a single setup, combined with the speed and precision of a CNC gantry mill. C-axis for turning applications Original price: €1.8 million Dismantling: by arrangement Hfsdpsvvh T Ssfx Af Teb The machine comes with a protective cover to prevent chips from entering the Hirth coupling on the ram during milling operations. Includes a turning adapter head for turning tools and an angle head for side machining on the platen field or rotary table. You can index this in 2.5° increments via the Hirth coupling. All tool holders (milling, turning, angle head) use HSK-100 clamping. A radio touch probe from M&H (Hexagon) for measuring and setting the zero point is included with the machine. The machine is in operation and can be inspected on site by prior arrangement. A video of the machine is available.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2001, obratovalne ure: 4.500 h, Funkcionalnost: nepreverjeno, številka stroja/vozila: 090119, Country of manufacture: CE – Germany Voltage: 400V Net weight: 7,500 kg Dimensions: 2.9 x 2.3 x 2.3 m Operating hours: 29,731 h – Working hours: 4,500 h TECHNICAL DATA AXES Maximum travel X-axis: 400 mm Maximum travel Y-axis: 300 mm Maximum travel Z1-axis: 475 mm Maximum travel Z2-axis: 475 mm Rotational range B-axis: 0.0001 – 360° Rotational range C1/C2-axis: 0.0001 – 360° WORKPIECE Maximum cubic dimension: 80 x 80 x 80 mm Maximum weight: 5 kg TURRET HEAD Number of stations: 24 Number of driven stations: 18 Number of static stations: 6 Maximum tool holder (round): Ø 20 mm Maximum tool holder (square): 16 x 16 mm (20 x 20) Maximum turret head path above tool tip: 500 mm Speed of rotating tools: 1–9,000 rpm SPINDLE Maximum speed: 6,000 rpm Maximum bar diameter: Ø 42 mm Maximum clamping chuck diameter: 140 mm BAR MACHINING Maximum bar length for bar feeder: 1,000 mm Maximum workpiece size for bar gripper: Ø 42 x 100 mm Maximum diameter for collet gripper: 42 mm Clamping cylinder pull/push force: 20,000 N FEED DRIVES Feed force X-axis: approx. 895 daN Feed force Y-axis: approx. 895 daN Feed force Z1-axis: approx. 895 daN Feed force Z2-axis: approx. 895 daN Rapid traverse X/Y/Z axes: 20 m/min Tool control motor torque: 2.4 Nm Spindle S1 / Spindle S2: 70 Nm COOLING (Performance rate) Chip conveyor submersible pump output: approx. 10 l/min at 4.5 bar      80 l/min at 3.2 bar      150 l/min at 0.7 bar High-pressure pump (in conveyor): 10 l/min at 13.2 bar      50 l/min at 9 bar      90 l/min at 1 bar Lubrication volume in chip conveyor: approx. 134 L Coolant volume in cooling unit: 45 L CONTROLLER: Siemens 840D WORKING PRECISION Resolution X/Y/Z: 0.1 µm Resolution B-axis: 0.0001° Resolution C-axis: 0.0001° Positioning accuracy: 5 µm Repeatability: 0.6 µm Max. runout error: 0.5 µm ELECTRICAL Spindle 1 / Spindle 2 (at 100%): 11 kW Spindle 1 / Spindle 2 (at 40%): 15 kW Feed motor X/Y/Z1/Z2: 1.3 kW B-axis: 1.3 kW Tool control: 2.3 kW Hydraulic pump: 7.5 kW Hydraulic return: 0.75 kW Cooling unit fan 1 / 2: 0.18 kW Cooling unit circulation pump: 1.1 kW Cooling unit compressor: 2.2 kW Chip conveyor: 0.25 kW Emulsion pump 1: 1.1 kW Emulsion pump 2: 2.2 kW Control voltage: 400 V Network frequency: 50Hz (60 optional) Control voltage: 24V DC Total power: 35 kW Nominal current: 63A Connection: TM / TT / IT grid PNEUMATICS Maximum operating pressure: 10 bar Normal operating pressure: 6 bar Minimum operating pressure: 5 bar Air output: approx. 150 L/min Valve voltage: 24V DC Oil mist tank capacity: 12 L Quality standard: 2 according to Pneurop6611 NOISE EMISSION Normal operation: 78–80 dB Technical data subject to change; errors and omissions excepted Hodpfsht Hg Dox Af Tefb Inventory No. 2321018; machine configuration: - Chip conveyor - Prepared for bar feeder installation Tool holders: - 6 fixed drill holders ER32 - 8 turning tool holders - 5 powered tool holders ER32 - 4 powered tool holders ER25 - 6 powered tool holders ER20

Stanje: rabljeno, Leto izdelave: 1983, Internal diameter min / max: 10 / 250 mm Grinding depth: 400 mm External diameter max.: 380 mm Swing diameter: 390 mm Table travel max.: 550 mm Table stroke min.: 2 mm Rapid traverse: 10 m/min Table speed - stepless: 0 - 10 m/min Coarse adjustment: 18 mm Fine adjustment: 4 mm Max. workpiece weight: 100 kg Spindle head: B 6 DIN 55021 Spindle speeds - stepless: 15 - 1,500 rpm Swivel angle max.: +/- 30 degrees Spindle bore: 50 mm Drive power: 2 kW Rapid feed: 0 - 250 mm/min Stroke: 70 mm Drive power: 3 kW Machine weight approx.: 2.7 t Space requirement approx.: 3.0 x 3.0 x 3.2 m Internal grinding machine BAHMÜLLER - JES 12 Hsdpfevprxfex Af Tsfb - new control system (July 2015)
