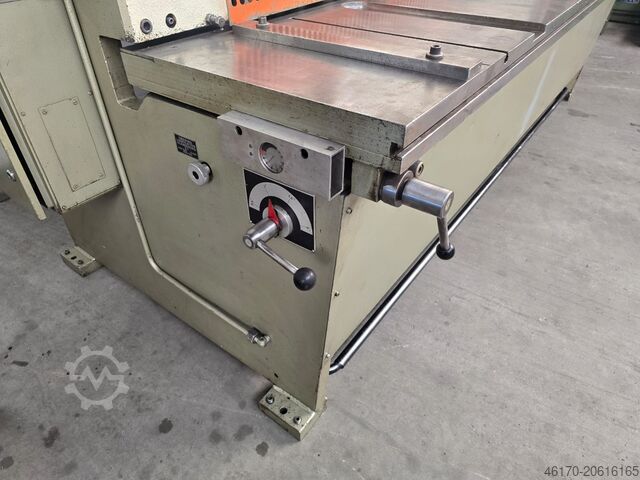

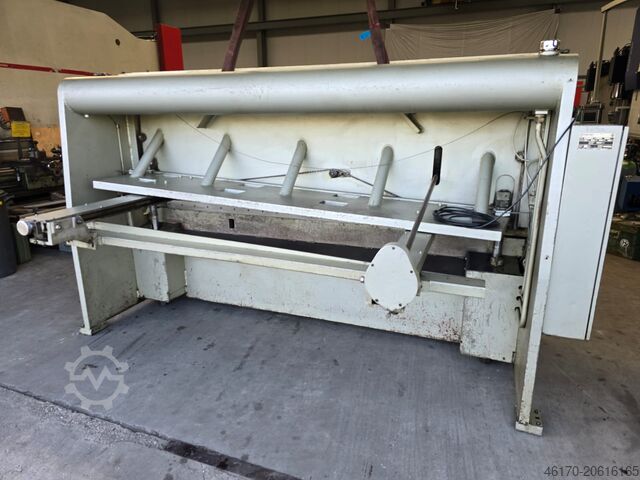

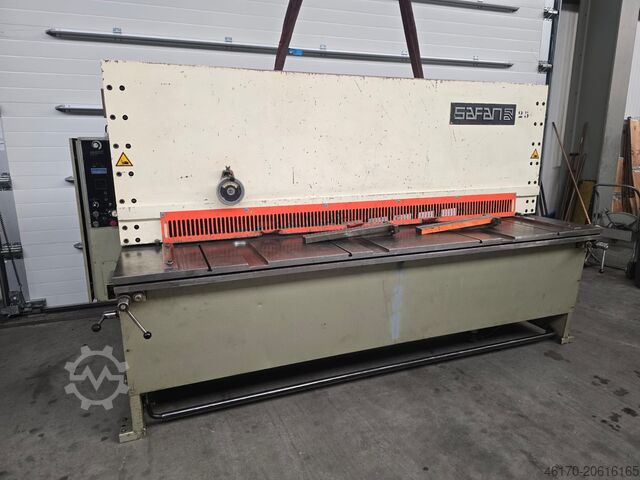

Hidravlične škarje za giljotino

Safan VS 255-8

Leto izdelave: 1981, stanje: dober (rabljeno), številka stroja/vozila: 3626, OFFER 21448 Technical Data: - Maximum working width: 2540 mm - Maximum cutting capacity (Steel 40): 4 mm - Motorized cutting angle adjustment Gusdpfx Aohhc Ixoc Hog - Cutting gap adjustment via scaled adjustment screws - Number of hydraulic hold-downs: 14 pcs - Motorized backgauge with positioning system: 10 – 1000 mm - Strokes per minute (depending on cutting angle and length): 23 per min - Hydraulic drive: 400 V / 7.5 kW - Table height: 1030 mm - Required floor space: approx. W 2500 x H 1630 x D 2150 mm - Weight: approx. 3600 kg Includes: - Pneumatically assisted sheet support - Front squaring arm and supporting arms - Electronic cutting depth adjustment - Cutting line illumination - Electric foot switch

Stanje: zelo dobro (rabljeno), 3-phase direct current spot welding machine DALEX Type PMS 11-4 G 3 Rated power at 50% duty cycle: 96 kVA Secondary short-circuit current: 44.5 kA Secondary open-circuit voltage: 4.72 V Electrode force: 100–600 daN Arm reach: 550 mm with mounted control cabinet according to VDE 0100 Gedpfxjhmvaws Ac Hsug Main switch Synchronous welding controller 8033 Weight: 740 kg

Stanje: novo, Table diameter: 490 mm Table load capacity: 300/150 kg Swivel range: 0-90° manual Table load, horizontal: 300 kg Guedpfx Asgvkktsc Hog Table load, vertical: 150 kg Bore diameter: 65 mm Table rotation speed: 0.4 - 4.0 rpm Voltage: 230 V Total power requirement: 0.2 kW Machine weight: approx. 0.1 t Space required: approx. 0.5 x 0.52 x 0.5 m The D-DWP welding positioners are equipped with a hollow shaft in the turntable. This feature significantly expands the options for flexible positioning and circumferential welding of your component. For example, this is particularly advantageous when welding with backing gas. Utilising these tilting rotary tables can increase your production rate and further improve product quality. Thanks to their compact design, the D-DWP series can be integrated into any existing production facility in a space-saving manner. Features: - Foot pedal included - Stepless speed control - Very high stability – compact model - Through-hole in the turntable - CE marking

Stanje: novo, Table diameter 900 mm Table load capacity 1.0 t Swivel range 135 degrees Rotational speed 0.12 - 1.2 rpm Faceplate height 820 mm Welding current 500 amperes Total power requirement 0.75 + 0.55 kW Machine weight approx. 1.1 t Gsdpfxjfv Axxe Ac Heug Space requirement approx. 1.5 x 1.0 x 0.9 m • Self-locking gearbox, therefore no overrun or backrun under eccentric load. • Electronic components from Schneider, Siemens, and Delta. • Infinitely variable speed control of the turntable via frequency inverter. • High stability due to robust construction. • Welding current transmission. • CE certificate. • Excellent price / quality ratio. • The D-HBE series is supplied as standard with a wired remote control and foot switch.

Stanje: rabljeno, Leto izdelave: 1995, Technical Details: Sheet width: 3,000 mm Sheet thickness: 12 mm Frame gap: 3,500 mm Control: Cybelec DNC 10 G Back gauge: 1,200 mm, motorized Cutting angle: 1.2 - 2.73° Blade gap adjustment: yes, mm Shearing force: 66,000 daN Blade length: 3,100 mm Hold-downs: 17 units Interface: RS232 Gujdpfjvc Amtox Ac Hog Table size: 3,200 x 600 mm Total connected load: 22 kW Approx. machine weight: 11.0 + (1.0 t attachments + accessories) t Space requirements approx. LxWxH: 4.5 x 2.6 x 2.1 m Transport dimensions LxWxH: approx. 5.0 x 2.25 x 2.2 m The guillotine shear was first commissioned in 1998. The DNC 10 G control system was specifically designed for guillotine shears. It features a numerical axis for controlling the back gauge and automatically calculates and regulates the blade gap, cutting angle, and cutting depth based on the material to be sheared (according to the manufacturer's specifications). Table with side stop: L:930 x W:105 x H:42 mm 2 table extensions: L:1,600 x W:100 x H:83 mm Angle stop (mounted on table extension) Operation via control panel with pivoting arm and foot pedal Equipment: - Run-out table with rollers for cut material - 2x protective guards

Leto izdelave: 2007, stanje: dober (rabljeno), številka stroja/vozila: 12641207, Offer 23108 Technical specifications: - Welding current: max. 550 A at 60% duty cycle (ED) - Welding current: 420 A at 100% duty cycle (ED) Gusdpfx Aelzif Sjc Hsg - Adjustable welding current range: 50 A – 550 A - 3 coarse settings + 12 fine settings - Separate wire feed unit with 4 m intermediate hose package - 4-roller wire feed, infinitely adjustable: 0.5 – 24 m/min - 2-stroke + 4-stroke operation selectable - Water-cooled torch package, approx. 4 meters - Ground cable - Pressure regulator - Connection: 400 V / 64 A - Space requirements: approx. W 550 x H 1310 x D 1050 mm - Weight: approx. 150 kg

Leto izdelave: 1997, stanje: rabljeno, številka stroja/vozila: 540897, Maximum pipe diameter: 1,500 mm Minimum pipe diameter: 200 mm Maximum tool diameter: 200 mm Feed rate: 40 mm / min Sawing of steel and cast iron pipes up to 22 mm wall thickness Gujdpfx Aoghy Azec Heg Milling of steel and cast iron pipes up to 15 mm wall thickness Cutting speed: 35 m / min Compressed air requirement: 6 bar – 2 m³ / min Weight: approx. 90 kg

Stanje: rabljeno, Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 1995, najv. debelina jeklene pločevine: 20 mm, maks. debelina pločevine iz nerjavečega jekla: 14 mm, Oprema: varnostna svetlobna zapora, Hydraulic Shear Brand: Casanova Model: VC-26 Year: 1995 Power: 30KW WEINTEK control unit installed new in 2020. Cutting length: 3100mm Maximum steel cutting thickness: 20mm Maximum stainless steel cutting thickness: 14mm Throat depth: 500mm Cuts per minute: 8-18 Back gauge: 1,000mm Gedpjwy Nhqsfx Ac Hjug Manual blade gap adjustment via side levers. Front safety laser

Stanje: skoraj kot novo (rabljeno), Leto izdelave: 2023, Funkcionalnost: popolnoma funkcionalen, nosilnost: 2.000 kg, Sideros obračalna naprava, stebrni dvižni vrtljivi sistem, ena stran premična z pozicionirno mizo. Nosilnost 2 toni. Novo, letnik 2020, neuporabljeno, z daljinskim upravljanjem. Minimalna delovna višina 350 mm. Maksimalna delovna višina 1800 mm. Navor 3000 Nm. Hitrost 1 obr/min. Hitrost nastavitve v vertikali 560 mm/min. Vertikalna nastavitev 1450 mm. Premer vpenjalne plošče 600 mm. Moč motorja 4,45 kW. Vrtljiv pogon 0,75 kW. Dvižni motor 1,85 kW. Višina naprave 2505 mm. Teža cca. 1050 kg. Stanje kot novo, neuporabljeno. Možna dostava. Vključno z dokumentacijo, načrti itd. Gusdpfx Acjyr Affo Hsg

Stanje: dober (rabljeno), Leto izdelave: 2002, številka stroja/vozila: 0102002, Semi-automatic, swinging angle opening Very good condition 3 months functional warranty Print format: 1000 mm x 1500 mm Max. sheet format: 1050 mm x 1550 mm Max. screen frame: 1370 mm x 1850 mm Squeegee pre-set height adjustment: 40 mm Infinitely adjustable squeegee angle setting: + / - 50 – 90° Support bar height adjustment: 0 – 100 mm, stepless Maximum material thickness: 100 mm Machine weight: approx. 1500 kg Connected load: 400 Volt / 50 Hz – 5 kW Gjdpfx Aerllhkoc Houg Air connection: 6 bar Options: Pneumatic screen frame clamping Adjustable squeegee pressure compensation via pressure regulator Stainless steel print bed Blow air device All information subject to change and without guarantee.
