Stroj za rezkanje na postelji - Universal

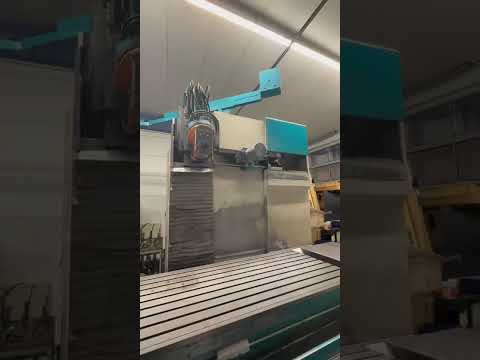

REIDEN BF-5Z

Stanje: rabljeno, Leto izdelave: 1995, Funkcionalnost: popolnoma funkcionalen, Tool grinding machine Jungner, Sweden Year of manufacture: 1995 Accessories Gbjdswdihrjpfx Afqog

Stanje: novo, Leto izdelave: 2025, ATTENTION: POSSIBILITY TO CALCULATE ANY CRANE CONFIGURATION Thank you for your interest in our offer. WNM Sp. z o.o. offers: gantry cranes, semi-gantry cranes, jib cranes, column cranes, suspended overhead cranes, and bridge cranes. We encourage you to submit inquiries for quotations, which we prepare based on the customer's specifications such as: type of crane, lifting capacity, lifting height, dimensions, and runway length. This advertisement refers to a gantry crane/hoist with a lifting capacity of 5 TONS. All crane components are made from top-quality materials, ensuring durability and resistance to damage even in demanding environments. TECHNICAL SPECIFICATIONS: GANTRY CRANE HOIST, CAPACITY: 5 TONS Span length: 6 m Lifting height: 3.55 m Gsdpsv Ni Rxofx Afqobg Lifting mechanism: 5-ton electric chain hoist Lifting speed: 2.7 m/min Cross travel speed: 11 m/min Crane travel speed: 10 m/min Duty class: A3 Power supply: 380V / 50Hz / 3-phase Control mode: pendant control + remote All machines are invoiced with VAT. Should you have any questions, please do not hesitate to contact us.

Stanje: rabljeno, Leto izdelave: 2005, X-axis travel: 1,000 mm Y-axis travel: 1,000 mm Z-axis travel: 1,000 mm Control: Siemens 840 D Spindle speed range – main spindle: 20 – 18,000 rpm Drive power – main spindle: 28 / 19 kW Max. torque: 121 Nm Tool holder: HSK-A63 Swiveling B-axis: -30 / +180° Swivel time: 1.2 s Number of pallets: 2 Pallet size: 1,000 x 800 mm Max. workpiece weight: 1,500 kg Rotary C-axis: 360° Number of tool stations: 180 positions Tool holder: HSK-A63 Total power requirement: 78 kVA Machine weight approx.: 27.0 t Gedpfx Afowf Rgfsqsbg Space requirements approx.: 8.0 x 7.0 x 3.4 m 5-axis CNC universal machining center DECKEL MAHO – DMC 100 U duoBLOCK - Swiveling milling head (B axis) - NC rotary table (C axis) - Pallet changer - 180-position tool magazine - WITHOUT zero-point clamping system - WITHOUT RINGLER extraction system - WITHOUT tools

Stanje: novo, potovalna razdalja osi X: 6.000 mm, pomik osi Y: 1.300 mm, pomik po osi Z: 2.000 mm, položaj glave za glodanje: Universal-Diagonal-Fräskopf, hitro pomikanje X-os: 30.000 m/min, hitri pomik os Y: 30.000 m/min, hitri pomik na osi Z: 30.000 m/min, največja hitrost vretena: 6.000 obr/min, vrtilni razpon: 1 °, dolžina mize: 7.500 mm, širina mize: 1.100 mm, vrtilni moment: 1.178 Nm, obremenitev mize: 42.000 kg, dovod hladilne tekočine: 36 letvica, moč vretenovega motorja: 53 W, Oprema: vrtilna hitrost brezstopenjsko nastavljiva, TOVARNIŠKO NOVA STOJNA REZKALNA STROJ Gsdpfxsvrv Sus Afqsbg Krmiljenje in motorji: Dva digitalna tirna krmilnika HEIDENHAIN TNC 640 – eden spredaj na stroju in eden zadaj v kabini HEIDENHAIN paket (motorji, merilni sistemi in ročni kolut) Dodatna oprema: Verižni menjalec orodij z dvojnim prijemalom, 60 mest Dvojni tečajni transporter ostružkov (vzdolžni), eden spredaj in eden zadaj Natančnosti: Natančnost pozicioniranja: ±0,040 mm Ponovljivost: ±0,008 mm Na povpraševanja odgovarjamo le iz Nemčije.

Stanje: dober (rabljeno), Leto izdelave: 2007, Funkcionalnost: popolnoma funkcionalen, globina vrtanja: 1.150 mm, skupna masa: 12.000 kg, premer vrtanja: 32 mm, Heidenhain iTNC530 CNC control 12-position tool changer Technical data: Travels: X-axis longitudinal (table): 1800 mm Z-axis cross (column): 1700 mm W-axis cross (drilling unit): 1150 mm Y-axis vertical (drilling unit): 1200 mm B-axis (rotary table): 360° A-axis (drilling unit): -25° to +15° Deep drilling area (ELB): Diameter range: 6–32 mm Max. drilling depth: 1150 mm Gjdpfx Aowcldasfqobg Drive power: 40 kW Machine weight approx.: 12,000 kg Technical data, accessories, and machine description are non-binding. For further technical details, please refer to the photos.

Stanje: rabljeno, Leto izdelave: 2007, Maximalni prečnik struganja 42 / 140 mm Dužina struganja 170 mm Upravljač Mitsubishi Meldas Obrtaji vretena 80–8.000 o/min C-osovina 0,001° Revolverska glava (x-puta) 2x 12 (VDI 20) pogonjena Obrtaji revolverske glave 45–4.500 o/min Snaga vretena 1 kW Abgreif stanica 42 mm Obrtaji 60–6.000 o/min C-osovina 0,001° Broj upravljanih osa 8 Uređaj za stezanje steznih čaura 48 DIN 6343 Radni sati 10.769 h Transporter strugotine da/godina 2018 Ukupna snaga 7,5 / 11 kW Težina mašine cca. 3,3 t Dimenzije cca. 2,4 x 1,6 x 2,2 m CNC strugarsko-glodalica CITIZEN BOLEY BE 42, godina 2007 Simultani rad sa 7 osa na glavnom i prihvatnom vretenu Vrlo dobro stanje, radni sati 21.999 h (septembar 2024) Oprema: # razni nosači alata: 5x aksijalni pogonjeni nosač alata # stezno telo za stezne čaure, tip 173E Gbodpfx Afsvyli Eoqog # dodatni rashladni uređaj # transporter strugotine Knoll, godina proizvodnje 2018 Boley BE 42 se prodaje bez automatskog magazina za šipke. Interfejs za povezivanje postoji. Zamena kompletnog seta baterija izvršena 22.12.2025.

Stanje: rabljeno, TECHNICAL DATA - Number of axes: 5 Gbjdpfx Aoup Hw Eefqsg MILLING SPINDLE - Tool holder: HSK63 - Spindle drive power: 17.5 kW - Spindle speed: 18,000 rpm LINEAR AXES - Travel X/Y/Z axes: 915 / 500 / 500 mm - Rapid traverse speed (X/Y/Z): 30 / 30 / 20 m/min TOOL CHANGER - Number of tools in magazine: 28 TABLE - Table size: Ø 630 mm - Max. table load: 500 kg ELECTRICAL SUPPLY - Supply voltage: 400 V - Total power requirement: 26 kVA WEIGHT AND DIMENSIONS - Space requirements: 3620 x 3160 mm - Machine height: 3000 mm - Machine weight: 7,300 kg MACHINE HOURS - Operating hours: 48,894 h ACCESSORIES - Control: Heidenhain iTNC 530 - Coolant tank - Chip conveyor - Oil mist extractor: ELBARON - Coolant unit: HYDRAC COOLING FLKS 170S/2.3W/TP/400-50/1/14 - Workpiece probe system: Renishaw - Tool breakage monitoring: BLUM

Stanje: zelo dobro (rabljeno), Leto izdelave: 2014, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 538518/1, Dear interested party, All information regarding the plant can be found in the photos and PDF documents. The plant can be inspected at our premises by appointment. Gbjdpfjumv Aljx Afqog Should you require any further information, please do not hesitate to contact us.

Stanje: rabljeno, Tehnički detalji: Merni opseg Y-osa: Visina: 0 - 600 mm Interfejs: RS232 Težina: 24 kg Potrošnja energije: 43 vati Potrebni prostor (širina x dubina x visina): 0,237 x 0,448 x 1,013 m Visokoprecizni merni uređaj za visinu Linear Height sa staklenom skalom za visoku tačnost. Sa LCD ekranom i tastaturom. Radi se o stonom uređaju. Putem tastera (lebdeći prekidač), glavni uređaj se može lako i polulebdeće pomerati po mernoj ploči. Klizač može izvoditi automatske i ručne pokrete. Uključuje ekscentrični taster sa kuglom Ø 4,5 mm na vrhu. Izlaz podataka RS-232C interfejs Merni klizač vođen je valjkastim ležajevima, pokretan motorom i/ili ručno Gsdpfxexcvqne Afqsbg Merni sistem – stakleni merni sistem (metoda reflektovanog svetla) Dovod komprimovanog vazduha putem ugrađenog kompresora Upravljanje preko komandne table (sa grafičkim prikazom) Sa granitnom pločom, bez stola

Stanje: rabljeno, Leto izdelave: 2011, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 3261, potovalna razdalja osi X: 2.000 mm, pomik osi Y: 1.300 mm, pomik po osi Z: 1.300 mm, premer vrtljive mize: 1.600 mm, Oprema: vrtilna hitrost brezstopenjsko nastavljiva, Used Milling/Turning Center SHW UniSpeed 5T MC No. 3261 – Year of manufacture 2011 Travel distances: X = 2,000 mm | Y = 1,300 mm | Z = 1,300 mm Construction: Self-supporting machine frame without elaborate foundation required. Precise compact linear guides in all axes. Machine column in portal design, spindle head and carriage made of GGG 60 cast iron with hydraulic weight compensation. Drive & Feed: Digital AC individual drives, infinitely variable 2–30,000 mm/min, acceleration 2 m/s². Direct measuring system for high accuracy. Universal Milling Head (orthogonal): - GGG 60 cast iron, fully automatic swiveling 360°/180°, 64,800 CNC-controlled positions - SK 50, tool clamping force 20 kN - Power: 26 kW (100% duty cycle) / 36 kW (40% duty cycle), 22–6,000 rpm - Hydromechanical quick-release tool clamping CNC Rotary Table: - Ø 1,000 mm, run-out 0.015 mm - Turning: up to 250 rpm | Torque: 2,700 Nm - Table load: Milling 6,000 kg, Turning 3,000 kg - Swing diameter: max. 1,800 mm Balancing Measuring System: Integrated system for vibration monitoring & correction (DIN ISO 1940 G 6.3 to >G 3). Operated via Siemens 840D. Tool Changer: - Chain magazine for 90 tools - SK 50, max Ø 125/250 mm, length 400 mm, weight 25 kg - Horizontal tool change, fixed location coding, air purge for spindle protection Control: Siemens 840D, swivel-mounted on the machine. Electrics: Total connected load approx. 80 kVA. Control voltage 24 V, protection class IP 54, EN 60204. Switch cabinet with integrated cabinet cooler (dual-chamber system, hermetically sealed, with dehumidification). Cooling & Lubrication: - ICS & shower ring (switchable), 500 l tank, max. 40 bar - Minimum quantity lubrication MQL (Lubrix 850) via spindle - Rinse gun, frame flushing, air/coolant switchover - Lubrication: centralized for guides, spindle grease-lubricated, milling head oil mist Chip Conveyor: Hinged belt, X-travel 2,000 mm, width 350 mm, discharge height 1,250 mm Additional Systems: - 1-channel collision monitoring - Sealing air to glass scales - Wireless 3D touch probe - Extended milling head swivel range -90° to +110° - VisioPort for clear view - Rotary union in rotary table for clamping hydraulics incl. clamping monitoring - Zero-point clamping system with control panel buttons - Safety glass (18 mm) - Air cleaning system ILT Unifil 1 MRV70-4.0 (4,200 m³/h) - External B-MPI hand unit with handwheel, override, emergency stop - Power connections: compressed air 4–6 bar (G¼) Paintwork: Base color RAL 7004 signal grey, function units RAL 7016 anthracite grey or RAL 9011 graphite black, silk matt, oil & soda resistant. Gedpfew Eb Itex Afqjbg
