Leto izdelave: 2023, Stanje: novo, IMMEDIATE AVAILABILITY! Vibratory Finishing Machines with Separator The VKUE series machines are suitable for surface processing of metallic and non-metallic workpieces. These machines feature a large screening area, enabling easy separation of workpieces from the abrasive media. Optional Accessories - Pneumatic sound cover - Pneumatic flap control - Frequency control - Dosing pump Csdpfx Aon Smbrefqjhf - Magnetic valve - Basic control panel - Rinsing tube (various types available) The images are for reference only. Optional accessories are available at an additional cost.

Stanje: novo, Leto izdelave: 2025, Spray-Flood Cleaning System – Parts Cleaning Machine Washing (600 liters) + Rinsing (430 liters); electrically heated; The cleaning process can be performed via spraying, flooding (injection flood cleaning), and with ultrasonic support. The basket can remain stationary, oscillate, or rotate during the cleaning cycle (freely selectable via the program). Drying via hot air and vacuum drying. Basket usable dimensions (LxWxH): 600 x 400 x 300 mm Maximum load weight: 150 kg Loading table in front of the machine included Cedehu Sg Ijpfx Afqehf Control: Siemens S7-1200 with 20 programs

Stanje: novo, Cutting diameter round: 230 mm Cutting diameter square: 230 x 230 mm Saw band length: 2950 x 27 x 0.9 mm Table height: mm Band speed: 15 - 100 m/min Total power requirement: 2.2 kW Machine weight: approx. 1.2 t Dimensions (L x W x H): m SHARK 230-1 NC HS 5.0, electrohydraulic double-column fully automatic band saw with semi-automatic function for 0° cuts in structural steel, stainless steel, steel alloys, solid and profile materials, with a maximum remnant piece length of 60 mm. - The cross-section max. is 230x230 mm. - Numerically controlled band saw with the new Windows “CE” based system, specifically developed by MEP for automatic operation. FEATURES: - User interface with 7” touchscreen display and mechanical keys for the machine's operating functions, ensuring reliable operation, simple and intuitive use, and real-time monitoring of all cutting parameters. Chsdpfx Afofg E Hyeqjf - Safety enclosure in accordance with the latest EN 13898/2007 machinery directive requirements. - New fieldbus communication system with dual microprocessor and serial connection. - Robust cast iron (G25) construction to compensate for vibrations, improve machine stability, and prolong band saw blade life.

Leto izdelave: 2005, Stanje: skoraj kot novo (rabljeno), Funkcionalnost: popolnoma funkcionalen, lastna masa: 1.600 kg, največja dovoljena obremenitev: 1.000 kg, notranja višina: 1.200 mm, notranja dolžina: 1.390 mm, notranja širina: 1.390 mm, nazivna moč: 64.000 kW (87.015,68 KM), zmogljivost črpalke: 500 l/min, tlak črpalke: 450.000 letvica, kapaciteta rezervoarja za vodo: 800 l, številka stroja/vozila: 25191, Industrial machine and parts cleaning device. Equipped with 3 washing chambers: one main and two auxiliary. Technical condition: Excellent – used only a few times. Model number: C-1600-33EHSS-PD1 Serial number: 25191 List of main machine components: - Washing chamber door (with actuators) - Upper washing nozzle - Lower washing nozzle - High-pressure piping - Control cabinet - Main washing pump Chjdpfjrkz Stex Afqsf - Auxiliary pump 1 - Auxiliary pump 2 - Water heater (for each chamber) - Drain valve - Water level sensor - Parts washing basket - Oil separator - Steam vent - Water pressure indicators - Automatic water filling and chemical dosing system Additionally, the set includes a reverse osmosis water filter.

Stanje: novo, Leto izdelave: 2018, For sale is an unused Rösler FKS 35 Tandem with soundproof cabin, manufactured in 2018. The system is still in its original packaging and available from our warehouse. You are welcome to arrange a viewing appointment on site after prior telephone consultation. Cedpfxsl D Ex De Afqohf

Leto izdelave: 2018, Stanje: rabljeno, x-axis travel: 1600 mm y-axis travel: 1300 mm z-axis travel: 700 mm Distance between uprights: 1500 mm Distance spindle center to table: 225–925 mm Table size: 1800 x 1300 mm Table load: 4000 kg T-slots (Width x Spacing x Number): 22 x 160 x 8 mm Spindle taper: HSK-A 63 Spindle speed: 24,000 rpm Spindle motor: 25/33 kW Spindle motor torque: 72.6/95.8 Nm Rapid traverse (X-Y-Z axis): 30,000 mm/min Feed rates X/Y/Z axis: 1–20,000 mm/min Tool changer: 20 positions Max. tool diameter: 100/130 mm Max. tool length: 300 mm Max. tool weight: 8 kg Total power requirement: 80 kVA Machine weight approx.: 22 t Machine dimensions (LxWxH): 5660 x 5295 x 3930 mm CNC control: Heidenhain TNC 620 Spindle: IBAG electric spindle 24,000 rpm HSK-A63 Linear scales: Heidenhain Tool changer: 20 positions Chip conveyor – spiral: 2 pcs. Used CNC high-speed portal milling machine with extensive accessories at a special introductory price. Key manufacturers of the components used in this stock machine: · Controller and servo motors by Heidenhain, model TNC 620 · Ball screw support bearing – NSK Japan · X-axis ball screw – Hiwin Taiwan Codpfx Aehx R Dvofqohf · Y-axis ball screw – Hiwin Taiwan · Z-axis ball screw – Hiwin Taiwan · 3-axis linear guides – THK Japan or Rexroth Germany · Electric spindle unit – HSK A63 24,000 rpm by IBAG · Linear encoder – Heidenhain · Pneumatic system – SMC Japan · Lubrication – Showa Japan · Covers – Hema · Air conditioning – Kaokung Taiwan · Spindle water cooler – Taiwan-Punkt · 3-axis cable carrier – Igus Germany · Coupling – KTR Germany · Machine enclosure – Mecano Germany · Relay – Omron · Electrical system – Schneider Germany · MPG manual pulse generator – Tosoku Japan For further information on the machine, standard accessories, and special accessories, please refer to the attachment. We are of course happy to organize delivery to your premises including assembly/commissioning, handover ready for operation, and on-site training.

Stanje: rabljeno, TECHNICAL DATA - Maximum workpiece dimensions: 650 x 420 [mm] - Maximum workpiece thickness: 160 [mm] - Maximum weight: 350 [kg] - Travels (X, Y, Z): 320 x 220 x 180 [mm] - Table traverse speed: 900 [mm/min] - Wire feed speed: 0 - 10 [m/min] - Wire tension: 80 to 2500 [g] - Wire guide: Ø 0.25 [mm] - Tank capacity: 260 [l] - Dimensions: 3,200 x 2,200 x 2,000 [mm] - Weight: 1,900 [kg] Cjdpfxouhcbco Afqohf EQUIPMENT - CNC FANUC 16W control - Cooling unit - Lubrication tank with pump - Automatic wire threading

Leto izdelave: 2018, Stanje: kot nova (razstavni stroj), Mitre saw with a 600 mm saw blade diameter (optional 800 mm) - Manual mitre adjustment - Pneumatic table clamping - Pneumatic workpiece clamping (clamping cylinder height and tilt angle steplessly adjustable) - Two-hand safety control Options available: - Automatic mitre adjustment - Roller conveyor with length stop or positioning system - Sawing machine version Csdpfxjd Rhzws Afqehf - Preloading magazine - Horizontal clamping device - Extraction system - Further accessories on request We would be pleased to provide you with a tailored quotation according to your requirements. The machine can be inspected and tested in 56812.

Stanje: novo, Swing diameter 420 mm Turning length 1500 mm Swing diameter over cross slide 250 mm Swing diameter in the bed gap 590 mm Center height 210 mm Turning length in the bed gap 260 mm Spindle speed(s) 16 (45-1800) rpm Tailstock taper MK 4 Quill stroke 120 mm Quill diameter 50 mm Spindle nose DIN ISO 702-2 No. 6 Spindle bore 52 mm Spindle taper MK 6 Longitudinal feed 17 / 0.05 - 1.7 m/min Face feed 17 / 0.025 - 0.85 m/min Total power requirement 4.6 kW Machine weight approx. 1340 kg Space requirement approx. 2440 x 915 x 1375 mm Fully equipped lead and feed screw lathes. TH 4215 with digital position display DPA 21 / 3462070 - Hardened and ground Z-axis guideways - Spindle mount Camlock DIN ISO 702-2 No. 6 - Precisely machined carriage - Handwheels with adjustable fine graduation 0.04 / 0.02 mm - Four-way tool post - All guides adjustable with gib strips - Top slide adjustment range ± 90° - Guaranteed spindle nose concentricity better than 0.015 mm - Main spindle runs in oil bath - Gear wheels smooth-running, hardened and ground, mounted with 2 adjustable precision taper roller bearings - Handwheels decoupled and tested to EN 23125 - Two-channel right-left selector switch tested to EN 23125 - Switches with life cycle calculation, tested to EN ISO 13849 - All metric threads from 0.2 to 14 mm/rev and all inch threads from 72 to 2 TPI adjustable via control panel shift lever, no change gears required - Forward/reverse on carriage operable via shift spindle - Central lubrication in carriage - Machine base and bed cast as single Meehanite piece - Leadscrew cover - Emergency stop pedal - Safety handwheels with disengagement function in X and Z axes - Tailstock adjustable ± 10 mm for taper turning - Tailstock quill and handwheel with adjustable fine graduation 0.025 mm - Rapid, simple, tool-free adjustment via clamping lever - Strongly ribbed prismatic bed, induction-hardened and precision ground, made of cast iron - Coolant system with separate tank, fill level indicator, and oil separator; easy and complete draining and cleaning to DIN standard - LED machine lamp at chip guard Models TH 4210D and TH 4215D with digital position display DPA21 - User-friendly membrane keypad, splash-proof, sealed and glare-free - Glass linear scales Scope of delivery - Fixed steady rest, capacity Ø 15 - 145 mm - Travelling steady rest, capacity Ø 10 - 75 mm - LED machine lamp - Reducing sleeve MK 6 / MK 4 - Fixed center MK 4 - Change gear set - Position stop with fine adjustment Codek Egrpopfx Afqshf - Initial machine fill with quality oil - Operating tools Including special accessories: OPTIMUM 3-jaw lathe chuck, self-centering, Ø 250 mm Quick-change tool post SWH5-B set

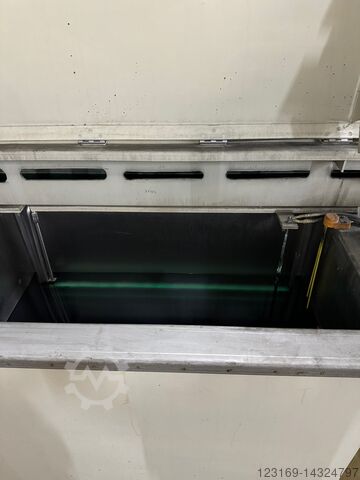

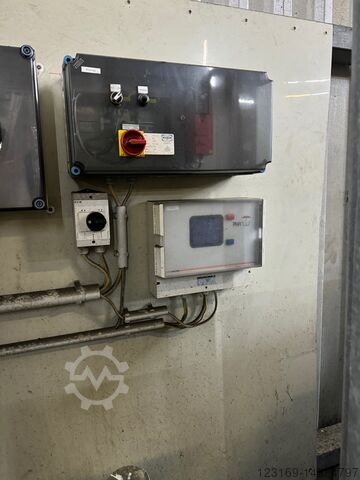

Leto izdelave: 2006, Stanje: rabljeno, Ultrasonic and Electrolytic Cleaning, Wire Cleaning Line, Wire Cleaning System, Wire Treatment System Manufacturer: Sirio-Wire Cedpfx Afof Nku Rsqjhf Model: M0209 Number of wires/strands: 12 (6+6) Wire diameter: 1.0 – 5.5 mm; however, even thicker wires have been processed on the system with very satisfactory cleaning results. Year of manufacture: 2006 The system was operated for only around three years before production was relocated to another site. Process: Ultrasonic and electrolytic cleaning in hot bath A detailed description of the process can be found on the manufacturer’s website (siriowire) under 'Ultrasonic and Electrolytic Cleaning.' The system is in good, operational condition and is complete except for the pumps. In the photos, the operator catwalk and the collection tray that the system sits in are missing; these photos will be added shortly. The last three images show systems of this type in operation.
