Polpriklopnik z nizko nakladalno ploščadjo

GVN 3GVN29 * ÜBERBREITE TAFEL*KOC*LIFT*P

GVN 3GVN29 OVERSIZE PLATFORM *KOC*LIFT*P

----VEHICLE HISTORY

* NEW VEHICLE
* VIDEO AVAILABLE ON REQUEST

VEHICLE FEATURES

TECHNICAL DATA AND EQUIPMENT SHEET – VEHICLE TYPE:

* GVN TRAILER – 3-AXLE EUROPEAN MODEL

TRADE DESIGNATION:

* 3GVN29

----WEIGHT SPECIFICATIONS

CURB WEIGHT

* 13,000 KG

WEIGHT DISTRIBUTION ACROSS AXLES

1st AXLE: 3,653 KG
2nd AXLE: 3,653 KG
3rd AXLE: 3,653 KG

ACTUAL VEHICLE WEIGHT

* 13,000 KG

TECHNICALLY PERMISSIBLE MAXIMUM GROSS WEIGHT

* 58,000 KG

TECHNICALLY PERMISSIBLE MAXIMUM AXLE LOADS

1st AXLE: 12,000 KG
2nd AXLE: 12,000 KG
3rd AXLE: 12,000 KG

TECHNICALLY PERMISSIBLE MAXIMUM MASS ON AXLE GROUPS

1st GROUP: 36,000 KG

MAXIMUM GROSS WEIGHT FOR REGISTRATION PURPOSES

* 35,500 KG

MAXIMUM AXLE LOADS FOR REGISTRATION PURPOSES

1st AXLE: 8,000 KG
2nd AXLE: 8,000 KG
3rd AXLE: 8,000 KG

MAXIMUM MASS ON AXLE GROUPS FOR REGISTRATION PURPOSES

1st GROUP: 24,000 KG

TECHNICALLY PERMISSIBLE MAXIMUM STATIC FIFTH WHEEL LOAD

* 22,000 KG

TECHNICAL MAIN DIMENSIONS (COC)

• OVERALL LENGTH: 13,050 MM
• LOADING PLATFORM LENGTH: 9,200 MM
• VEHICLE WIDTH: 2,550 MM
• OVERALL HEIGHT: 3,000 MM
• PLATFORM HEIGHT: APPROX. 910 MM
• NUMBER OF AXLES: 3
• TIRE SIZE: 235/75 R17.5
• SUSPENSION: AIR SUSPENSION
• COLOR: RAL 5011

----EQUIPMENT LIST

• EXTENDED GOOSENECK
• FIXED GOOSENECK
• STEEL FRONT WALL
• 2 REMOVABLE STEEL SIDE DOORS
• 1 REMOVABLE STEEL REAR FLAP
• FRONT STORAGE COMPARTMENT

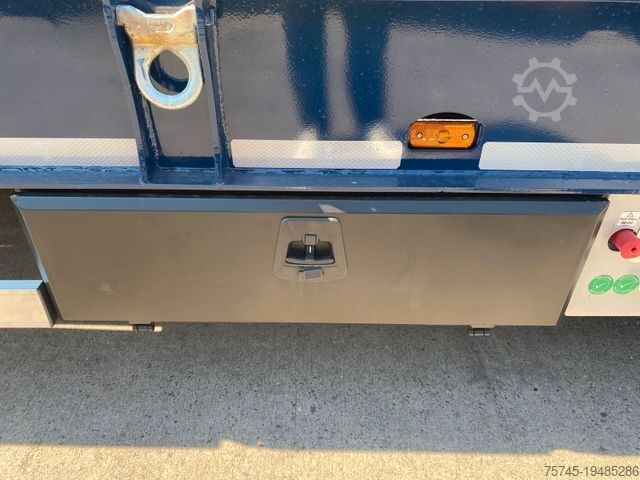

• FRONT TOOLBOX UNDER THE SWAN NECK
• LOADING AREA ON THE SWAN NECK

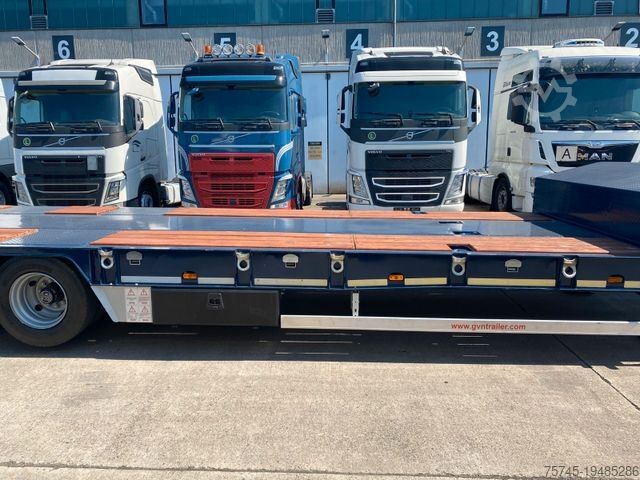

LOADING PLATFORM

Crsdpfx Aewwyxhodhsh
• HIGH-STRENGTH S355 STEEL
• PLATFORM EDGES CLAD WITH WOOD
• SURFACE COVERED WITH STEEL PLATE
• 14 SIDE EXTENSIONS OF 230 MM EACH
• 14 FORGED STEEL LASHING EYES, EACH 16 TON CAPACITY
• PULL-OUT PANEL FOR OVERSIZE LOADS
• OVERSIZE WARNING MARKERS
• OVERSIZE WARNING SIGN
• ANCHORING POINTS
• ADDITIONAL SUPPORTS
• PRESSURE GAUGE

AXLES AND SUSPENSION

• 3 AXLES
• OSMAN KOC AXLES, IDENTICAL TO BPW DESIGN
• 3rd AXLE STEERABLE
• 1st AXLE LIFTABLE
• DUAL TIRES ON ALL AXLES
• FULL AIR SUSPENSION ON ALL AXLES
• 1st AXLE LIFTABLE WITH DRUM BRAKE

BRAKING SYSTEM

• WABCO EBS SYSTEM, ELECTROPNEUMATIC, EU STANDARD
• AUTOMATIC REVERSE ALIGNMENT FOR STEERED AXLE
• DRUM BRAKES ON ALL AXLES

TIRES AND RIMS

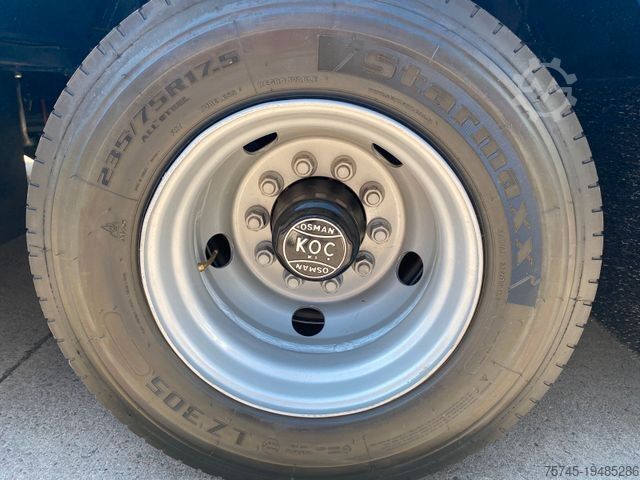

• TIRES: 235/75 R17.5

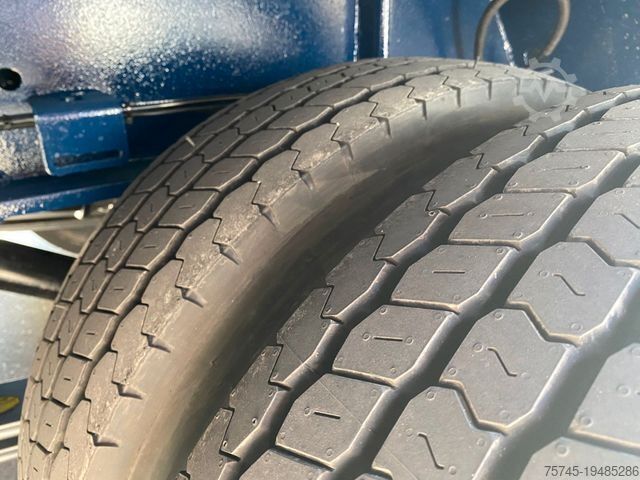

• SPARE TIRE INCLUDED
• WHEELS: 12
• MAX SPEED: 80 KM/H
• RIMS: 6.75x17.5 STEEL, SILVER-GREY
• SPARE WHEEL INCLUDED

PAINTWORK

• 2 LAYERS EPOXY PRIMER, EACH 100 MICRONS
• MINIMUM 100 MICRONS 2K ACRYLIC PAINT
• COLOR: RAL 5011

ELECTRICS AND LIGHTING

• 24 VOLT SYSTEM, EC STANDARD
• WATERPROOF, FROST-PROOF CONNECTIONS
• SIDE AND POSITION LIGHTS
• 6 THREE-FUNCTION REAR LIGHTS
• 2 REVERSING/WORK LIGHTS
• 2 INDICATORS
• 2 LICENSE PLATE LIGHTS
• 1 BEACON
• 2 TRIANGULAR REFLECTORS
• REFLECTIVE STRIPES AND E-MARKING
• TRAILER LIGHT SYSTEMS
• ROTATABLE REAR FLOODLIGHTS

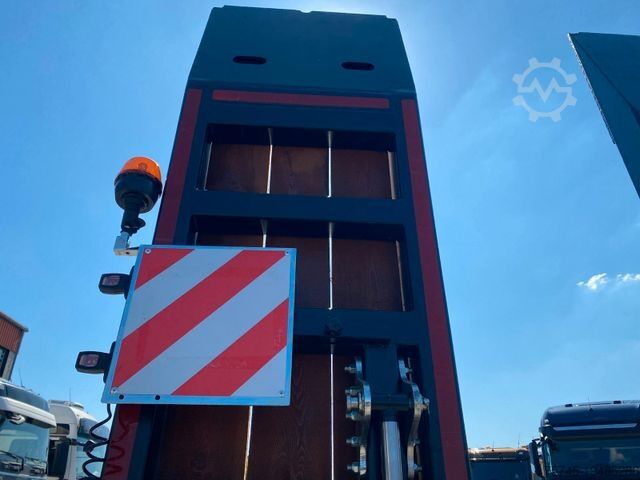

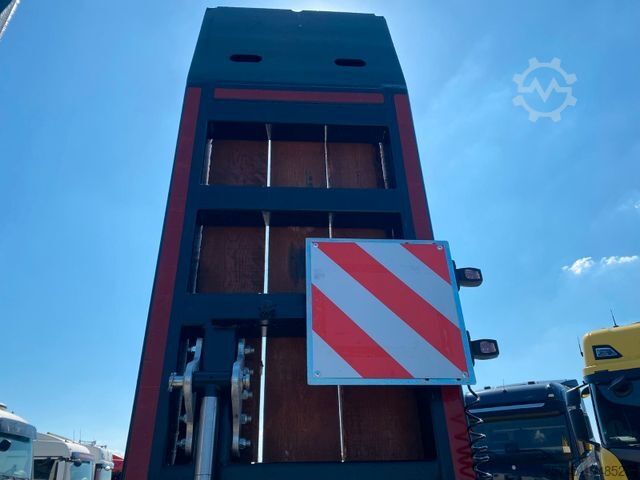

RAMPS

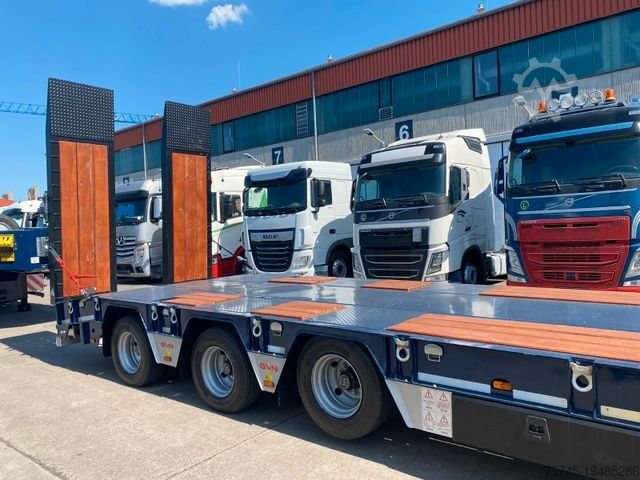

• FIXED HYDRAULIC LOADING RAMPS
• HYDRAULICALLY SLIDING LEFT/RIGHT
• SUPPORT LEGS 24 TON DYNAMIC, 50 TON STATIC (OMS)
• MANUAL RAMP SUPPORTS
• ELECTRICAL CONNECTION FOR HYD (cut)
