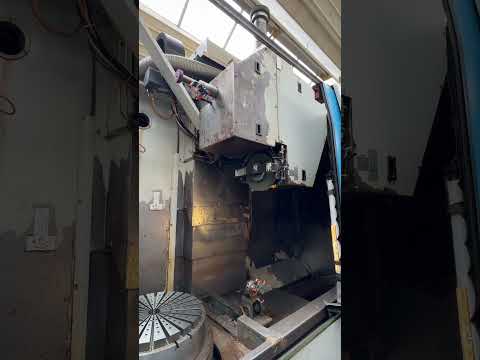

Krožna brusilna naprava - 3 vretena

KEHREN Ri 6

Stanje: pripravljen za uporabo (rabljen), Leto izdelave: 1995, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 4304, premer vrtljive mize: 600 mm, višina brušenja: 450 mm, skupna masa: 14.500 kg, Machine is equipped with 3 spindles: face grinding, external grinding, and internal (bore) grinding. Turret head on B-axis with 1° indexing. Cedpfx Ahsvt A Rtsxsgt Band filter unit included.

Stanje: rabljeno, Leto izdelave: 2000, Funkcionalnost: popolnoma funkcionalen, širina brušenja: 2.600 mm, teža obdelovanca (maks.): 35.000 kg, dolžina brušenja: 12.000 mm, razdalja med stojali: 2.800 mm, višina brušenja: 1.600 mm, Portalski brusilni stroj 12x2,6 m Znamka: GIORIA Leto: 2000 Krmilnik: Siemens 840C (dvojna upravljalna plošča z HPU) Cgedpfswql H Dsx Ahxot Miza: 12.500 x 2.600 mm Višina pomika: 1.600 mm Hidrostatistična miza, vključno z brusnim diskom itd.

Stanje: rabljeno, Leto izdelave: 1996, Funkcionalnost: popolnoma funkcionalen, potovalna razdalja osi X: 10.000 mm, pomik osi Y: 2.600 mm, pomik po osi Z: 700 mm, Hersteller: PAMA Modell: SPEEDRAM 1 CNC Baujahr: 1996 Spindeldurchmesser: 140 mm Querweg: 10.000 mm Vertikalweg: 2.600 mm Pinolenhub: 600 mm Pinolengröße: 360 x 320 mm Spindelhub: 700 mm Cgodpfewzh Apox Ahxjt Spindelaufnahme: ISO 50 Spindelmotorleistung: 50 kW Spindeldrehzahlen: 6 – 2.000 U/min Steuerung: CNC Selca 3045 Werkzeugwechsler: 60 Plätze Gesamtgewicht: 65 Tonnen Ausstattung und Zubehör Vollständig ausgestattet mit: - 1 automatische Universalfräskopf - 1 Bodenplatte 6.000 x 2.500 x 300 mm - 1 Bodenplatte 4.500 x 2.000 x 300 mm - Rundtisch 2.000 x 1.600 mm mit Längsverfahrweg 2.000 mm - Tischbelastbarkeit: 15 Tonnen - Nivellierfüße

Stanje: rabljeno, TECHNICAL DATA - Number of axes: 5 - Distance between centers: 400 mm - Usable diameter: 180 mm LINEAR AXES - Travel X1 and X2 x Z: 220 mm - Travel Z: 850 mm - Resolution X x Z: 0.0001 mm Cgsdpfx Asvxw A Uohxet TURRET: - Number of fixed positions: 12 - Tool holder: VDI30 GRINDING WHEEL HEADSTOCK - External grinding right: * Grinding wheel dimensions (Ø x width x bore): 400 x 50 x 127 mm * Drive power: 6.8 kW WORKPIECE SPINDLE STOCK - Max. spindle speed: 7,500 rpm - Synchronous speed: 1 - 5,000 rpm - Taper type: MT4 - Drive power: 10.5 kW - C-axis: 0.001° SYNCHRONIZED COUNTER SPINDLE STOCK - Max. spindle speed: 7,500 rpm - Synchronous speed: 1 - 5,000 rpm - C-axis: 0.001° - Internal taper: MT4 - Micrometric adjustment: +/- 40 micron - Drive power: 10.5 kW POWER SUPPLY - Capacity: 45 KVA DIMENSIONS - Space requirement: 2,800 x 3,960 mm - Machine weight: 7,600 kg OPERATING HOURS - Power-on hours: 57,000 h ACCESSORIES - CN FANUC 310i-modelA - StuderWIN software - RS232 / USB interface - Remote electronic handwheel - Turret head with automatic length calibration Renishaw LP2 - Marposs diameter probe (multi-range) + Z4-axis for positioning - Semi-automatic balancing of the grinding wheel MPM.3 BMT100 M.24 - Coolant tank 480 L * with paper filter * with magnetic filter - Chip conveyor - Mist extraction - Cooling unit for grinding wheel motor - Electronic contact detection Dittel AE6000 - Stationary dressing device on the workpiece spindle stock - Control cabinet air conditioning - Balancing shaft - Interface for automatic loading system

Stanje: zelo dobro (rabljeno), Leto izdelave: 2011, TECHNICAL DATA Linear Axes (Slides X, Y, Z) Travel distances: X axis: 250 mm Y axis: 200 mm Z axis: 300 mm Rapid traverse (X, Y, Z): 30 m/min Feed force (X, Y, Z): 3,700 N Resolution (X, Y, Z): 0.0001 mm Rotary Motion of Motor Spindle – B Axis Angular travel: -15° to +100° Angular travel (with tailstock): Tailstock in position: -20° to +45° Tailstock removed: -20° to +90° Max. speed: 20 rpm Drive torque: 750 Nm Hydraulic clamping: 50 bar Holding torque: 300 Nm Resolution: 0.0001 mm Milling Motor Spindle HSK E40 Continuous power (100% ED): 10 kW Cgodjwv Hnmepfx Ahxet Power at 25% ED: 15 kW Rated torque (100%): 8 Nm Rated torque (25%): 12 Nm Speed range: 50 – 30,000 rpm A Axis (Bar capacity Ø 40 mm) Spindle type: A4 Max. bar diameter: 40 mm Max. spindle speed: 35 rpm Drive torque: Nominal: 112 Nm Maximum: 238 Nm Resolution: 0.0001° Axis clamping (A axis) pressure: 70 bar Holding torque: 130 Nm Tool Changer Number of discs: 2 Positions per disc: 24 Max. tool weight: 1 kg Disc rotation speed: 60 rpm Max. tool diameter (adjacent positions filled): 50 mm Max. tool diameter (adjacent positions free): 63 mm Max. tool length (from spindle nose): 95 mm Pick-off Slide Travel: 80 mm Feed force: 1,700 N Tilting torque: 90 Nm Resolution: 0.0001° Hydraulic pressure for tilting: 100 bar Workpiece Manipulator Pneumatic vertical sliding shutter: Ø: 25 mm Stroke: 710 mm Linear travel per motor revolution: 70.4 mm/rev Max. transfer speed: 60 m/min Max. workpiece weight: 5 kg Max. manipulator stroke: 1,120 mm (2×560 mm) Max. vertical stroke: 150 mm Part pick-up Ø / length: Ø 32 mm / 100 mm Part ejection Ø / length: Ø 32 mm / 100 mm Accuracy: +/- 0.05 mm Grip force: 45 N (at 6 bar) Max. gripper opening: 14 mm (2×7 mm) Pneumatic equipment Operating pressure: 6 bar Hydraulic system Operating pressure: 95 – 105 bar Coolant system Coolant tank volume: 80 litres Chip tray volume: 30 litres Operating kinematic viscosity: 10 – 15 cSt SCOPE OF DELIVERY Including (not an exhaustive list): Willemin Macodel W 408 B machining centre Extraction/filtration unit Fire extinguishing system Probe Coolant system Oil chiller Data backup Complete operation documentation Exact scope of delivery as per photo series No guarantee is given for the correctness, completeness, or currency of the information provided.

Stanje: rabljeno, Leto izdelave: 1998, Technical details: Grinding diameter: 250 mm Grinding length: 2710 mm Module - max.: Module - min.: Total power requirement: 45 kW Machine weight approx.: 15 t Csdpfx Ajudf E Aohxogt Required space (L x W x H): 7.1 x 4.7 x 2.7 m Max. wheel diameter: 450 mm Spindle drives: ARENA Siemens For worm grinding, module is not applicable; instead, pitch is used. The pitch is freely programmable from 0.001 up to large values, e.g. 500 mm.

Stanje: rabljeno, Leto izdelave: 2006, Polni premer vrtanja / mm Globina vrtanja / mm Število vreten / Froriep CNC stroj za globoko vrtanje – strokovnjak za predhodno obdelavo Leto izdelave: 2006 Krmiljenje: Siemens Sinumerik 840D Csdpfx Aexgu R Ijhxegt Maks. globina vrtanja: 8.850 mm Premer obdelovanca: 150 – 900 mm Območje vrtljajev: 1 – 300 min⁻¹ Pomik: 0,5 – 4.500 mm/min Pogon: 129 kW Premer obhoda nad posteljo: 1.000 mm Vpenjalni premer čelne plošče: 900 mm Teža: ca. 47.000 kg Idealno za natančno predvrtanje globokih lukenj – vključno s čelno ploščo in luneto

Stanje: dober (rabljeno), Leto izdelave: 2009, obratovalne ure: 22.100 h, Funkcionalnost: popolnoma funkcionalen, HECKERT HEC 1250 ATHLETIC PINOLE For sale is a Heckert HEC 1250 Athletic Pinole horizontal machining center, year of manufacture 2009, coming from ongoing industrial use. The machine is in exceptionally well-maintained condition and fully operational. It has been consistently serviced as part of a comprehensive preventive maintenance program over the years. Documented maintenance was carried out in 2012, 2014, 2016, 2017, 2018, and 2019. Documented inspections were performed in 2021, 2022, and 2023. In 2025, the ZP-KGT was renewed. The machine has approximately 50,100 operating hours. The machine is equipped with a Siemens SINUMERIK 840D Solutionline control and is ideally suited for machining large and heavy prismatic workpieces. The combination of NC rotary table, quill support, SK50 interface, and large tool magazine makes this system particularly suitable for multi-sided machining, heavy-duty cutting, and complex machining tasks with minimal setups. Technical Data Manufacturer: Starrag Heckert Model: HEC 1250 Athletic Pinole Year of manufacture: 2009 Machine type: Horizontal machining center Control: Siemens SINUMERIK 840D Solutionline Potential total number of axes (per documentation): 5 X-axis travel: 2,200 mm Y-axis travel: 1,500 mm Z-axis travel: approx. 1,850 mm Tool holder: DIN 69871 SK50 Tool magazine: 280 stations Max. tool length: 450 mm Max. tool diameter: 250 mm Max. tool weight: 35 kg Measuring probe: Renishaw MP10 Pallet system: 2-pallet system Pallet size: 1,000 x 1,250 mm Additional pallets (per documentation): 4 pallets with threaded holes / T-slots Power supply: TN-C, 3/PEN AC 400 V Rated current: 250 A Connected load: 130 kW Compressed air: 6 bar Operating hours: approx. 50,100 h Features Cgsdpfxex Syhrj Ahxot Quill support NC rotary table 280-position tool magazine Renishaw measuring probe MP10 Oil sump Platform Coolant system Chip extractor Documentation / operator manuals available Maintenance and History Documented maintenance: 2012, 2014, 2016, 2017, 2018, 2019 Documented inspections: 2021, 2022, 2023 2025: ZP-KGT replaced Availability Machine located in Augsburg Disassembly possible from 31 March 2026 Collection by 29 May 2026 Inspection by appointment Scope of Delivery Machine as described No tools included No additional spare parts included

Stanje: zelo dobro (rabljeno), Leto izdelave: 1983, Funkcionalnost: popolnoma funkcionalen, Prodajamo ta stružnica. Stroj je opremljen z lunetami, dodatna rezkalna naprava Dolžina struženja: 8000 mm Premer nad ležiščem: Ø 2020 mm Premer nad prečnim suportom: Ø 1600 mm Vrtina vretena: 120 mm Obrati / območja: 180 obr/min Csdpfxjx Auwgo Ahxsgt Moč vretena: 80 kW Vreteno konjička: Ø 400 mm Hod vretena: 250 mm Dimenzije: Dolžina: 15360 mm Širina: 3520 mm Višina: 2600 mm Teža: 78000 kg Stroj bo iz proizvodnje sproščen konec januarja 2026.

Stanje: rabljeno, Razdalja med konicami: 2.500 mm Višina konice: 250 mm Premer brusnega koluta: 600 mm Skupni pomik brusne podpore: 320 mm Število obratov vretena obdelovanca: 50 - 450 obr/min Vpenjanje: MK5 Konica konjička: MK Cilindrični brusilni stroj | NAXOS-UNION - W-500 Cilindrični brusilni stroj je bil leta 2017 popolnoma obnovljen (RETROFIT) pri KPS-Schleiftechnik (glej potrdilo naročila). Stroj je dobro vzdrževan. Cjdpfx Ahox Avtcexegt Za dodatne tehnične informacije glejte ponudbo.
