Tračne žage - vodoravno

Karmetal KMT Craft 250 x 310

Stanje: novo, Ostas Hydraulic Profile Ring Bending Machine OPK 45 - 3 Special equipment included in the price: - 3 driven rollers - Digital display - Includes standard roller set for steel Description: Hydraulic/Motorized Ring Bending Machine Designed for both horizontal and vertical operation with 3 driven rollers All 3 rollers powered by motors Top roller adjustment is hydraulic Rollers are hardened Left/right operation via foot pedal Gtedpfx Afog Tzbwjqjt Spindle diameter: 50 mm Roller diameter (top): 158 mm Roller diameter (bottom): 158 mm Speed: 4.5 m/min Motor power: 0.75 + 1.5 kW Electrical connection: 400 V Complies with CE standards Weight: 420 kg

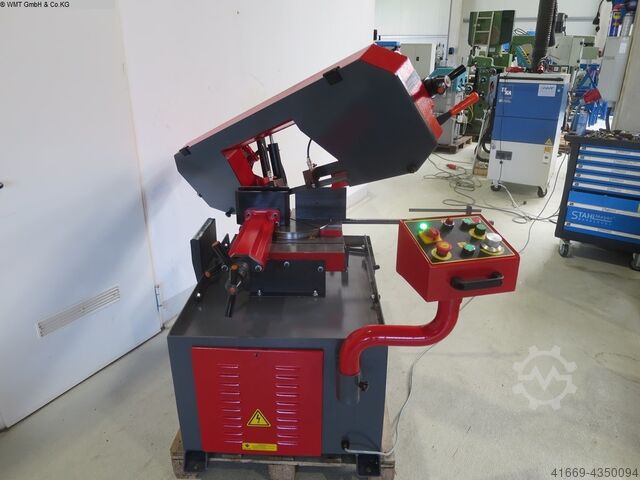

Stanje: novo, Cutting capacity at 90 degrees: round 305 mm Cutting capacity at 90 degrees: square 260 mm Cutting capacity at 90 degrees: rectangle 350 x 200 mm Saw blade length: 3375 x 27 x 0.9 mm Blade speed: 37 + 74 m/min Table height: 940 mm Gtedpfofd Abaox Afqot Total power requirement: 1.5/1.8 kW Machine weight: approx. 0.61 t Required space: approx. 1.5 x 1.75 x 1.9 m Double miter metal band saw with AutoCut function - Miter cuts up to 60° left and 45° right - Ball-bearing rotary table - Vise laterally adjustable - Solid, large material support - Automatic cooling Illustration shows semi-automatic version.

Stanje: novo, Leto izdelave: 2025, Delovno območje: 6100 mm × 1524 mm / 4000 mm × 1524 mm / 3048 mm × 1524 mm Izhodna moč laserja: 3000 W / 2000 W / 1500 W / 1000 W Natančnost pozicioniranja: ±0,05 mm Ponovna natančnost pozicioniranja: ±0,03 mm Gtodeg Eglpspfx Afqst Maksimalna usklajena hitrost: 91 m/min Maksimalno pospeševanje: 1G 1. Raztegnjen aluminijast nosilec Letalsko-kakovosten material z izboljšano togostjo bistveno zmanjšuje deformacije nosilca pri visokih hitrostih ter povečuje občutljivost in učinkovitost obdelave pri visokih hitrostih. 2. Posteljna konstrukcija z ugreznjenimi spojkami (Tenon-and-mortise) Uporablja tradicionalno kitajsko spojno tehniko "tenon and mortise" za večjo nosilnost. Priključne točke za varjenje in nosilna konstrukcija zagotavljajo dolgoletno stabilnost delovanja. Varjena konstrukcija prispeva k boljši absorpciji vibracij, zmanjša odklone ob tresljajih ter omogoča natančnejše rezanje. 3. Dvojni avtomatski centrirni električni vpenjalniki Dvojna električna vpenjalnika z avtomatsko centrirno funkcijo sta enostavna za uporabo in zahtevata minimalno vzdrževanje. Nov motor omogoča natančen nadzor. Modularne komponente vpenjalnika so samostojno razvite ter jih je mogoče hitro zamenjati. 4. Avtomatska funkcija ostrenja laserske glave Z nastavitvijo perforacijske in rezalne žariščne razdalje posebej je rezanje natančnejše. Primerna za različne žariščne razdalje – položaj žarišča se samodejno prilagodi glede na debelino posameznih pločevin. 5. Funkcija alarma pri nizkem tlaku plina Sproten nadzor tlaka plina in javljanje nepravilnosti zagotavljata kakovost in natančnost reza ter pravočasno opozorita upravljavca na potrebo po zamenjavi plina.

Stanje: zelo dobro (rabljeno), Leto izdelave: 2008, Control: Siemens 840-D Travel X: 1450 mm (longitudinal) Travel Y: 1100 mm (vertical) Travel Z: 1300 mm Pallet size: 800 x 1000 mm Table load capacity: 2000 kg NC rotary table with direct drive Positioning accuracy: 0.001° Max. rotary table speed: 60 rpm Rapid traverse: 60 m/min Spindle motor: 50 kW (25%) / 28 kW (100%) Spindle torque: 1210 Nm / 680 Nm Spindle speed: 6000 rpm Spindle taper: HSK 100 Tool changer: 80 positions Max. tool diameter: 325 mm Max. tool length: 800 mm Max. tool weight: 35 kg Workpiece diameter: 1600 mm Workpiece height: 1400 mm Workpiece weight: 2000 kg Coolant through spindle Gjdsvgxfyepfx Afqott Coolant shower Tool breakage detection in tool changer Spindle motor load monitoring Spindle extension by 100 mm Electronic handwheel The machine is supplied with many tools.

Stanje: kot nova (razstavni stroj), Leto izdelave: 2017, obratovalne ure: 132 h, Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: 20731, potovalna razdalja osi X: 500 mm, pomik osi Y: 350 mm, pomik po osi Z: 300 mm, hitro pomikanje X-os: 90 m/min, hitri pomik os Y: 90 m/min, hitri pomik na osi Z: 90 m/min, nazivna (navidezna) moč: 35 kVA, proizvajalec krmilnikov: Fanuc 31I, največja hitrost vretena: 42.000 obr/min, delovne ure vretena: 132 h, dovod hladilne tekočine: 20 letvica, moč vretenovega motorja: 15 W, nos vretena: HSK E40, vhodna napetost: 415 V, vrsta vhodnega toka: trifazni, Oprema: dokumentacija / priročnik, vrtilna hitrost brezstopenjsko nastavljiva, Die Maschine befindet sich in einwandfreiem Zustand. Die Bearbeitungsgenauigkeit beträgt +/- 0,0015 mm (gemessen mit Zeiss Micura). Die Maschine ist ausgestattet mit Renishaw OMP400 und BLUM Pico zur Werkstück- und Werkzeugvermessung. Wiederholgenauigkeit beträgt +/- 0,001 mm. Gedpfx Afjvcfi Doqott High Speed und High Accuracy Option auf Fanuc verfügbar. Eine Besichtigung der Maschine unter Strom ist möglich.

Stanje: novo, OPTIMUM OPTIsaw S275N Metal Bandsaw - Display Model - Infinitely adjustable feed, swiveling ----- Technical Specifications ----- Swivel Range: 0 - 60°, Cutting Height: 150 mm, Cutting Depth: 230 mm, Blade Speed: 45 / 90 m/min, Blade Length: 2,480 mm, Gtsdpfxju R S Hpe Afqst Motor (400 V): 1.1 kW, Dimensions (LxWxH): 1,400 x 530 x 1,360 mm, Weight: 185 kg - new display machine -

Stanje: novo, Electric voltage: 400 V Frequency: 50 Hz Number of phases: 3 Gedod R Uz Tspfx Afqett Weight: 486 kg Blade dimensions: 2700 x 27 x 0.9 mm

Stanje: novo, Leto izdelave: 2022, Power: 1.1 kW Gsdjgulr Hopfx Afqjtt Drilling capacity steel / continuous drilling capacity: 30 mm / 25 mm diameter Speed range: 120 - 1810 rpm Speed steps: 9 Spindle taper: MT-4 Drilling stroke: 120 mm Spindle reach: 254 mm Table size: 475 mm x 425 mm Drill table tilt/swivel: 45° left / 360° Column diameter: 80 mm Quick-action chuck: 1 - 16 mm Weight: 132 kg

Stanje: novo, Load capacity: 500 kg Outreach: 4000 mm Height: 3425 mm (underside of jib) Total column height: 4215 mm Slewing range: 270 degrees Total weight: approx. 550 kg Description: - Power supply to the trolley - Festoon cable system, cable sag approx. 800 mm - Floor operation via pendant control Including: - ABUS electric chain hoist - Chain hoist type GM 2 500.4-2, 2-fall Gtodpfx Afjxak H Eeqet - Painted in RAL 5017 traffic blue - Load capacity: 500 kg - Hook travel: 3000 mm - Maximum hook position: 2965 mm - Calculated according to FEM 9.901 - Mechanism group 2m / M5 - Lifting, 2-speed (pole-changing), 1 / 4 m/min - Lifting motor power: 0.09 / 0.35 kW - Duty cycle: 60% ED - Switching cycles: 360 c/h Overload protection The crane system meets the requirements of the Machinery Directive 2006/42/EC and the currently applicable accident prevention regulations DGUV Regulation 52 (formerly BGV D6). Including: - Anchor rod set L200 (type LS 200) - Consists of 8 pcs. M27 mm x 800 mm with 1 steel template (500/8) - For foundation fixing, including grouting accessories To align the slewing crane, an installation gap between the column base and the building floor must be provided. The installation gap is to be grouted by the customer after approx. 4 weeks of crane operation. Image shows a similar crane system.

Stanje: dober (rabljeno), HURON MU4 Milling Machine Table size: 1450 x 460 mm Number of T-slots: 5 (16 mm each) Godeu Hifzjpfx Afqett Longitudinal travel: 1300 mm Cross travel: 700 mm Vertical travel: 500 mm Spindle taper: ISO 40 Spindle speeds: 27 (30 to 2,066 rpm) Rapid traverse: 2,800 mm/min Maximum load capacity: 1,500 kg Maximum clearance under head: 530 mm Spindle motor: 8.8 kW Feed motor: 3.5 HP Coolant pump motor: 1.6 HP Overall dimensions (L x W x H): 2,000 x 2,000 mm Approximate weight: 4 tons
