STROJ ZA LEPLJENJE TRAKOV

Hima BA 30

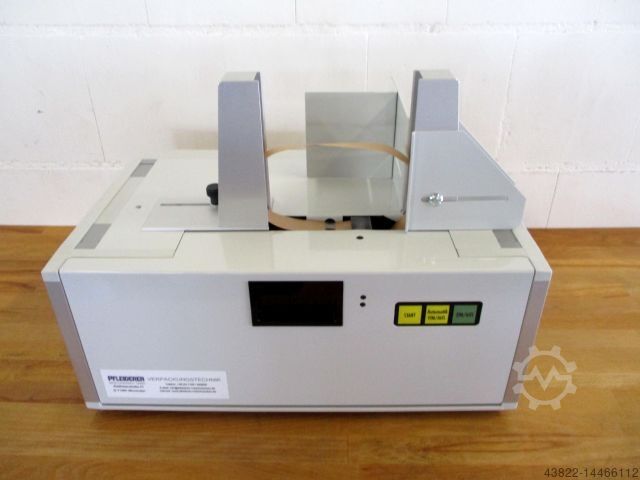

Stanje: rabljeno, Leto izdelave: 2004, številka stroja/vozila: 15005225, Automatic Banding Machine HIMA BA 30/800 Year of Manufacture: 10/2004 - Serial No. 15005.225 Suitable for coated kraft paper or plastic film Technical specifications: - Output: up to 23 cycles per minute - Width of banded product: 30 - 310 mm - Stack height: 3 - 200 mm - Band width: 30 mm Iodpsn Aw Ucsfx Ag Aetp Triggering of cycle: – Manual / Start button – Foot actuator – Automatic mode button Online video inspection possible via Skype We would be pleased to welcome your visit – more machines available in stock Available immediately – Inspection possible Located in Emskirchen / Nuremberg – Testing possible on site

Stanje: rabljeno, Leto izdelave: 2015, Laminiermaschine / Laminator GMP Eurolam IDH 540III, Baujahr 2015 – Serien-Nr. CJ00340K Itodoq Sbp Ropfx Ag Aep Max. Bogengröße: 540 x 740 mm Max. Arbeitsgeschwindigkeit: 30 m/min Papierstärke: 120–350 g/㎡ Durchmesser Vorderwalze: oben 163 mm / unten 150 mm Durchmesser Hinterwalze: [bitte ergänzen] Max. Laminier-Temperatur: 150 °C Leistungsaufnahme: 12 kW Die Maschine ist mit Induktionsheizung, pneumatischem Walzen-Andruck sowie professioneller PID-Temperaturregelung ausgestattet. Online-Videoinspektion per Skype möglich. Wir freuen uns auf Ihren Besuch – zahlreiche weitere Maschinen auf Lager! Sofort verfügbar – Besichtigung möglich Lagerort: Emskirchen / Nürnberg – Vorführung nach Terminvereinbarung möglich

Stanje: rabljeno, Leto izdelave: 1983, Color units 1 Max. sheet printing speed: 5,500 sheets/hour Max. sheet size: 26 x 38 cm Machine no. 194,443 Ijdpfevfxktex Ag Ajtp

Stanje: delavnici obnovljeno (rabljeno), Modernized machine with new LTG-StoreControl P control system 3 identical vertical carousels available External dimensions: Total height: 6,500 mm Total width: 3,670 mm Total depth: 1,560 mm 46 carriers, each with a payload of 305 kg Clear usable dimensions per carrier: Height: 210 mm Width: 3,050 mm Depth: 520 mm Chain pitch: 254 mm Additionally included: 46 intermediate shelves to halve the usable height Total payload up to 14,200 kg Retractable shelf positioned 1,000 mm above finished floor level, with stainless steel worktop Color: GREY / DARK GREY, surfaces cleaned, signs of use possible Drive motor power: 1 x 5.5 kW / 400 volts Subject to errors, technical changes, and detail deviations from the photos Delivery and installation currently mainly in Germany, Austria, and several neighboring countries Iedpfx Agsrw A Eio Aetp

Stanje: zelo dobro (rabljeno), Leto izdelave: 2006, MACHINE CONFIGURATION BST D+ Collating Tower BST D Collating Tower SBM Booklet Maker Unit (AGR T Stitcher, PA T Folder, TR T Trimmer) Stacker BST D+ Collating Tower The collating tower is a highly versatile device for gathering various types of paper in a wide range of formats. Sheet feeding is performed using suction belts instead of rollers, which eliminates the risk of marking the paper. Suction and air blast strength can be adjusted without interrupting machine operation. The machine is operated via a touchscreen panel. Technical data: Format range: min. 115 x 200 mm max. 350 x 520 mm Speed range: 9,000 cycles/hour (10 sheets of 80 g/m² A4 fed to the jogger) 5,500 cycles/hour – collating to the stacker Paper weight: 50 – 250 g Pile height: up to 5 cm Machine dimensions: main tower: 93 x 73 x 200 cm (length x width x height) extension tower: 91 x 73 x 200 cm Weight: 360 kg The SBM 4 unit is of modular design and consists of the following components: AGR T Stitcher two Hohner stitching heads quick head position adjustment block or saddle stitching standard staples caster wheels for easy mobility in-line or standalone operation Technical data: Format range: min. 117 x 200 mm max. 320 x 450 mm (block stitching) 320 x 500 mm (saddle stitching) Paper weight: 60-250 g Maximum stitch thickness: 6.35 mm Output: 3,000 sets per hour Dimensions: 55 cm x 60 cm x 110 cm Weight: 114 kg PA T Folder automatic synchronization with the tower and stitcher's speeds inline or offline operation with AGR T stitcher Technical data: Format range: min. 117 x 200 mm max. 320 x 500 mm Maximum folded material: 22 sheets 80g Output: 3,000 sets per hour Dimensions: 60 cm x 60 cm x 73 cm Itjdpfxjrq Havo Ag Ajp Weight: 134 kg TR T Trimmer automatic synchronization with tower, stitcher, and folder speeds waste bin for trimmings Technical data: Booklet trimming range: min. 117 x 100 mm, max. 320 x 250 mm Paper weight: 60-250 g Maximum trimming capacity: 44 sheets of 80g Output: 3,000 sets per hour Dimensions: 150 cm x 60 cm x 82 cm Weight: 170 kg SBM Equipment Counter for finished sets. Error set ejection function without interrupting operation. Cutting system using two self-sharpening knives with exceptional durability. Reinforced 4-roller folding system. Possibility to adjust settings without stopping production.

Stanje: pripravljen za uporabo (rabljen), Funkcionalnost: popolnoma funkcionalen, številka stroja/vozila: F-500, delovna širina: 530 mm, vrsta vhodnega toka: Klimatska naprava, vhodna napetost: 400 V, skupna masa: 200 kg, potrebna višina: 1.070 mm, zahteva za prostor dolžina: 1.100 mm, potrebna širina: 710 mm, vhodni tok: 15 A, leto zadnje generalne obnove: 2024, vhodna frekvenca: 50 Hz, lastna masa: 200 kg, dolžina rezanja (maks.): 530 mm, širina izdelka (min.): 530 mm, Električna prebijalna stiskalnica z največjo prebijalno širino 530 mm. Iodjrzuf Dopfx Ag Astp Komplet vsebuje prebijalna orodja 3:1 za šivanje knjig. Na voljo so tudi druge specifikacije prebijanja, kot so 2:1 in spiralne vezi (po povpraševanju). Največja debelina prebijanja na en udarec: 2,5 mm. Maksimalna zmogljivost: do 1.000 prebijanj na uro, odvisno od uporabljenih materialov in spretnosti operaterja. Napajanje: 400 V, 3-fazno, 50/60 Hz Dimenzije: višina 1070 x globina 710 x dolžina 1100 mm Teža: 195 kg neto

Stanje: dober (rabljeno), Funkcionalnost: popolnoma funkcionalen, Leto izdelave: 2007, številka stroja/vozila: 101070, ATS US 2000 AB Banderolirni stroj Stroj za banderoliranje občutljivih izdelkov, banderolira do formata A3 (420 mm) - Velikost loka: Š 360 mm x V 260 mm - Širina traku: 20 mm - Papirnate in folijske banderole - Ultrazvočno varjenje brez vonja za folijo in papir - Loka sistem (brez sesedanja banderole zanke) - Avtomatski zagon s senzorjem ali nožnim stikalom - Zmogljivost: do 35 ciklov/min - Letnik izdelave: 2007 - Napajanje: 230 V s Schuko vtičem - Navodila / seznam rezervnih delov - 1 paleta belega folijskega materiala z 18 kartoni po 15 kolutov je del ponudbe (Cena na kolut: 10,65 EUR + DDV) Ijdpfjuy Skaex Ag Aotp

Stanje: zelo dobro (rabljeno), SIMPLACUTTER (CAUHE) – 1080x770 Machine with low usage, in very good condition Itedpfxjt Twqwj Ag Aep Equipment: – Pneumatic clutch and brake – One quick-change die mounting frame + two additional frames – 3 operating modes: single, continuous, and delayed opening – Central lubrication system – Additional safety guards – Working tools – Hard table plate + extra plate

Stanje: dober (rabljeno), Leto izdelave: 2011, Bandall BA 24 / 15-50 Bandiermaschine Eine der weltweit bekanntesten Banderoliermaschinen und Marktführer in ihrem Segment. Das Gerät kann sowohl im manuellen als auch im automatischen Modus betrieben werden. Produktionsausführung, ausgelegt für hohe Belastungen. Die Maschine ist auf einem eigenständigen Gestell mit Transportrollen montiert. Verarbeitung von Jumbo-Rollen möglich. Itodpotk Ikdofx Ag Aop Nach dem Einlegen des Materials wird dieses von der Maschine umwickelt, gespannt und verschlossen, sodass ein optisch ansprechendes Paket entsteht. Ideal zum Bündeln von Visitenkarten, Flyern u.ä. Steuerung erfolgt über ein LCD-Bedienfeld. Hersteller: Bandall Modell: BA 24 / 15-50 Baujahr: 2011 Leistung: 36 Takte/min Bandbreite: 50 mm Max. Produktabmessungen (BxH): 320 x 155 mm Maschinenabmessungen (LxBxH): 1.000 x 600 x 1.500 mm Maschinengewicht: 100 kg.

Stanje: zelo dobro (rabljeno), številka stroja/vozila: 894126H, Condition: Very good condition // completely overhauled – new heating system Itsdpfx Aerigyzeg Aop Additional MACHINES / SPARE PARTS & MACHINE COMPONENTS of this type are available in our warehouse. ON REQUEST
