Brusilnik s širokim pasom
HESSEMANN MFA IMPRESSION

Name: HESSEMANN MFA IMPRESSION
Brand: HESSEMANN
Price: 46500 EUR
Availability: InStock

EXW Stalna cena brez DDV

46.500 €

Leto izdelave

2017

Stanje

Rabljeno

Lokacija

Wysoka

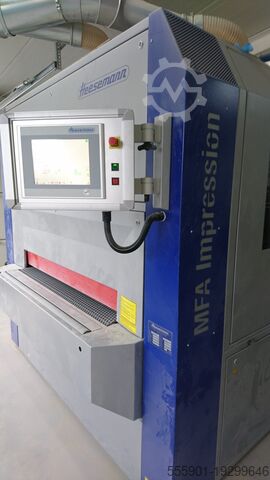

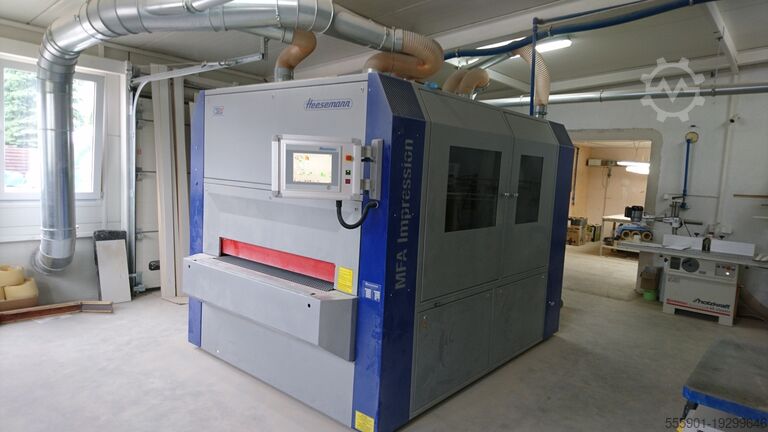

Brusilnik s širokim pasom HESSEMANN MFA IMPRESSION

Prikaži karto

Podatki o stroju

Opis stroja:: Brusilnik s širokim pasom

Proizvajalec:: HESSEMANN

Model:: MFA IMPRESSION

Leto izdelave:: 2017

Stanje:: zelo dobro (rabljeno)

Funkcionalnost:: popolnoma funkcionalen

Cena in lokacija

EXW Stalna cena brez DDV

46.500 €

Lokacija:: Plac Powstańców Wielkopolskich 8/1, 89-320 Wysoka, Polska

Klic

Podrobnosti ponudbe

ID ponudbe:: A19299646

Nazadnje posodobljeno:: dne 04.06.2025

Opis

Wir bieten zum Verkauf eine HESSEMANN MFA IMPRESSION Multifunktions-Schleifmaschine für Flachflächen an. Die Maschine wurde 2017 für den Eigenbedarf angeschafft und verfügt über einen äußerst niedrigen Betriebsstundenzähler – es wurden nur 100-150 m² pro Monat geschliffen. Hier handelt es sich um eine umfassende Lösung für präzises Quer-, Rotations- und Längsschleifen, die höchste Oberflächenqualität garantiert.

Hauptmerkmale und Vorteile:
- Arbeitsbreite: 1.350 mm
- Schleifvielfalt: Die Kombination aus Quer-, Rotations- (RUT-Bürsteneinheit) und Längseinheiten ermöglicht verschiedene Schleifeffekte.
- Präzise CSD®-Steuerung (10 Jahre Garantie): 2 Druckbalken mit computergesteuerter, selektiver Druckeinstellung. Kein Überschleifen der Kanten, konstanter Druck, Ausgleich von Werkstücktoleranzen bis zu 2 mm. Das elektromagnetische System ist wartungsfrei.
- Fortschrittliche Automatisierung: Industrie-PC 10,4" LCD-TFT (mit Touchscreen, Windows Embedded Standard), Speicher für 100 Programme. Automatische Einstellung der Schleifparameter (Motordrehzahlen, Start/Stopp, Schleifintensität, Anpressdruck).
- Hohe Effizienz: Vorschubgeschwindigkeit einstellbar von 3-15 m/min.
- Sicherheit und Zuverlässigkeit: Schleifband-Abblasvorrichtung, Reinigung des Transportbands.
- Integrierte Lösungen: Druckrolle am Einlauf für dünne Werkstücke, Hohlwalzen zur Führung kleiner Elemente, Ionisationsleiste, Werkstück-Abblasvorrichtung.

Maschinenaufbau:
- Gehäuse: Maschinenrahmen mit Endlostisch (Transportband mit ½ Zoll Diamantprofil, Bandreinigung). Konstante Arbeitshöhe 880 mm. Oberteil der Maschine mechanisch an die Werkstückdicke (3-160 mm) verstellbar.
- Steuerung: Integrierter Schaltschrank, Industrie-PC 10,4" TFT-Farbdisplay (800x600), CF-Karte 1 GB, Windows Embedded Standard, Touchscreen, Produktions- und Stillstandsindikator, Intranet-Anschluss, Speicherkapazität für 100 Programme.
- Andruckrolle: Ø 100 mm, federbelastet und verstellbar.
- Hohlwalzen: 2 angetriebene Walzen (Einlauf und Auslauf) zur Führung kleiner Werkstücke.

Queraggregat (1 Stück):
- Bandabmessung: 5.400 x 150 mm
- Bandgeschwindigkeit: 2,0–20 m/s (frequenzgeregelt)
- Antriebsleistung: 15 kW
- Band-Abblasung, verschleißfreie Bremseinheit, „Tür-in-Tür“-Version

R-U-T-Bürsteneinheit (1 Stück):
- Bürstenscheiben mit rotierender queroribtaler Bewegung
- Kollektivantrieb für bis zu 19 Bürstenscheiben (7,5 kW mit Frequenzumrichter)
- Bürstenlauf in beide Richtungen, zentrale Höhenverstellung, Schnellwechselsystem für Bürstenscheiben
- Bürstentyp: Flex Trim, Ø 180 mm, Drehzahl: 5–25 m/min (1,5 kW mit Umrichter)

Längseinheit (1 Stück):
Ksdewp Ul Tspfx Abbewt
- Bandabmessung: 2.620 x 1.400 mm
- Bandgeschwindigkeit: 1,8–18 m/s (frequenzgesteuert)
- Antriebsleistung: 15 kW
- Bandabblasung (doppelte Düsenanzahl), verschleißfreie Bremseinheit, automatische Ausgleichung möglicher Bandlängenunterschiede, Band gegenläufig
- Exzentrische Position der Frontführungswalze für leichte Kalibrierungsarbeiten

Bürstenwellenaggregat (1 Stück):
- Bürstentyp: Faser, Ø 120 mm
- Antriebsleistung: 0,75 kW

Vakuumtisch: Sicherer Transport von Werkstücken

Oglas je bil preveden samodejno, zaradi česar je morda prišlo do napak pri prevodu.
